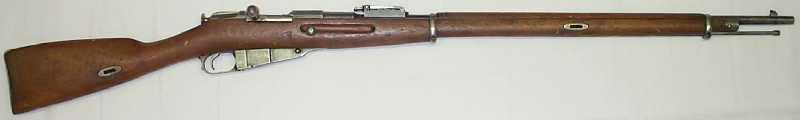

Russian 1915 Tula M91

Russian 1915 Tula M91
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction


Barrel length	Pattern	Twist rate	Bore diameter	Groove diameter	Bore condition	Weight	Sight height above bore
31 1/2"	4 groove	1 in 9.5"	.302"	.312"	worn, some pitting	9.38 lbs.	.630"

Click on the data link for each type of ammo to access pictures, more physical and ballistic data, and ballistic graphs for this firearm and others. Click on the column headers to resort the table by the data in that column. The sort order can be reversed by clicking on the column title a second time Please be patient while the page reloads after sorting. Return to the original order by sorting the Reference Number column.
Ref. #	Country	Ammo	Bullet			Muzzle Velocity (Feet per Second)					Muzzle Energy Foot Lbs.	Recoil
Ref. #	Country	Ammo	Weight Grains	Ballistic Coefficient	Sectional Density	Low	High	Avg.	Extreme Spread	Standard Deviation	Muzzle Energy Foot Lbs.	Velocity Feet/Second	Energy Foot Lbs.
001	USSR DATA	1986 CW	147.8	0.325	0.219	2727	2814	2778	87	30	2535	9.8	14.0
002	USSR	1955 CW, ST	148.6	X	X	X	X	X	X	X	X	X	X
003	USSR DATA	1940 CW	148.2	0.363	0.220	2706	2775	2738	69	25	2464	9.9	14.3
004	Hungary DATA	1987 LC	148.8	0.242	0.220	2779	2815	2796	36	24	2586	9.8	14.1
005	Hungary DATA	Etalon WT	148.7	0.502	0.220	2653	2811	2719	158	64	2446	9.7	13.8
006	Hungary DATA	1975 LC, SYT	181.7	0.442	0.269	2401	2536	2479	135	42	2484	9.5	13.1
007	Hungary DATA	1970 CW, SYT	182.6	0.556	0.272	2415	2520	2483	105	34	2505	9.5	13.1
008	Hungary DATA	1951 CW, YT	182.1	0.479	0.269	2604	2674	2628	70	28	2791	10.6	16.3
009	Hungary DATA	1969 CW	149.1	0.338	0.221	2643	2746	2681	103	36	2377	9.5	13.3
010	Yugoslavia DATA	1976 BC	182.6	0.566	0.270	2509	2580	2542	71	23	2626	10.4	15.8
011	Czech. DATA	1963 LC, ST	148.3	0.401	0.220	2784	2836	2807	52	21	2589	9.9	14.3
012	Czech. DATA	1953 LC, YT	181.9	0.421	0.271	2503	2546	2521	43	16	2567	10.2	15.2
013	Czech. DATA	1964 WT, SR	44.8	0.052	0.066	3401	3609	3520	208	134	1238	6.5	6.2
014	Albania DATA	1986 BC	147.8	0.384	0.219	2649	2772	2729	123	38	2445	9.5	13.3
015	Bulgaria DATA	1955 BC	149.6	0.403	0.222	2692	2753	2716	61	23	2456	9.7	13.7
016	Bulgaria DATA	1955 BC, YT	182.0	0.368	0.269	2534	2584	2556	50	20	2641	10.3	15.4
017	Russia DATA	Wolf FMJ	148.4	0.478	0.219	2644	2765	2706	121	41	2407	9.6	13.5
018	Russia DATA	Wolf SP	202.8	0.412	0.300	2231	2323	2265	92	31	2312	9.3	12.7
019	Russia DATA	Barnaul SP	204.4	0.400	0.301	2231	2312	2263	81	30	2319	9.3	12.6
020	Czech. DATA	1987 CW	148.5	0.428	0.219	2721	2785	2761	64	21	2505	9.8	14.1
021	Poland DATA	1972 CW, ST	147.8	0.447	0.220	2734	2812	2773	78	31	2527	9.9	14.2
022	Russia DATA	B. Bear FMJ	185.8	0.516	0.276	2398	2451	2425	53	21	2429	9.4	12.8
023	Russia DATA	B. Bear SP	204.1	0.333	0.303	2213	2327	2257	114	38	2308	9.3	12.5
024	Yugoslavia DATA	Privi Ptz. SP	180.8	0.372	0.267	2497	2554	2522	57	21	2556	10.2	15.1
025	USSR DATA	1971 CW, ST	148.2	0.377	0.219	2769	2820	2788	51	22	2554	9.9	14.4
026	China DATA	1953 BC	148.3	0.336	0.219	2809	2878	2834	69	28	2638	10.2	15.2
027	Finland DATA	1973 Match	185.4	0.547	0.279	2327	2420	2379	93	31	2324	9.0	11.9
028	China DATA	1966 CW	148.6	0.401	0.221	2717	2791	2755	74	26	2511	9.6	13.4
029	Serbia DATA	WG/PP FMJ	151.5	0.415	0.225	2732	2811	2758	79	27	2566	10.1	14.8
030	Russia (7N1) DATA	1997 sniper	152.0	0.498	0.225	2712	2756	2732	44	18	2519	9.8	13.9
031	Bosnia-Herz. DATA	Igman SP	149.4	0.331	0.221	2807	2868	2842	61	22	2672	10.3	15.5
032	Hungary DATA	1951 CW	148.8	0.431	0.221	2748	2816	2775	68	22	2547	9.9	14.3
033	Poland DATA	1986 CW	147.7	0.538	0.219	2729	2827	2776	98	29	2532	9.8	14.0
034	East Germ. DATA	1983 SR	124.3	0.344	0.183	2518	2664	2577	146	48	1828	7.6	8.5
035	Greece DATA	Olympic FMJ	172.2	0.298	0.256	2413	2488	2449	75	30	2290	9.0	11.8
036	Bulgaria DATA	1987 CW	148.1	0.370	0.219	2721	2786	2757	65	23	2497	9.8	14.0
037	Albania DATA	1987 LC	148.3	0.435	0.219	2815	2868	2846	53	22	2661	10.0	14.6

Abbreviations:
CW = copper washed case, LC = lacquered case, BC = brass case, SR = short range
ST = silver tip, YT = yellow tip, SYT = silver over yellow tip, WT = white tip
FMJ = full metal jacket, SP = soft point

Notes:
#1 Unreliable ignition, no data available

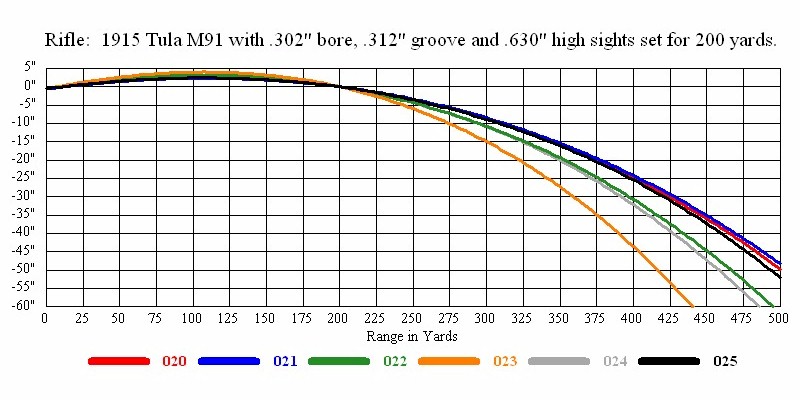

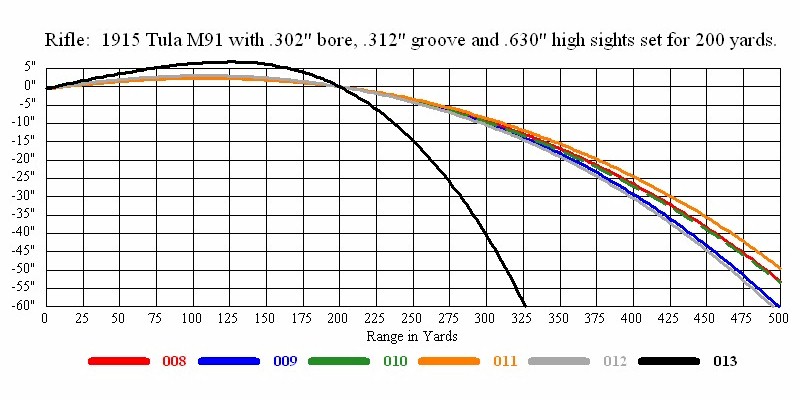

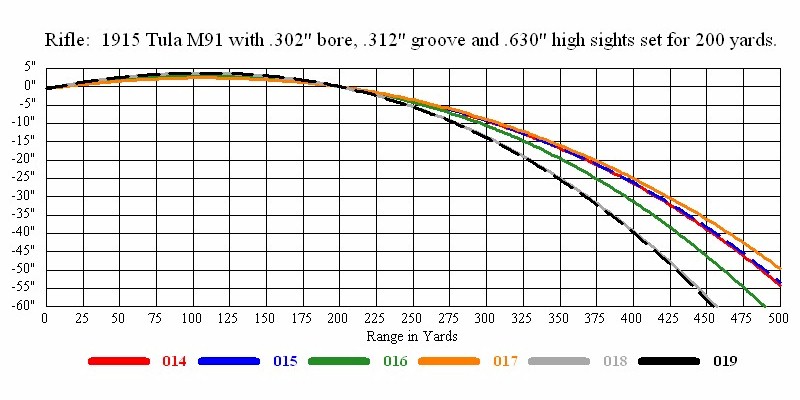

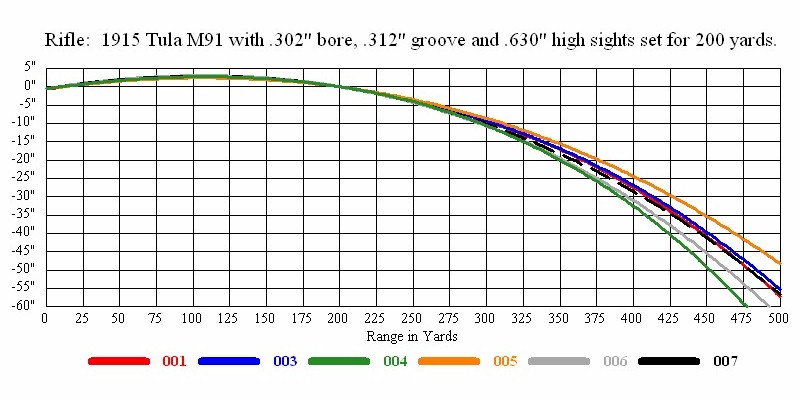

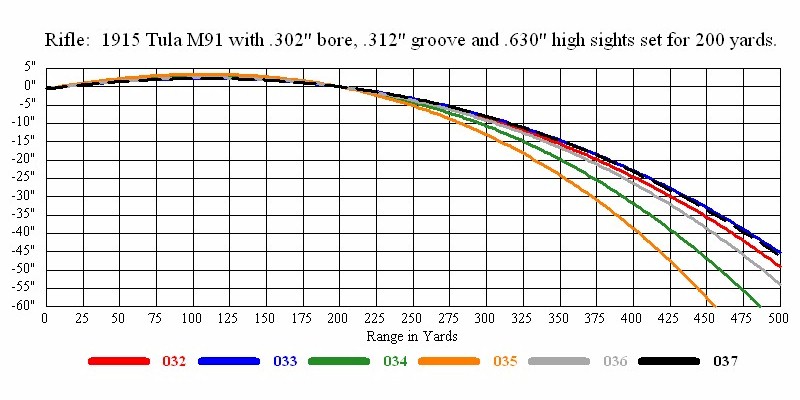

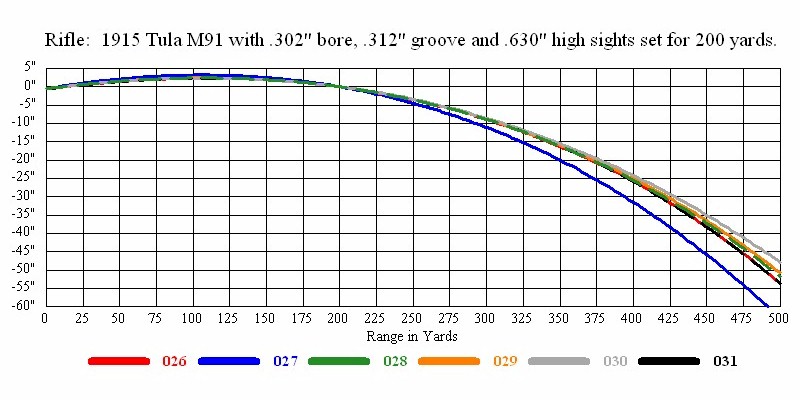

Trajectory Comparison Graphs
These graphs illustrate the trajectories of each type of ammo from this rifle using the reference numbers in the chart above.
Click on each graph for a large, scalable PDF to zoom in for better detail clarity. Adobe Reader required.
