Yugoslavian 1976 7.62x54r Lead Core Heavy Ball
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction


This ammunition was produced in the former republic of Yugoslavia for export to other Warsaw Pact countries.  It is the only known surplus 7.62x54r that will not attract a magnet, making it sought after for use on ranges that do not allow steel core or steel jacketed bullets.


(Reference number 010)

Case Over all Length Powder
Headstamp Material Coating Water Volume Min. Max. Weight
"nny" (factory) over "1976" (year) brass none 63.3 gr. 3.012" 3.017" 49.2 gr.



Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient
Sectional
Density
.311" 1.295" 182.6 gr. spitzer boat tail lead none no 0.566 0.270



Package

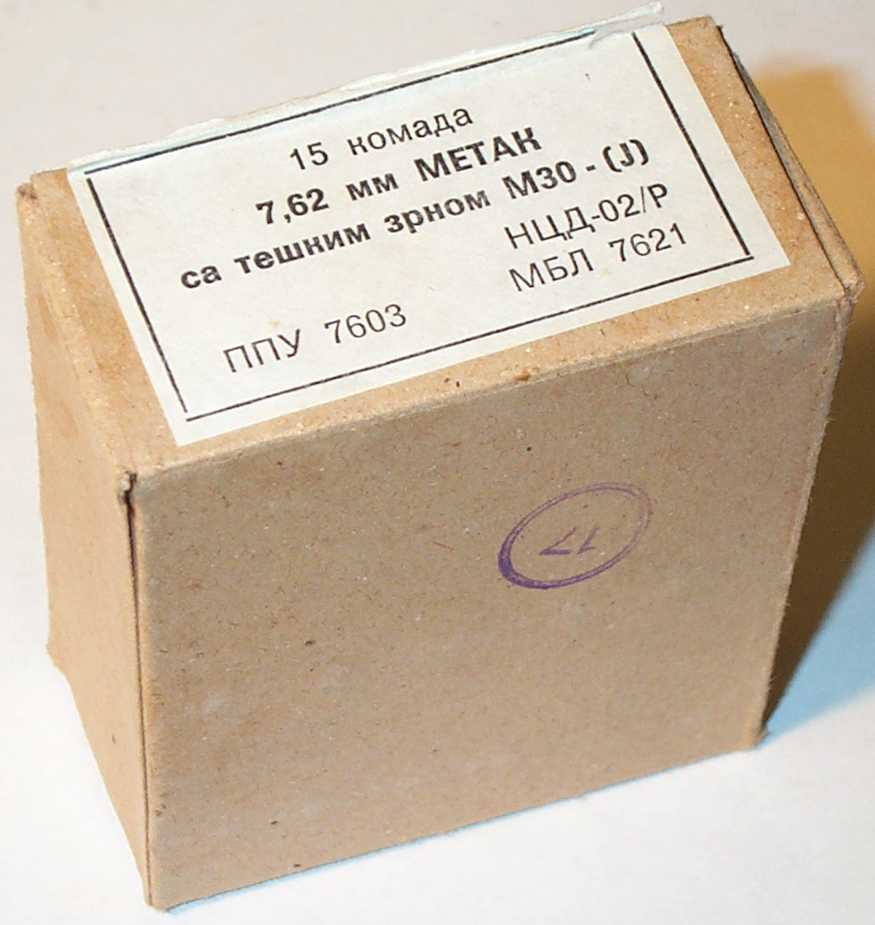

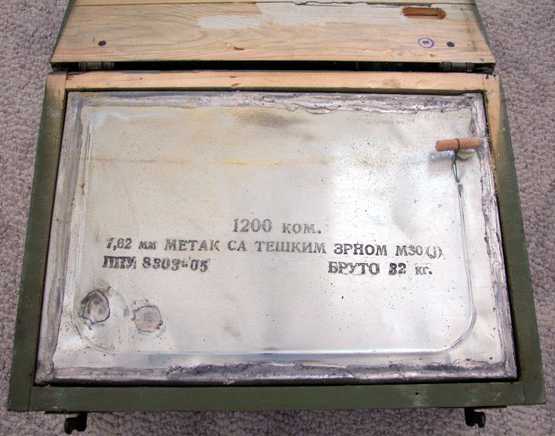

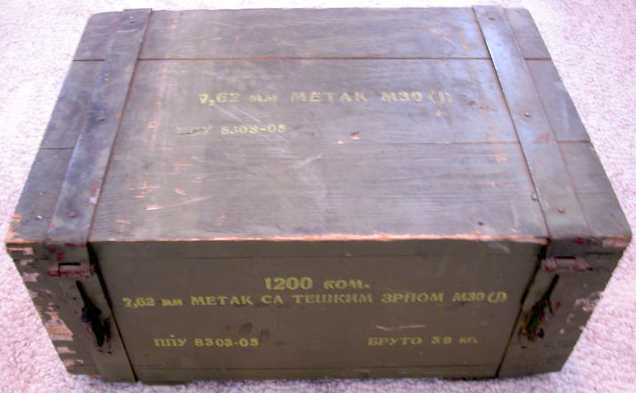

15 rounds per box 1200 rounds per wooden case



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2388 2519 2580 2627 2509
High 2477 2615 2655 2694 2580
Average 2424 2548 2605 2649 2542
Extreme Spread 89 96 75 67 71
Standard Deviation 30 29 25 21 23

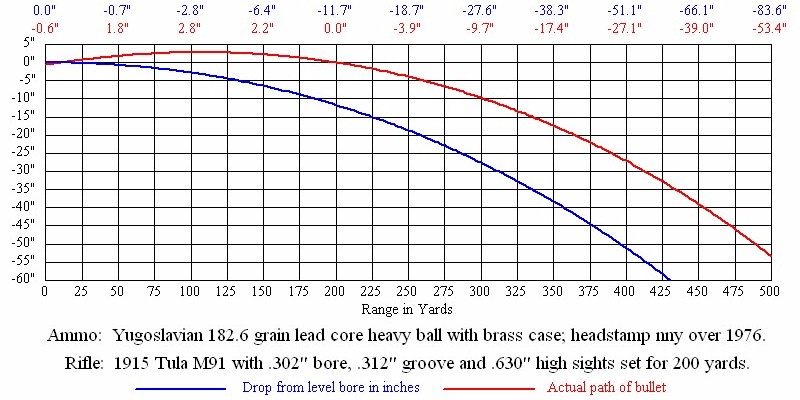

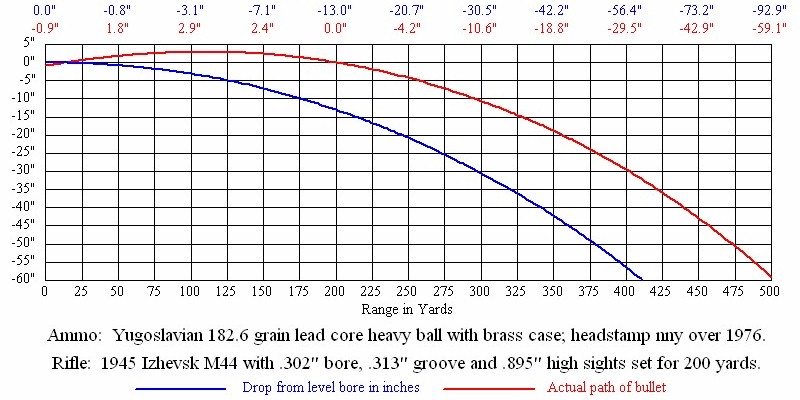

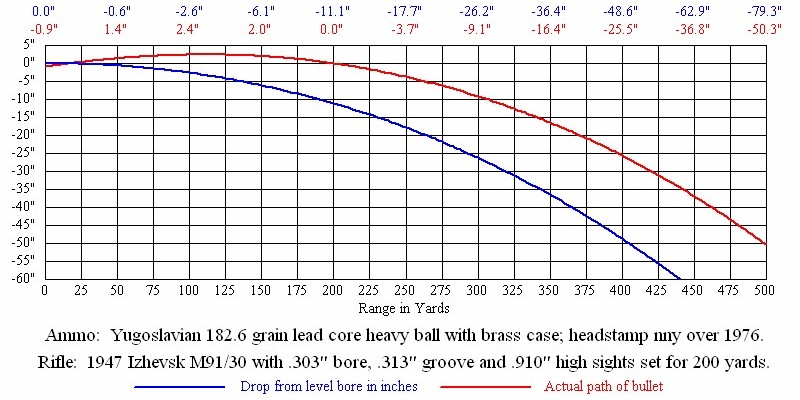

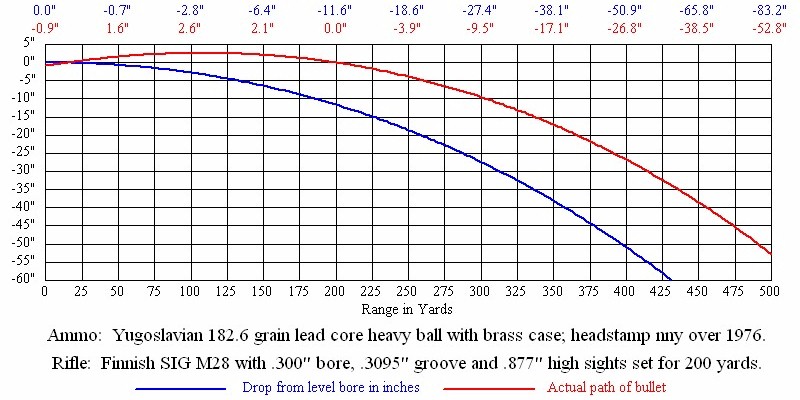

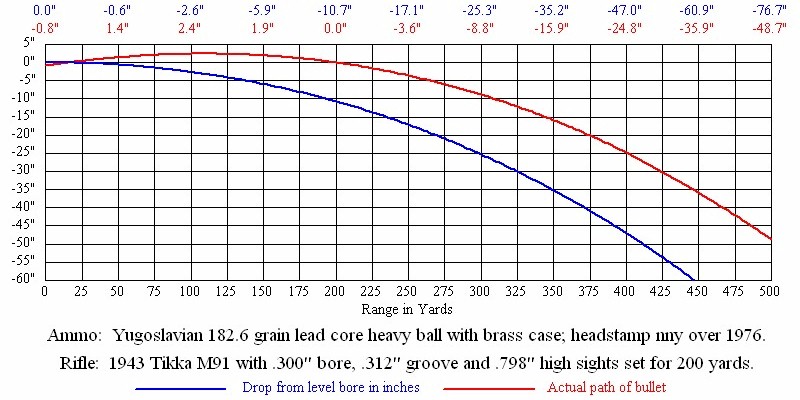

Trajectory and Drop Graph
(click on the thumbnails)
20050112019.jpg (102170 bytes) 20050112020.jpg (102101 bytes) 20050112021.jpg (101168 bytes) 20050112022.jpg (101637 bytes) 20050112023.jpg (101599 bytes)
Notes on the graphs  The graphs above each represent two sets of data.  The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards.   The bullet exits the muzzle at a distance a fraction of an inch below zero inches.   This represents the height of the sight over the centerline of the bore.  The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward.  The blue line is the the bullet drop in inches for the distance traveled.  This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

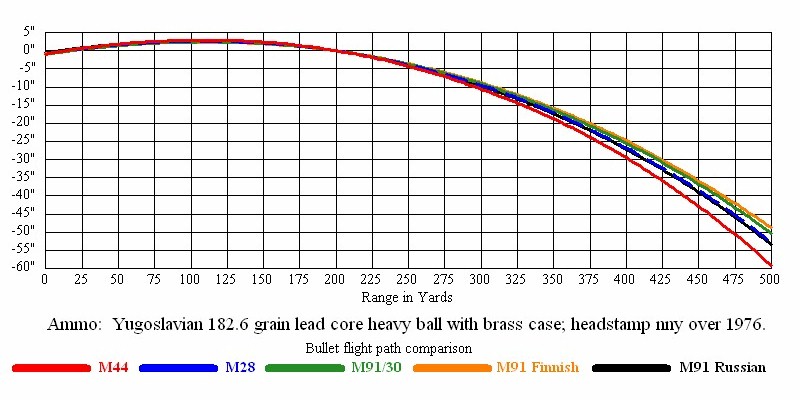

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2424 2349 2276 2204 2133 2063 1995 1928 1862 1798 1736
M28 2548 2471 2396 2321 2249 2177 2107 2038 1970 1903 1838
M91/30 2605 2527 2451 2376 2302 2229 2158 2088 2019 1952 1885
M91 (Finnish) 2649 2571 2493 2417 2343 2270 2198 2127 2057 1990 1922
M91 (Russian) 2542 2465 2390 2316 2243 2172 2102 2032 1965 1898 1833



Bullet Energy to 500 yards in Foot Pounds

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2386 2241 2104 1973 1848 1729 1618 1510 1409 1314 1225
M28 2638 2481 2331 2189 2054 1925 1803 1687 1576 1471 1372
M91/30 2758 2595 2440 2293 2153 2019 1892 1772 1657 1548 1444
M91 (Finnish) 2851 2685 2526 2374 2230 2093 1962 1838 1720 1608 1501
M91 (Russian) 2626 2469 2320 2179 2044 1916 1794 1678 1568 1463 1365



Recoil

Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.50 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 10.7 fps 10.0 fps 11.6 fps 10.7 fps 10.4 fps
Recoil Energy (Foot-Pound) 14.8 ft-lb 15.2 ft-lb 18.1 ft-lb 17.0 ft-lb 15.8 ft-lb
