This ammunition has similar specifications to the USSR 1986 Steel Core Light Ball (reference #001) with the primary difference being the silver tip indicating the steel core. The performance is surprisingly consistent across all five barrel lengths and slightly better than the newer ammo mentioned above. However, one drawback is noticeably "slow" primers on about 5 to 10% of the ammo tested. There were no complete failures to fire and no second strikes were required.


(Reference number 025)

Case Over all Length Powder
Headstamp Material Coating Water Volume Min. Max. Weight
"188" (factory) over "71" (year) steel copper wash 63.7 gr. 3.017" 3.025" 49.1 gr.



Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient
Sectional
Density
.311" 1.268" 148.2 gr. spitzer boat tail steel silver yes 0.377 0.219



Package
20 rounds per paper wrap 440 rounds per spam can 880 rounds per wooden crate



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2626 2772 2803 2795 2769
High 2672 2838 2858 2860 2820
Average 2647 2799 2833 2826 2788
Extreme Spread 46 66 55 65 51
Standard Deviation 19 22 21 23 22

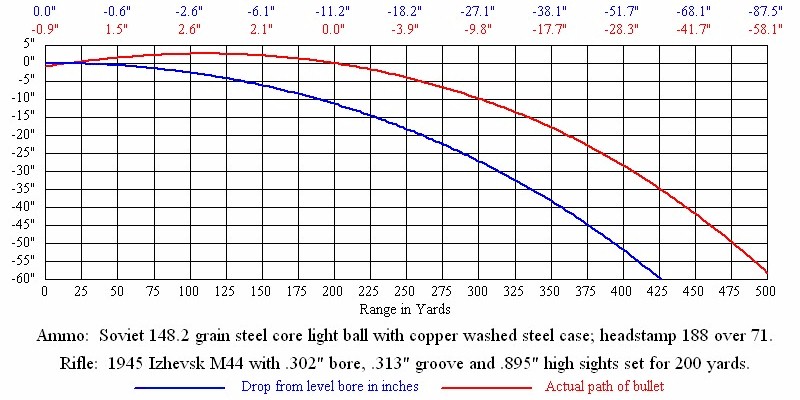

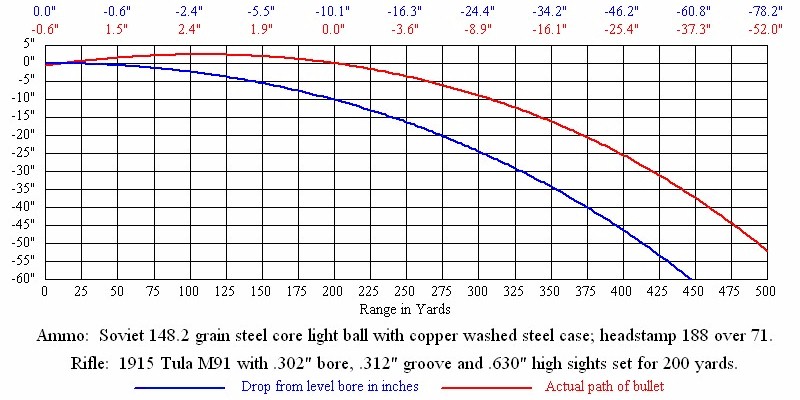

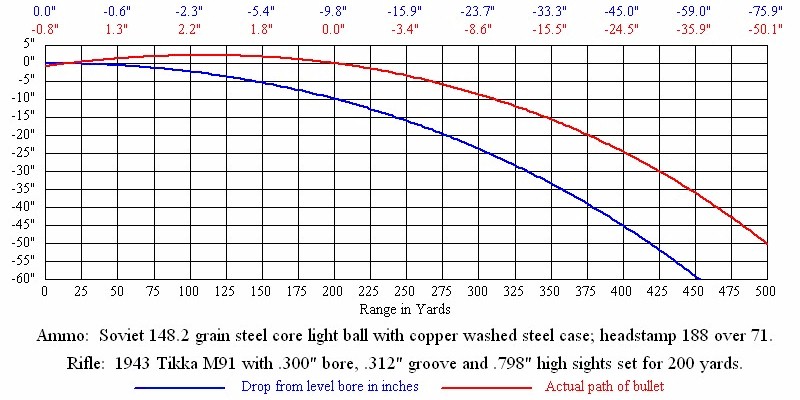

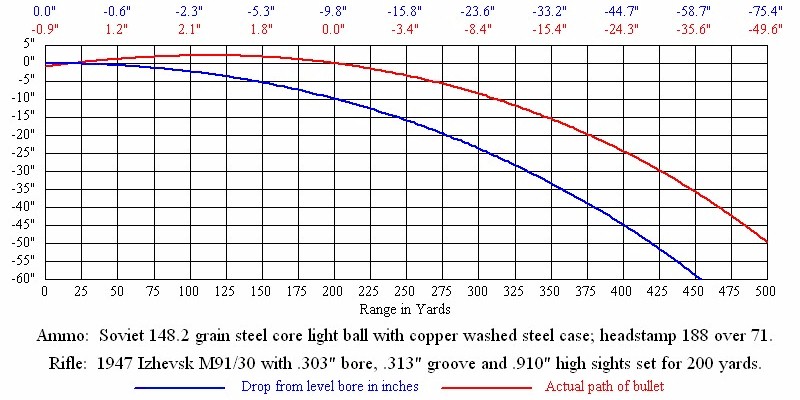

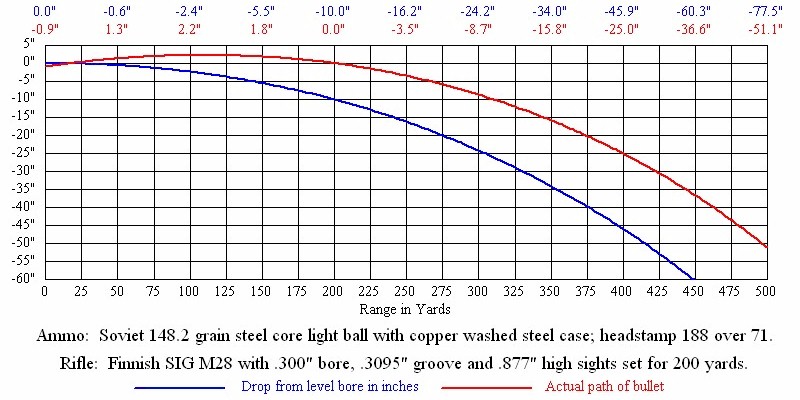

Trajectory and Drop Graph
(click on the thumbnails)
20050701003.jpg (101474 bytes) 20050701005.jpg (101324 bytes) 20050701007.jpg (101375 bytes) 20050701009.jpg (100945 bytes) 20050701011.jpg (100836 bytes)
Notes on the graphs The graphs above each represent two sets of data. The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards. The bullet exits the muzzle at a distance a fraction of an inch below zero inches. This represents the height of the sight over the centerline of the bore. The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward. The blue line is the the bullet drop in inches for the distance traveled. This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

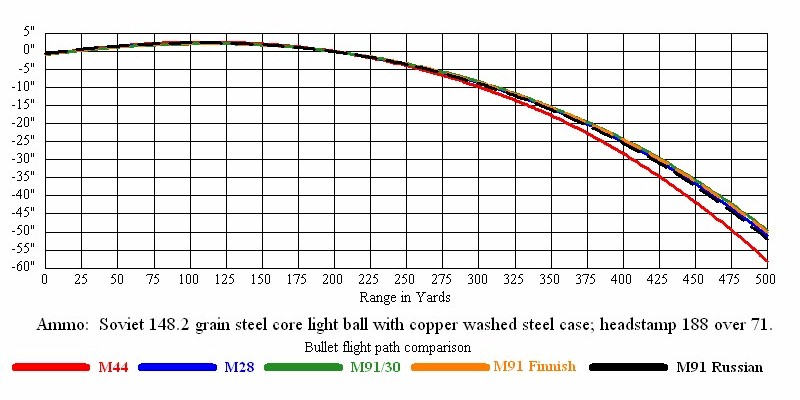

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2647 2530 2415 2304 2196 2090 1988 1877 1791 1699 1611
M28 2799 2678 2560 2444 2332 2223 2117 2013 1912 1815 1722
M91/30 2833 2711 2592 2476 2363 2253 2146 2042 1940 1842 1748
M91 (Finnish) 2826 2704 2585 2469 2356 2246 2139 2035 1934 1836 1742
M91 (Russian) 2788 2667 2549 2434 2322 2213 2107 2004 1903 1806 1714



Bullet Energy to 500 yards in Foot Pounds

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2303 2103 1917 1744 1584 1435 1298 1170 1054 949 852
M28 2574 2356 2153 1963 1787 1624 1472 1332 1201 1083 975
M91/30 2638 2415 2207 2014 1834 1668 1513 1369 1236 1114 1003
M91 (Finnish) 2624 2402 2195 2003 1824 1658 1504 1361 1229 1107 997
M91 (Russian) 2554 2337 2135 1947 1772 1609 1459 1319 1190 1072 965



Recoil

Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.50 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 10.7 fps 9.5 fps 11.0 fps 9.9 fps 9.9 fps
Recoil Energy (Foot-Pound) 14.7 ft-lb 13.9 ft-lb 16.2 ft-lb 14.6 ft-lb 14.4 ft-lb
