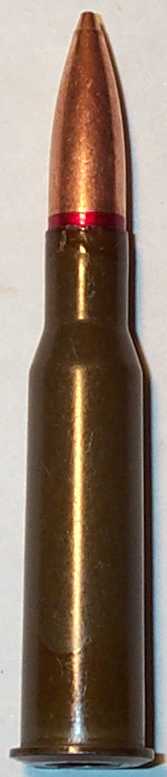

Brown Bear 7.62x54r 185 gr. FMJ
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction

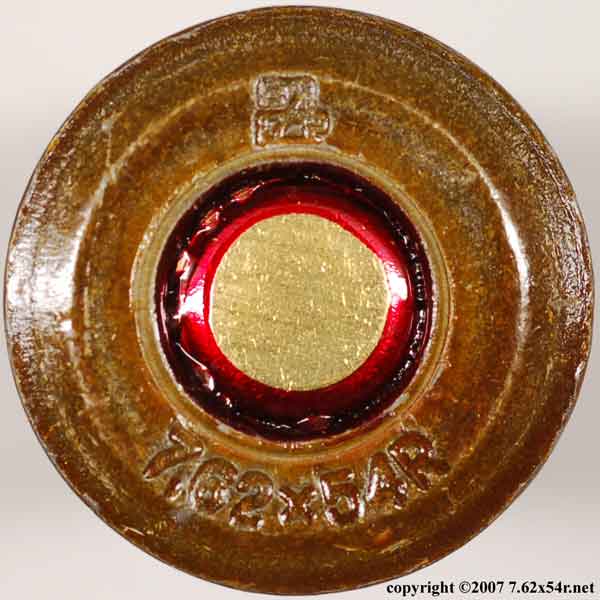

This readily available non-corrosive commercial ammunition is made on former military production lines in Russia.  The military style primer and bullet sealer is evident.


(Reference number 022)

Case Over all Length Powder
Headstamp Material Coating Water Volume Min. Max. Weight
"logo" over "7.62x54R" steel lacquer 66.0 gr. 3.006" 3.025" 45.3 gr.

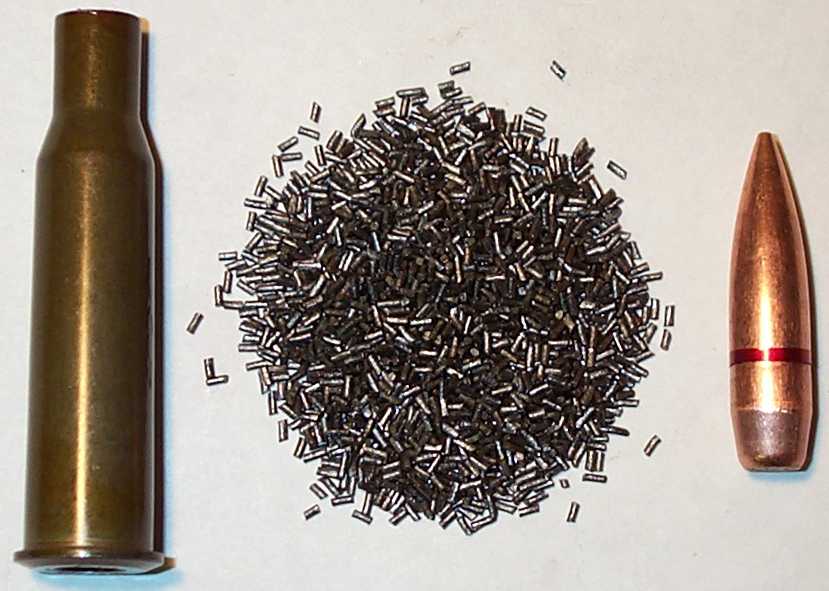

Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient		 Sectional
Density
.310" 1.297" 185.8 gr. spitzer boat tail lead none yes 0.516 0.276

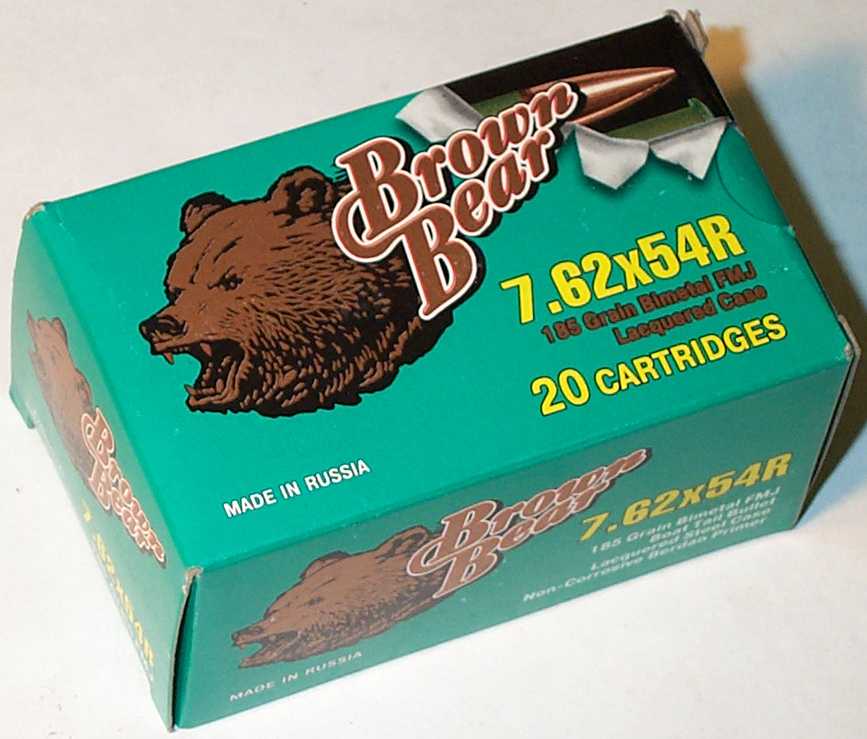

Package
20 rounds per cardboard box



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2267 2369 2451 2451 2398
High 2332 2427 2518 2549 2451
Average 2300 2403 2488 2499 2425
Extreme Spread 65 58 67 98 53
Standard Deviation 23 19 24 27 21

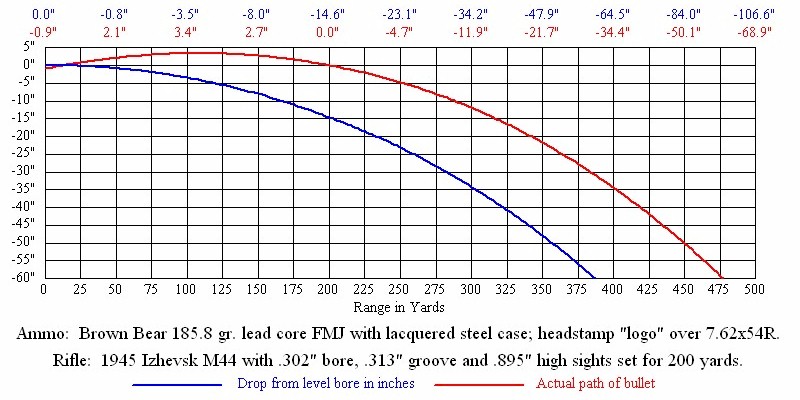

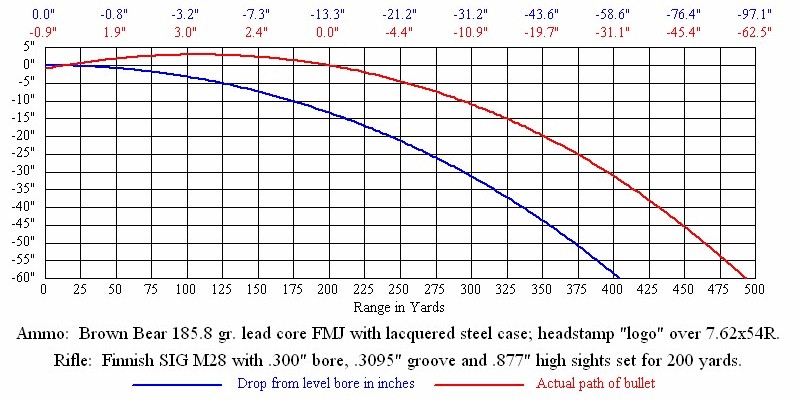

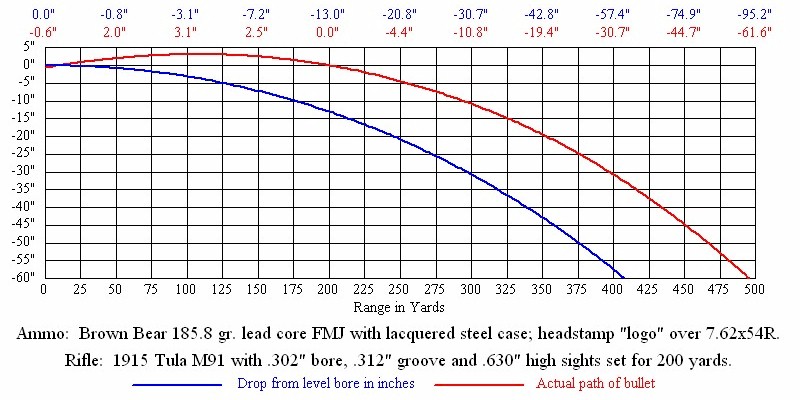

Trajectory and Drop Graph
(click on the thumbnails)		 20050312021.jpg (101518 bytes) 20050312022.jpg (101590 bytes) 20050312023.jpg (101839 bytes) 20050312024.jpg (101580 bytes) 20050312025.jpg (101112 bytes)
Notes on the graphs  The graphs above each represent two sets of data.  The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards.   The bullet exits the muzzle at a distance a fraction of an inch below zero inches.   This represents the height of the sight over the centerline of the bore.  The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward.  The blue line is the the bullet drop in inches for the distance traveled.  This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

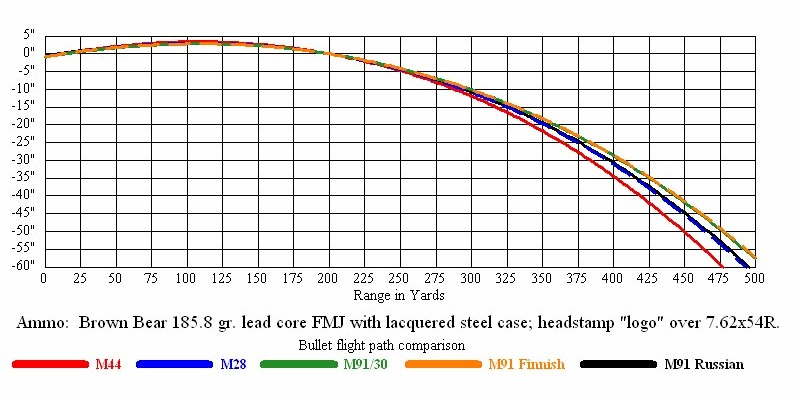

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second
Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2300 2220 2142 2066 1991 1917 1846 1777 1709 1644 1581
M28 2403 2322 2242 2164 2087 2012 1938 1865 1796 1728 1662
M91/30 2488 2404 2323 2243 2165 2088 2013 1939 1866 1796 1729
M91 (Finnish) 2499 2416 2334 2254 2176 2098 2023 1949 1876 1806 1738
M91 (Russian) 2425 2343 2263 2185 2107 2032 1957 1884 1814 1746 1680



Bullet Energy to 500 yards in Foot Pounds
Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2184 2035 1895 1762 1637 1518 1407 1303 1207 1116 1032
M28 2385 2226 2076 1934 1799 1671 1550 1437 1331 1233 1141
M91/30 2555 2387 2228 2078 1935 1800 1672 1552 1438 1333 1234
M91 (Finnish) 2579 2410 2250 2098 1954 1818 1690 1568 1453 1347 1247
M91 (Russian) 2429 2268 2115 1971 1834 1704 1582 1466 1359 1258 1165



Recoil
Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.50 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 10.1 fps 8.9 fps 10.5 fps 9.5 fps 9.4 fps
Recoil Energy (Foot-Pound) 13.0 ft-lb 12.1 ft-lb 14.7 ft-lb 13.4 ft-lb 12.8 ft-lb
