Hungarian 1987 7.62x54r Steel Core Light Ball
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction

The ammunition is reliable with consistent ignition although the lacquer coated cases may cause extraction problems if the chamber is not clean.  Earlier dates of the same type have a silver tipped bullet and silver stripe on the tins and wooden cases.


(Reference number 004)

Case Over all Length Powder
Headstamp Material Coating Water Volume Min. Max. Weight
"21" (country) over "87" (year) steel lacquer 63.7 gr. 3.008" 3.025" 46.8 gr.



Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient		 Sectional
Density
.311" 1.262" 148.8 gr. spitzer boat tail steel none yes 0.242 0.220



Package

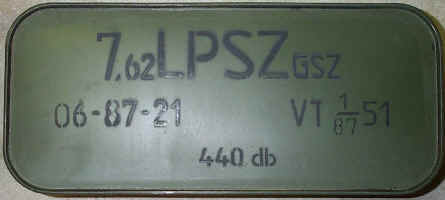

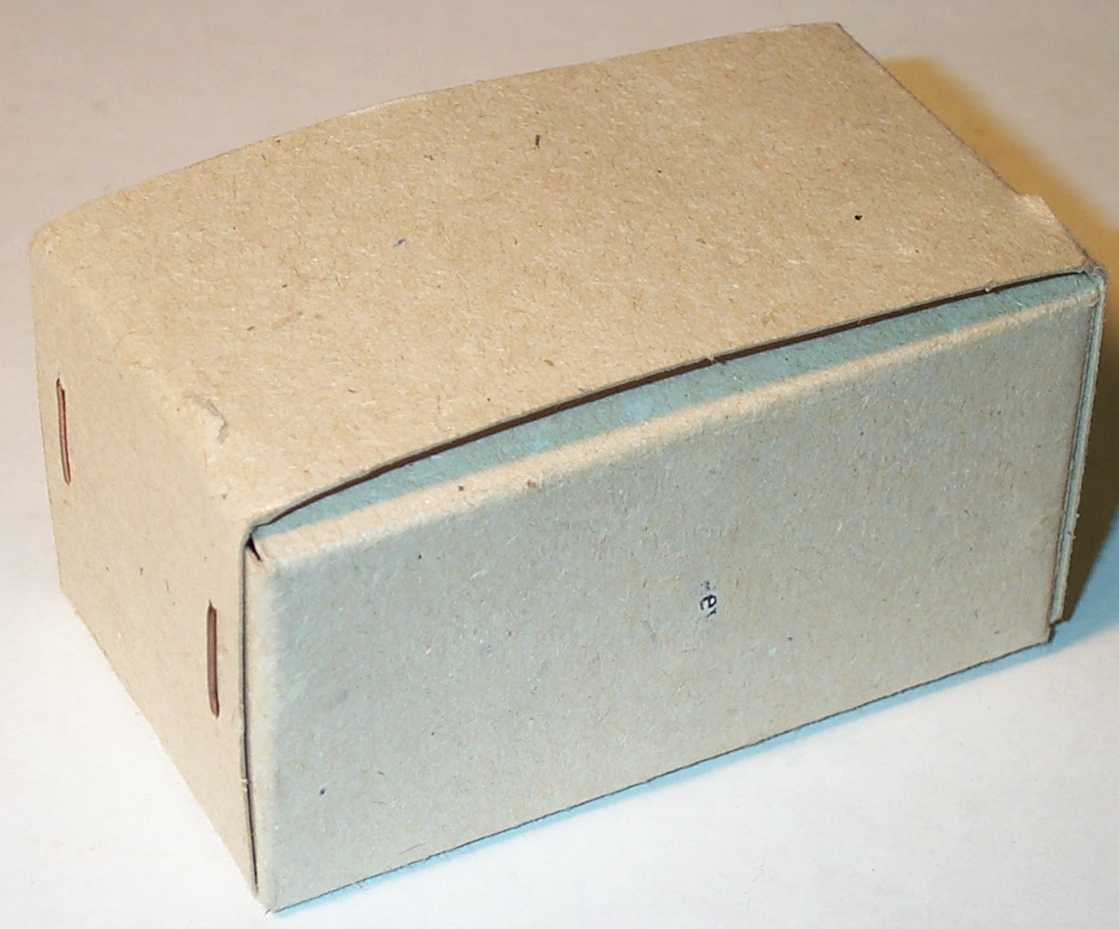

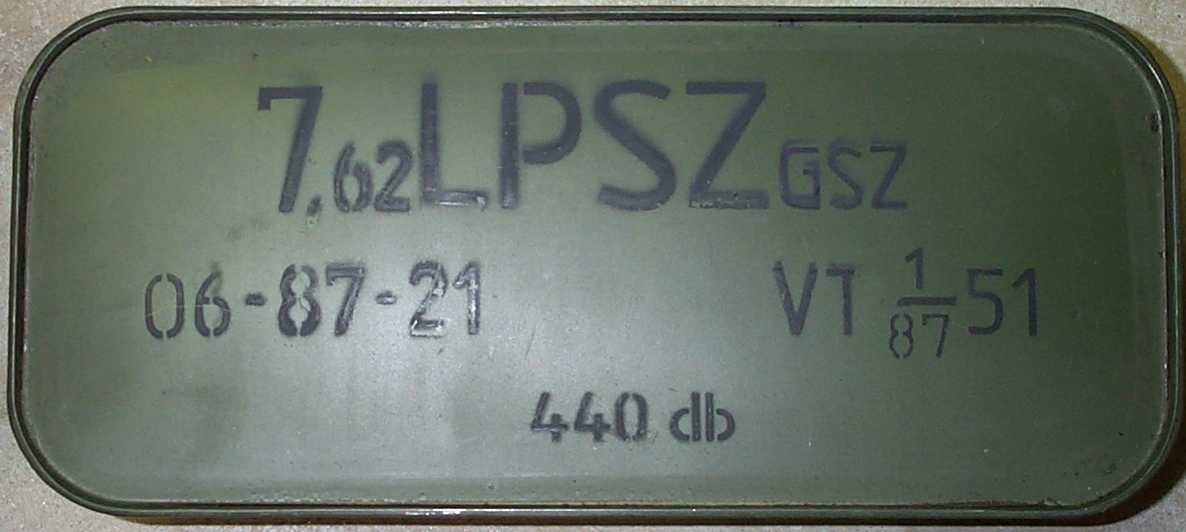

20 rounds per cardboard box 440 rounds per spam can



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2665 2790 2801 2838 2779
High 2742 2846 2843 2883 2815
Average 2701 2821 2818 2861 2796
Extreme Spread 77 56 42 45 36
Standard Deviation 34 29 25 24 24

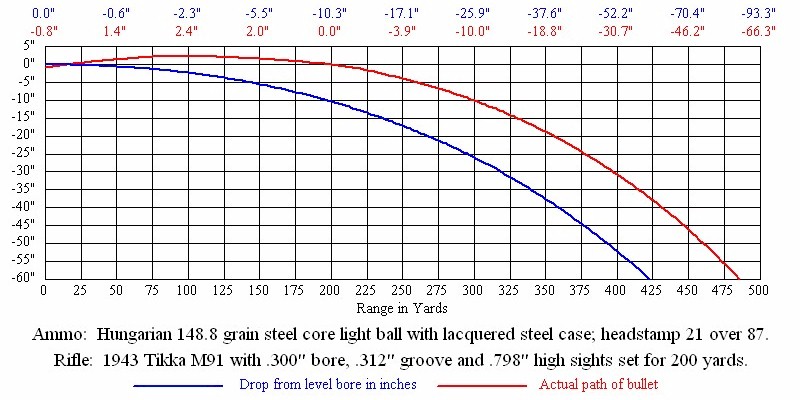

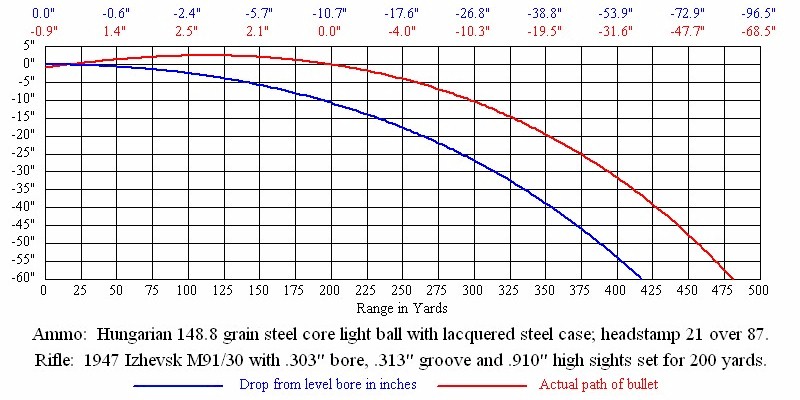

Trajectory and Drop Graph
(click on the thumbnails)		 20041231013.jpg (101617 bytes) 20041231014.jpg (101842 bytes) 20041231015.jpg (102107 bytes) 20041231016.jpg (101602 bytes) 20041231017.jpg (101187 bytes)
Notes on the graphs  The graphs above each represent two sets of data.  The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards.   The bullet exits the muzzle at a distance a fraction of an inch below zero inches.   This represents the height of the sight over the centerline of the bore.  The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward.  The blue line is the the bullet drop in inches for the distance traveled.  This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

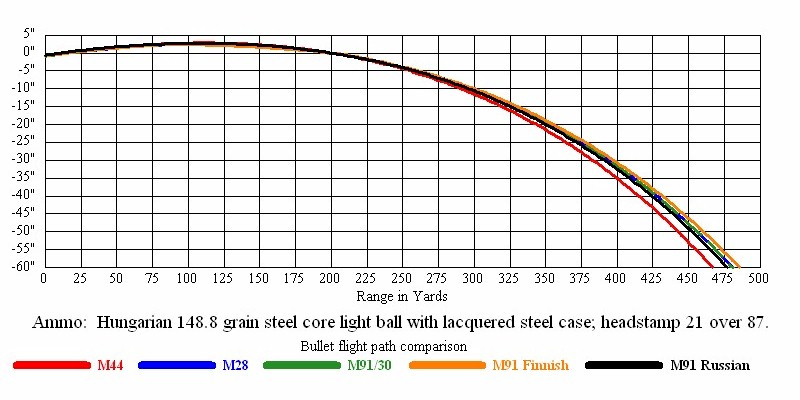

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second
Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2701 2517 2341 2172 2009 1854 1708 1571 1444 1331 1231
M28 2821 2632 2451 2277 2111 1951 1799 1657 1523 1400 1292
M91/30 2818 2630 2449 2275 2109 1949 1797 1655 1521 1399 1291
M91 (Finnish) 2861 2670 2488 2312 2144 1983 1829 1685 1550 1424 1313
M91 (Russian) 2796 2608 2428 2255 2090 1931 1780 1639 1506 1386 1279



Bullet Energy to 500 yards in Foot Pounds
Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2413 2096 1812 1560 1335 1137 965 817 690 586 501
M28 2632 2292 1987 1715 1474 1259 1070 908 767 649 552
M91/30 2627 2287 1983 1712 1471 1256 1068 906 765 647 551
M91 (Finnish) 2707 2359 2047 1769 1521 1301 1107 939 794 671 571
M91 (Russian) 2586 2250 1950 1683 1445 1233 1048 889 750 635 541



Recoil
Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.50 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 10.7 fps 9.5 fps 10.8 fps 9.9 fps 9.8 fps
Recoil Energy (Foot-Pound) 14.9 ft-lb 13.7 ft-lb 15.6 ft-lb 14.6 ft-lb 14.1 ft-lb
