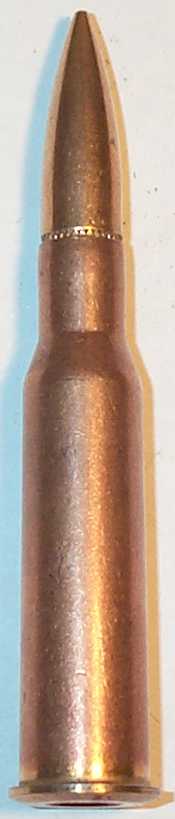

This late ammunition is very similar to the earlier Polish steel core light ball evaluated elsewhere on this site.  However, there are noticeable differences in the bullets used.  This later bullet is .311" in diameter as opposed to .310" and the cannelure has a distinctive knurled pattern.  The ballistic coefficient is also an impressive 0.538 as opposed to 0.447 which is remarkable itself among surplus ammunition.  The ammunition itself is clean and reliable although there was one primer in approximately 65 rounds fired that failed to ignite.  The firing pin strike was deep and it's possible that the anvil within the case was deformed.  Accuracy is good in all the test rifles but optimum performance was achieved in the intermediate length M28 and M91/30.

Funding for this evaluation was provided by "Cacique500" of Gunboards.com.  Thanks to "Springbank" for range assistance.


(Reference number 033)

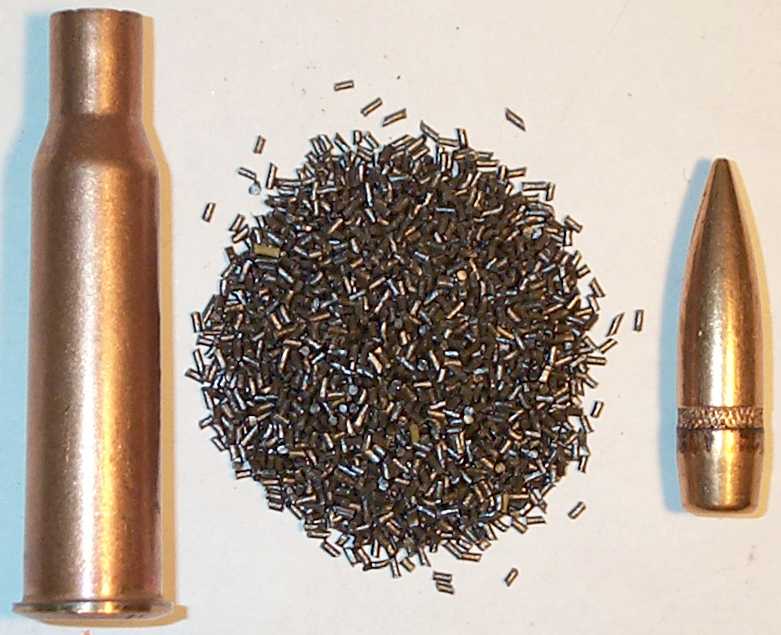

Case Primer Over all Length Powder
Headstamp Material Coating Water Volume Berdan Min. Max. Weight
"21" (country) over "86" (year, inverted) steel copper wash 64.7 gr. Corrosive 3.003" 3.020" 47.9 gr.



Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient
Sectional
Density
.311" 1.260" 147.7 gr. spitzer boat tail steel none yes 0.538 0.219



Package

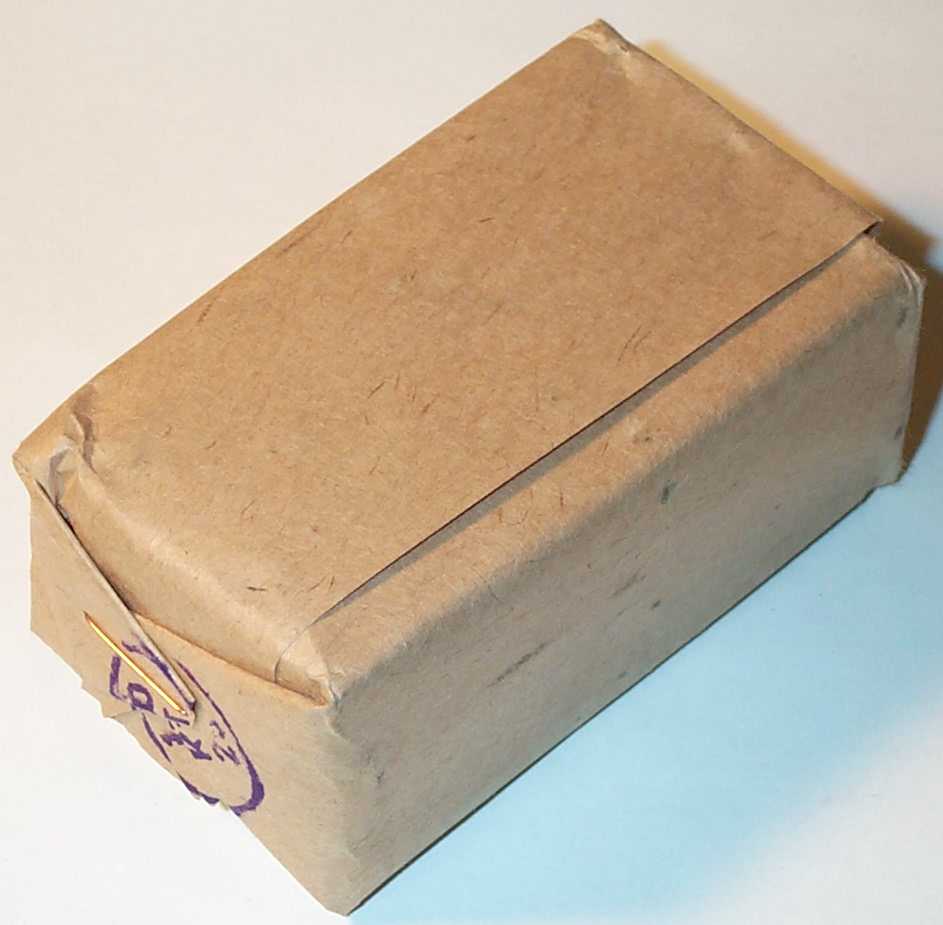

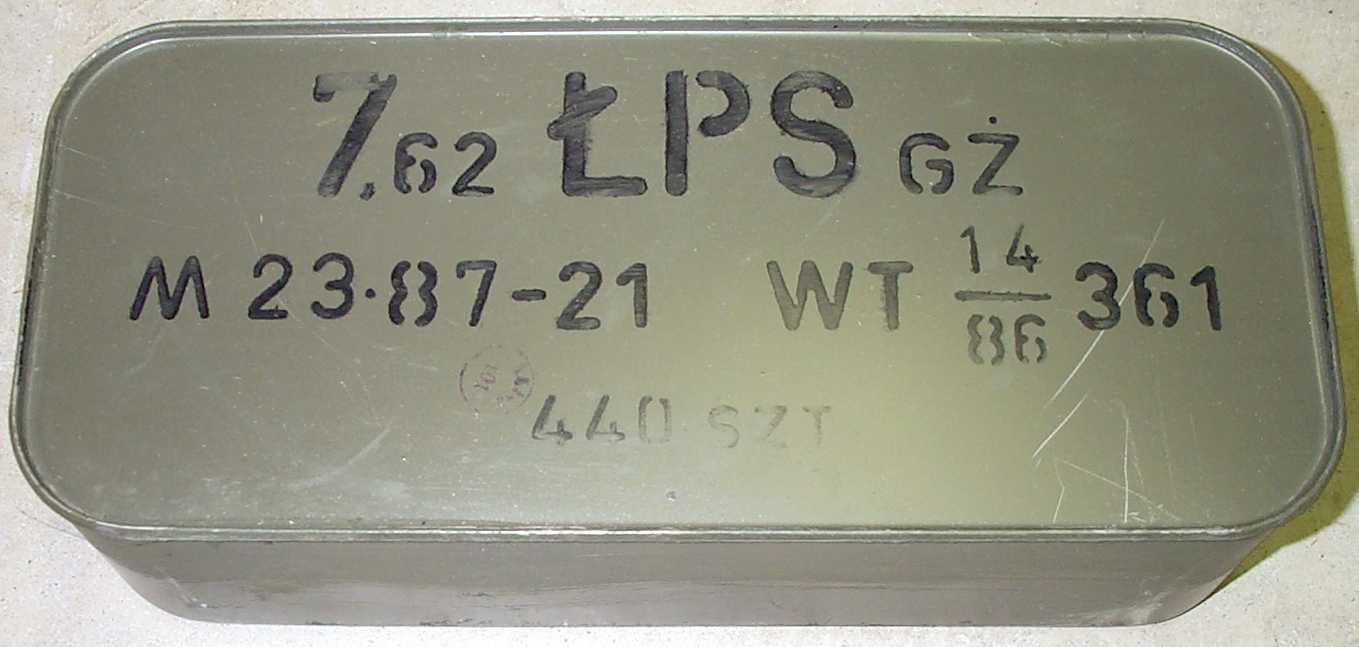

20 rounds per paper wrap 440 rounds per spam can

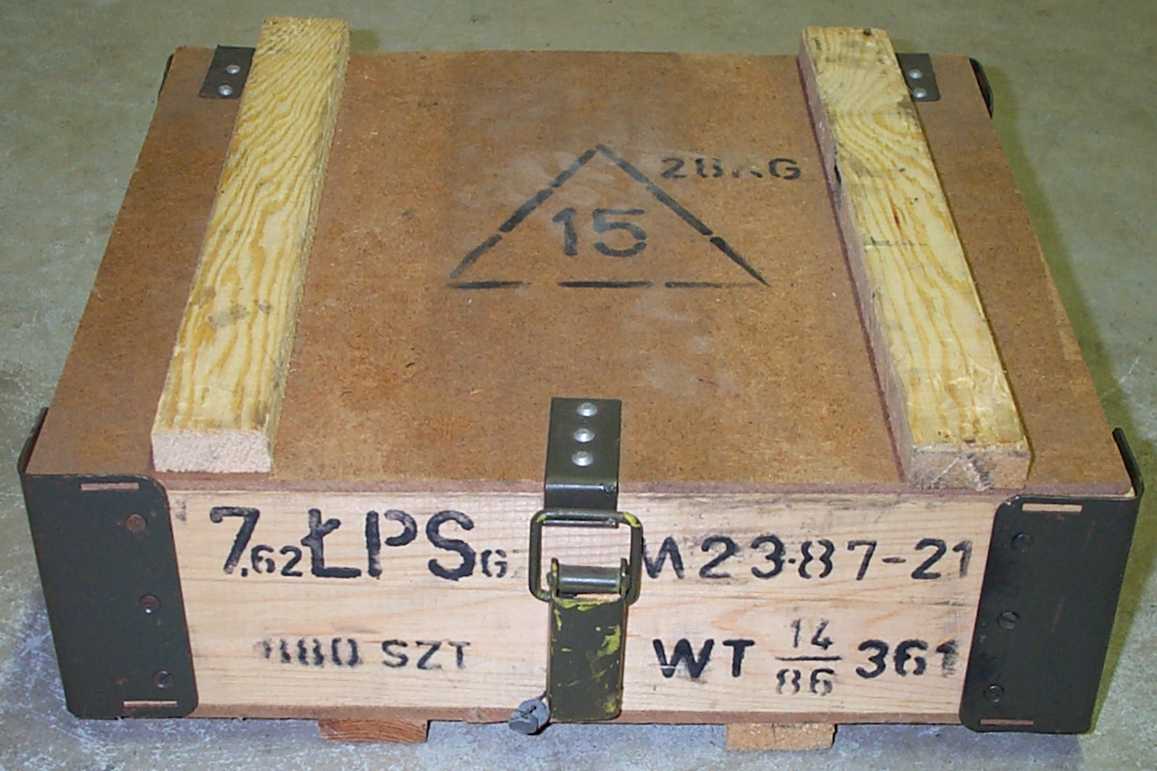

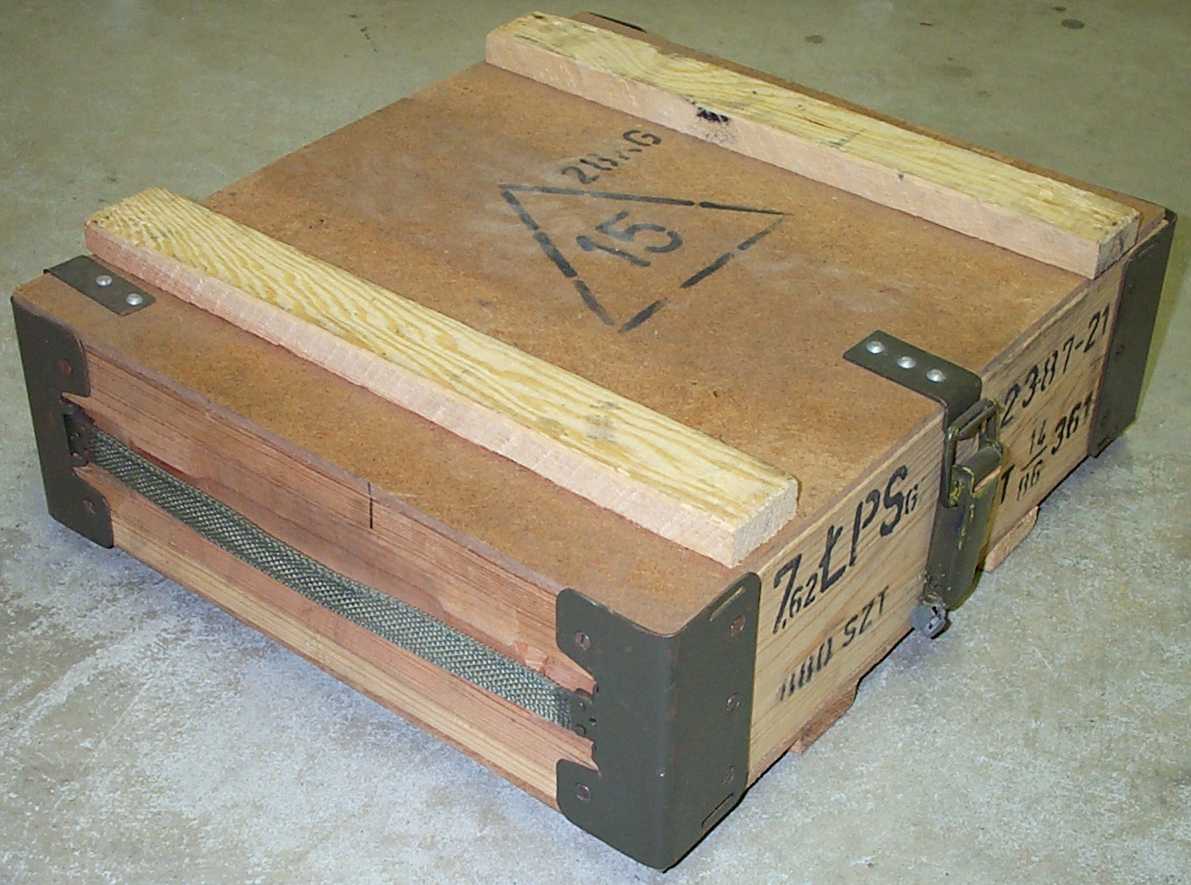

880 rounds per wooden crate 880 rounds per wooden crate



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2594 2756 2797 2788 2729
High 2667 2797 2874 2878 2827
Average 2636 2782 2831 2815 2776
Extreme Spread 73 41 77 90 98
Standard Deviation 31 18 26 27 29

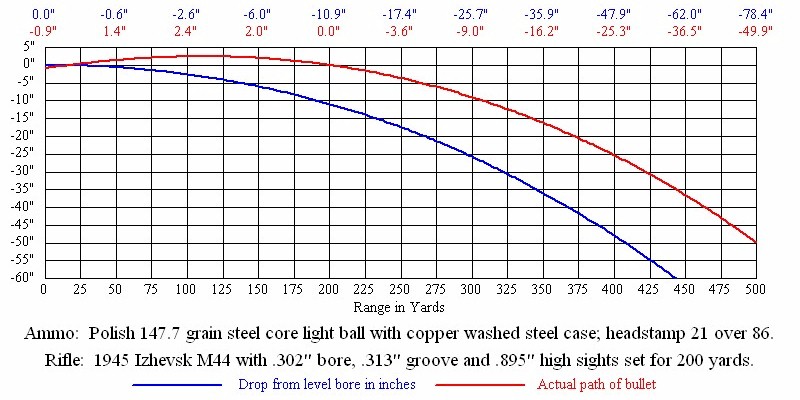

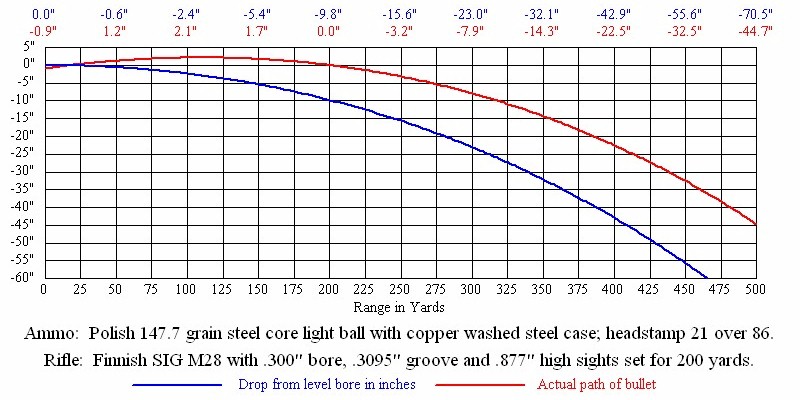

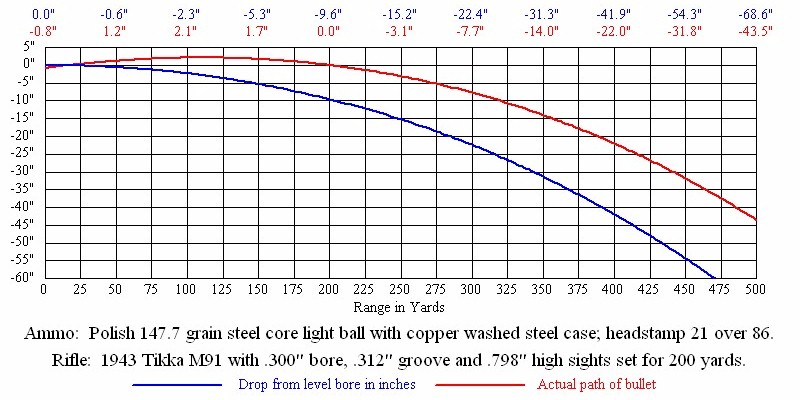

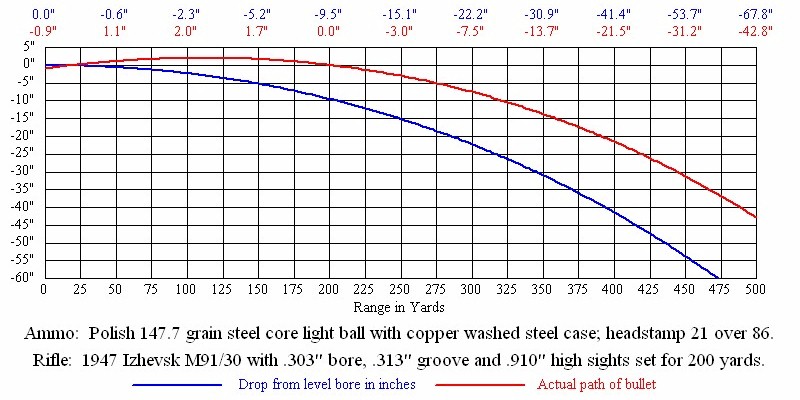

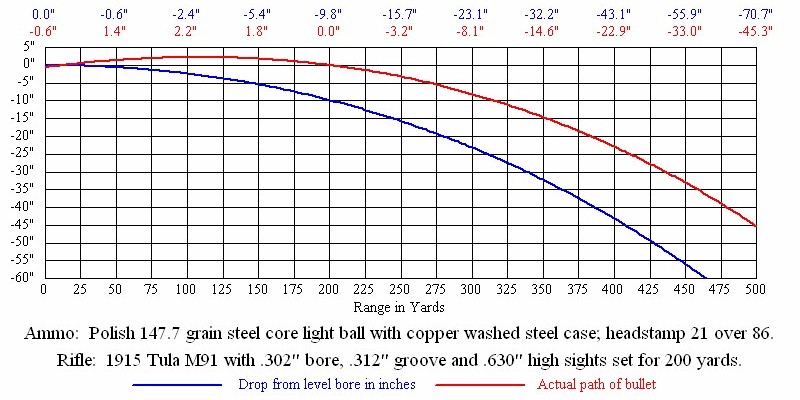

Trajectory and Drop Graph
(click on the thumbnails)
20060422032.jpg (102130 bytes) 20060422033.jpg (101975 bytes) 20060422034.jpg (102008 bytes) 20060422035.jpg (101554 bytes) 20060422036.jpg (101596 bytes)
Notes on the graphs  The graphs above each represent two sets of data.  The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards.   The bullet exits the muzzle at a distance a fraction of an inch below zero inches.   This represents the height of the sight over the centerline of the bore.  The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward.  The blue line is the the bullet drop in inches for the distance traveled.  This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

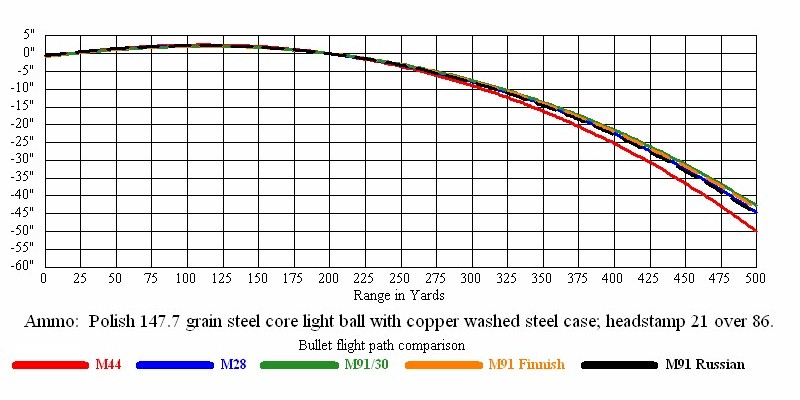

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2636 2553 2472 2393 2315 2238 2163 2090 2017 1946 1877
M28 2782 2697 2613 2531 2451 2372 2294 2218 2143 2070 1999
M91/30 2831 2745 2660 2577 2496 2416 2338 2261 2185 2111 2038
M91 (Finnish) 2815 2729 2645 2563 2482 2402 2324 2247 2172 2098 2026
M91 (Russian) 2776 2691 2607 2526 2445 2366 2289 2213 2138 2065 1993



Bullet Energy to 500 yards in Foot Pounds

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2282 2142 2008 1881 1761 1646 1538 1435 1337 1244 1157
M28 2543 2390 2244 2105 1973 1848 1729 1616 1509 1408 1312
M91/30 2633 2475 2325 2183 2047 1918 1796 1679 1569 1465 1365
M91 (Finnish) 2604 2448 2299 2158 2024 1896 1774 1659 1550 1446 1348
M91 (Russian) 2532 2379 2234 2096 1964 1840 1721 1609 1502 1401 1306



Recoil

Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.5 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 10.5 fps 9.4 fps 10.9 fps 9.8 fps 9.8 fps
Recoil Energy (Foot-Pound) 14.3 ft-lb 13.5 ft-lb 15.9 ft-lb 14.2 ft-lb 14.0 ft-lb
