Igman 7.62x54r 150 gr. SP
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction

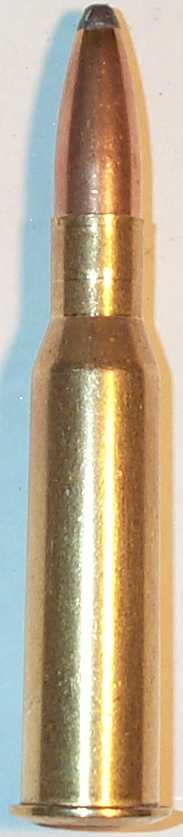

This current production ammunition is made in Bosnia-Herzegovina and is unique as the only light ball soft point on the market.  It is similar to the Privi Partizan ammo as they are both manufactured in ex-military factories of the former Yugoslavia.  The brass case is boxer primed and easily reloadable and this ammunition is a good value in a lighter weight hunting bullet.  According to the Chrony Ballistics II Software used in this evaluation the optimum game weight when fired from an M91/30 is 609 lbs at 100 yards and 320 lbs at 300 yards.  This should be more than adequate for North American deer and antelope.

Funding for this evaluation was provided in part by "BSA" and "Shyquestor" of Gunboards.com.  Thanks to "Springbank" for range assistance.


(Reference number 031)

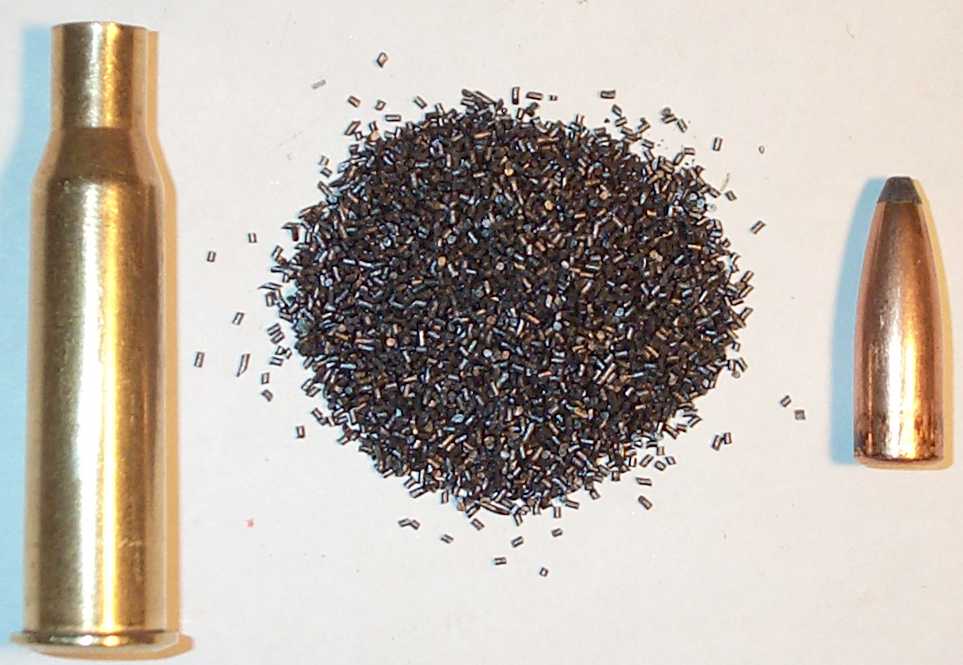

Case Primer Over all Length Powder
Headstamp Material Coating Water Volume Boxer Min. Max. Weight
"logo" over "7.62x54R" brass none 66.4 gr. Non-corrosive 2.862" 2.871" 51.2 gr.



Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient
Sectional
Density
.310" 0.999" 149.4 gr. soft point flat base lead none no 0.331 0.221

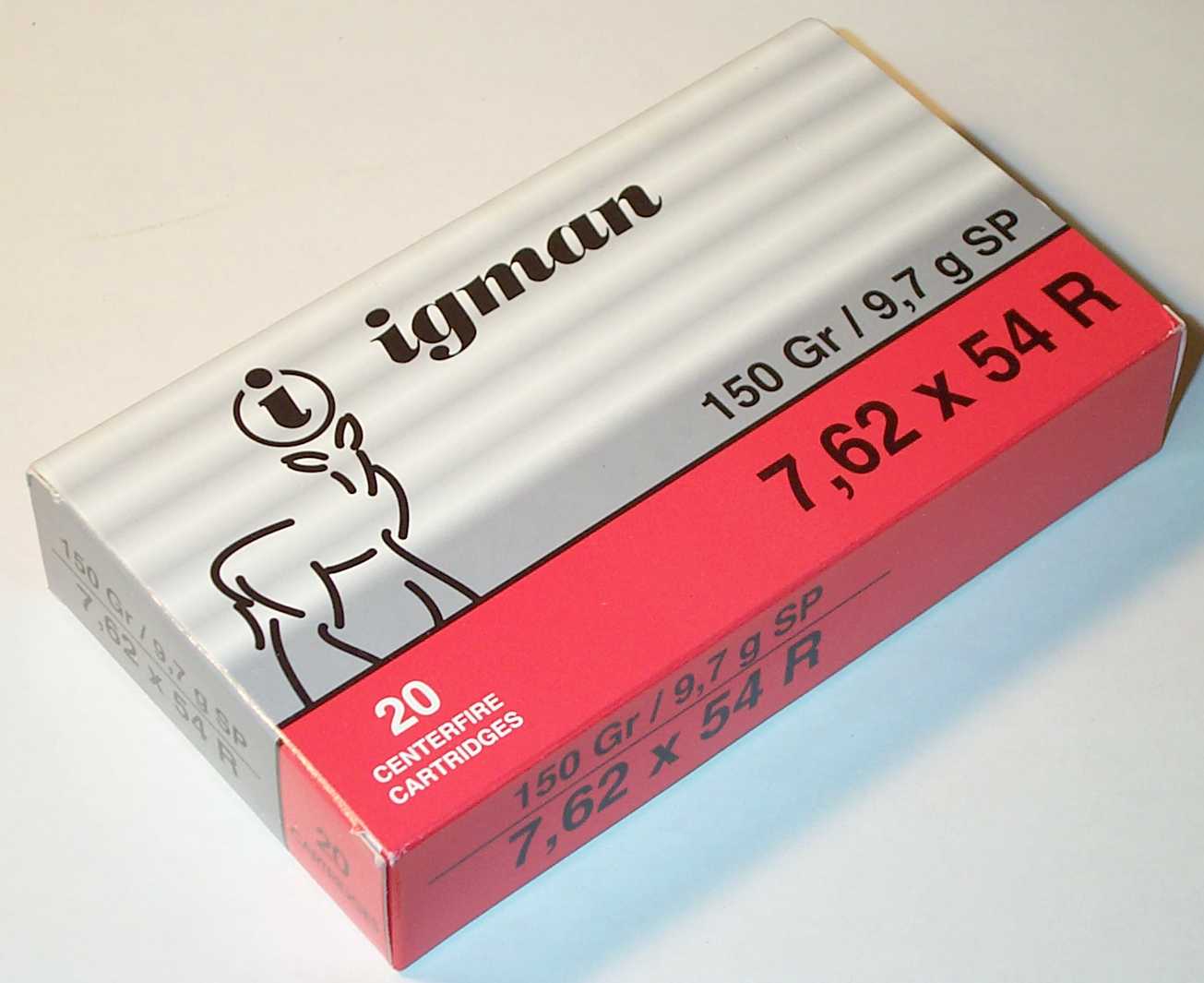

Package (20 rounds per cardboard box)



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2693 2849 2893 2898 2807
High 2737 2954 2940 2950 2868
Average 2715 2881 2913 2928 2842
Extreme Spread 44 105 47 52 61
Standard Deviation 20 34 20 22 22

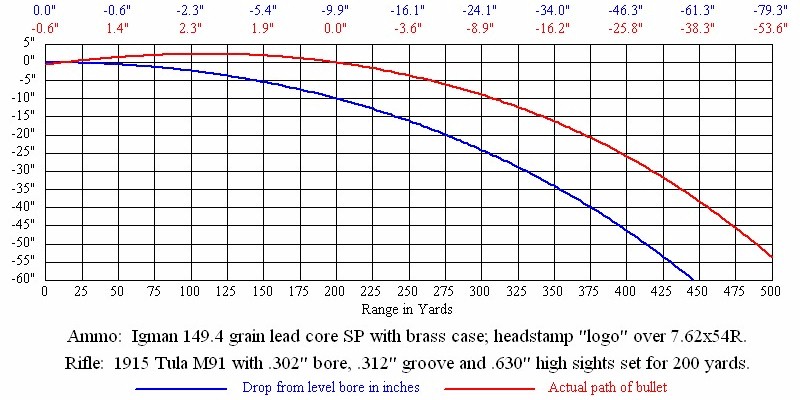

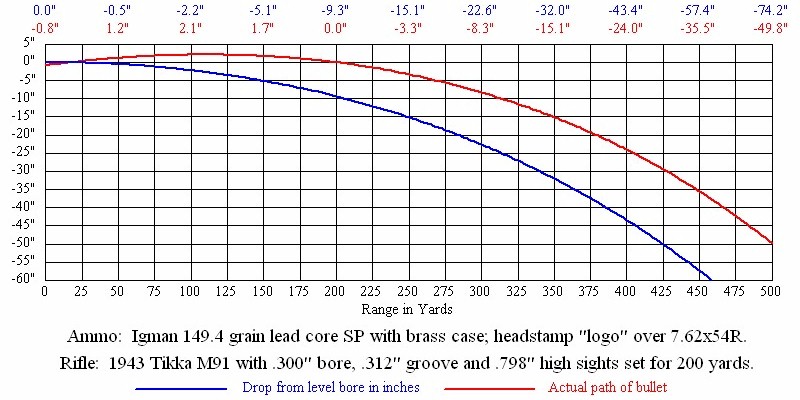

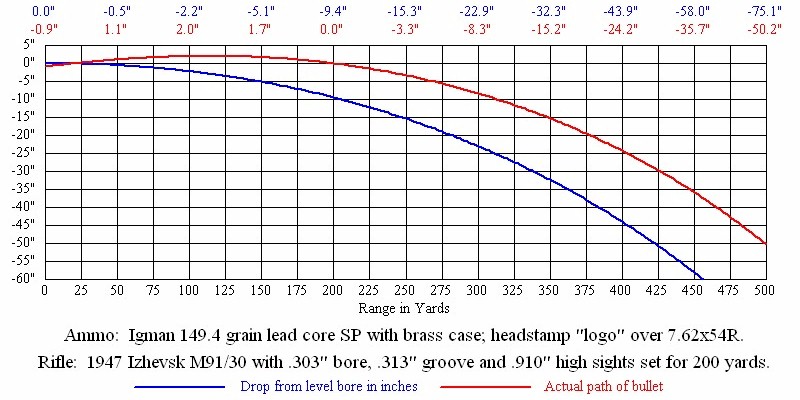

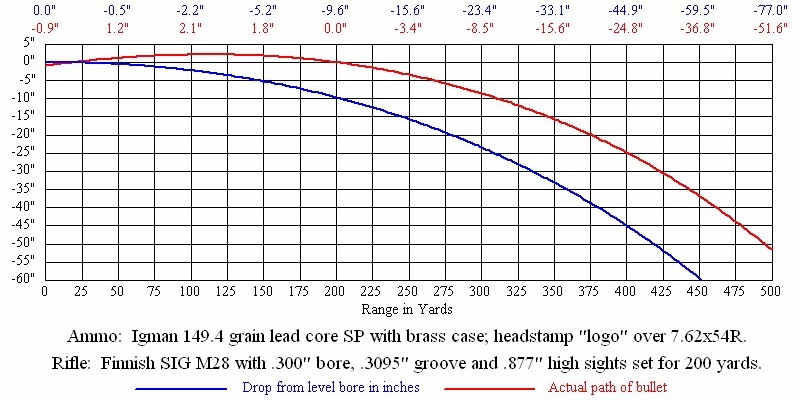

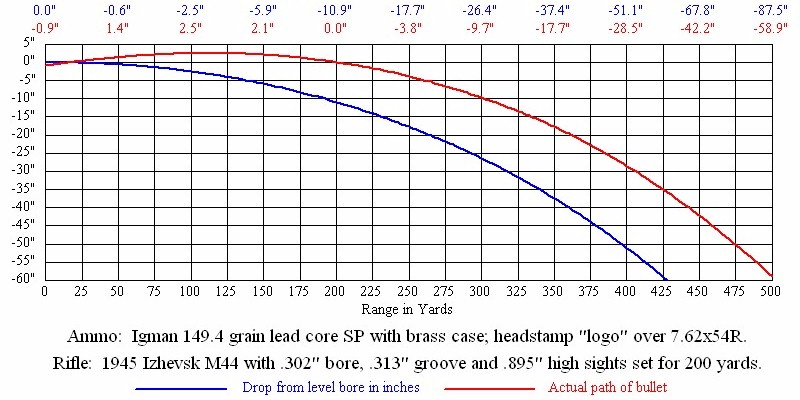

Trajectory and Drop Graph
(click on the thumbnails)
20060422022.jpg (101492 bytes) 20060422023.jpg (101566 bytes) 20060422024.jpg (100013 bytes) 20060422025.jpg (101280 bytes) 20060422026.jpg (101175 bytes)
Notes on the graphs  The graphs above each represent two sets of data.  The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards.   The bullet exits the muzzle at a distance a fraction of an inch below zero inches.   This represents the height of the sight over the centerline of the bore.  The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward.  The blue line is the the bullet drop in inches for the distance traveled.  This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

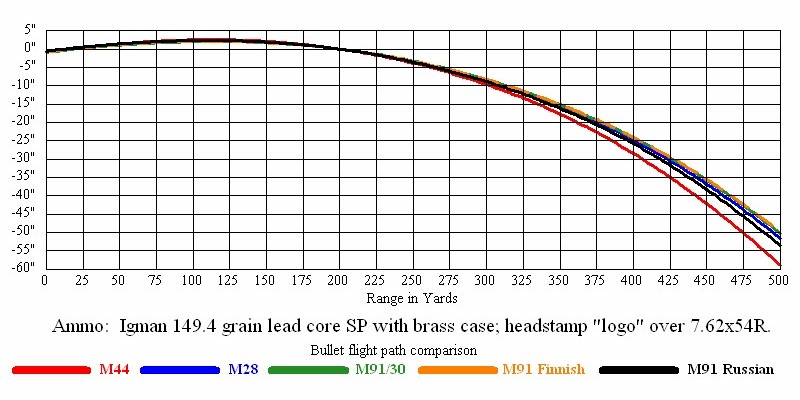

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2715 2580 2448 2321 2197 2077 1960 1848 1741 1638 1540
M28 2881 2740 2604 2472 2343 2219 2098 1981 1868 1760 1657
M91/30 2913 2772 2635 2501 2372 2247 2125 2007 1893 1784 1679
M91 (Finnish) 2928 2786 2648 2515 2385 2259 2137 2019 1904 1794 1690
M91 (Russian) 2842 2703 2568 2437 2309 2186 2066 1950 1838 1731 1629



Bullet Energy to 500 yards in Foot Pounds

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2439 2202 1983 1781 1597 1427 1271 1129 1002 888 785
M28 2745 2484 2243 2021 1817 1629 1456 1299 1154 1024 908
M91/30 2808 2541 2296 2070 1861 1670 1494 1333 1185 1052 933
M91 (Finnish) 2835 2567 2320 2092 1881 1688 1511 1348 1199 1065 944
M91 (Russian) 2672 2417 2181 1964 1764 1580 1412 1258 1117 991 878



Recoil

Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.5 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 11.1 fps 10.0 fps 11.5 fps 10.5 fps 10.3 fps
Recoil Energy (Foot-Pound) 16.0 ft-lb 15.3 ft-lb 17.8 ft-lb 16.3 ft-lb 15.5 ft-lb
