Bulgarian 1955 7.62x54r Lead Core Light Ball
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction

Although some lots have problems with split necks and show signs of poor storage conditions, this ammunition is reasonably accurate and reliable.


(Reference number 015)

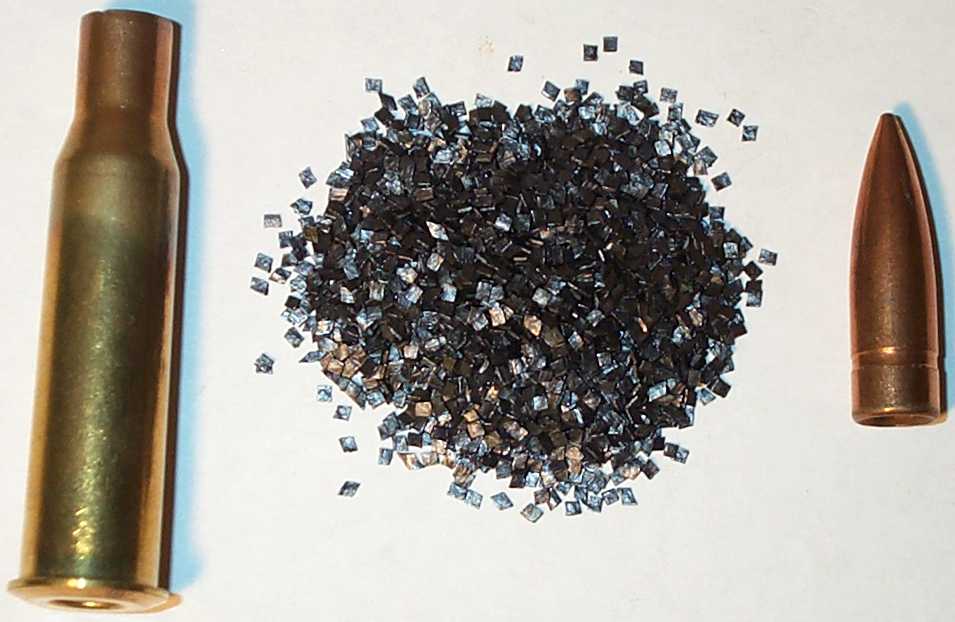

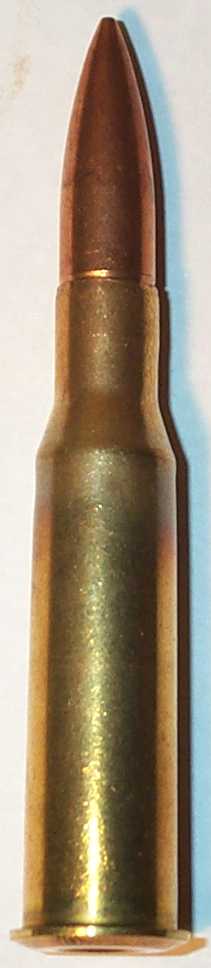

Case Over all Length Powder
Headstamp Material Coating Water Volume Min. Max. Weight

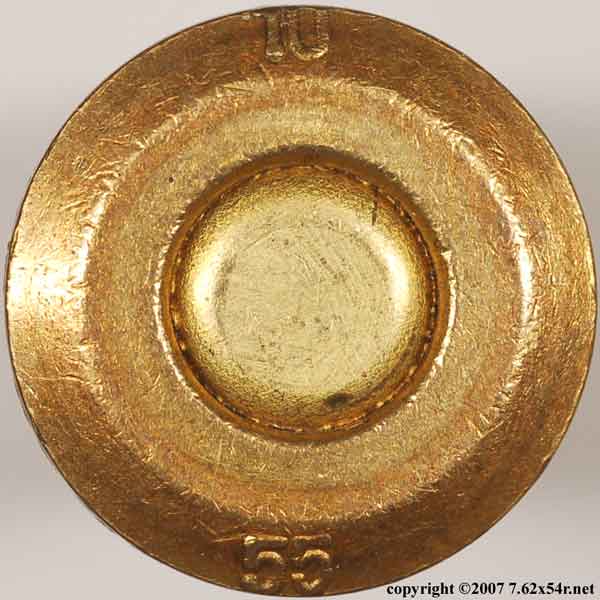

"10" (country) over "55" (year) brass none 63.5 gr. 3.012" 3.020" 48.5 gr.



Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient		 Sectional
Density
.311" 1.119" 149.6 gr. spitzer flat base lead none yes 0.403 0.222



Package

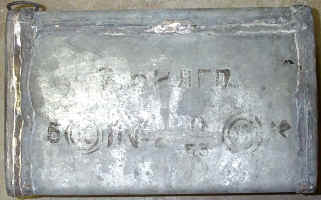

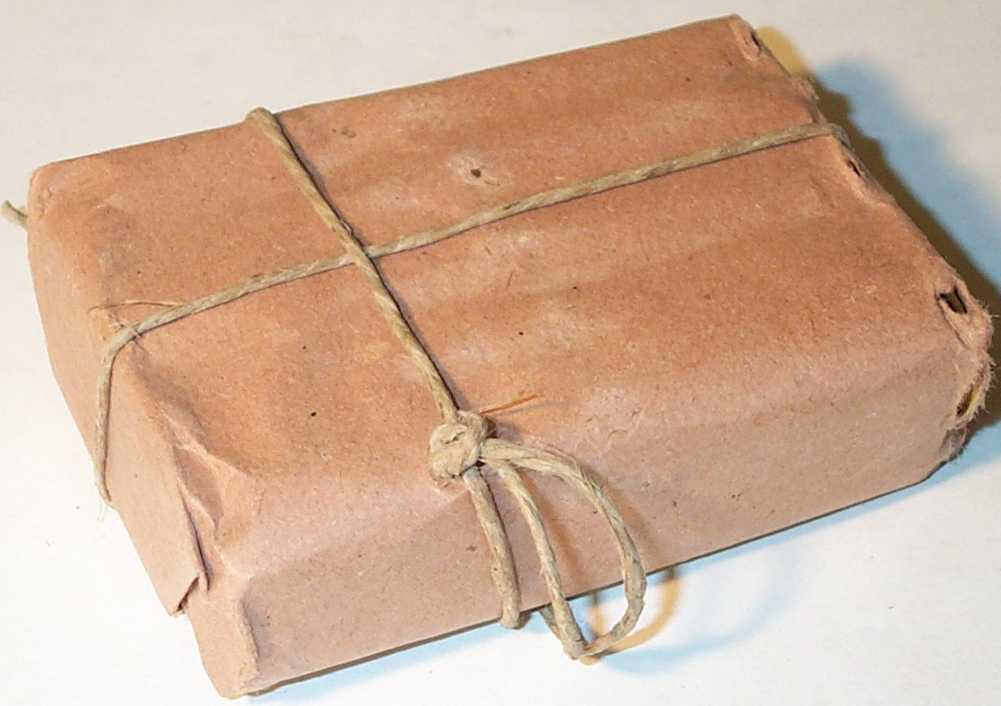

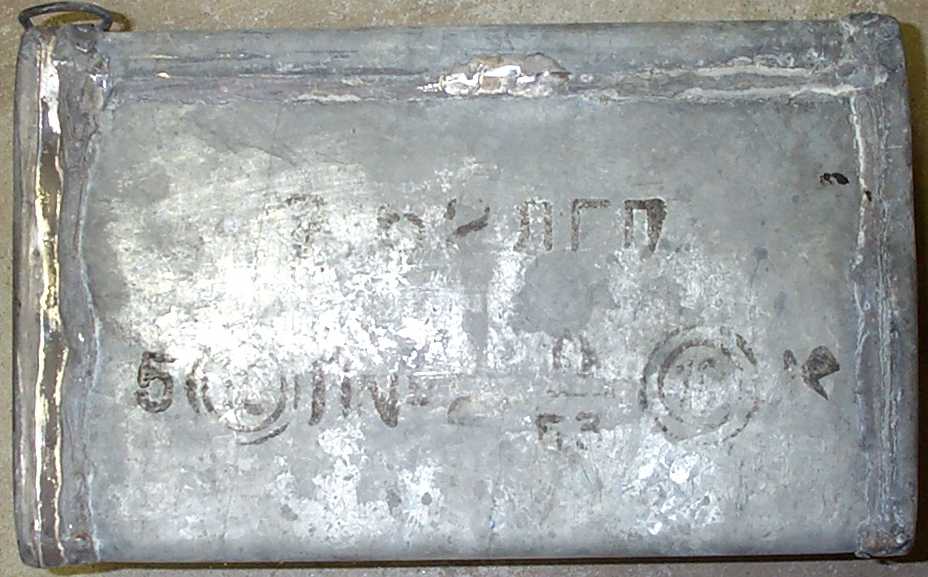

10 rounds per paper wrap 300 (sometimes 250) rounds per tin



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2584 2736 2767 2809 2692
High 2635 2796 2808 2885 2753
Average 2610 2766 2788 2842 2716
Extreme Spread 51 60 41 76 61
Standard Deviation 21 23 18 26 23

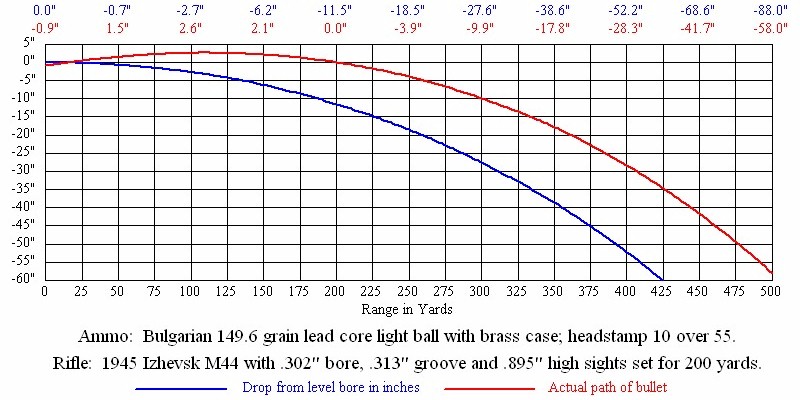

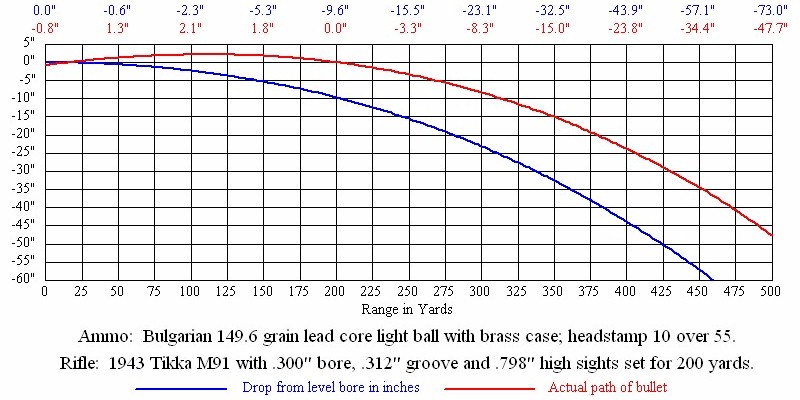

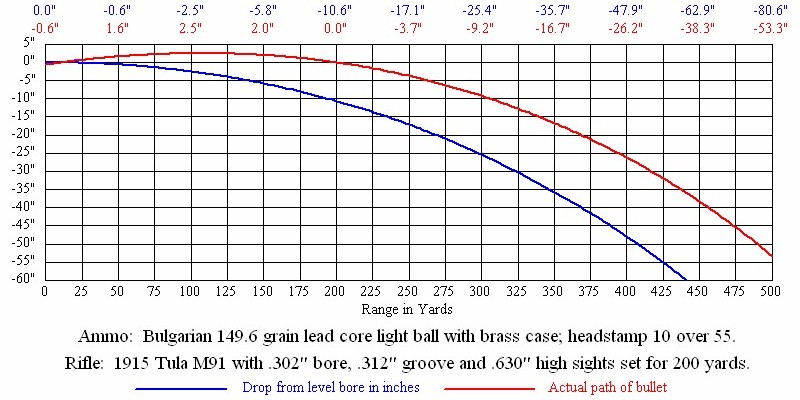

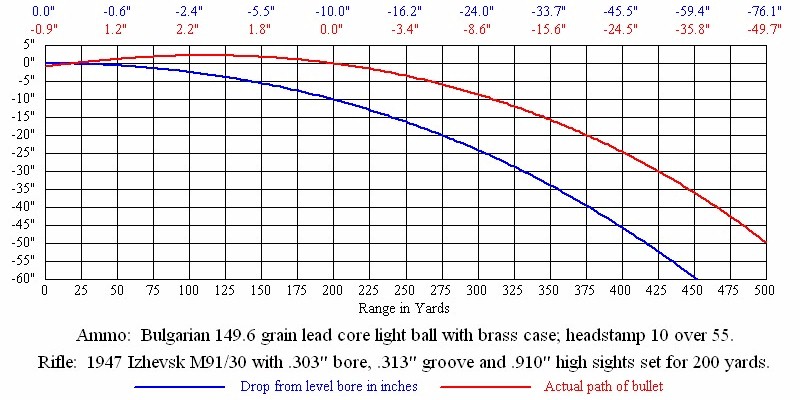

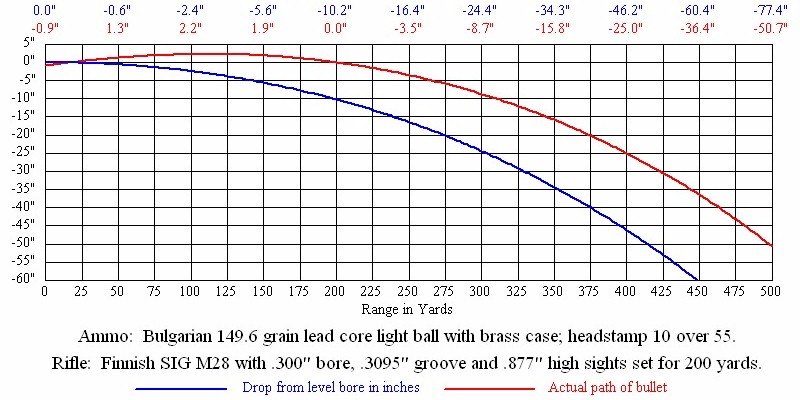

Trajectory and Drop Graph
(click on the thumbnails)		 20050112014.jpg (101570 bytes) 20050112015.jpg (101598 bytes) 20050112016.jpg (100432 bytes) 20050112017.jpg (101245 bytes) 20050112018.jpg (101300 bytes)
Notes on the graphs  The graphs above each represent two sets of data.  The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards.   The bullet exits the muzzle at a distance a fraction of an inch below zero inches.   This represents the height of the sight over the centerline of the bore.  The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward.  The blue line is the the bullet drop in inches for the distance traveled.  This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

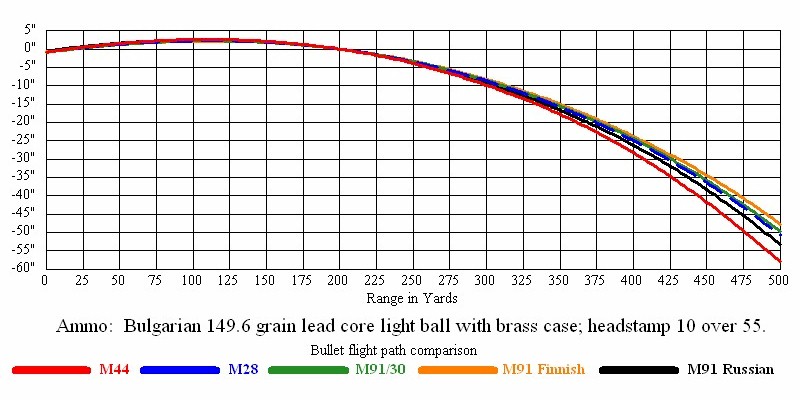

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second
Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2610 2501 2394 2290 2189 2091 1995 1900 1810 1723 1639
M28 2766 2654 2544 2436 2331 2229 2129 2032 1937 1845 1757
M91/30 2788 2675 2564 2456 2351 2248 2148 2051 1955 1862 1774
M91 (Finnish) 2842 2727 2615 2506 2399 2295 2194 2095 1999 1905 1814
M91 (Russian) 2716 2604 2496 2389 2285 2184 2086 1990 1896 1805 1719



Bullet Energy to 500 yards in Foot Pounds
Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2268 2082 1909 1747 1596 1455 1325 1202 1091 989 895
M28 2549 2345 2154 1976 1810 1655 1510 1375 1250 1134 1028
M91/30 2589 2383 2190 2009 1841 1683 1537 1400 1273 1155 1047
M91 (Finnish) 2689 2476 2277 2091 1917 1755 1603 1462 1331 1208 1096
M91 (Russian) 2456 2259 2074 1901 1739 1589 1449 1319 1197 1085 984



Recoil
Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.50 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 10.6 fps 9.5 fps 10.9 fps 10.0 fps 9.7 fps
Recoil Energy (Foot-Pound) 14.4 ft-lb 13.7 ft-lb 15.8 ft-lb 14.9 ft-lb 13.7 ft-lb
