Czechoslovakian 1964 7.62x54r Hollow Core Short Range

Czechoslovakian 1964 7.62x54r Hollow Core Short Range
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction

This ammunition is designed for target practice at short ranges with a very mild recoil. It is not as accurate as some ammo, but reasonable to 200 yards, and ideal for new and younger shooters.

(Reference number 013)

Case				Over all Length		Powder
Headstamp	Material	Coating	Water Volume	Min.	Max.	Weight

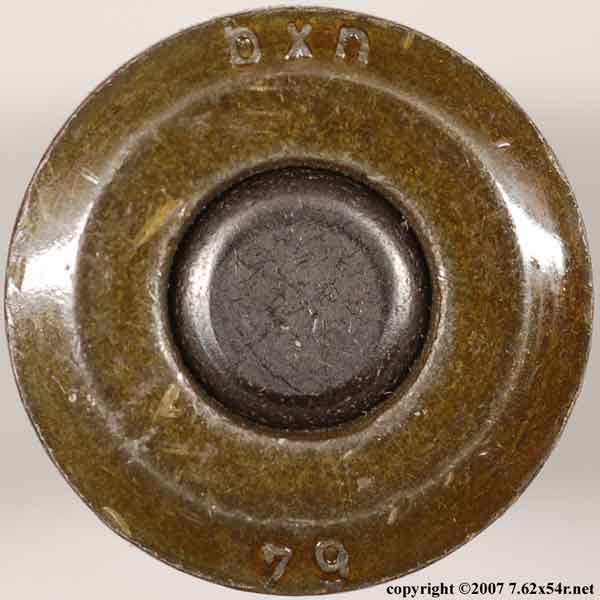

"bxn" (factory) over "64" (year)	steel	lacquer	61.3 gr.	2.467"	2.477"	44.0 gr.

Bullet
Dia.	Length	Weight	Style	Core	Tip Color	Magnetic?	Ballistic Coefficient	Sectional Density
.311"	0.665"	44.8 gr.	round nose	hollow	white	yes	0.052	0.066

Package

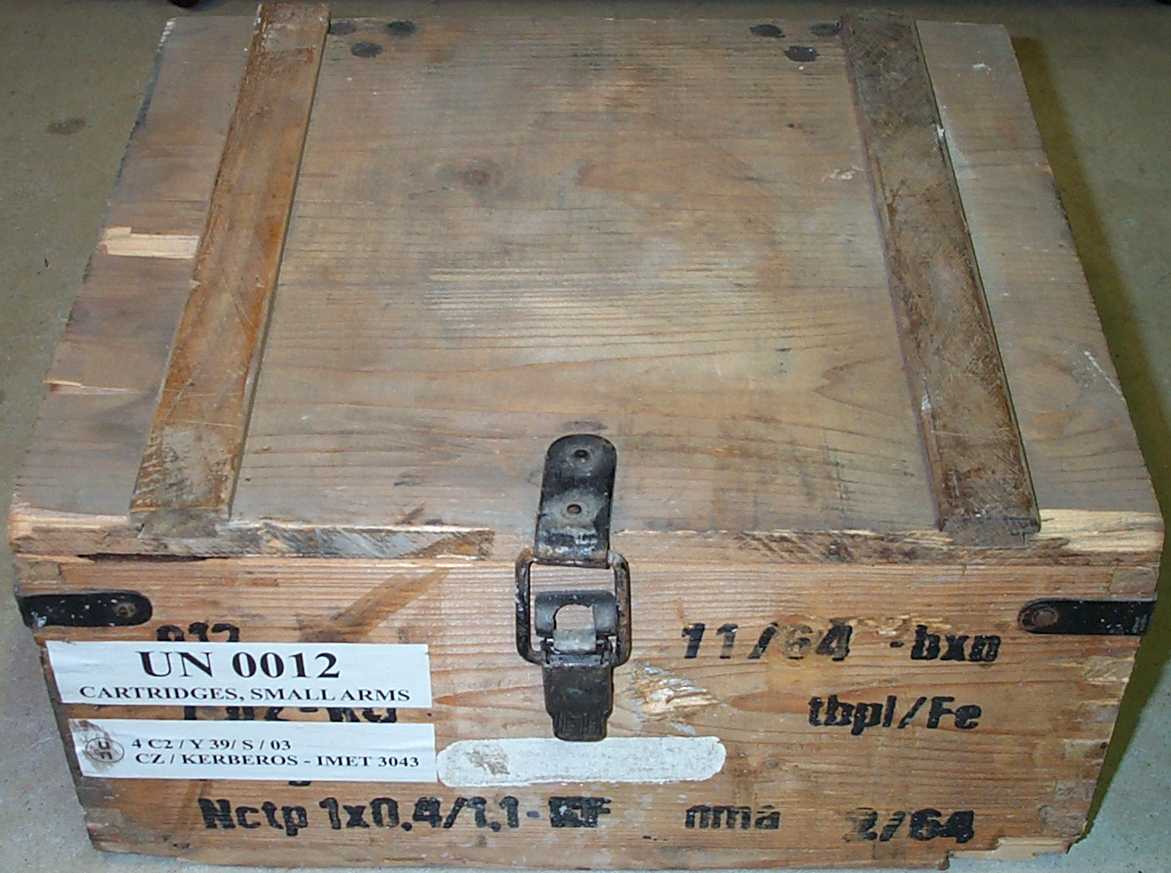

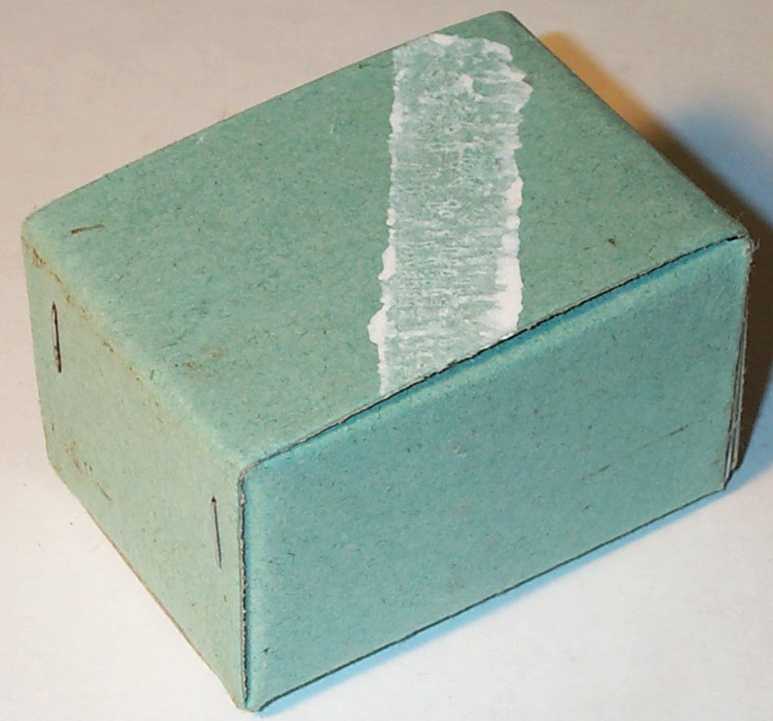

12 rounds per cardboard box	912 rounds per wooden crate

Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle	M44	M28	M91/30	M91 (Finnish)	M91 (Russian)
Low	3242	3585	3605	3642	3401
High	3433	3685	3709	3857	3609
Average	3404	3632	3657	3719	3520
Extreme Spread	191	100	104	215	208
Standard Deviation	135	115	118	131	134

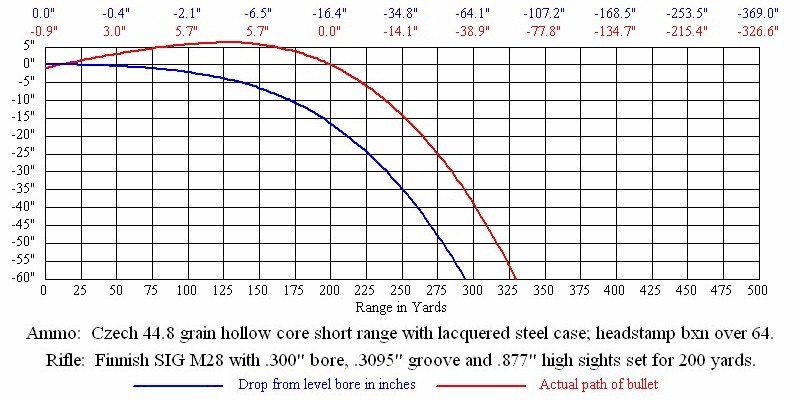

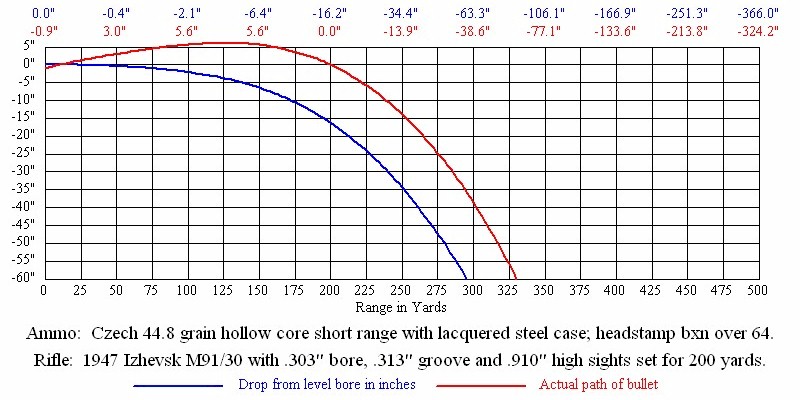

Trajectory and Drop Graph (click on the thumbnails)
Notes on the graphs The graphs above each represent two sets of data. The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards. The bullet exits the muzzle at a distance a fraction of an inch below zero inches. This represents the height of the sight over the centerline of the bore. The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward. The blue line is the the bullet drop in inches for the distance traveled. This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

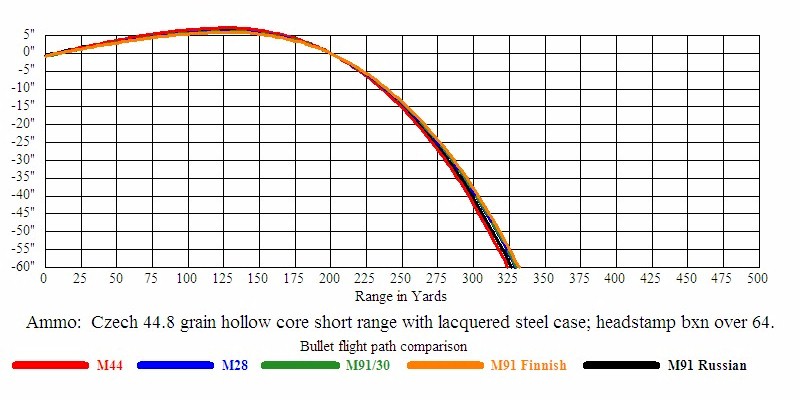

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity. Adobe Reader required.

Bullet Velocity to 500 yards in Feet per Second
Distance (yds)	0	50	100	150	200	250	300	350	400	450	500
M44	3404	2483	1730	1187	942	815	718	637	565	501	443
M28	3632	2665	1877	1279	979	838	737	653	580	514	455
M91/30	3657	2685	1893	1290	983	841	739	655	581	515	456
M91 (Finnish)	3719	2734	1934	1316	993	848	745	659	585	519	459
M91 (Russian)	3520	2576	1805	1232	961	827	728	645	572	507	449

Bullet Energy to 500 yards in Foot Pounds
Distance (yds)	0	50	100	150	200	250	300	350	400	450	500
M44	1158	616	299	141	89	66	52	40	32	25	20
M28	1318	709	352	163	96	70	54	43	34	26	21
M91/30	1336	720	358	166	96	71	55	43	34	27	21
M91 (Finnish)	1382	747	373	173	99	72	55	43	34	27	21
M91 (Russian)	1238	663	325	152	92	68	53	42	33	26	20

Recoil
Rifle	M44 (Soviet)	M28 (Finnish)	M91/30 (Soviet)	M91 (Finnish)	M91 (Russian)
Weight (Pounds)	8.25 lbs	9.75 lbs	8.56 lbs	9.50 lbs	9.38 lbs
Recoil Velocity (Feet per Second)	7.1 fps	6.5 fps	7.4 fps	6.8 fps	6.5 fps
Recoil Energy (Foot-Pound)	6.6 ft-lb	6.4 ft-lb	7.3 ft-lb	6.9 ft-lb	6.2 ft-lb
