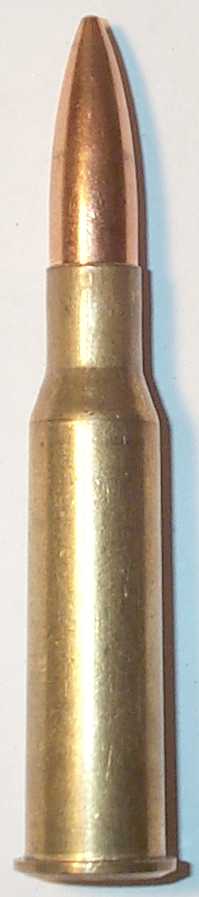

Olympic 7.62x54r 172 gr. FMJ
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction


This Greek ammo has a very poor reputation among shooters.  It's quality is lower than much of the surplus on the market, yet the price is higher.  In 60 rounds fired for this evaluation there was one misfire where the primer failed to ignite.  There are advantages in that it is non-corrosive and non-magnetic which is an issue at some public ranges.  Although the case is brass, it is berdan primed and therefore not easily reloadable.


(Reference number 035)

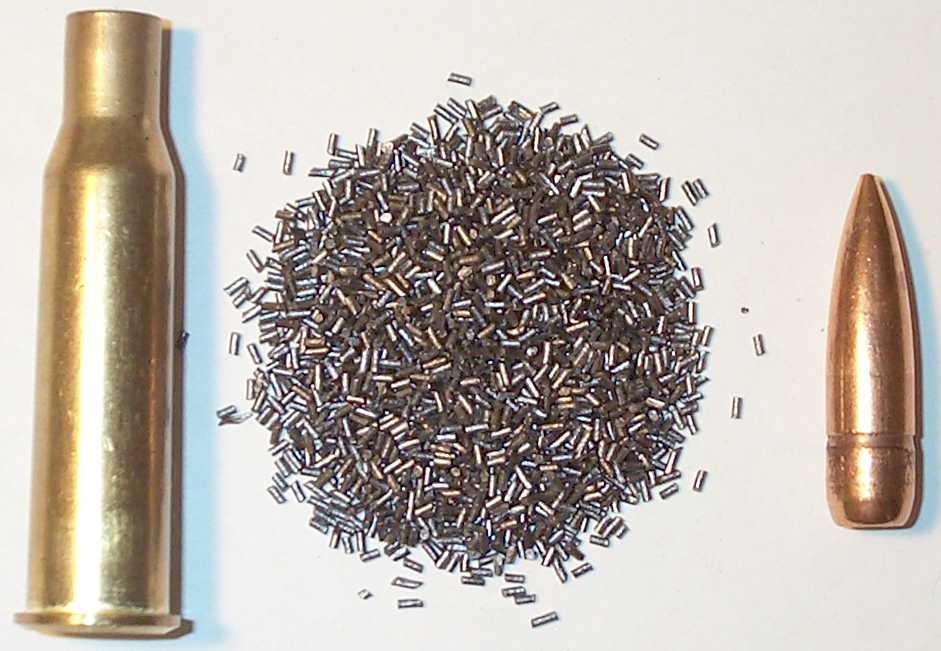

Case Primer Over all Length Powder
Headstamp Material Coating Water Volume Berdan Min. Max. Weight

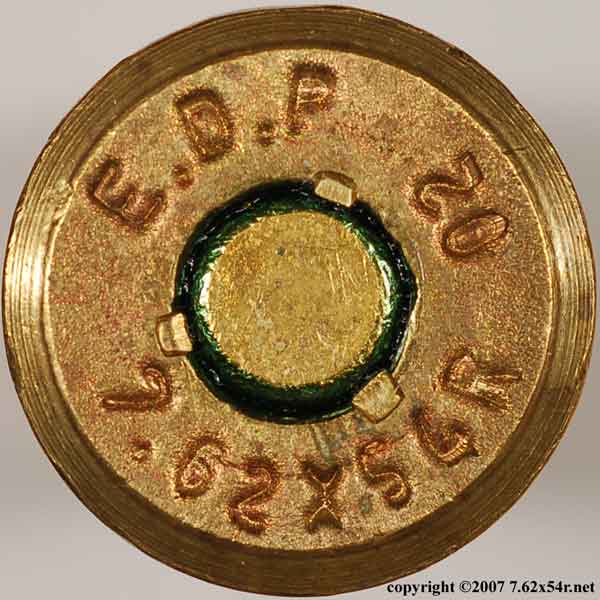

"E.D.P." / "7.62X54R" / "02" brass none 60.3 gr. Non-corrosive 2.987" 3.016" 46.1 gr.



Bullet
Dia. Length Weight Style Core Tip Color Magnetic? Ballistic
Coefficient
Sectional
Density
.310" 1.232" 172.2 gr. spitzer boat tail lead none no 0.298 0.256

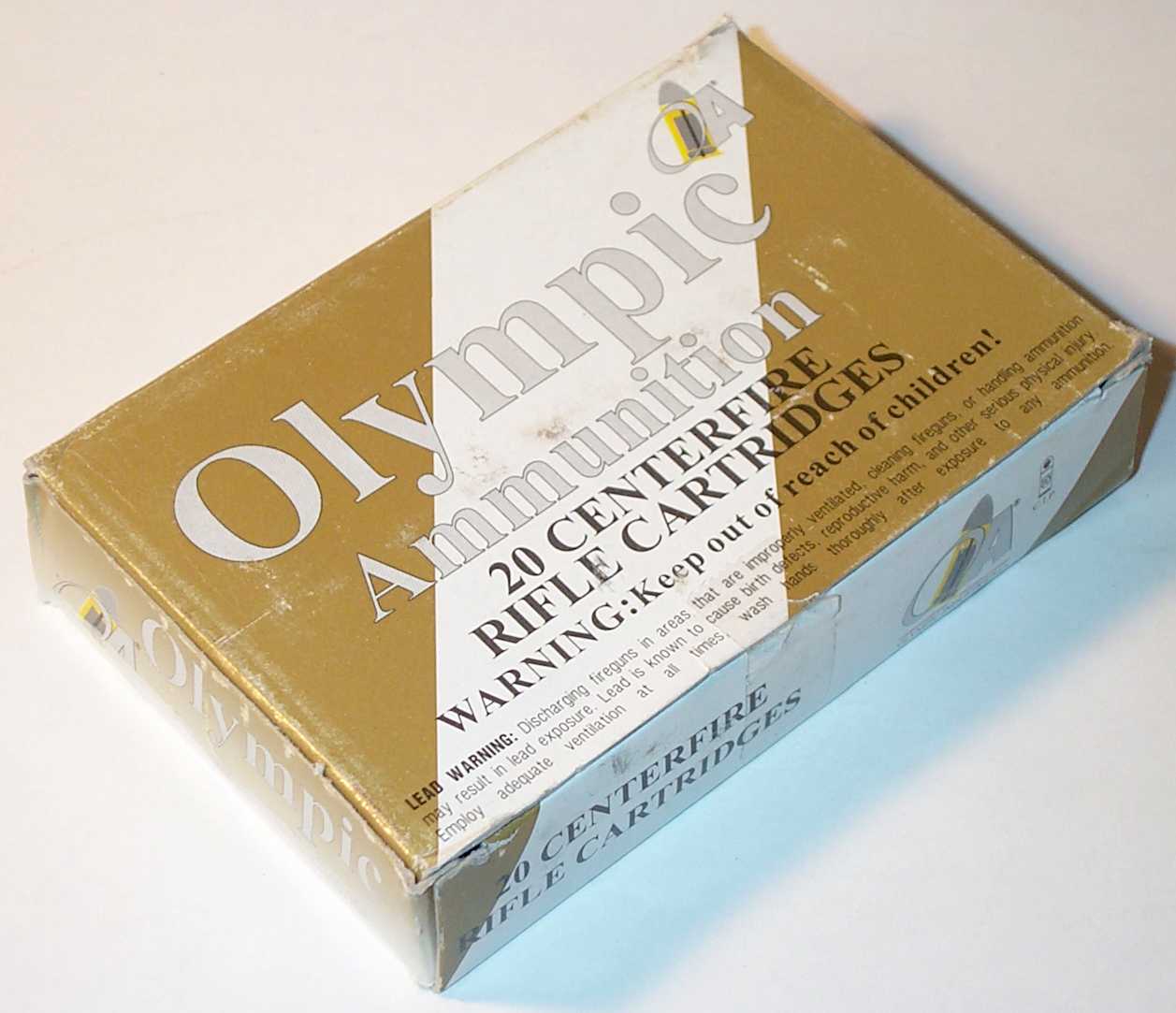

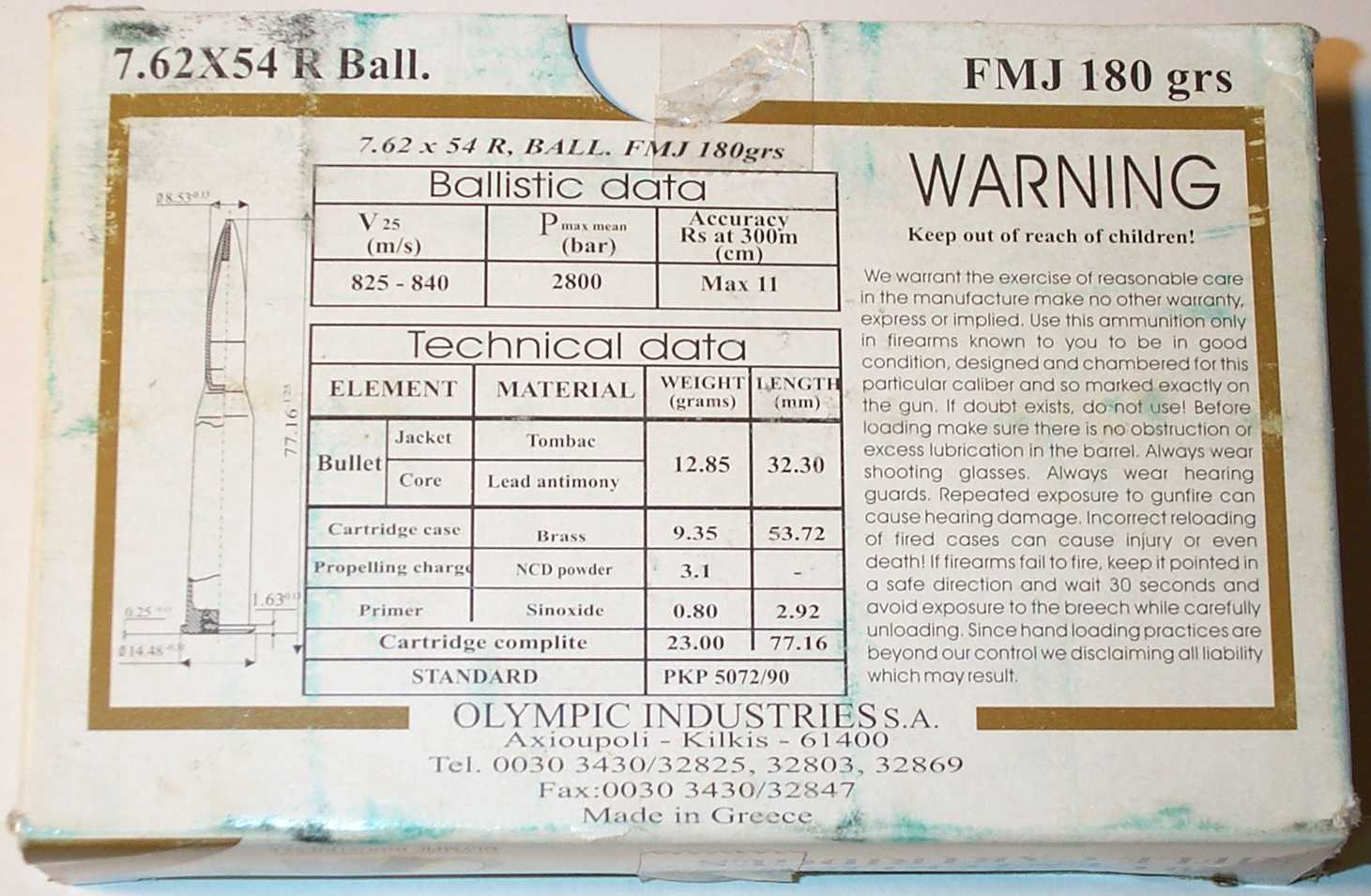

Package
20 rounds per cardboard box



Measured Muzzle Velocity in Feet per Second (10 shot string)
Rifle M44 M28 M91/30 M91 (Finnish) M91 (Russian)
Low 2345 2456 2501 2544 2413
High 2409 2574 2570 2596 2488
Average 2368 2505 2536 2575 2449
Extreme Spread 64 118 69 52 75
Standard Deviation 23 37 23 23 30

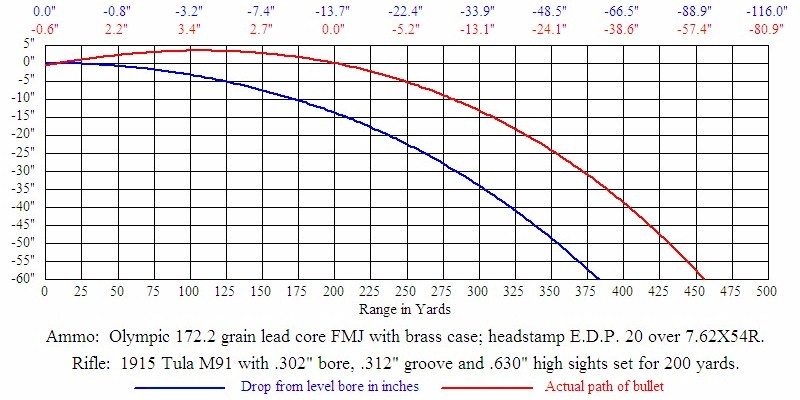

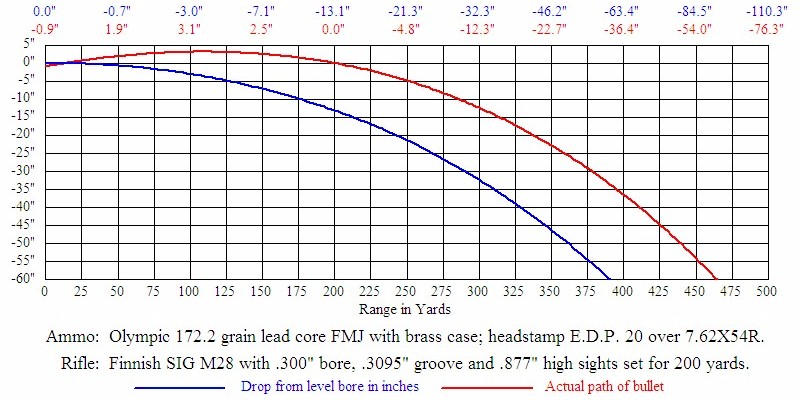

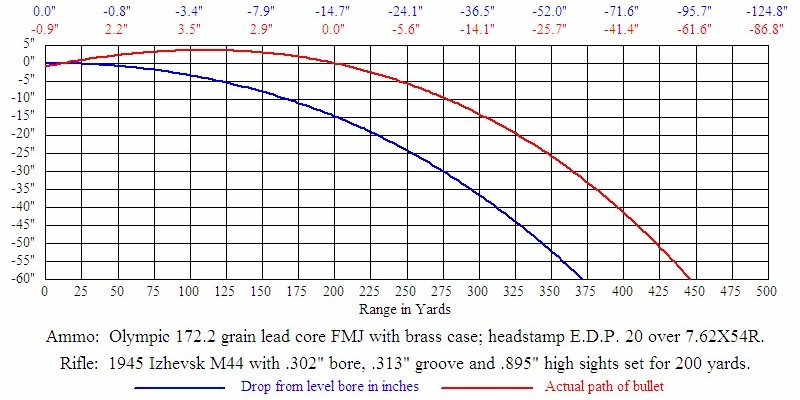

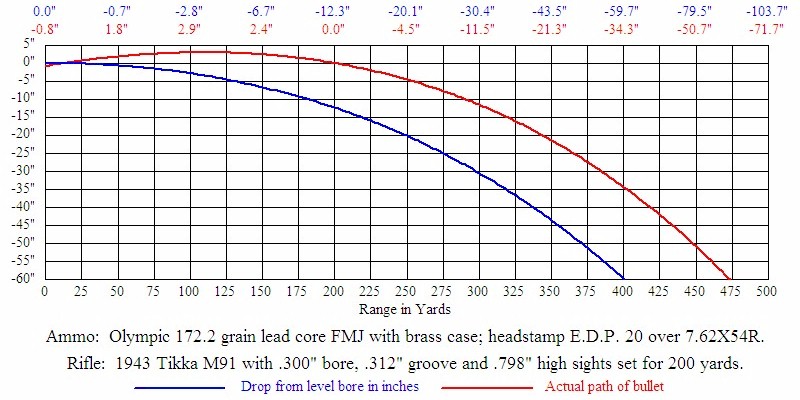

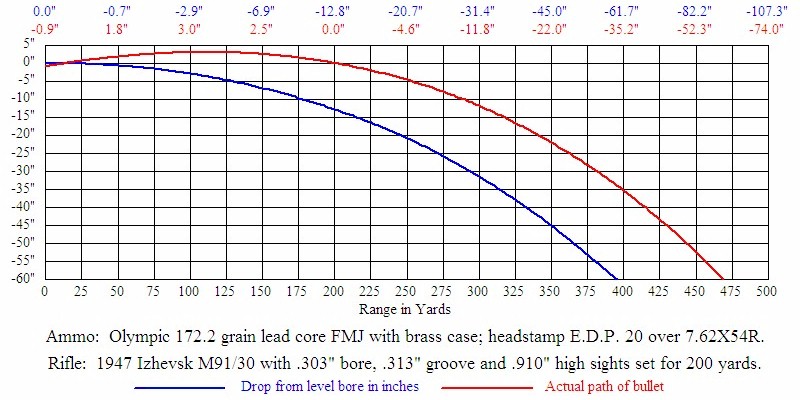

Trajectory and Drop Graph
(click on the thumbnails)
20061109016.jpg (100662 bytes) 20061109017.jpg (100894 bytes) 20061109018.jpg (101325 bytes) 20061109019.jpg (100591 bytes) 20061109020.jpg (100300 bytes)
Notes on the graphs  The graphs above each represent two sets of data.  The red line is the path of the bullet fired from the rifle with the sights zeroed at 200 yards.   The bullet exits the muzzle at a distance a fraction of an inch below zero inches.   This represents the height of the sight over the centerline of the bore.  The bullet rises above zero in a trajectory that then passes through zero again at 200 yards and continues downward.  The blue line is the the bullet drop in inches for the distance traveled.  This begins at the muzzle at zero inches and decreases with distance not taking sight height or zero distance into account.

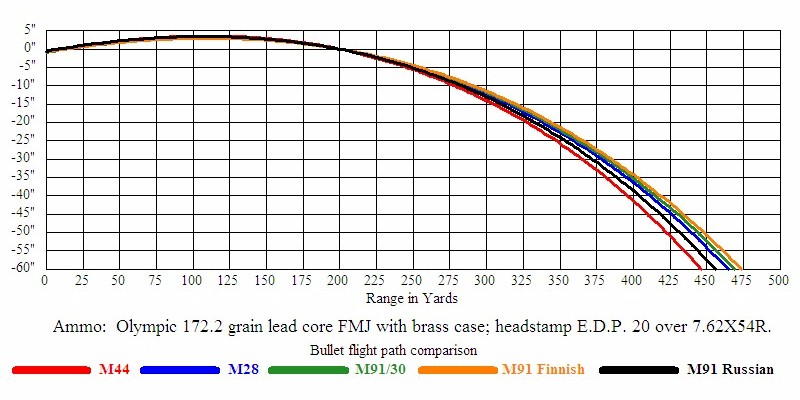

Trajectory Comparison Graph
This graph combines the trajectories of the 5 graphs above to compare the performance of the test rifles.
Click on the graph for a large, scalable PDF to zoom in for better detail clarity.  Adobe Reader required.




Bullet Velocity to 500 yards in Feet per Second

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2368 2229 2095 1965 1840 1722 1610 1502 1404 1315 1234
M28 2505 2362 2223 2089 1960 1835 1717 1605 1499 1400 1311
M91/30 2536 2392 2252 2117 1987 1861 1741 1628 1520 1420 1329
M91 (Finnish) 2575 2429 2288 2152 2021 1893 1772 1657 1548 1445 1352
M91 (Russian) 2449 2307 2170 2038 1910 1788 1673 1562 1459 1364 1278



Bullet Energy to 500 yards in Foot Pounds

Distance (yds) 0 50 100 150 200 250 300 350 400 450 500
M44 2141 1897 1676 1475 1293 1132 989 862 752 660 581
M28 2397 2130 1887 1667 1466 1286 1126 983 858 748 656
M91/30 2457 2185 1937 1712 1508 1322 1158 1012 882 770 675
M91 (Finnish) 2532 2254 2000 1769 1559 1369 1199 1049 915 798 698
M91 (Russian) 2290 2033 1799 1586 1393 1221 1068 932 812 711 624



Recoil

Rifle M44 (Soviet) M28 (Finnish) M91/30 (Soviet) M91 (Finnish) M91 (Russian)
Weight (Pounds) 8.25 lbs 9.75 lbs 8.56 lbs 9.5 lbs 9.38 lbs
Recoil Velocity (Feet per Second) 9.8 fps 9.2 fps 10.6 fps 9.8 fps 9.0 fps
Recoil Energy (Foot-Pound) 12.5 ft-lb 13.0 ft-lb 15.1 ft-lb 14.1 ft-lb 11.8 ft-lb
