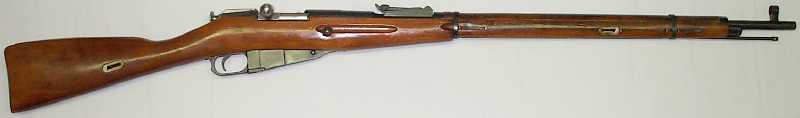

Soviet 1947 Izhevsk M91/30

Soviet 1947 Izhevsk M91/30
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction


Barrel length	Pattern	Twist rate	Bore diameter	Groove diameter	Bore condition	Weight	Sight height above bore
28 3/4"	4 groove	1 in 9.5"	.303"	.313"	new	8.56 lbs.	.910"

Click on the data link for each type of ammo to access pictures, more physical and ballistic data, and ballistic graphs for this firearm and others. Click on the column headers to resort the table by the data in that column. The sort order can be reversed by clicking on the column title a second time Please be patient while the page reloads after sorting. Return to the original order by sorting the Reference Number column.
Ref. #	Country	Ammo	Bullet			Muzzle Velocity (Feet per Second)					Muzzle Energy Foot Lbs.	Recoil
Ref. #	Country	Ammo	Weight Grains	Ballistic Coefficient	Sectional Density	Low	High	Avg.	Extreme Spread	Standard Deviation	Muzzle Energy Foot Lbs.	Velocity Feet/Second	Energy Foot Lbs.
001	USSR DATA	1986 CW	147.8	0.325	0.219	2770	2897	2812	118	37	2598	10.8	15.7
002	USSR Note #1	1955 CW, ST	148.6	X	X	X	X	X	X	X	X	X	X
003	USSR DATA	1940s CW	148.2	0.363	0.220	2776	2846	2812	70	26	2598	11.1	16.5
004	Hungary DATA	1987 LC	148.8	0.242	0.220	2801	2843	2818	42	25	2627	10.8	15.6
005	Hungary DATA	Etalon WT	148.7	0.502	0.220	2737	2879	2815	142	49	2621	11.0	16.2
006	Hungary DATA	1975 LC, SYT	181.7	0.442	0.269	2529	2592	2562	63	23	2651	11.2	16.7
007	Hungary DATA	1970 CW, SYT	182.6	0.556	0.272	2518	2593	2567	75	23	2677	11.2	16.8
008	Hungary DATA	1951 CW, YT	182.1	0.479	0.269	2682	2738	2710	56	24	2968	11.9	19.0
009	Hungary DATA	1969 CW	149.1	0.338	0.221	2730	2831	2777	101	32	2551	10.8	15.6
010	Yugoslavia DATA	1976 BC	182.6	0.566	0.270	2580	2655	2605	75	25	2758	11.6	18.1
011	Czech. DATA	1963 LC, ST	148.3	0.401	0.220	2834	2873	2848	39	18	2666	11.0	16.1
012	Czech. DATA	1953 LC, YT	181.9	0.421	0.271	2566	2607	2592	41	17	2715	11.4	17.5
013	Czech. DATA	1964 WT, SR	44.8	0.052	0.066	3605	3709	3657	104	118	1336	7.4	7.3
014	Albania DATA	1986 BC	147.8	0.384	0.219	2738	2797	2767	59	24	2516	10.6	15.0
015	Bulgaria DATA	1955 BC	149.6	0.403	0.222	2767	2808	2788	41	18	2589	10.9	15.8
016	Bulgaria DATA	1955 BC, YT	182.0	0.368	0.269	2609	2644	2621	35	17	2776	11.5	17.7
017	Russia DATA	Wolf FMJ	148.4	0.478	0.219	2686	2820	2754	134	47	2492	10.7	15.3
018	Russia DATA	Wolf SP	202.8	0.412	0.300	2323	2389	2353	66	23	2494	10.6	15.0
019	Russia DATA	Barnaul SP	204.4	0.400	0.301	2301	2372	2336	71	23	2471	10.5	14.7
020	Czech. DATA	1987 CW	148.5	0.428	0.219	2759	2815	2794	56	20	2566	10.9	15.8
021	Poland DATA	1972 CW, ST	147.8	0.447	0.220	2804	2851	2826	47	18	2624	11.0	16.1
022	Russia DATA	B. Bear FMJ	185.8	0.516	0.276	2451	2518	2488	67	24	2555	10.5	14.7
023	Russia DATA	B. Bear SP	204.1	0.333	0.303	2328	2398	2352	70	27	2506	10.5	14.9
024	Yugoslavia DATA	Privi Ptz. SP	180.8	0.372	0.267	2572	2652	2611	80	28	2740	11.5	17.7
025	USSR DATA	1971 CW, ST	148.2	0.377	0.219	2803	2858	2833	55	21	2638	11.0	16.2
026	China DATA	1953 BC	148.3	0.336	0.219	2904	2961	2928	57	23	2817	11.5	17.7
027	Finland DATA	1973 Match	185.4	0.547	0.279	2401	2498	2431	97	30	2428	10.1	13.6
028	China DATA	1966 CW	148.6	0.401	0.221	2746	2812	2783	66	25	2562	10.6	15.0
029	Serbia DATA	WG/PP FMJ	151.5	0.415	0.225	2786	2847	2815	61	25	2674	11.2	16.9
030	Russia (7N1) DATA	1997 sniper	152.0	0.498	0.225	2754	2792	2774	38	15	2596	10.8	15.7
031	Bosnia-Herz. DATA	Igman SP	149.4	0.331	0.221	2893	2940	2913	47	20	2808	11.5	17.8
032	Hungary DATA	1951 CW	148.8	0.431	0.221	2824	2946	2876	122	39	2736	11.2	16.8
033	Poland DATA	1986 CW	147.7	0.538	0.219	2797	2874	2831	77	26	2633	10.9	15.9
034	East Germ. DATA	1983 SR	124.3	0.344	0.183	2543	2662	2611	119	41	1877	8.4	9.5
035	Greece DATA	Olympic FMJ	172.2	0.298	0.256	2501	2570	2536	69	23	2457	10.6	15.1
036	Bulgaria DATA	1987 CW	148.1	0.370	0.219	2746	2810	2783	64	26	2545	10.8	15.6
037	Albania DATA	1987 LC	148.3	0.435	0.219	2836	2900	2869	64	28	2705	11.0	16.2

Abbreviations:
CW = copper washed case, LC = lacquered case, BC = brass case, SR = short range
ST = silver tip, YT = yellow tip, SYT = silver over yellow tip, WT = white tip
FMJ = full metal jacket, SP = soft point

Notes:
#1 Unreliable ignition, no data available

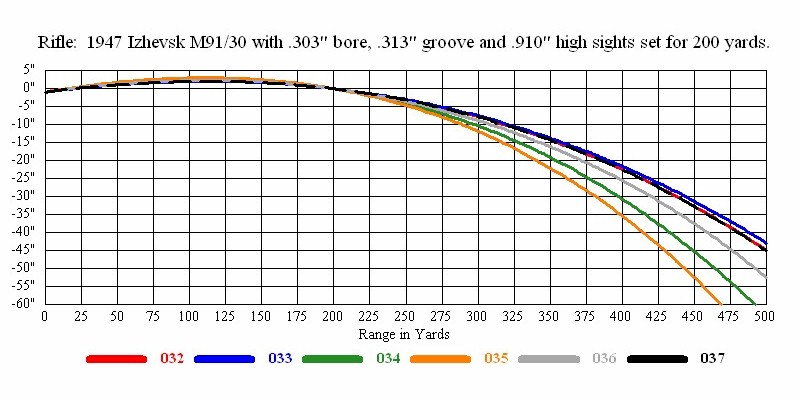

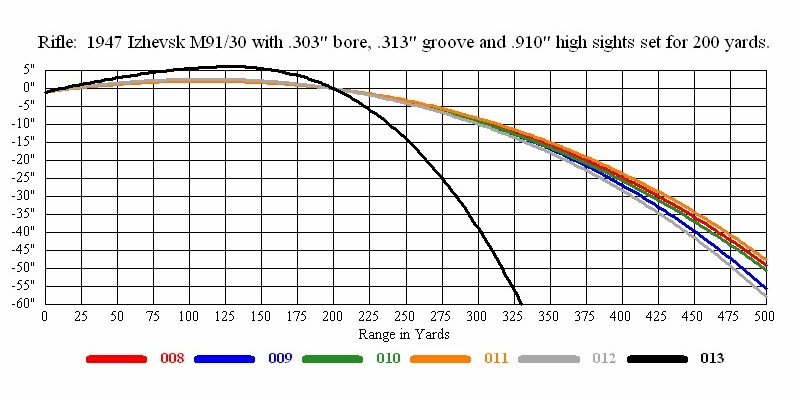

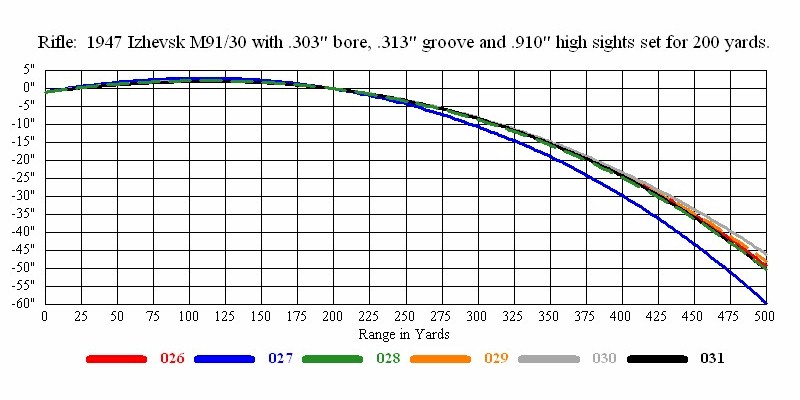

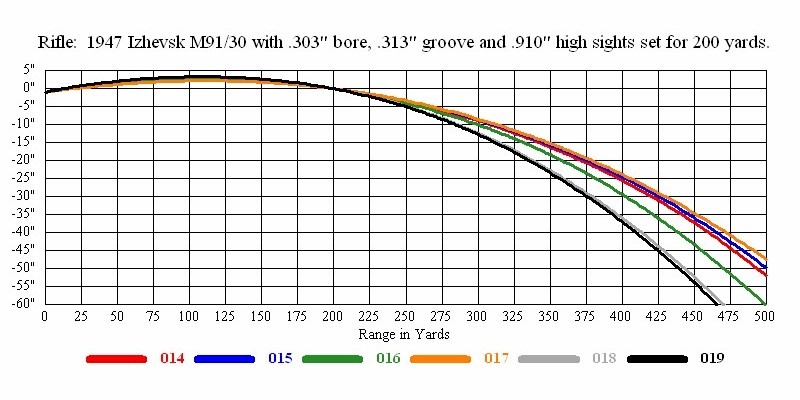

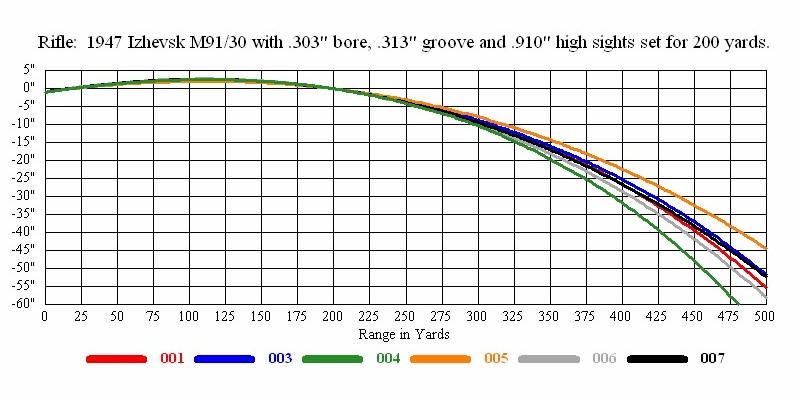

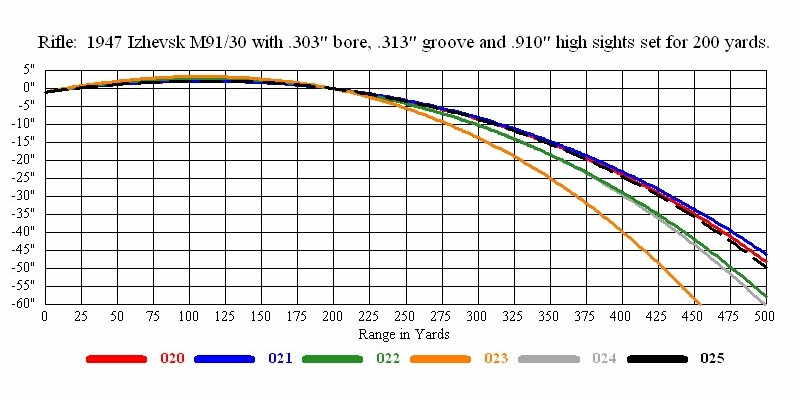

Trajectory Comparison Graphs
These graphs illustrate the trajectories of each type of ammo from this rifle using the reference numbers in the chart above.
Click on each graph for a large, scalable PDF to zoom in for better detail clarity. Adobe Reader required.
