The purpose of this page is to provide a pictorial reference to some of the accessories associated with Mosin-Nagant Rifles.
It is not a comprehensive representation and many other styles and variations are known.

Oil Bottles Cleaning Kits Bolt Tools Muzzle Protectors Jags and Brushes Stripper Clips Ammo Pouches

See this page for Cleaning Rods

See this page for Russian and Soviet Bayonets

For Finnish Bayonets see Vic Thomas' excellent article and photo layout at Mosin Nagant.net.
Bayonets used by Finnish Forces 1939-1945

Pictures and information provided by others will be indicated by their online nickname in quotes.

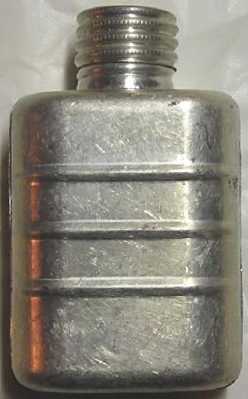

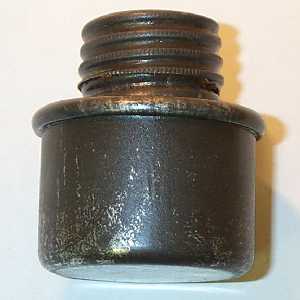

Oil Bottles

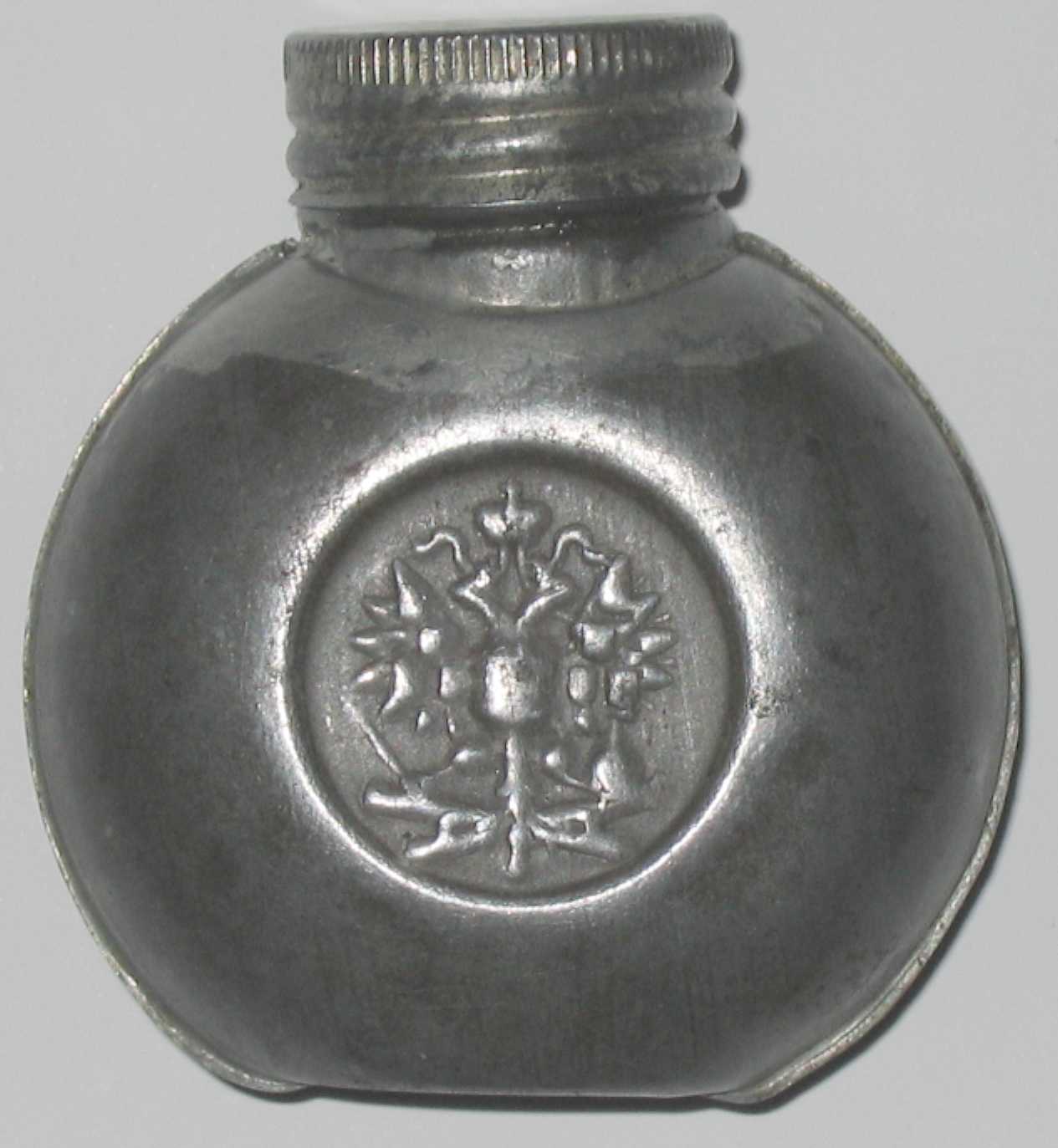

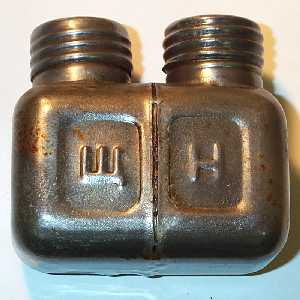

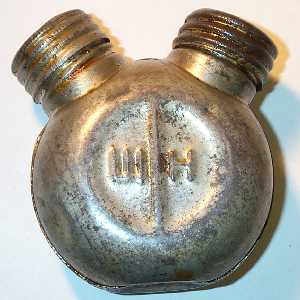

Imperial Russian, single compartment (courtesy of "juk73")	Opposite side of oiler to the left. (courtesy of "juk73")	Soviet, dual compartment, early shchalok / neft alkaline solution / oil	Soviet, dual compartment, late shchalok / neft alkaline solution / oil

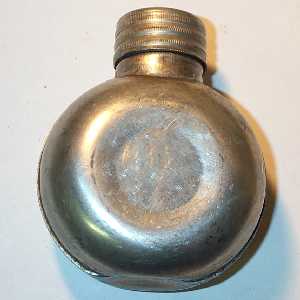

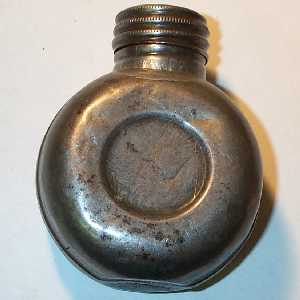

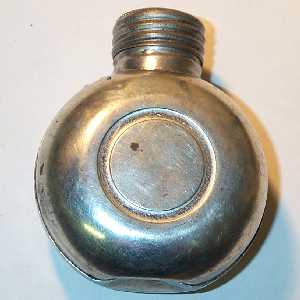

Soviet, single compartment unmarked	Soviet, single compartment unmarked	Soviet, single compartment unmarked	Soviet, single compartment unmarked

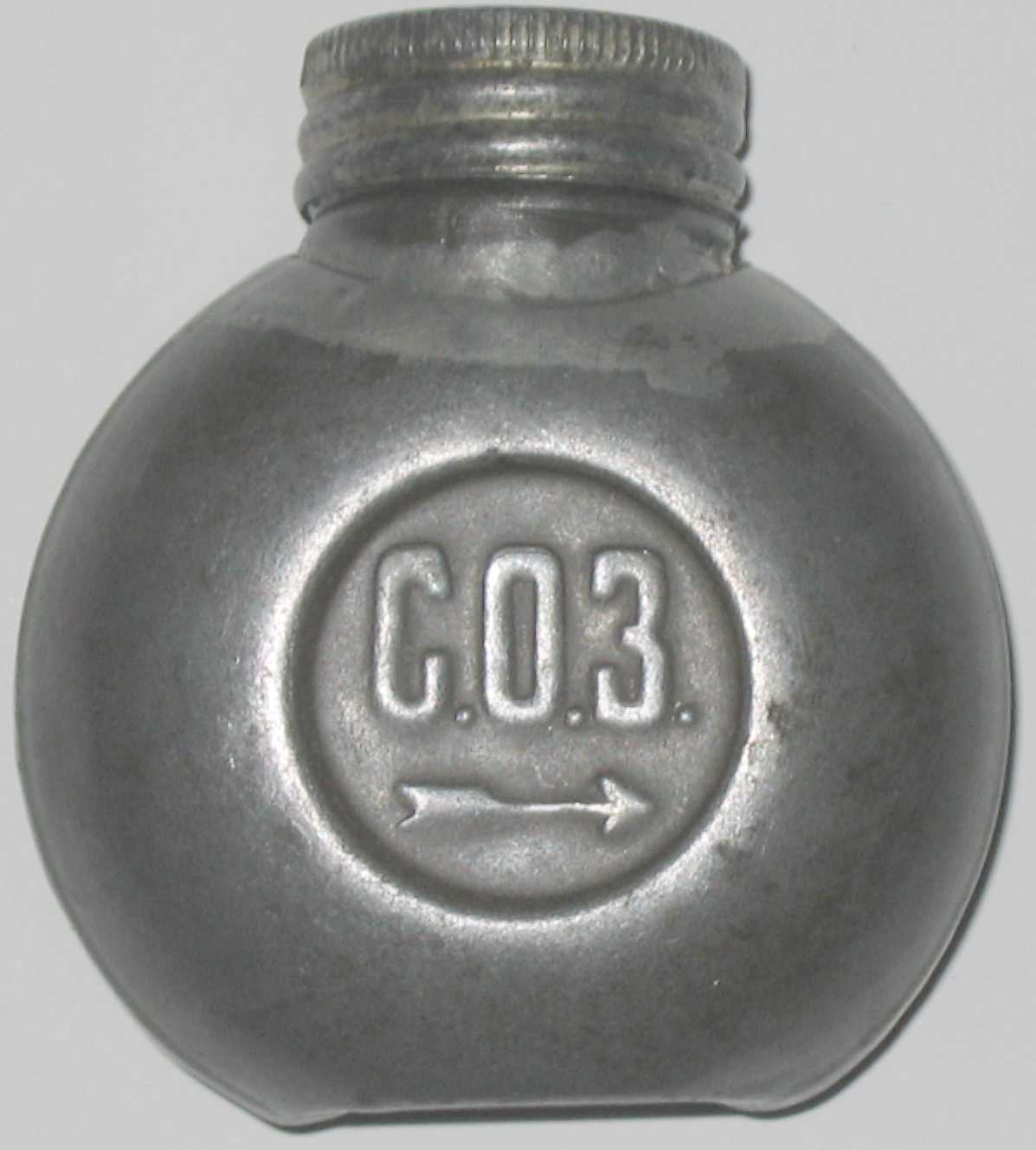

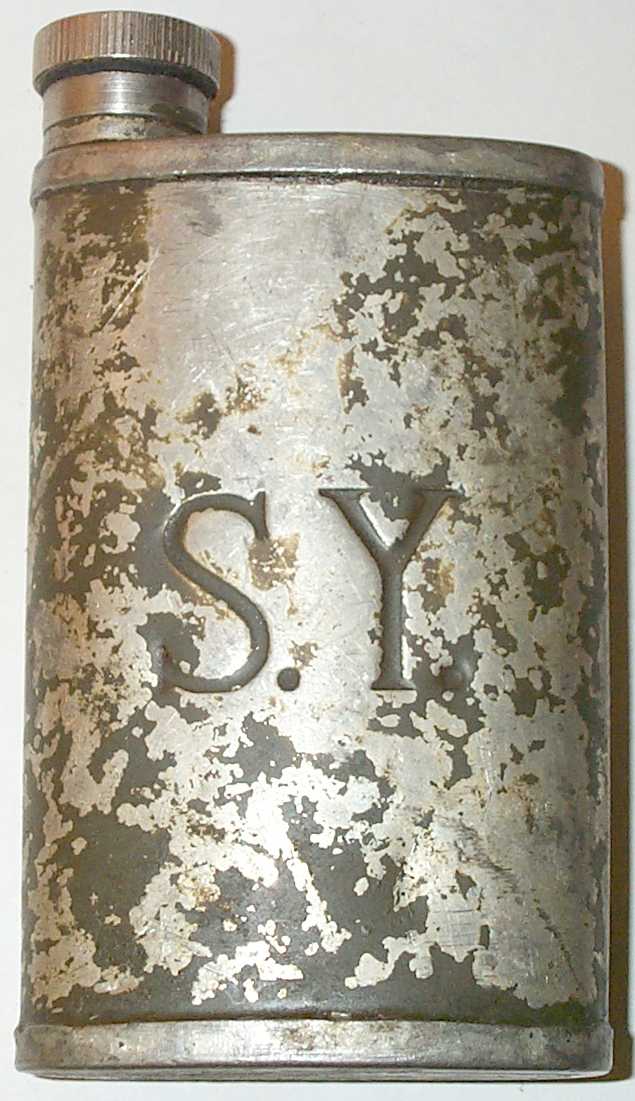

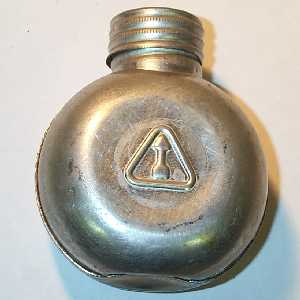

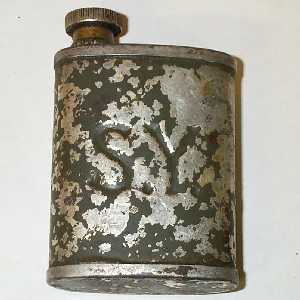

Soviet, single compartment Izhevsk marked	Finnish, single compartment Suojeluskuntain Yliesikunta (Civil Guard)	Finnish, single compartment Suojeluskuntain Yliesikunta (Civil Guard)	Finnish, single compartment Suojeluskuntain Yliesikunta (Civil Guard)

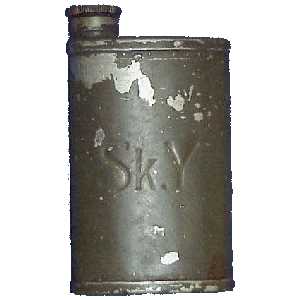

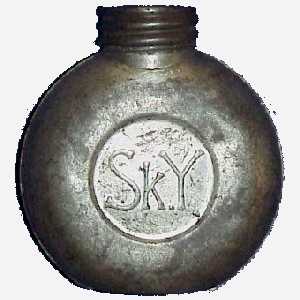

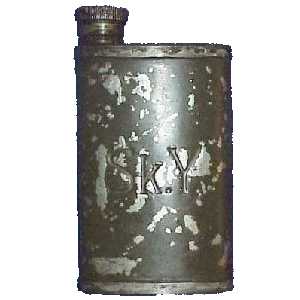

Finnish, single compartment Suojeluskuntain Yliesikunta (Civil Guard) period after "k" (courtesy "JamesP")	Finnish, single compartment Suojeluskuntain Yliesikunta (Civil Guard) period after "k" and "Y" (courtesy "JamesP")	Finnish, single compartment Suojeluskuntain Yliesikunta (Civil Guard) raised letters (courtesy "JamesP")	Finnish, single compartment Suojeluskuntain Yliesikunta (Civil Guard) (courtesy "JamesP")

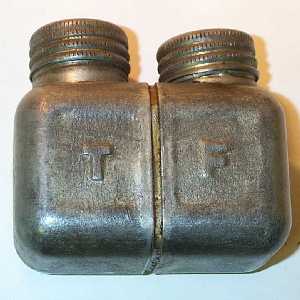

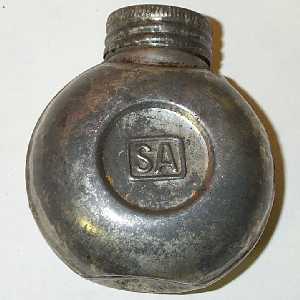

Finnish, single compartment Suomen Armeija (Finnish Army)	Polish, dual compartment, early cleaner / lubricant (picture courtesy "MikeG", identification courtesy Vic Thomas)	Opposite side of oiler to the left. Most oilers are not marked on both sides.	Polish, dual compartment, late plyn (do czyszczenia) / smar fluid (for cleaning) / lubricant
Romanian, dual compartment ulei / oil /	Romanian, dual compartment ulei / oil /	Romanian, dual compartment / ulei / oil	Hungarian, dual compartment tisztitoszer / faggyu cleanser / grease

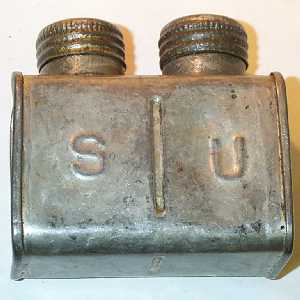

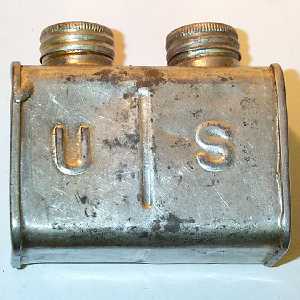

Romanian, dual compartment basa / ulei base / oil	Romanian, dual compartment basa / ulei base / oil	Soviet, dual compartment made for captured Mausers	Soviet, single compartment made for captured Mausers?

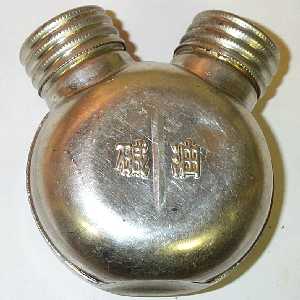

Chinese, dual compartment, early sheeyan / yo salty (cleaning solution) / oil	Chinese, dual compartment, late sheeyan / yo salty (cleaning solution) / oil	Chinese, dual compartment, late sheeyan / yo salty (cleaning solution) / oil	Chinese, single compartment (courtesy of Greg Kirkman)

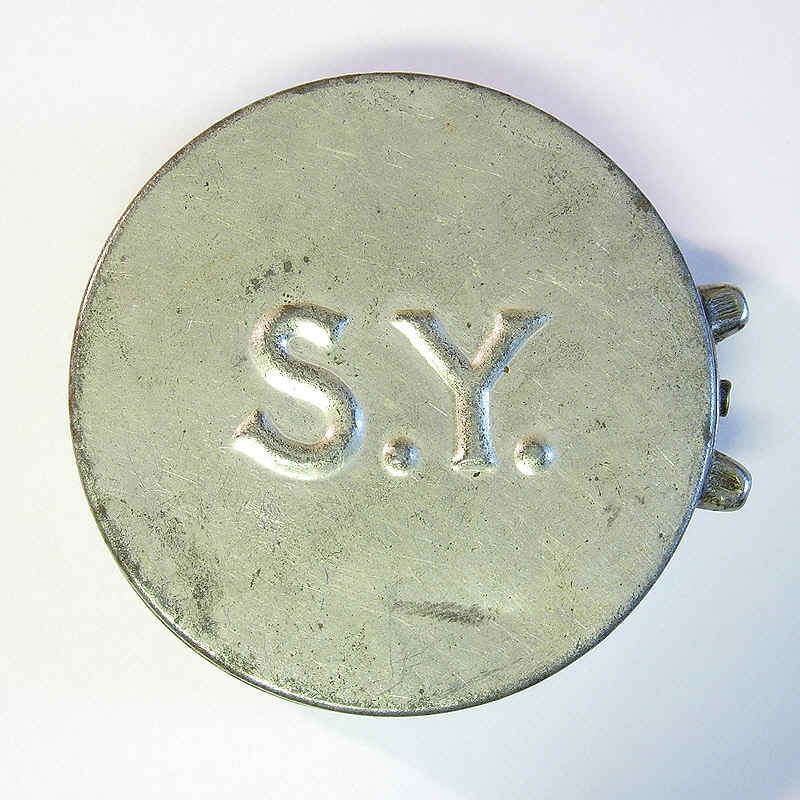

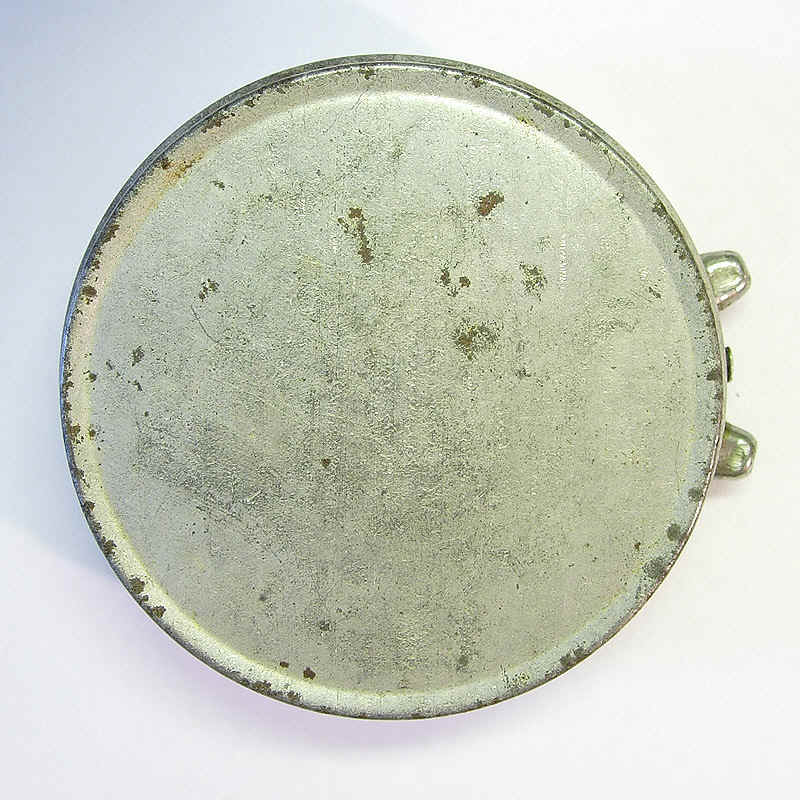

Finnish, Civil Guard grease pot, front (courtesy of "CH")	Finnish, Civil Guard grease pot, back (courtesy of "CH")	intentionally left blank	intentionally left blank

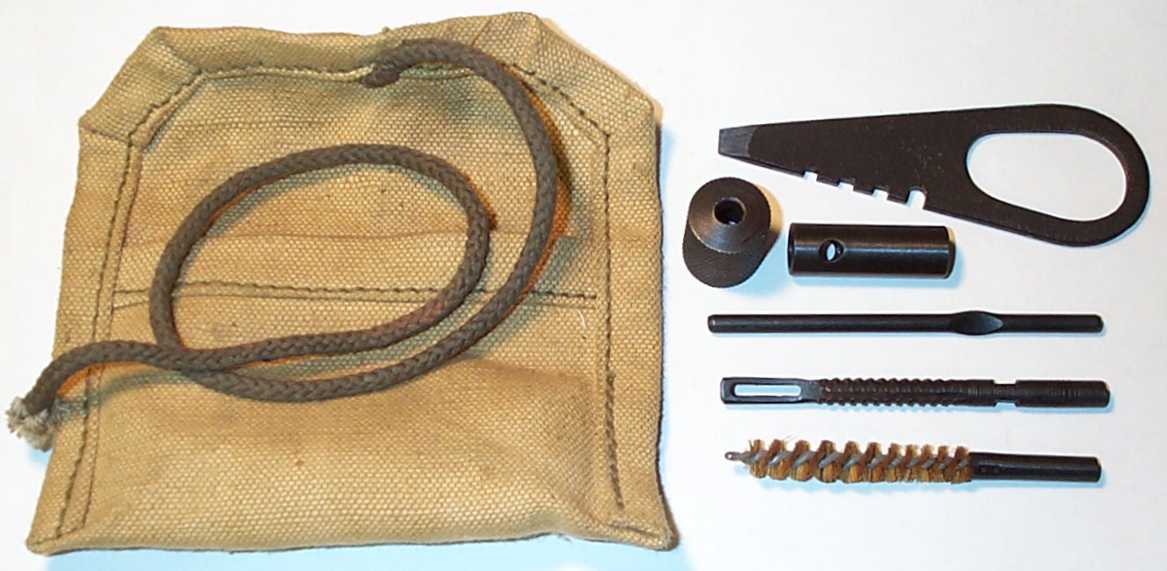

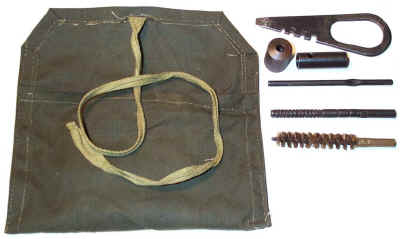

Cleaning Kits Individual tools will be illustrated in the following sections. For illustrations of the use of the tools see the Mosin Nagant Rifle Exploded Views and Disassembly page and question #37 on the Mosin Nagant FAQs page.

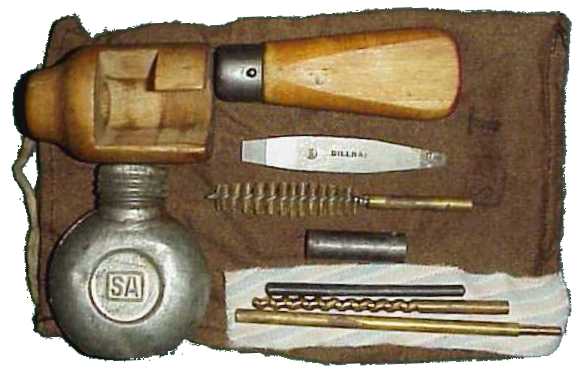

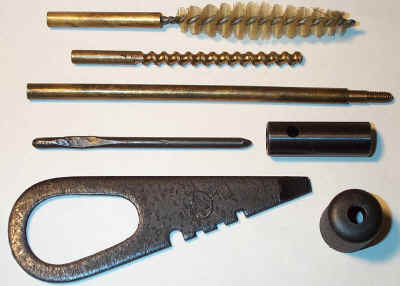

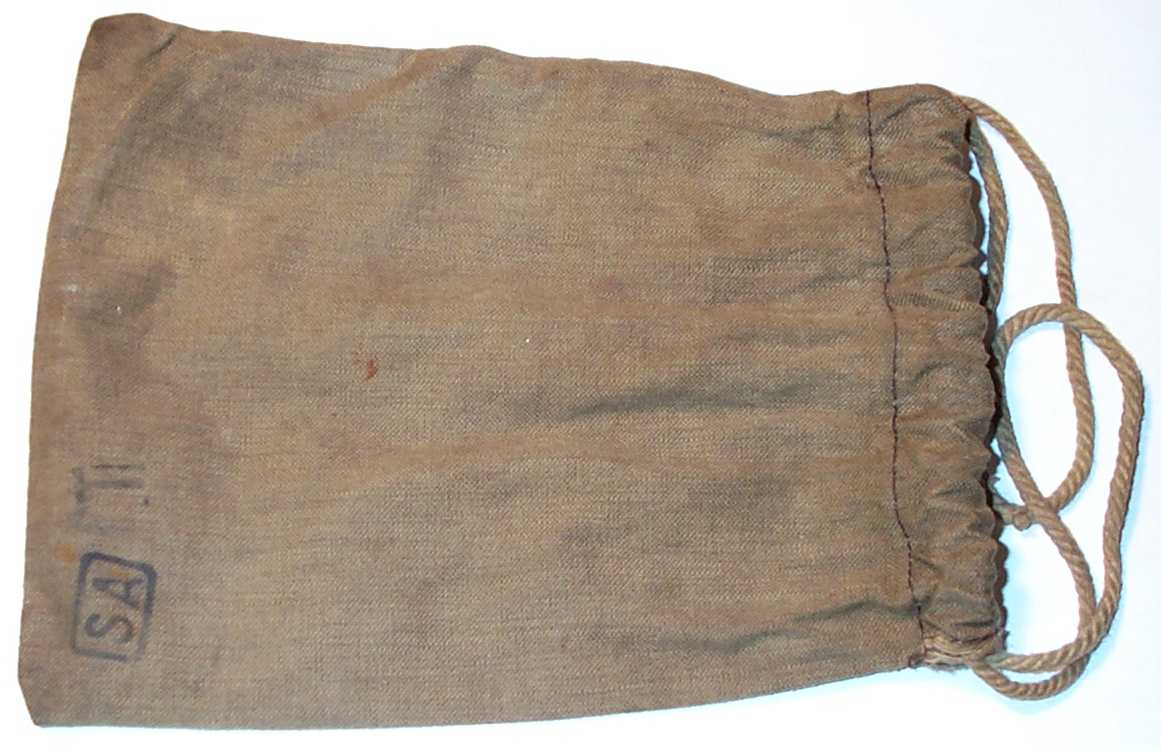

Finnish Army issued tool kit and pouch as indicated by the SA mark. The tools are a mixture of Finnish and Soviet production with the brass jag and cleaning rod extension being Finnish.

Finnish M27 (Army) kit with muzzle protector, screwdriver, and oil bottle. (courtesy "JamesP")

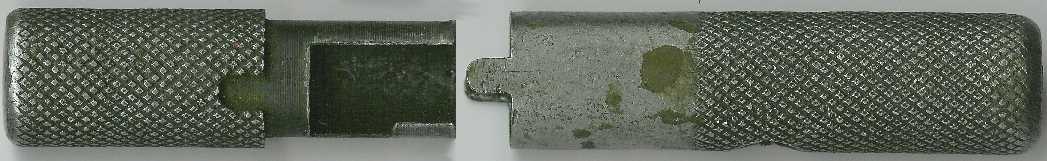

This is a Soviet M91/30 tube type kit produced from around 1930 to 1941. One half of the tube doubles as the muzzle cover with a notch to fit over the front sight. The other half has a round hole in the side so it can be used as a cleaning rod handle and a slot in the end to hold the screwdriver blade. The blade has the firing pin protrusion gauge notches with one large notch that can be used as a wrench on the firing pin shank. (pictures courtesy of "juk73")

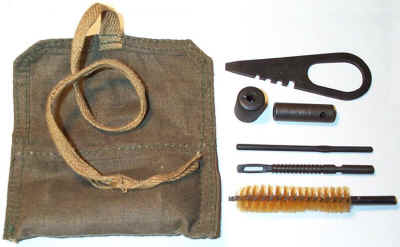

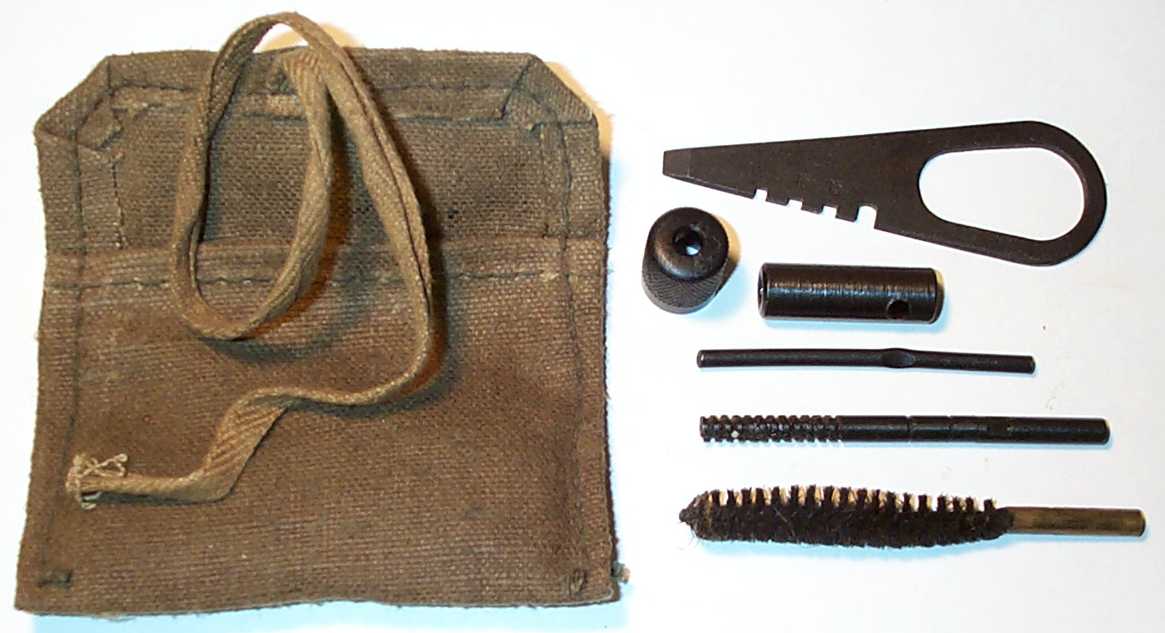

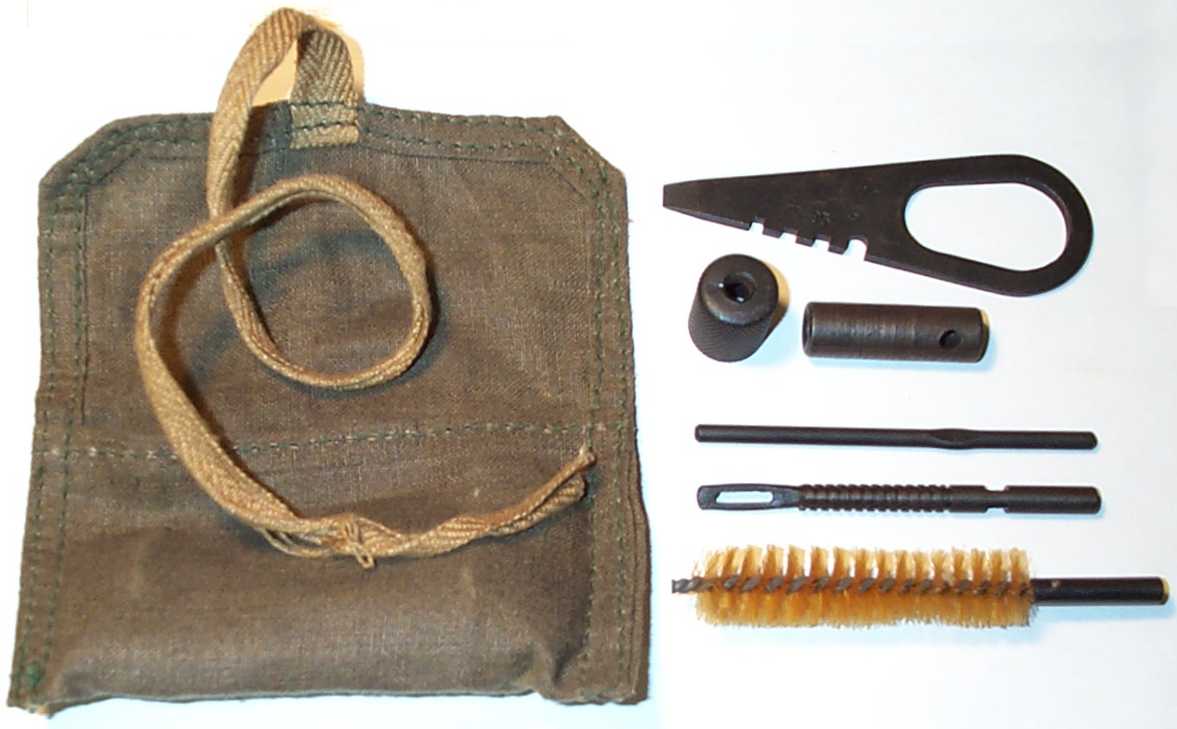

The following kits are primarily Soviet, with some Eastern European tools mixed in.

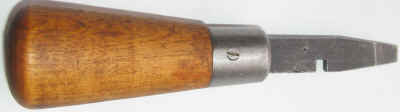

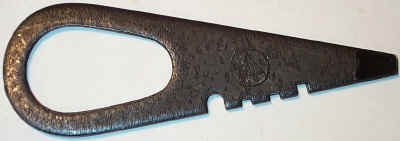

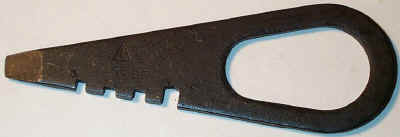

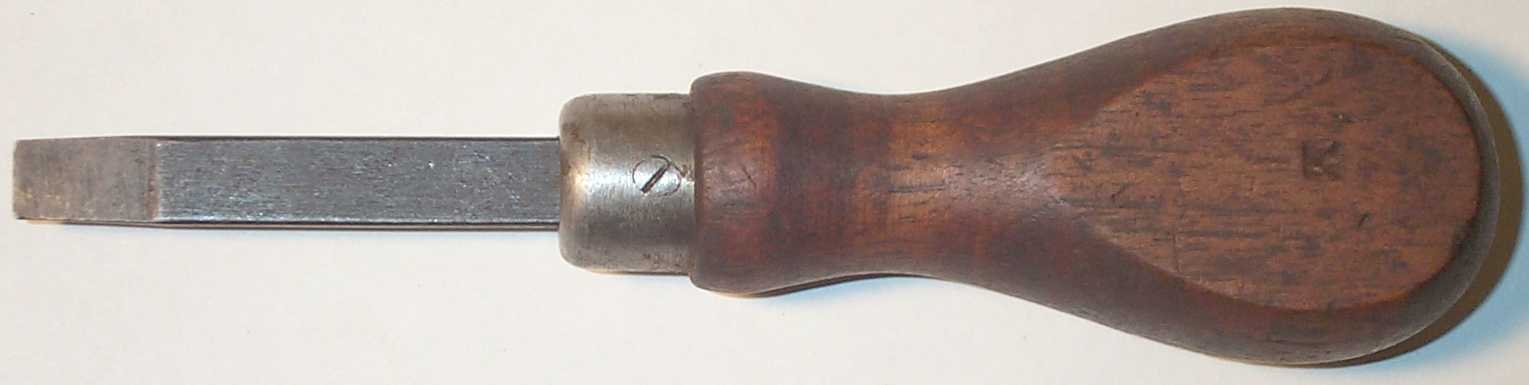

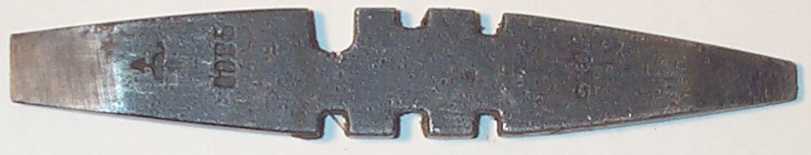

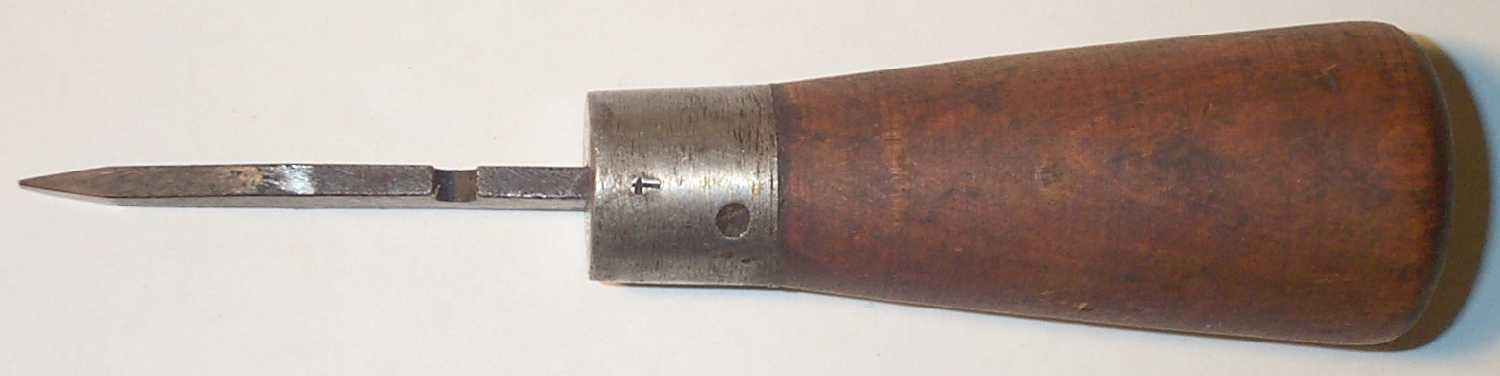

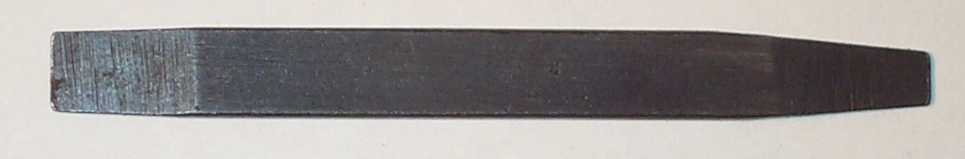

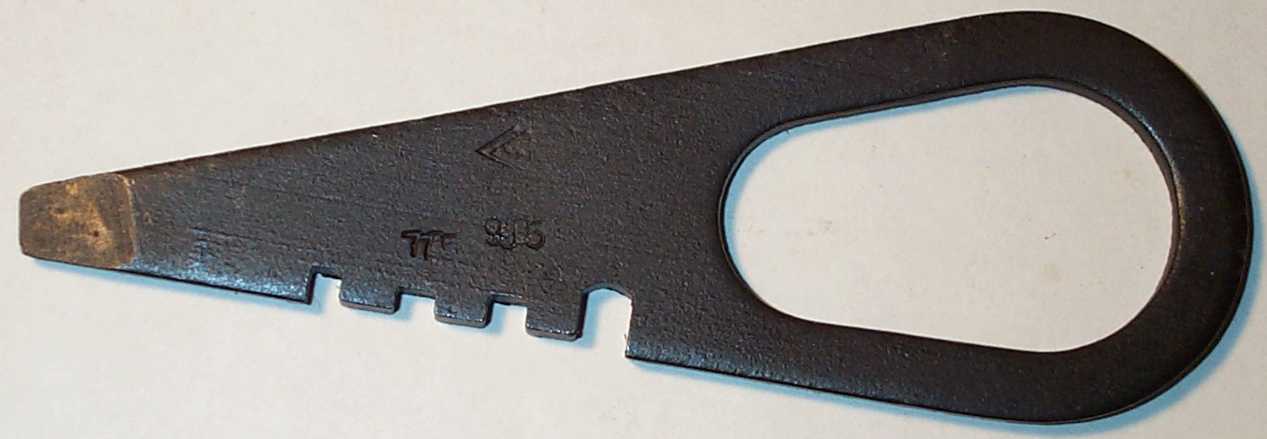

Screwdrivers and Bolt Tools The pictures below illustrate the variety of bolt tool marks and the range of their quality.

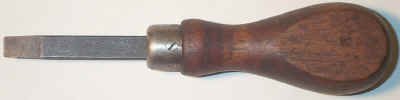

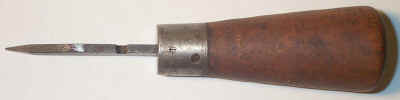

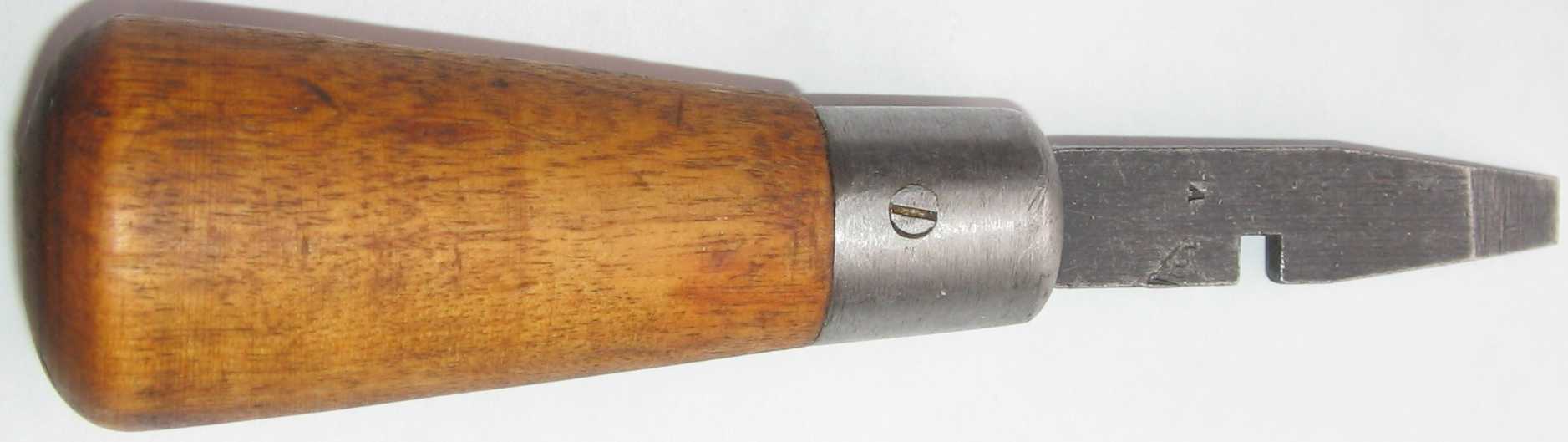

Early Russian (through WWI)	Blade from tool at left
Tula marked ferrule	Blade from tool at left Sestroryetsk marked with firing pin wrench

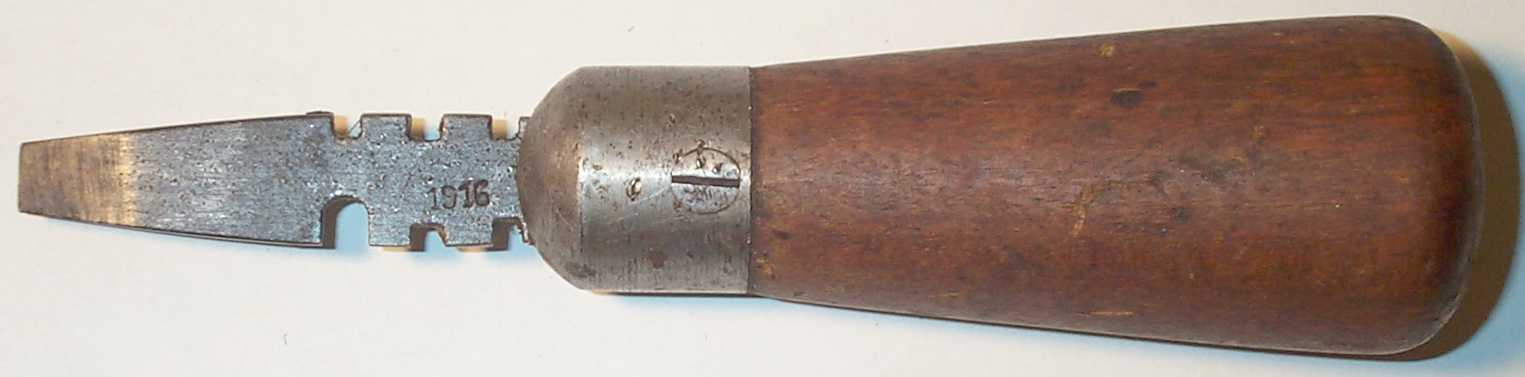

1916 dated blade	Blade from tool at left (reverse side) Izhevsk marked with wrench and protrusion gauges
(courtesy of "jaegerpeter")	Blade from tool at left Tula marked with wrench and protrusion gauges (courtesy of "jaegerpeter")
(courtesy of Greg Kirkman)	Blade from tool at left Remington marked with circle R (courtesy of Greg Kirkman)

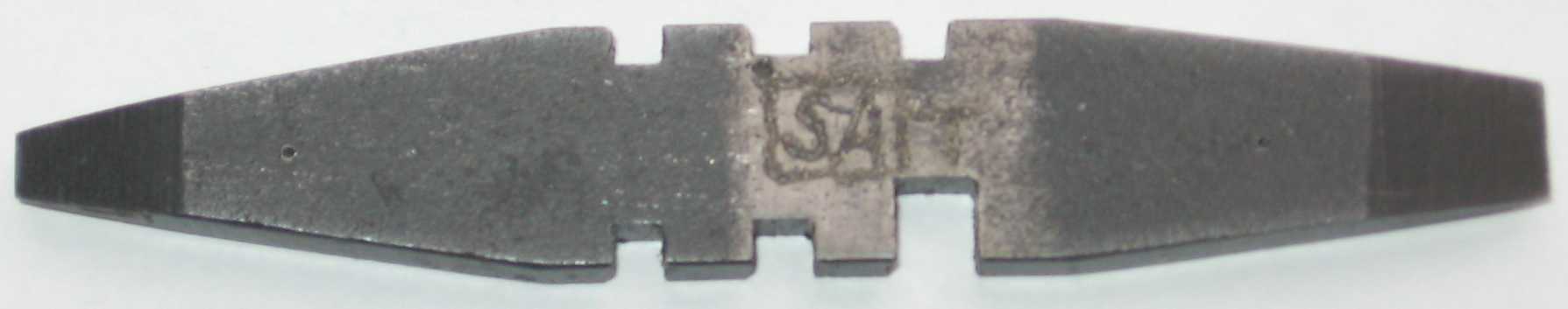

(courtesy of JMKDEVCO)	Blade from tool at left [SA]T marked (courtesy of JMKDEVCO)
(courtesy of JMKDEVCO)	Blade from tool at left [SA]T marked (courtesy of JMKDEVCO)

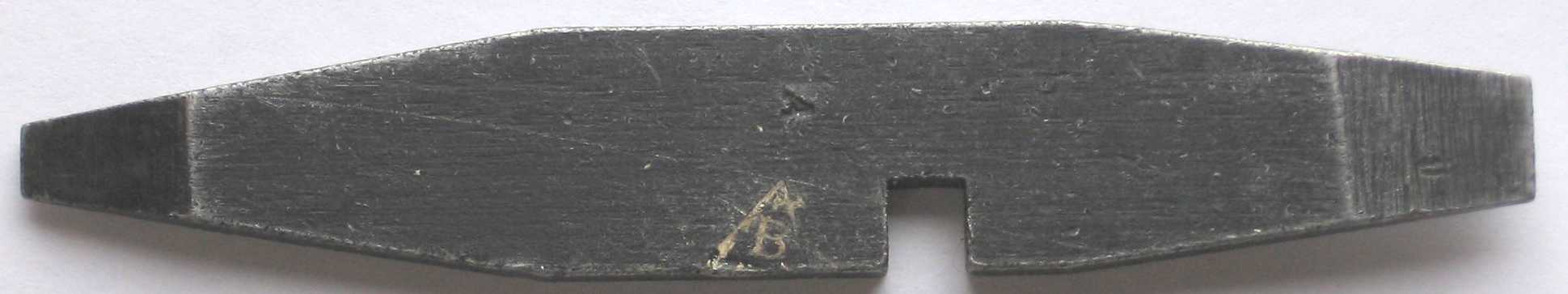

(courtesy of JMKDEVCO)	Blade from tool at left triangle B marked, meaning unknown (courtesy of JMKDEVCO)

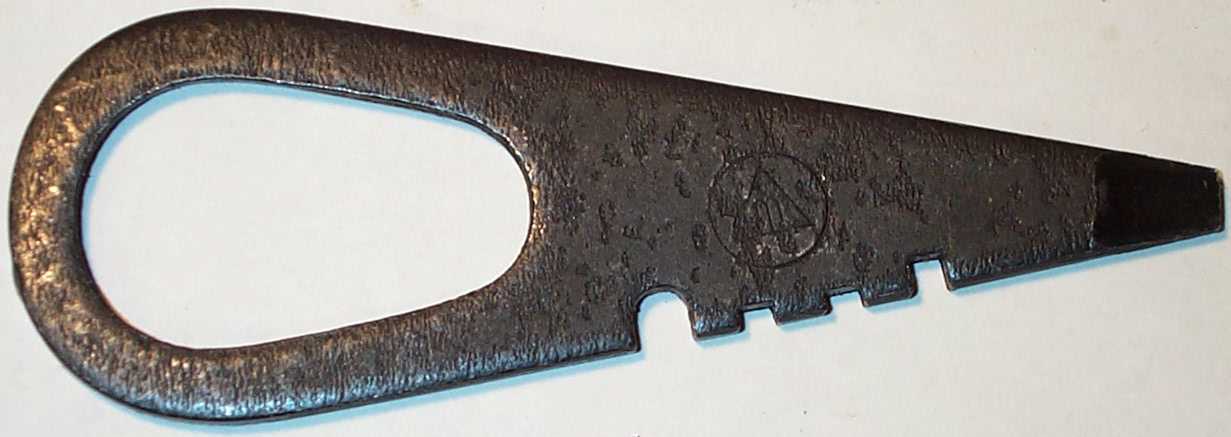

"17" and "19" at notches "8" above Soviet	"M in triangle in circle" Reverse of tool at left

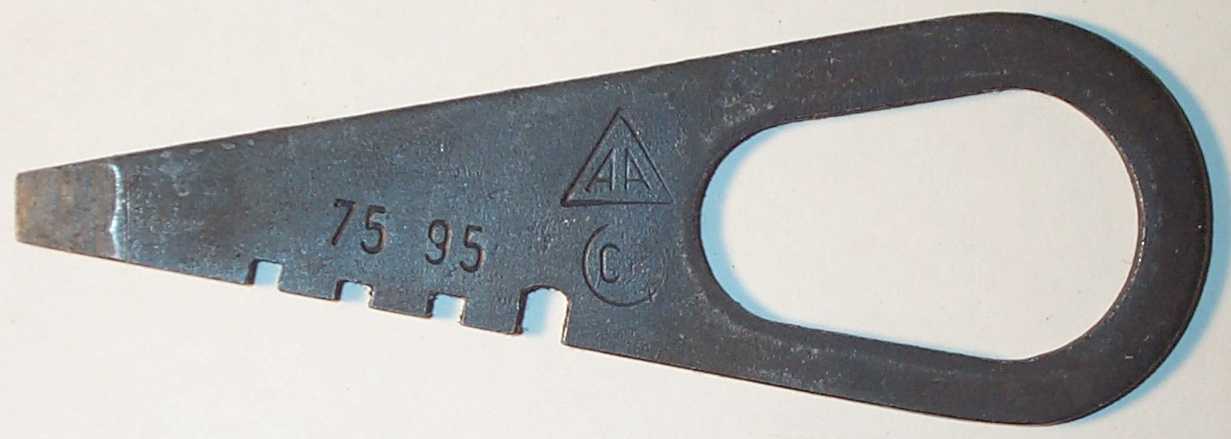

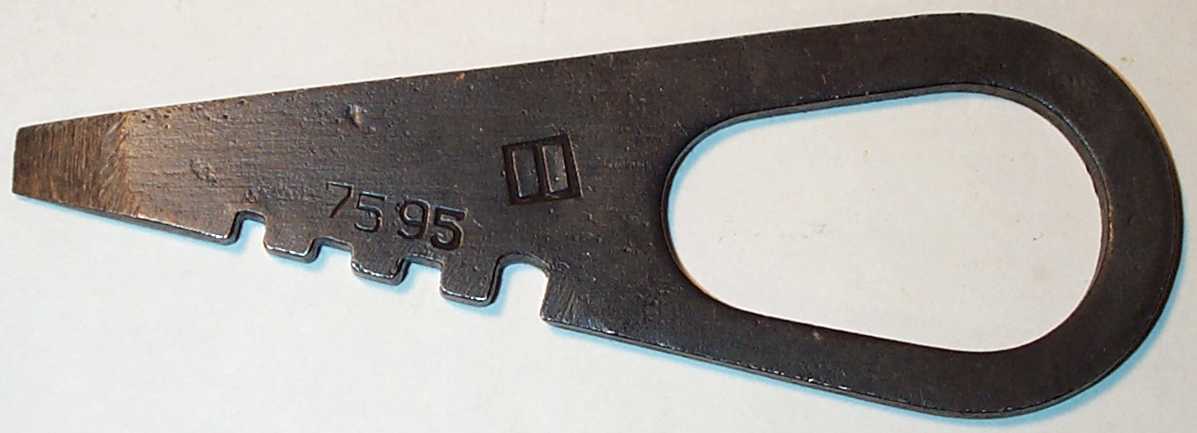

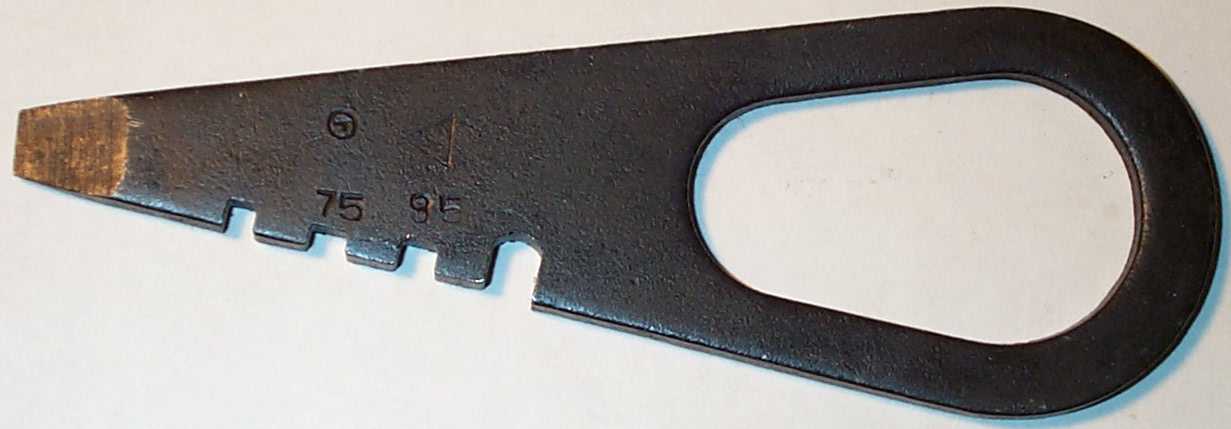

Hungarian "02" and "circle B" marked	large "75" and "95" with Soviet refurbishment mark

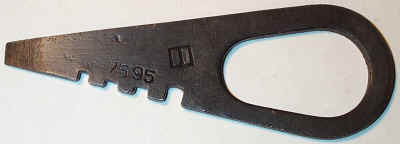

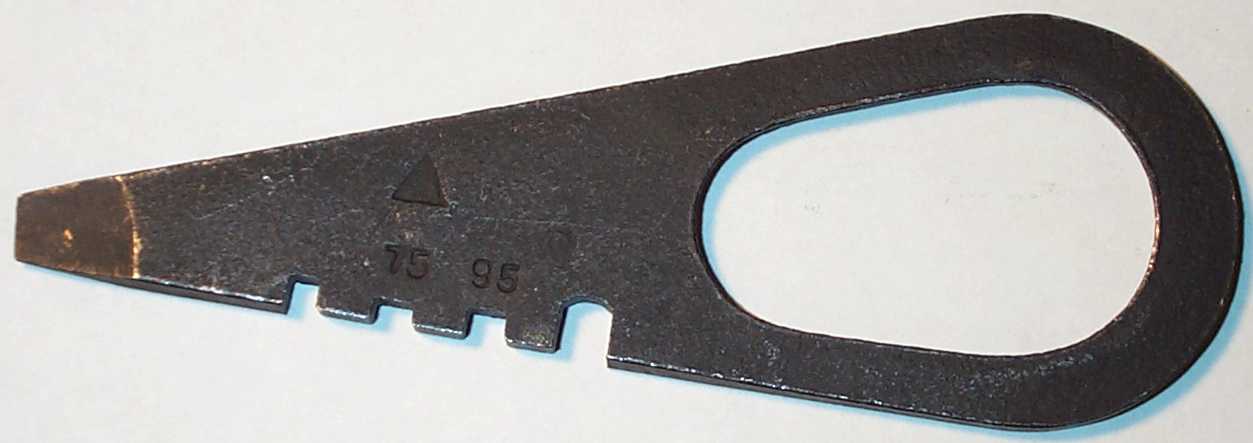

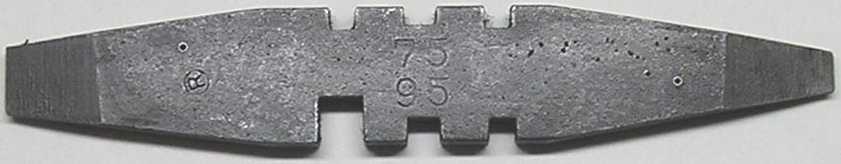

Izhevsk with neatly stamped "75" and "95" near the notches	"75" and "95" slightly raised
Izhevsk "arrow in triangle" and illegible partial mark	"circle r" mark (not Remington)
Unmarked	double stamped
Izhevsk with "circle B" (not Bulgarian)	Izhevsk with "8 in diamond"

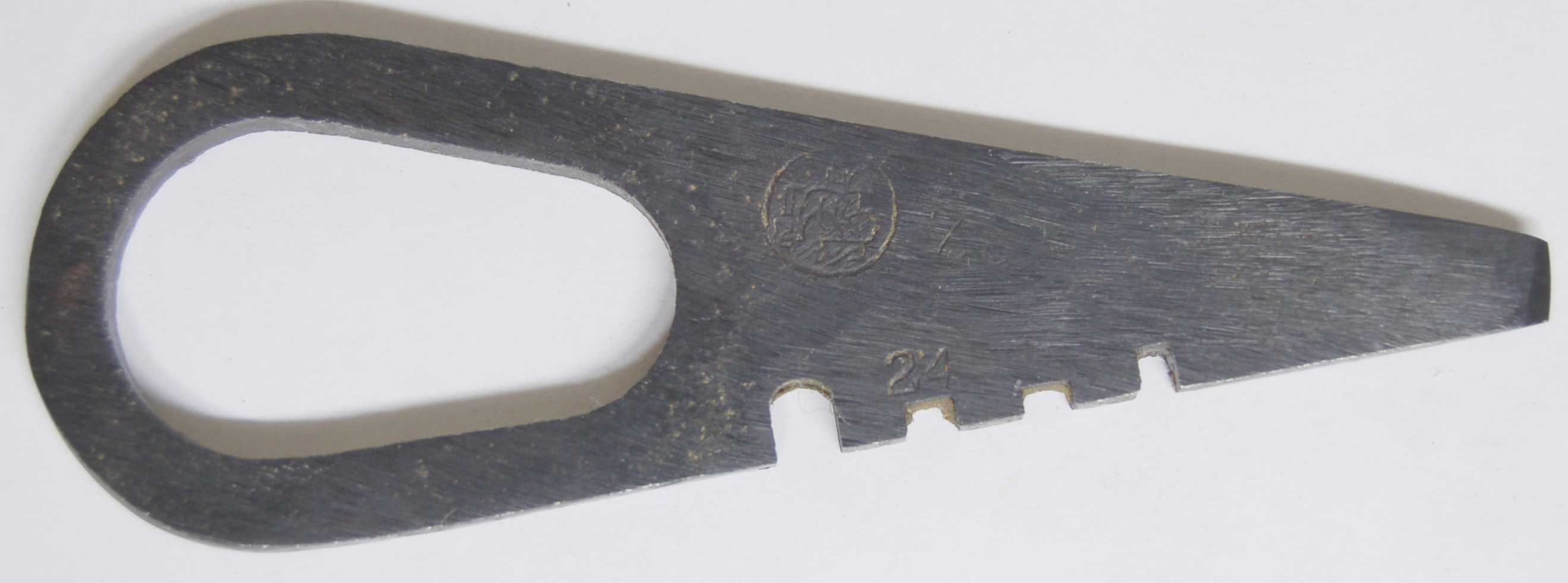

Polish "AA in triangle" marked	"Horses in circle", 762, 24 and 19 over notches, possibly early Polish tool courtesy of www.BuyMilsurp.com, info courtesy of Vic Thomas

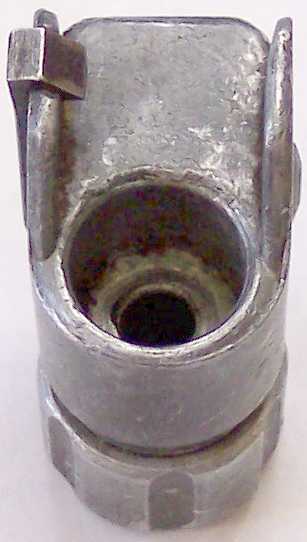

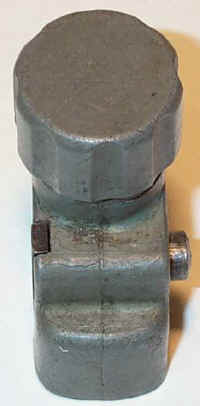

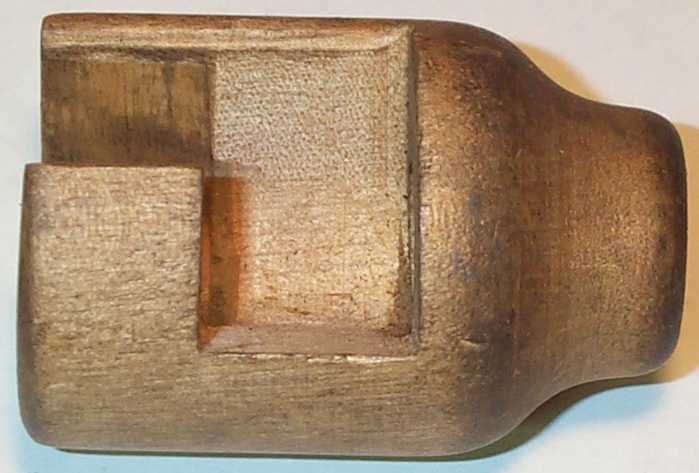

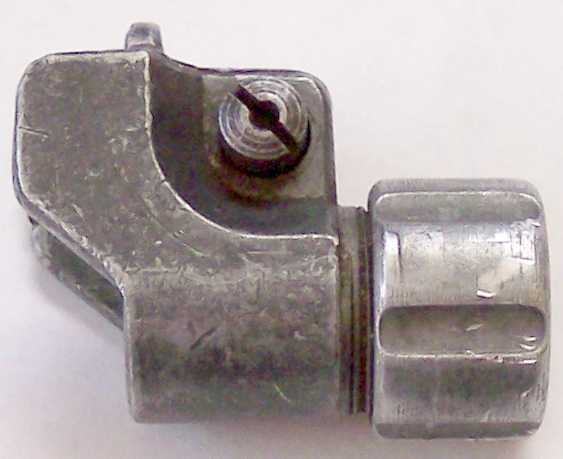

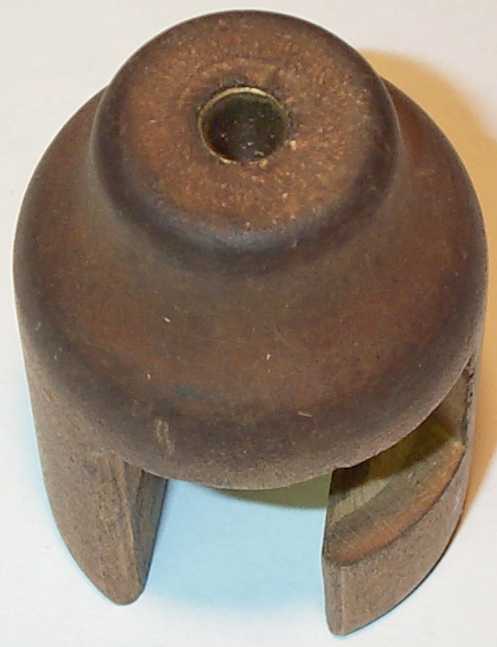

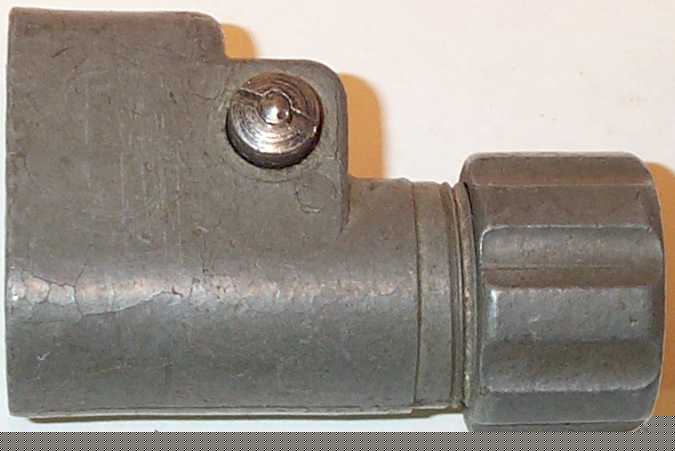

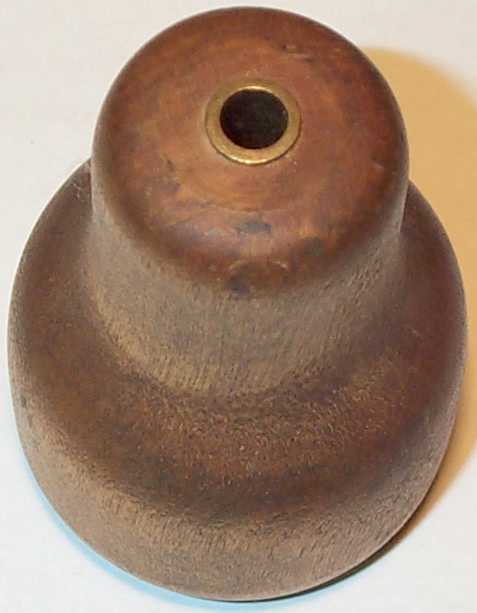

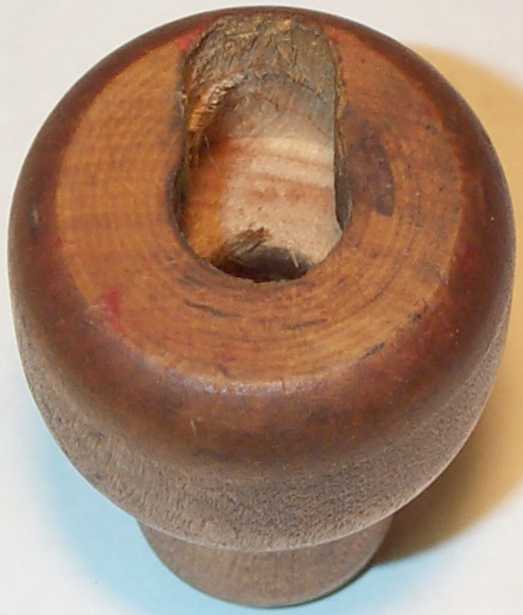

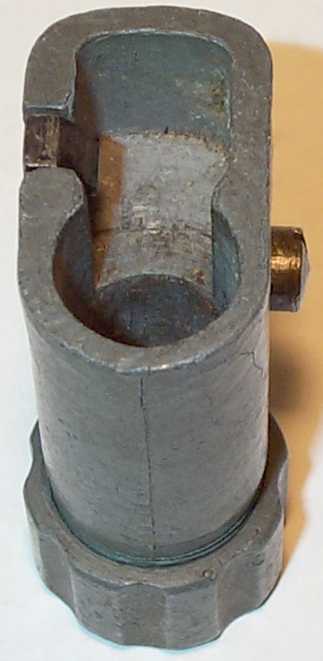

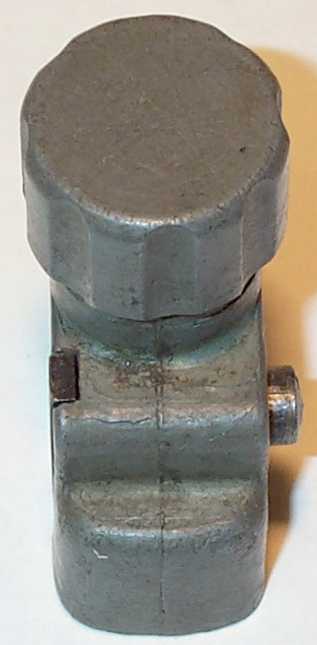

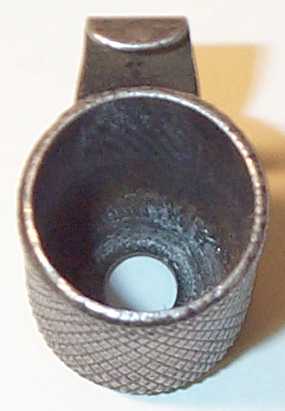

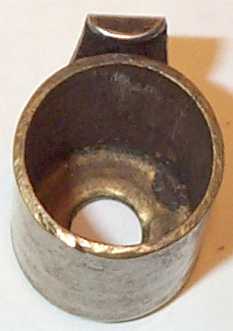

Muzzle Protectors
Finnish M91
Finnish M24
Finnish M27
Finnish M28 (courtesy of "combat32")
Finnish M28/30

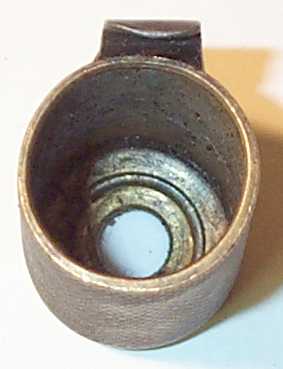

Finnish M39 smooth brass

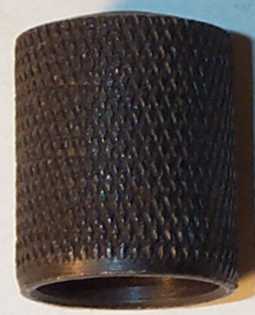

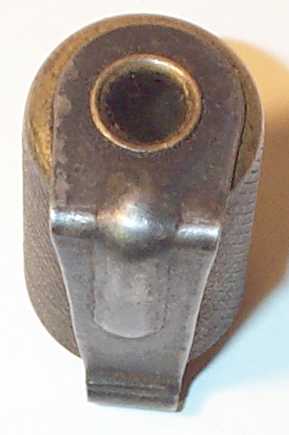

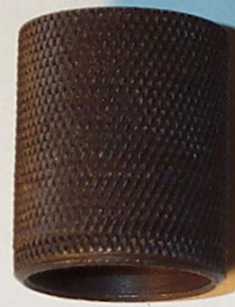

Finnish M39 knurled brass
Finnish M39 knurled steel

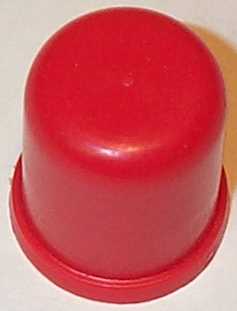

Finnish M39 plastic
Miscellaneous Soviet and Eastern Bloc

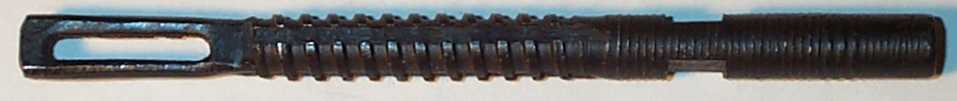

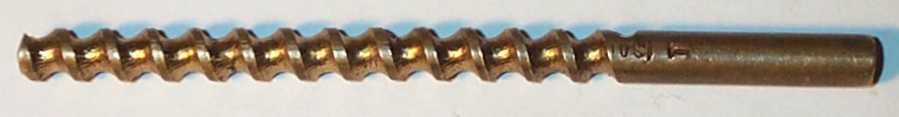

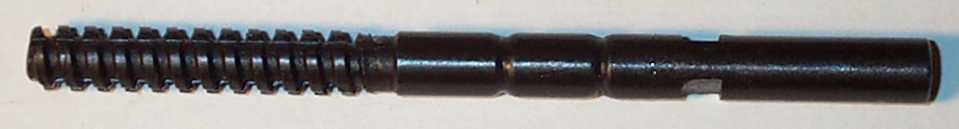

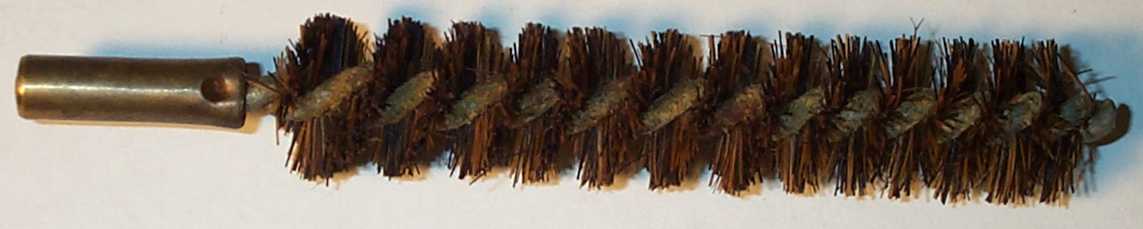

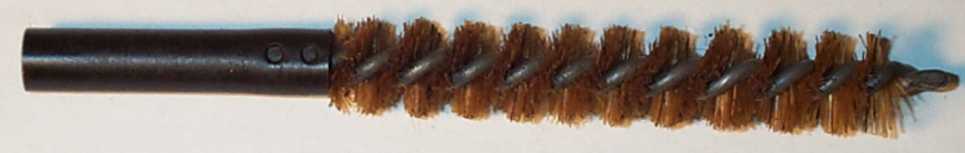

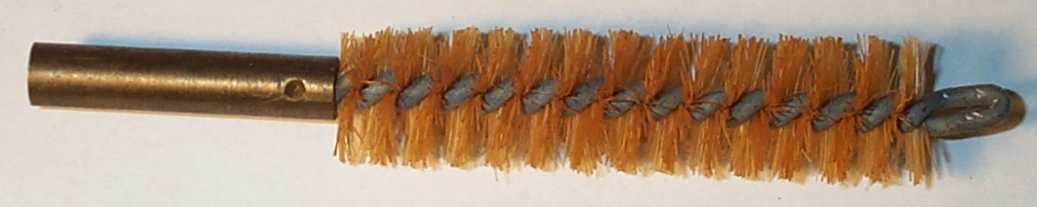

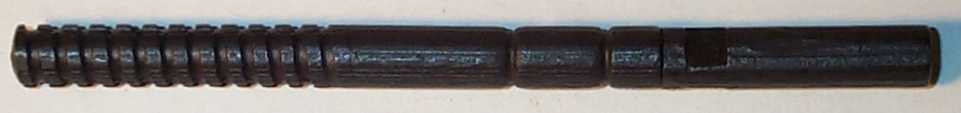

Jag and Brushes

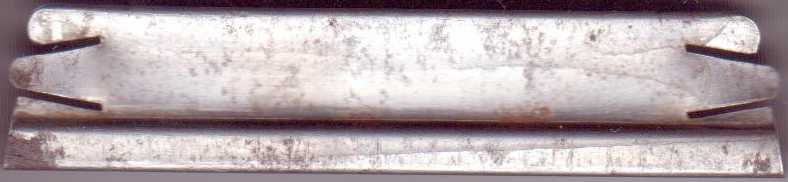

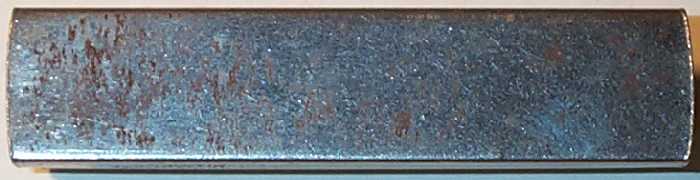

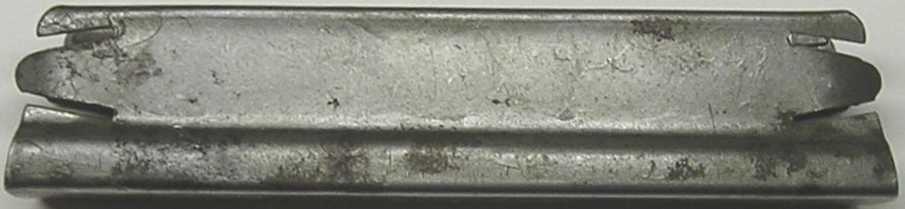

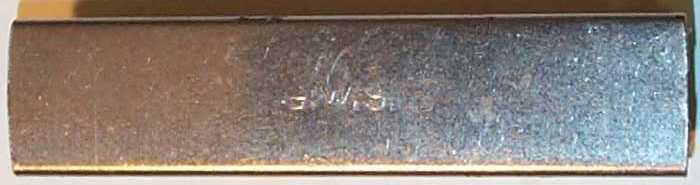

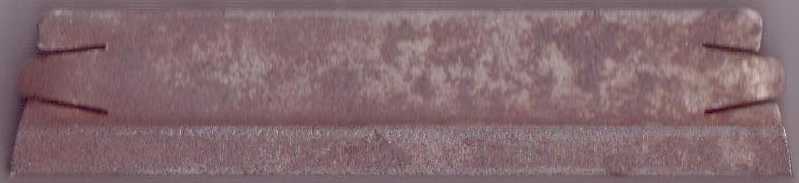

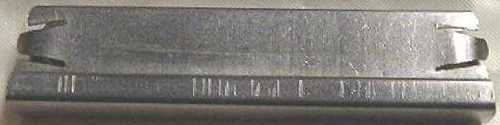

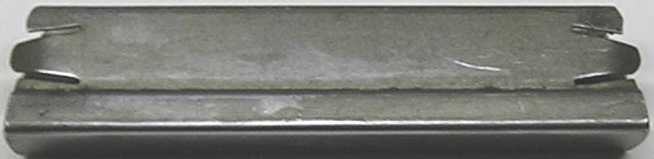

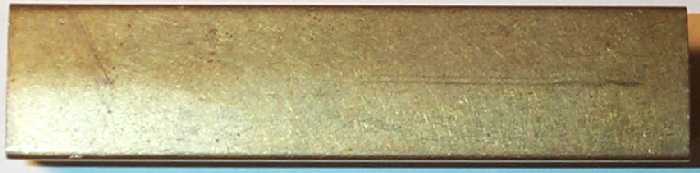

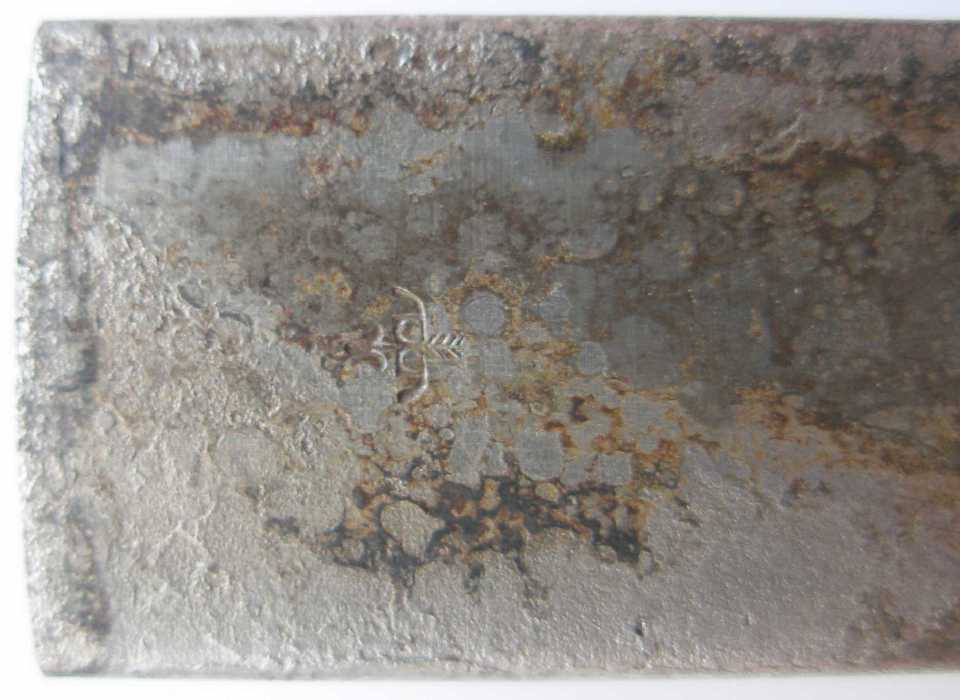

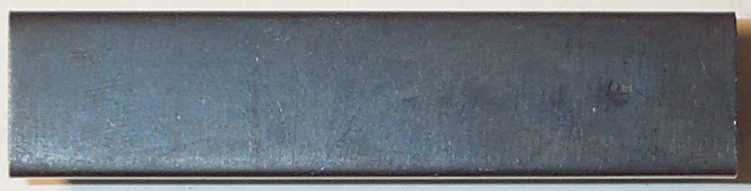

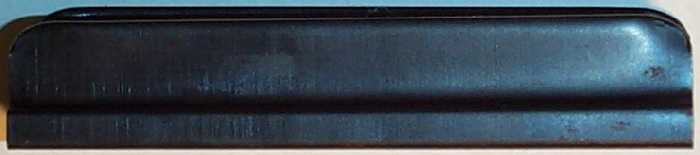

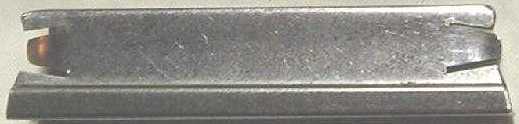

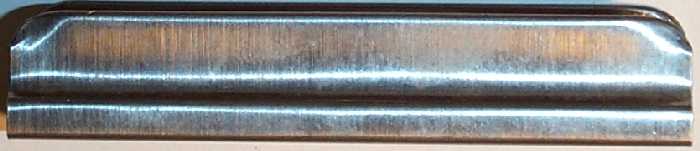

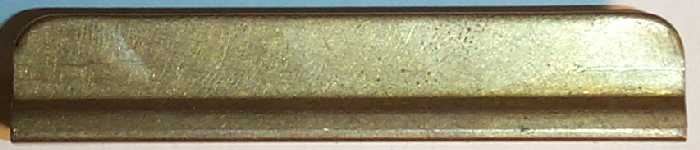

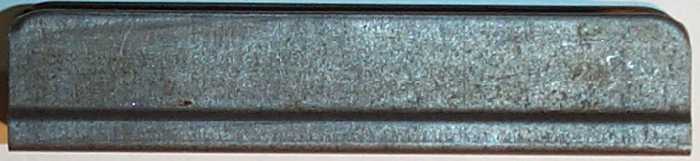

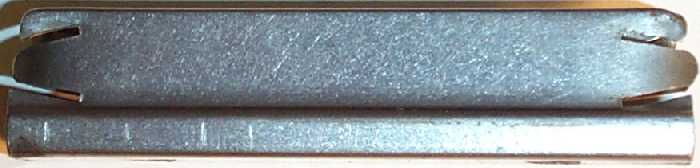

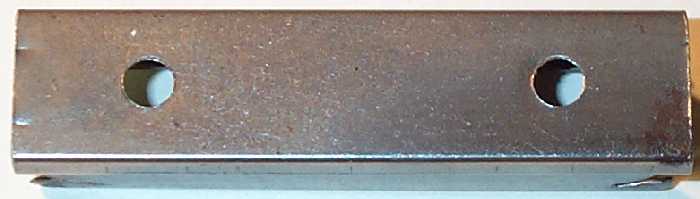

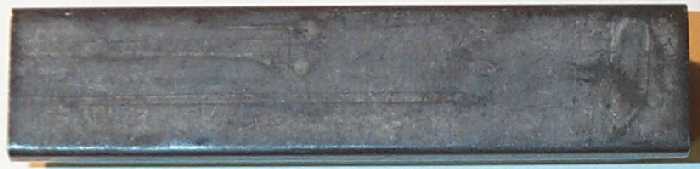

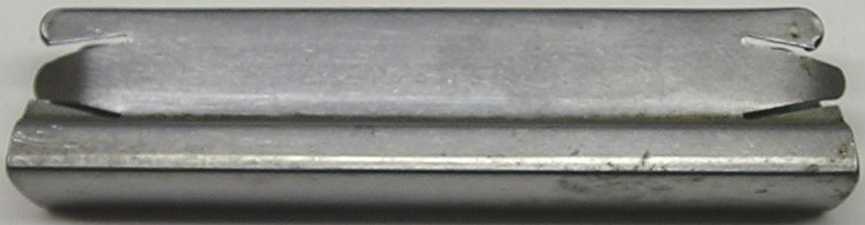

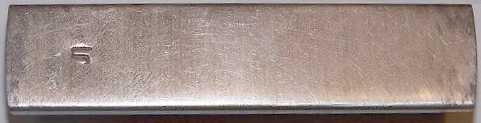

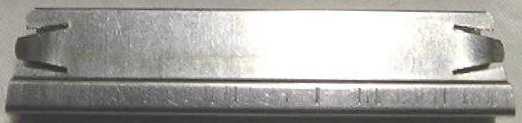

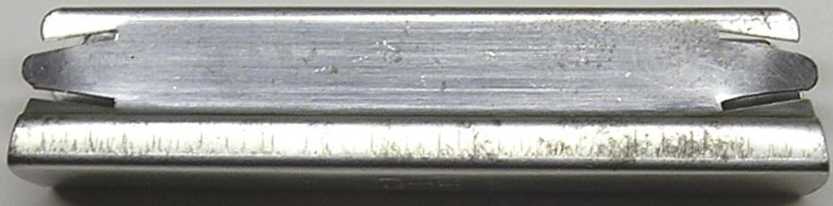

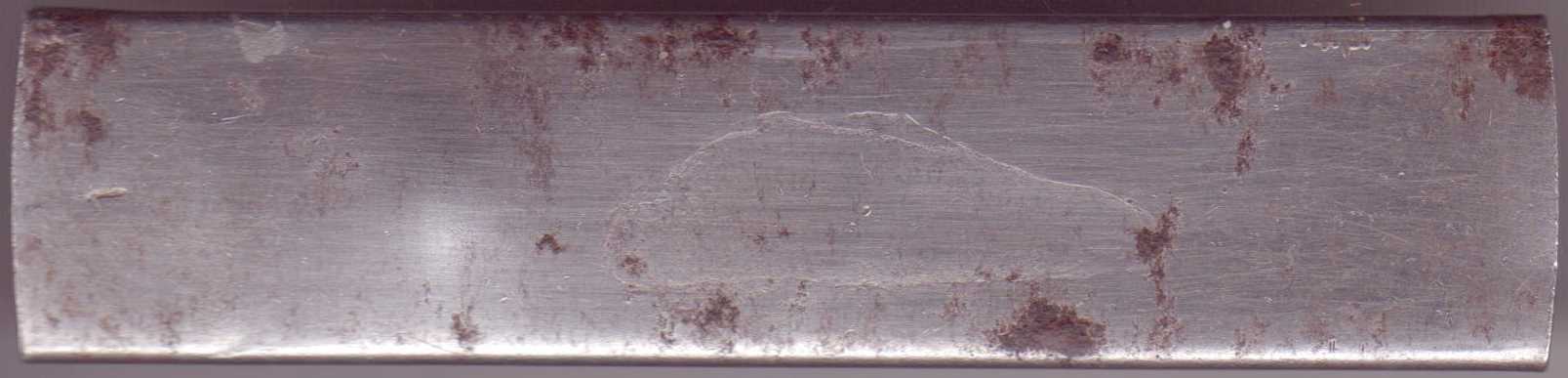

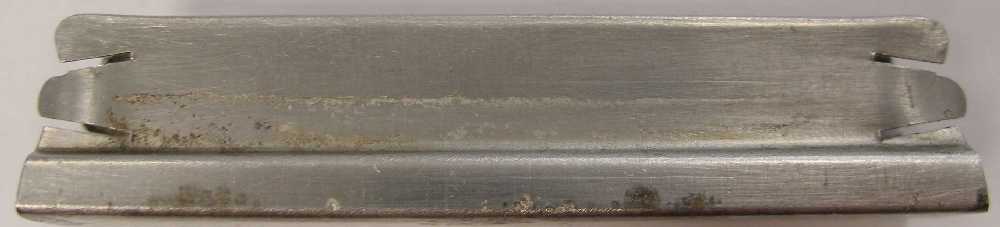

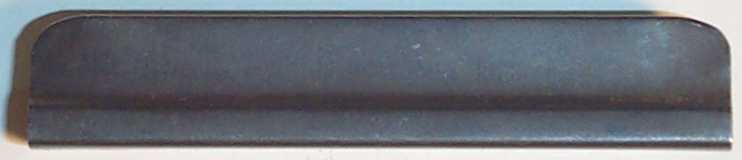

Stripper Clips

Bow and Arrow
Izhevsk
early Russian
picture, "Jura"

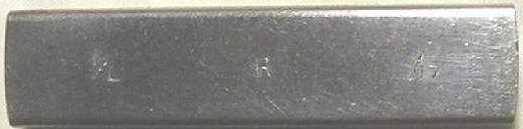

I/L (Mark I Land Service), R, /17
Remington
1917
picture, Greg Kirkman

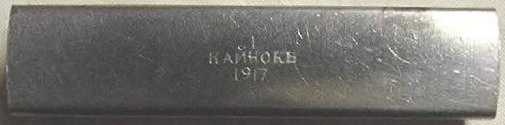

Kynoch (Cyrillic), 1917
Kynoch is an English company that
produced 7.62x54r ammunition
under contract during WWI.
picture, Greg Kirkman

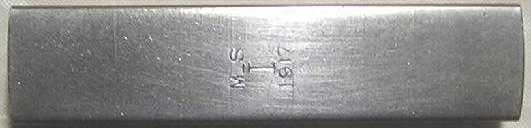

M_S, 1917
Myers & Sons, Birmingham, England
picture, Greg Kirkman
info, "TonyE"

Arrow in triangle
Izhevsk
early Soviet
picture, "doyletoo"

Arrow in triangle
Izhevsk
later Soviet

Arrow in triangle
Izhevsk
later Soviet
blued finish

Unmarked
Western Cartridge Company
US circa 1920

Unmarked
Finnish

T in triangle in circle
Tikkakoski
Finnish
picture, "doyletoo"

G.W.S.
G.W. Sohlberg AB
Finnish
picture, "doyletoo"
info, "MikeO"

DM in oval
Deutsche MetallPatronen Fabrik
(the ammunition arm of DWM)
German circa WWI
picture, "doyletoo"
info, "DocAV"

Hammer
Tula
Russian/Soviet
picture, "juk73"

W
Austrian
picture, "juk73"
info, "kh"

PM in circle
Polte
German circa WWI
picture, "juk73"
info, "GeneW"

G_B, I, 1917
Greenwood and Batley, Leeds, England
picture, Greg Kirkman
info, "TonyE"

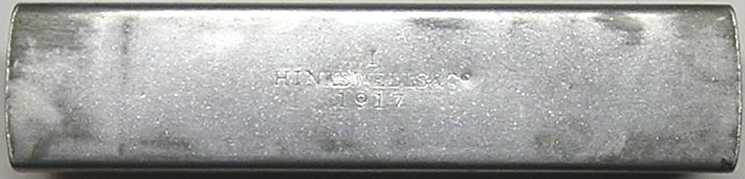

I, HinksWells&Co, 1917
Hinks Wells Ltd, Birmingham, England
picture, Greg Kirkman
info, "TonyE"

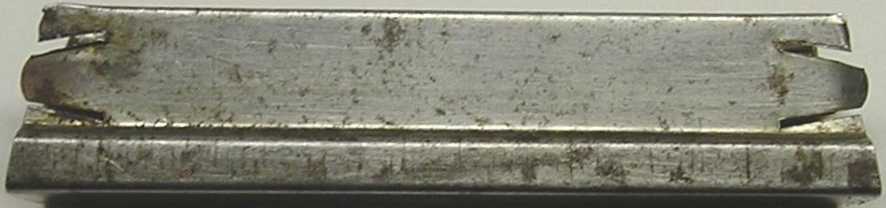

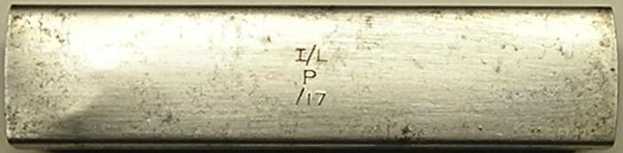

I/L (Mark I Land Service), P, /17
Perry & Co. Ltd, Birmingham, England
picture, Greg Kirkman
info, "TonyE"

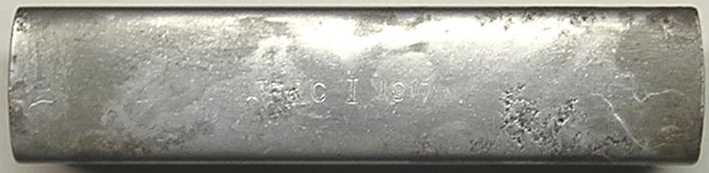

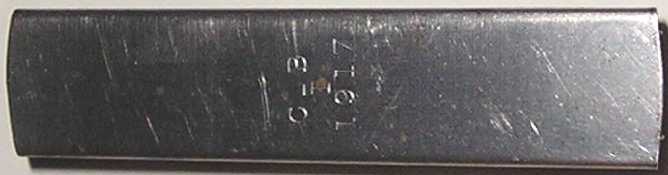

P & C I 1917
Parkinson & Cowan, Birmingham, England
picture, Greg Kirkman
info, "TonyE"

W.M., 1917
William Mitchell & Sons, Birmingham, England
picture, Greg Kirkman
info, "TonyE"

Cyrillic "P", pre WWI Russian
Petrogradski Patronnyi Zavod
(St. Petersburg Cartridge Factory)
picture and info, Greg Kirkman

X in circle
possibly Soviet contractor?
picture, "doyletoo"
info, "Tuco"

Cyrillic "L", pre WWI Russian
Luganski Patronnyi Zavod
(Luganski Cartridge Factory)
picture, "Arisaka Fan"
info, Greg Kirkman

Unmarked
Polish
"circle 21" marked ammo

Unmarked brass
Chinese

"31" marked blued steel
Chinese

Unmarked
Czechoslovakian
ZV ammo contracted by Germany

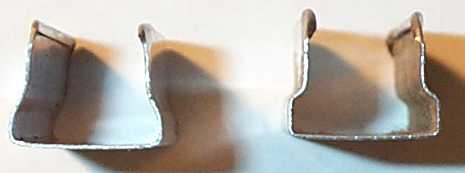

The picture to the right compares
a reproduction Mosin Nagant stripper clip (left)
with an original Soviet stripper clip (right).

The profile of the reproduction clip
is not as "sharp" as the original one
and many shooters report difficulty using them.

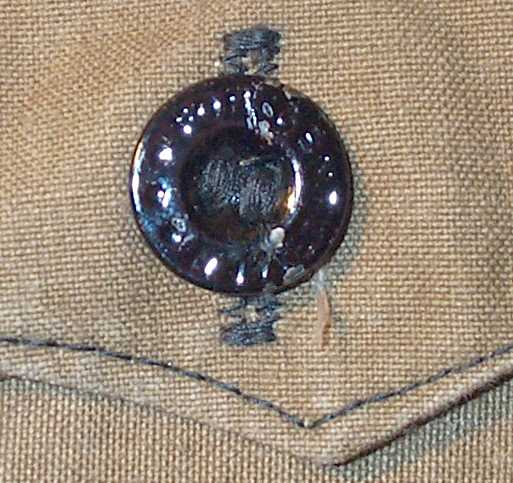

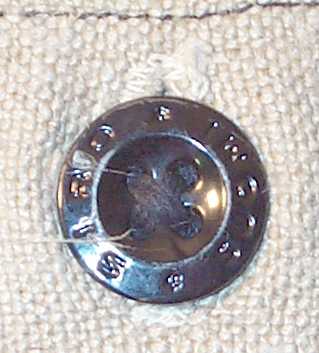

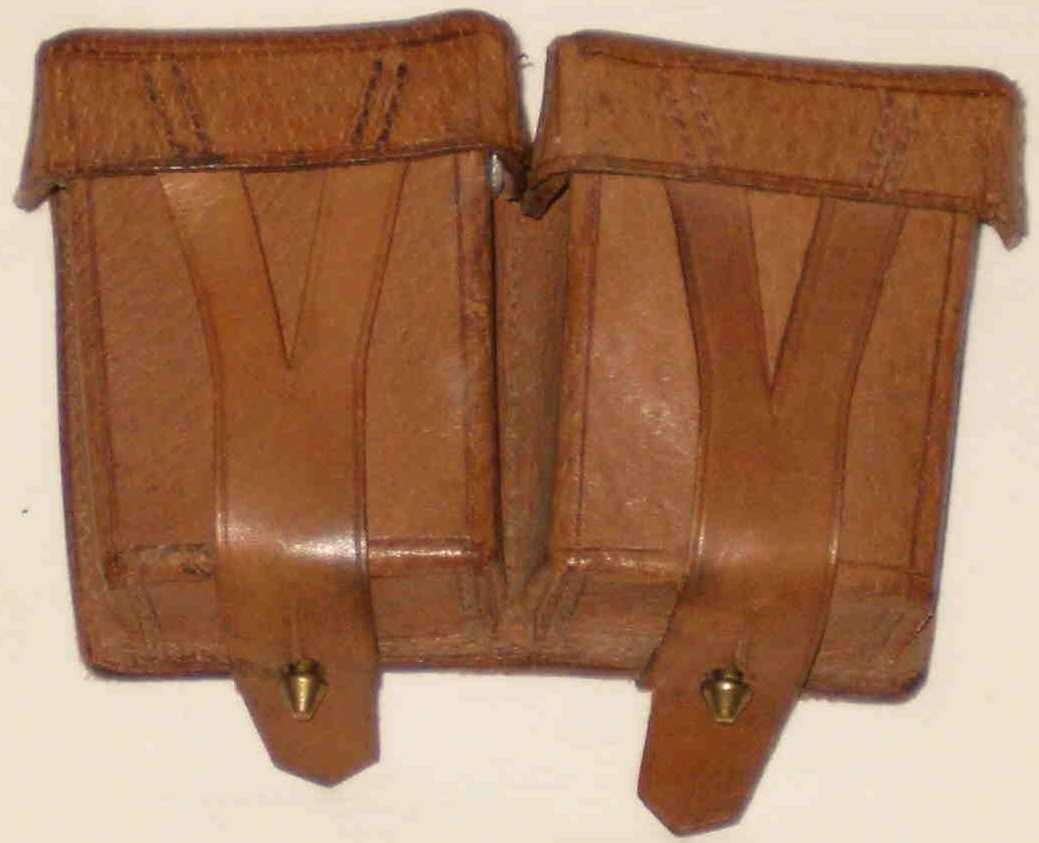

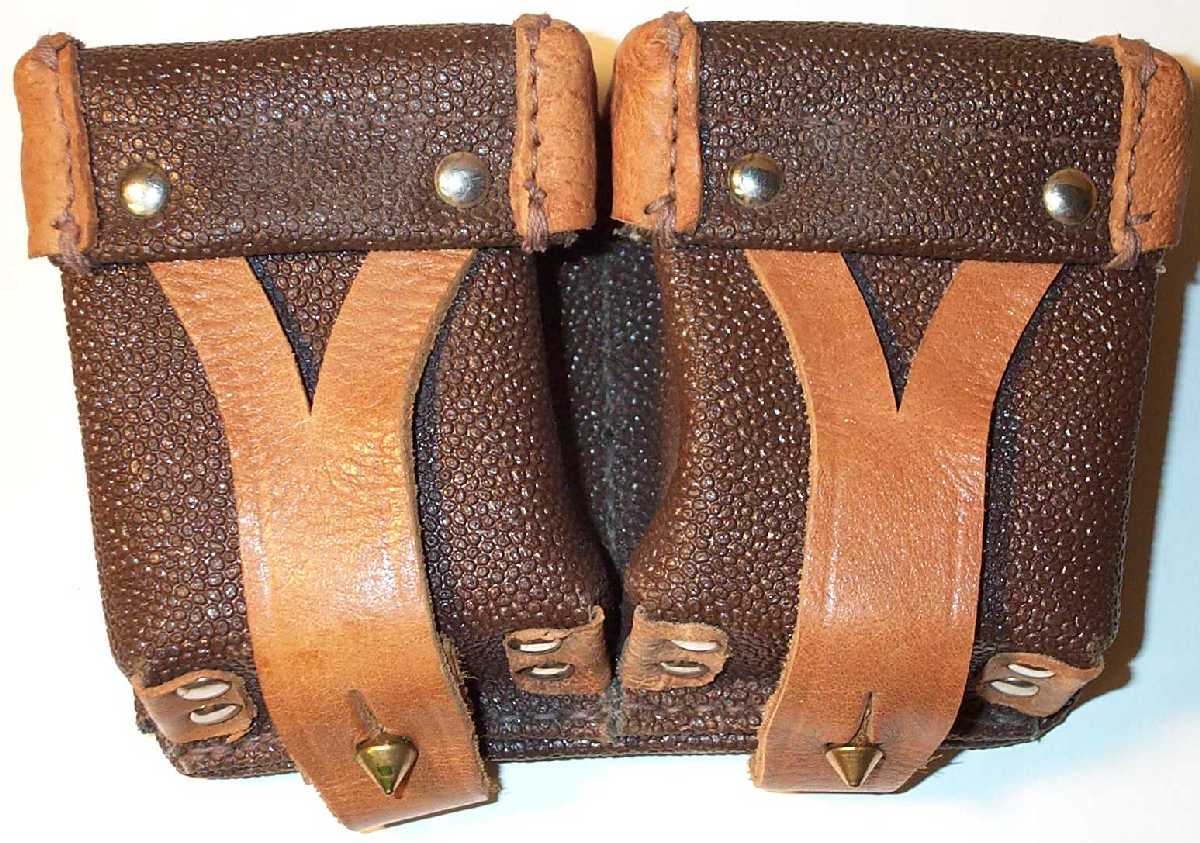

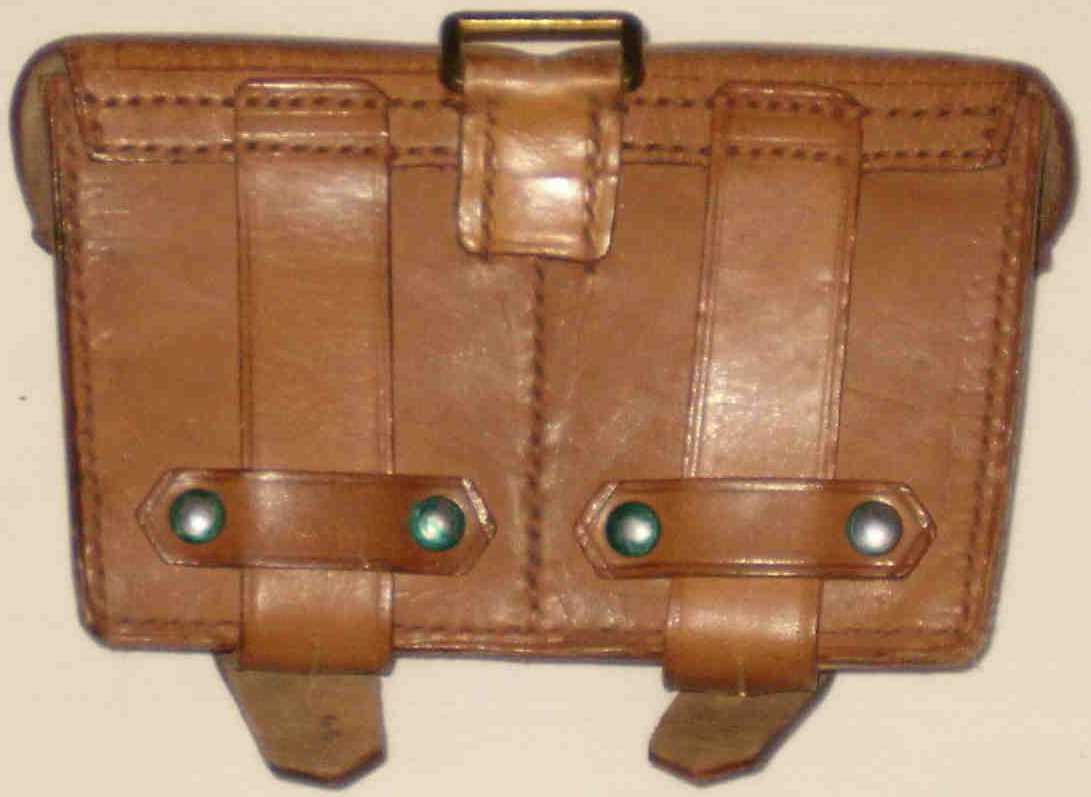

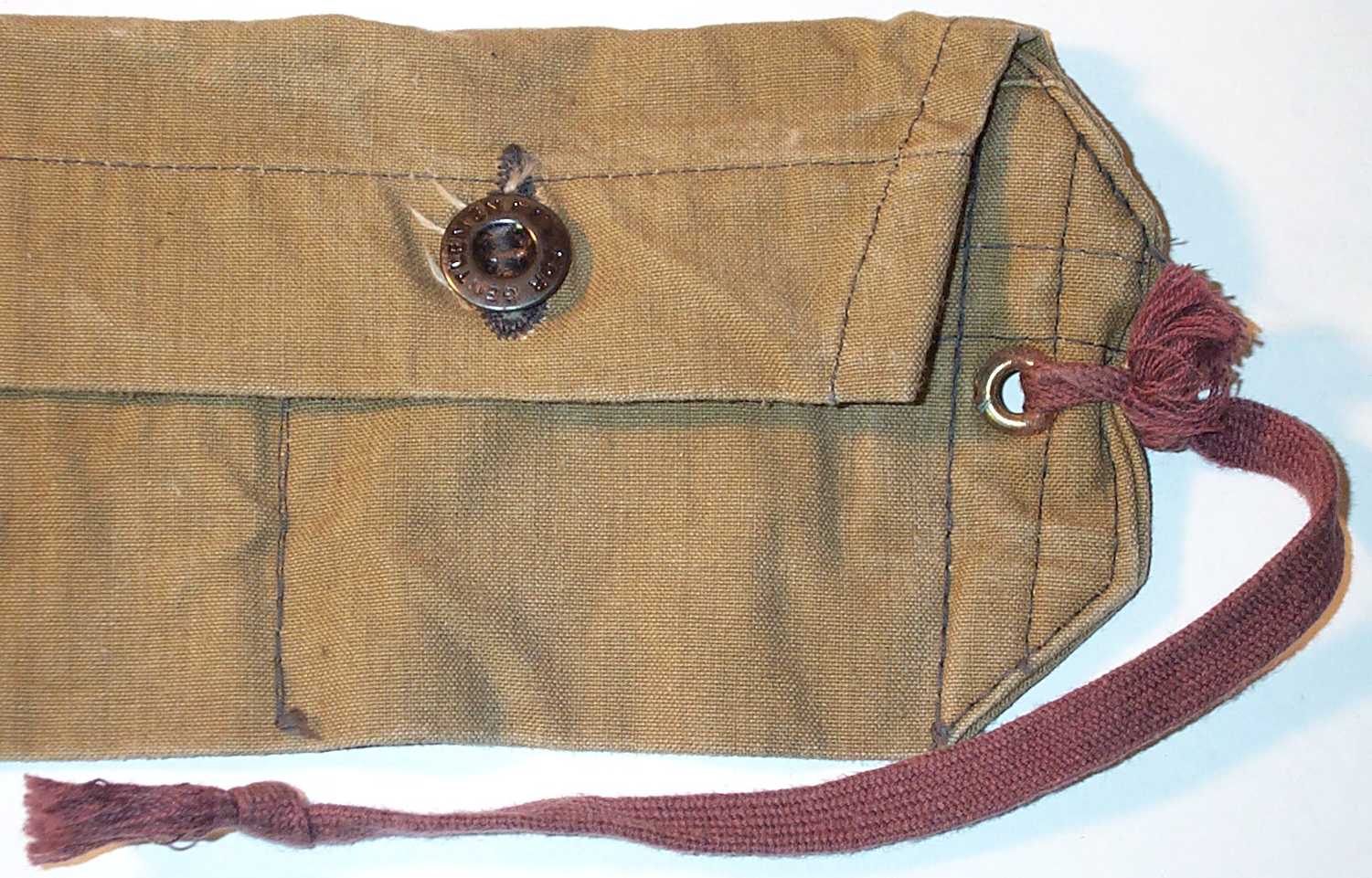

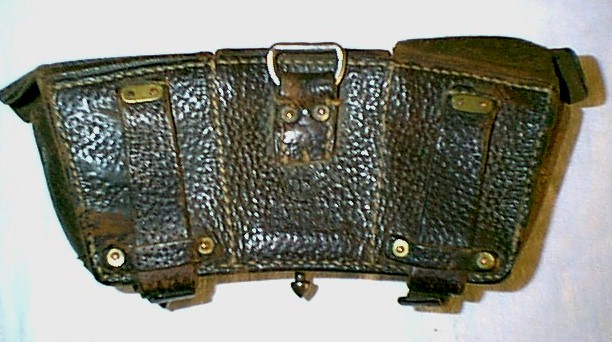

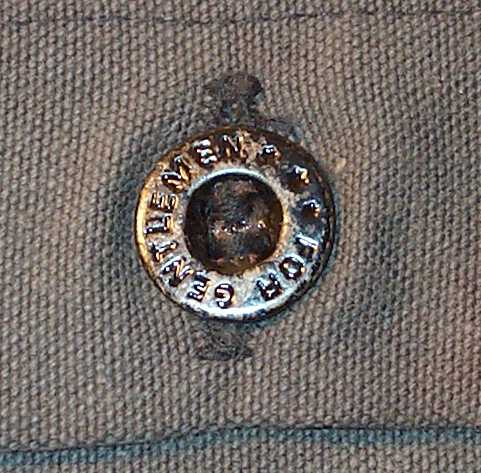

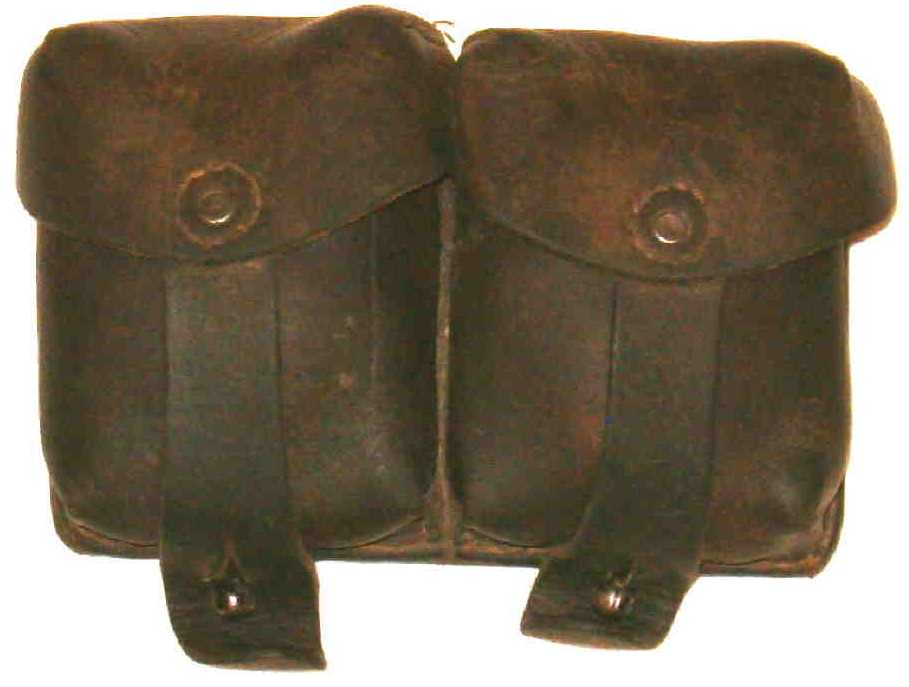

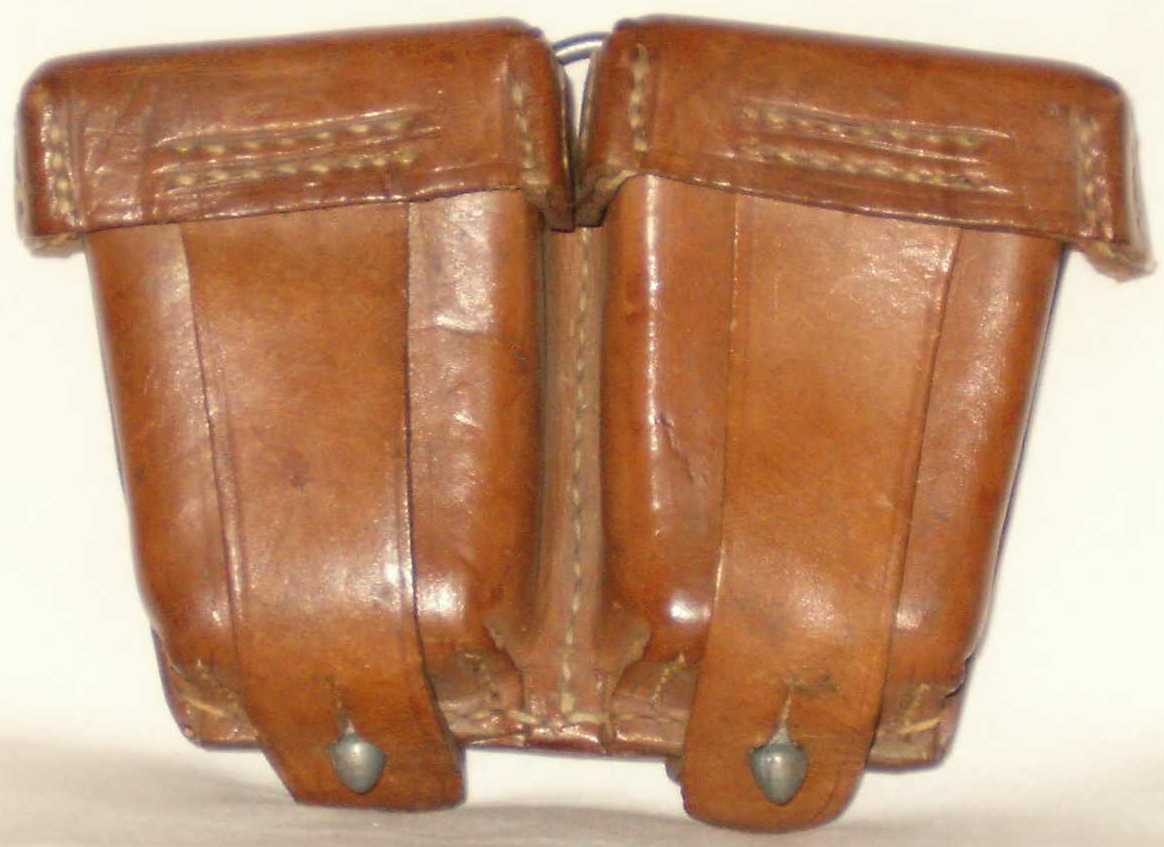

Ammo Pouches

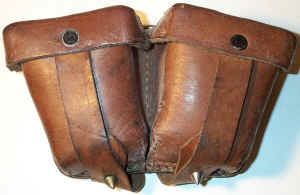

Soviet WWII (possibly Bulgarian)
Soviet WWII (courtesy of "jaegerpeter")

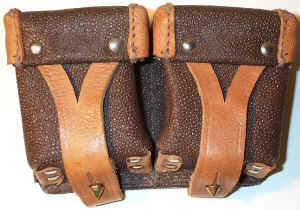

Soviet post WWII
Polish post WWII leather (courtesy of "jaegerpeter")
Polish post WWII canvas

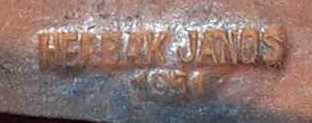

Romanian
post WWII

Herbak Janos
1951

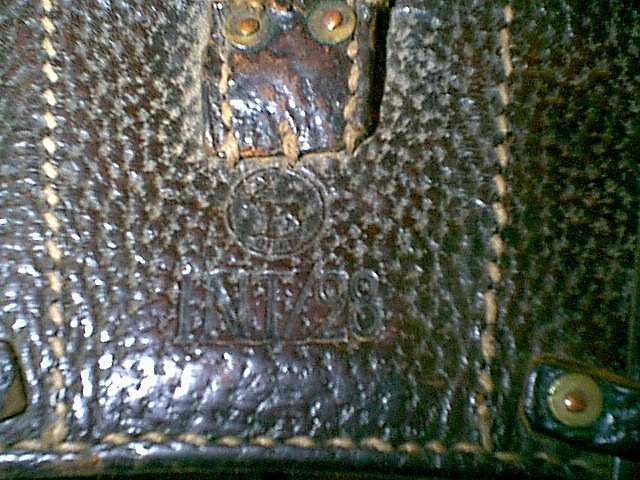

Finnish Made by Veljekset Åströmin Valjastehtaat Oy (Åström Brothers Harness Works Ltd) (reindeer logo) and accepted in 1928 (INT/28) (courtesy of "JamesP")

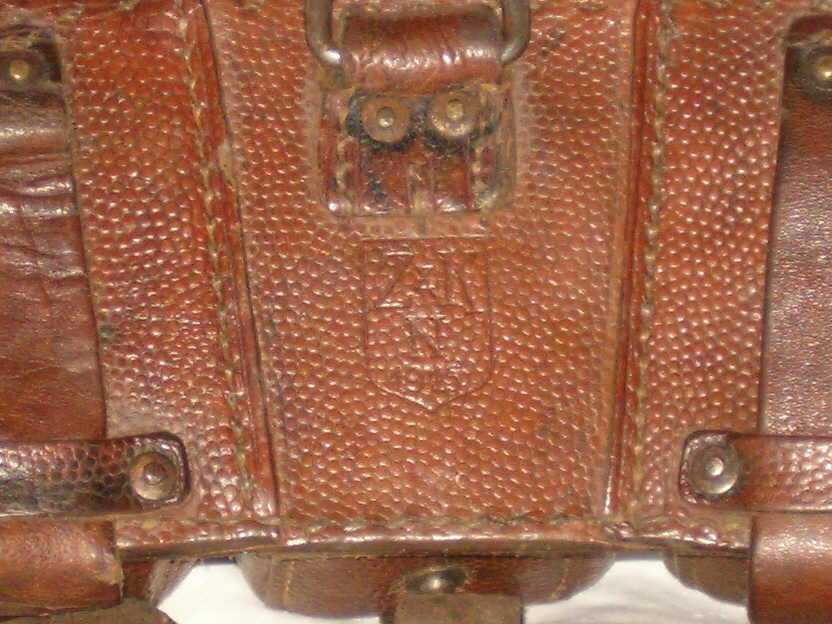

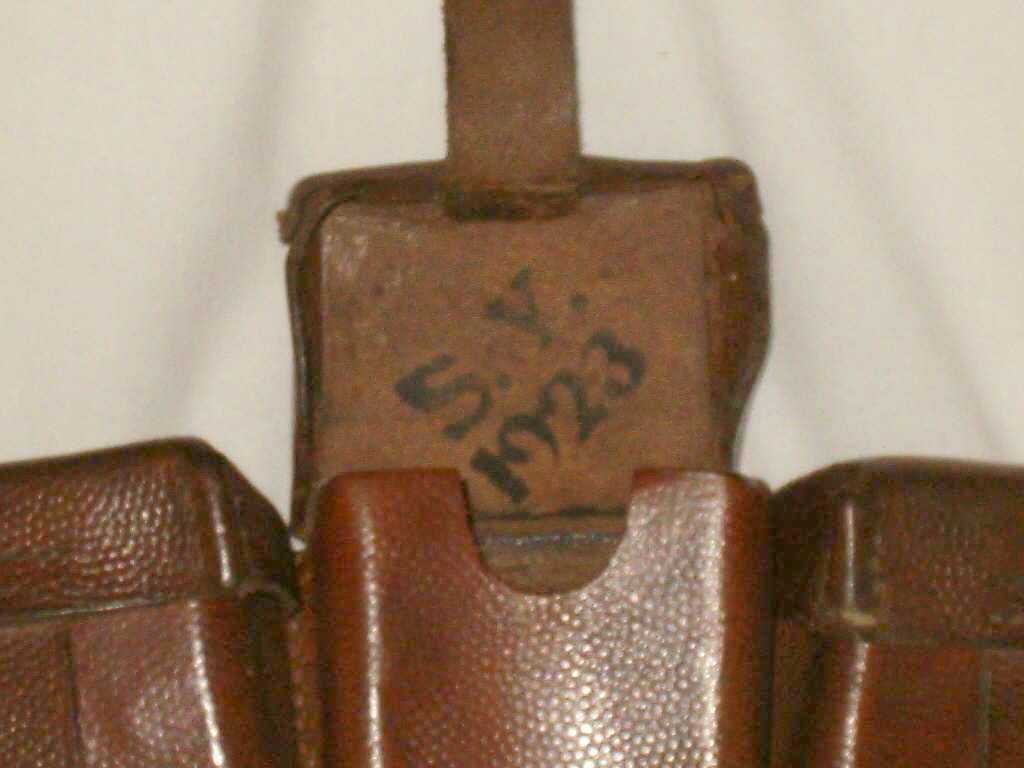

German/Finnish German model 1909 Made by Z&K in 1915 Given or sold to Finland beginning in 1917 S.Y. (Civil Guard) and 1923 marked (courtesy of "jaegerpeter")

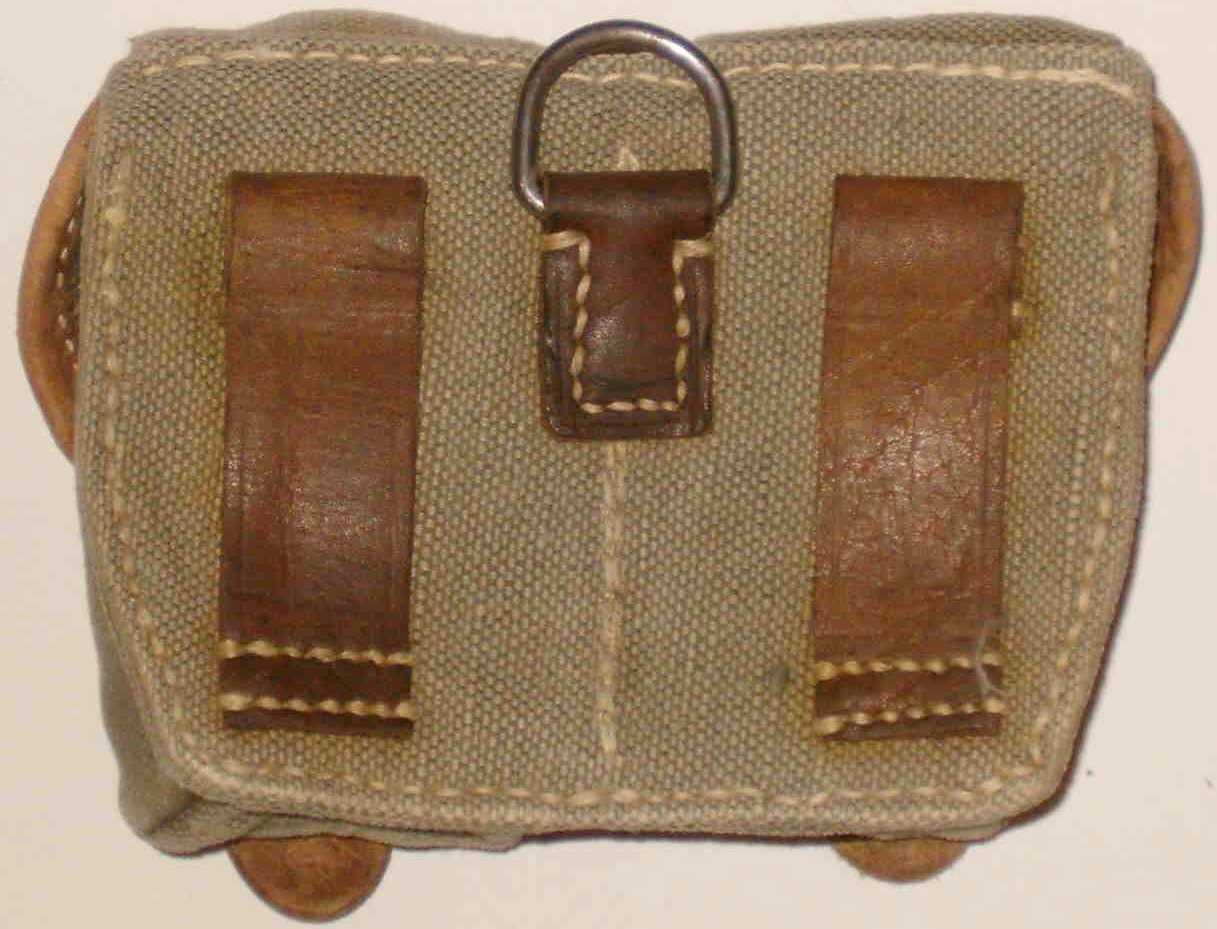

Hungary Pre WWII pouch used with Mosin Nagant rifles after WWII in Hungary and the Soviet Union who captured these from Hungary (courtesy of "jaegerpeter")
East German post WWII Lederwaren Zeitz VEB (Z) 1960 Lederwaren means "Leather Works", Zeitz is the city, VEB means Volkseigener Betrieb, or "owned by the people", and 1960 is the year. The circular mark is a Soviet acceptance stamp. (courtesy of "jaegerpeter")

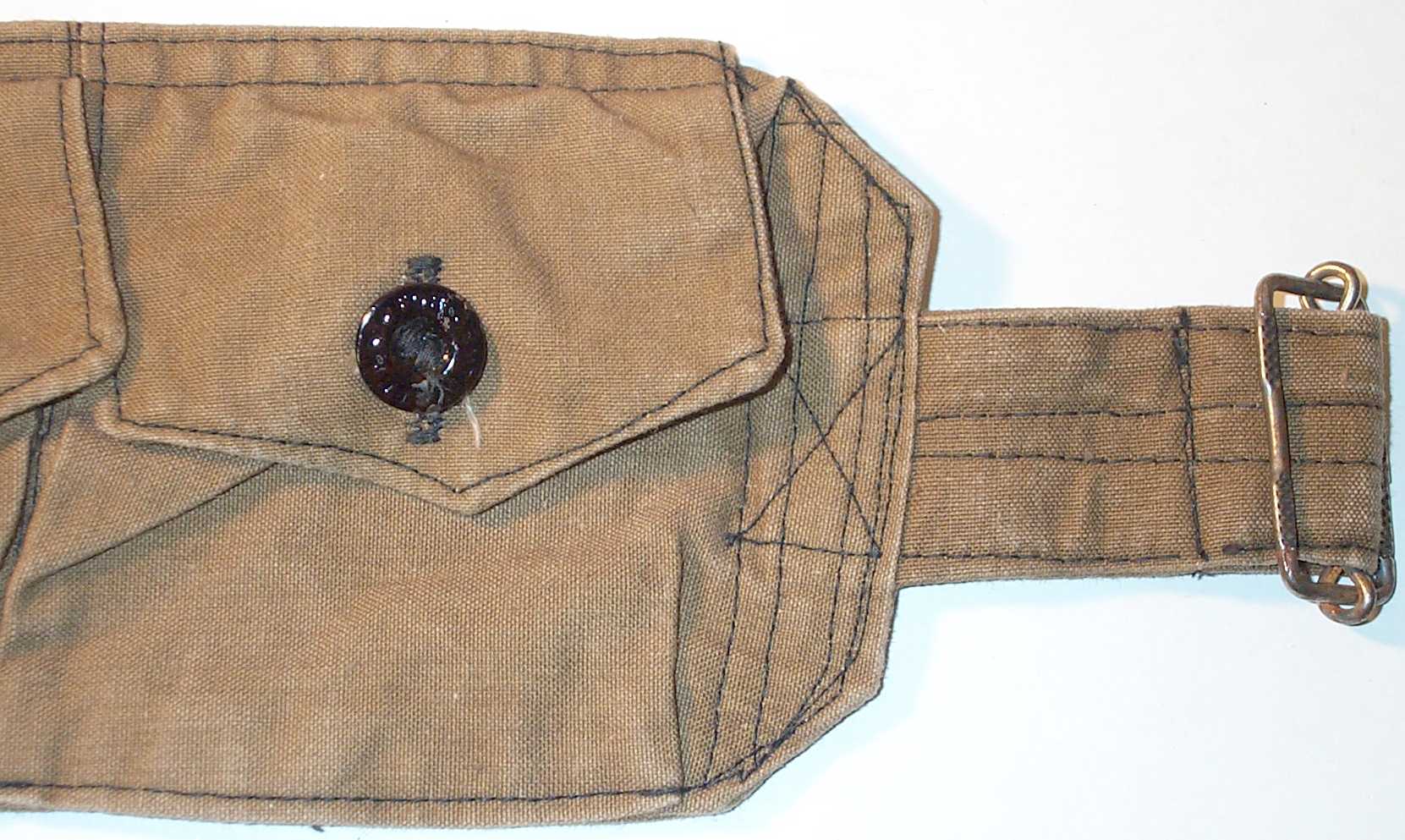

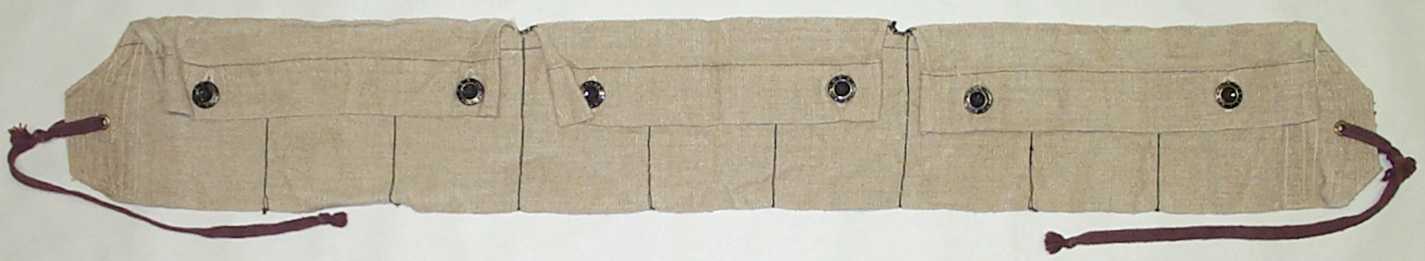

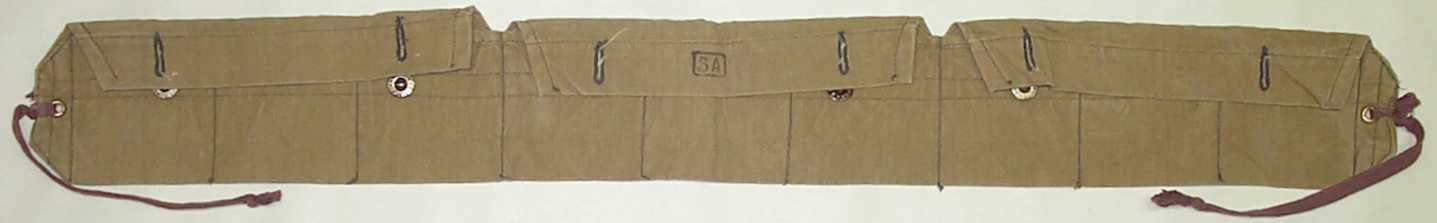

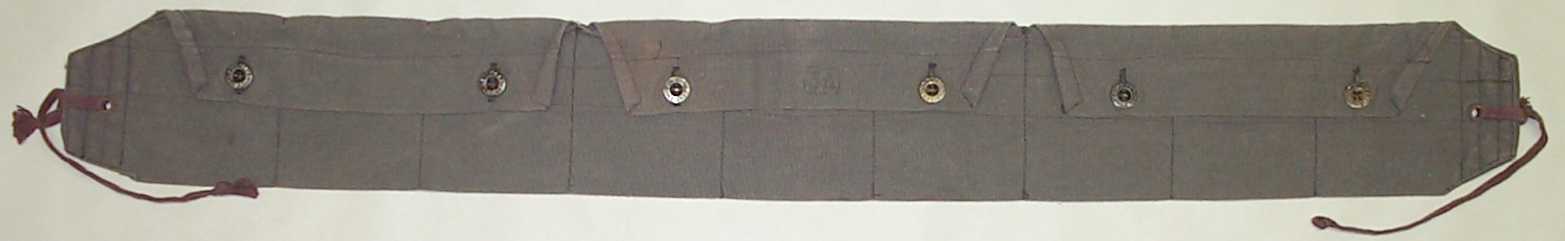

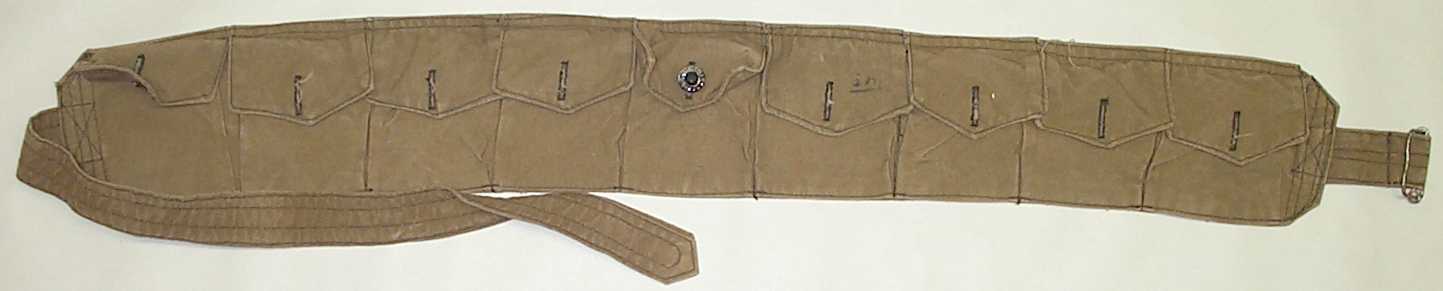

Finnish 9 pocket bandoliers

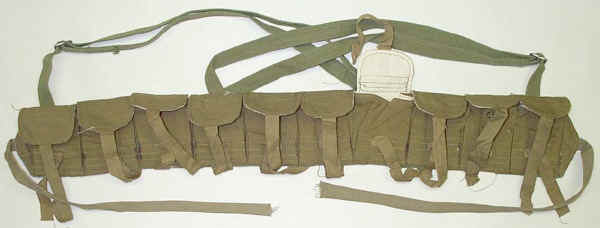

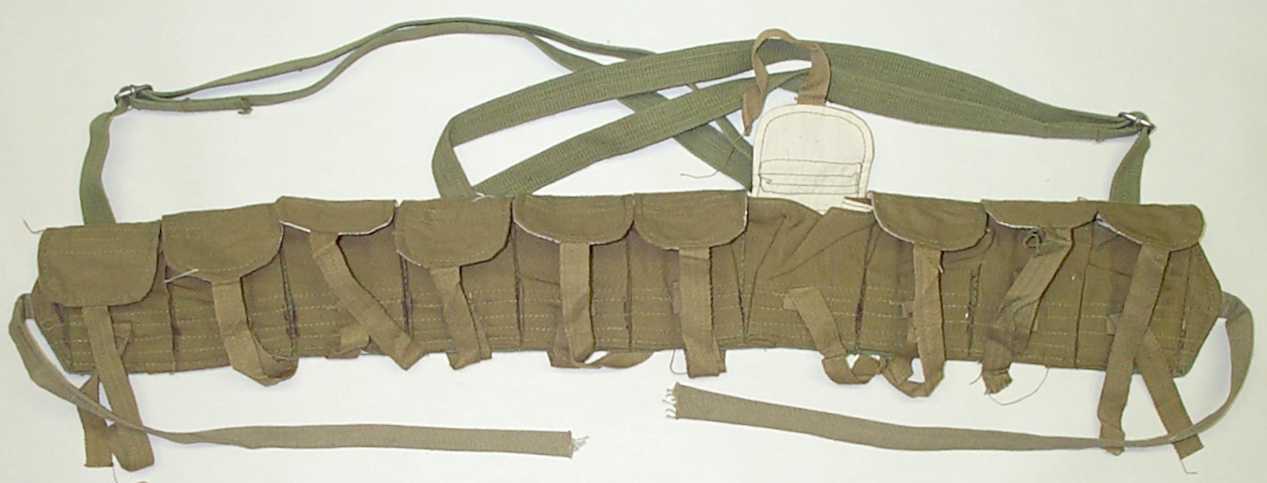

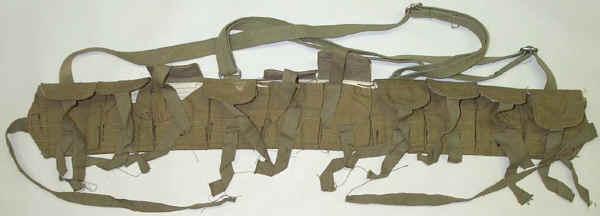

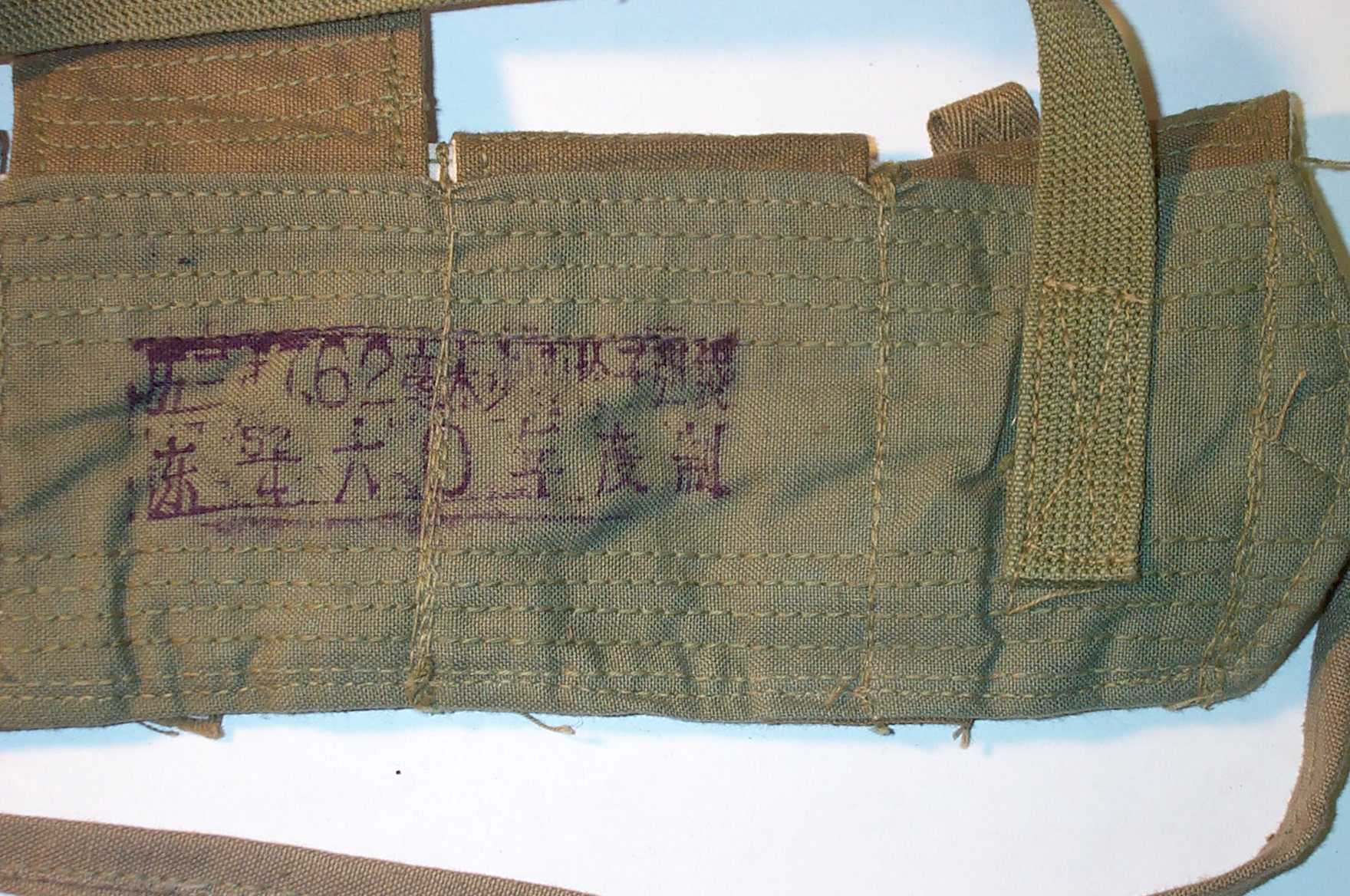

Chinese 10 pocket chest pouches
