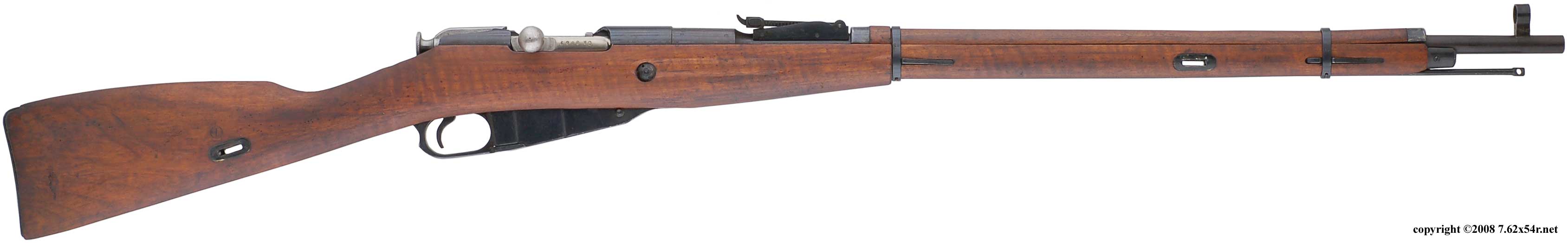

After WWII the Soviet Union shared much of its weapons technology with its satellite countries, including the Mosin rifles and carbines. Hungarian M44 carbines are common in the US, but the Hungarian M91/30 is not as well known. There are two versions, the M91/30 PU sniper and the standard M91/30. The Hungarian M91/30 follows the same basic pattern as the Soviet M91/30 with few differences. The barrel shank markings are "02", which is the country code for Hungary, the date, the Hungarian crest, and the serial number. The dates are in the early 1950s and began before M44 production in Hungary.

Specifications
For all models see the Mosin Nagant Rifle Specifications page.
Weight Over All
Length
Barrel
Length
Stock
Length
Groove
Diameter
Sight
Radius
Cleaning Rod Length (approx.)
8 3/4 lbs.
4 kg.
48 1/2"
123.2 cm.
28 3/4"
73 cm.
45"
114.3 cm.
.311" 24 1/2"
62.2 cm.
26 1/4"
66.7 cm.



Years of Production
For all models see the Mosin Nagant Rifle Years of Production page.
1950 to 1954



Barrel Markings

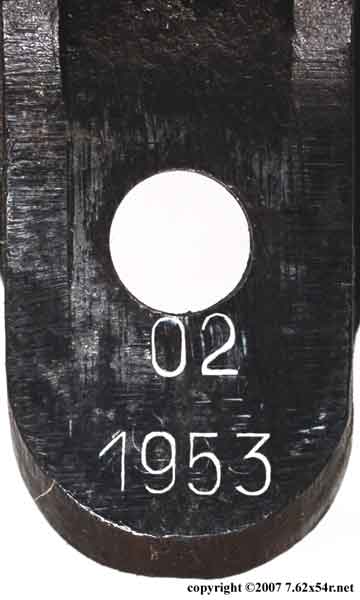

Receiver Tang Markings
02 and date

Features

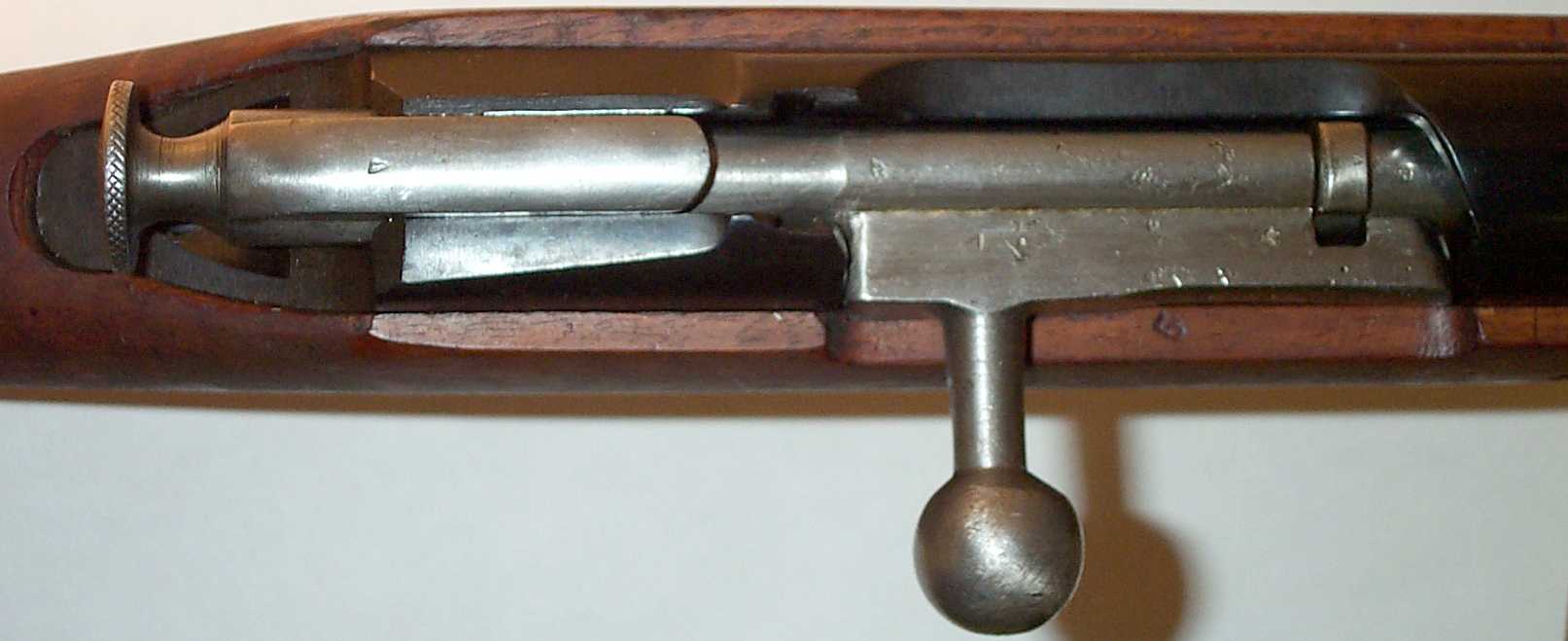

Round High Wall Receiver
Some Hungarian M91/30s are built on round low wall receivers.
For a detailed comparison of secondary receiver features please see the Mosin Nagant Rifle Receiver Variations page.



Sights

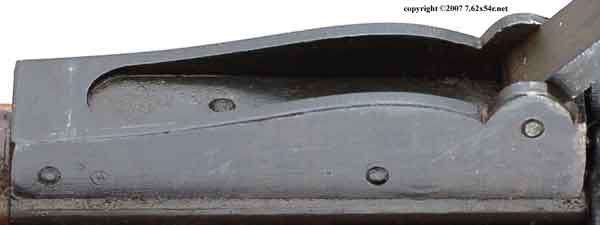

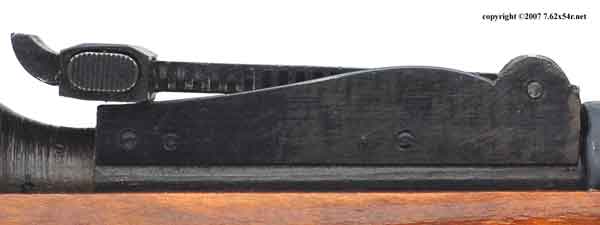

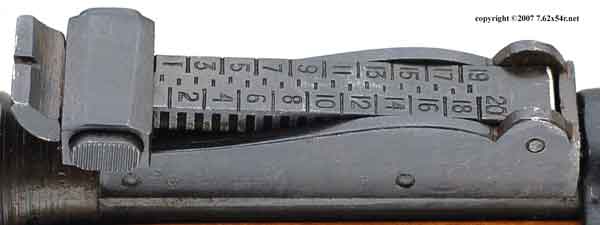

The Hungarian M91/30 is a direct copy of the Soviet model and the rear sight is identical to the later Soviet version. All graduations are on top of the leaf from 1 to 20 representing hundreds of meters. The base is attached to the barrel with a dovetail of the same size as the M91 and held in place with two pins.

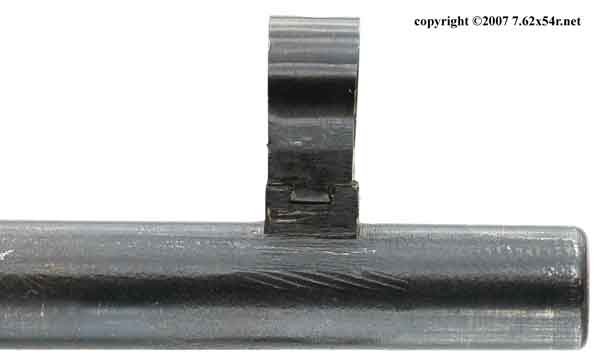

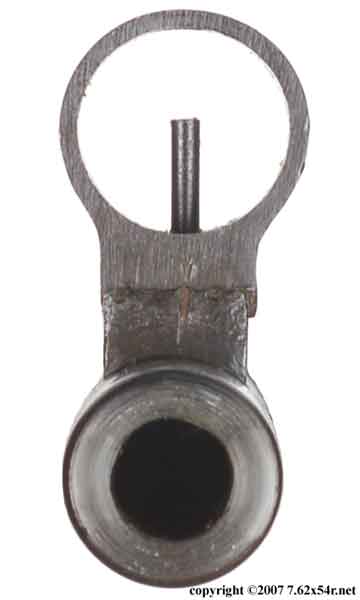

The front sight base is integral with the barrel and the same size as the Soviet version.  The standard milled post and globe assembly is used.

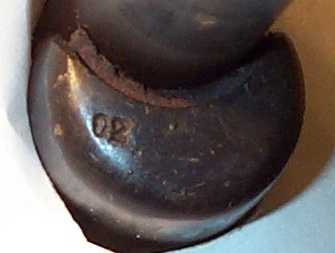

Cleaning rod nut, tapered hole in front only,
hole in top threaded to receive nose cap screw to aid in removing nut

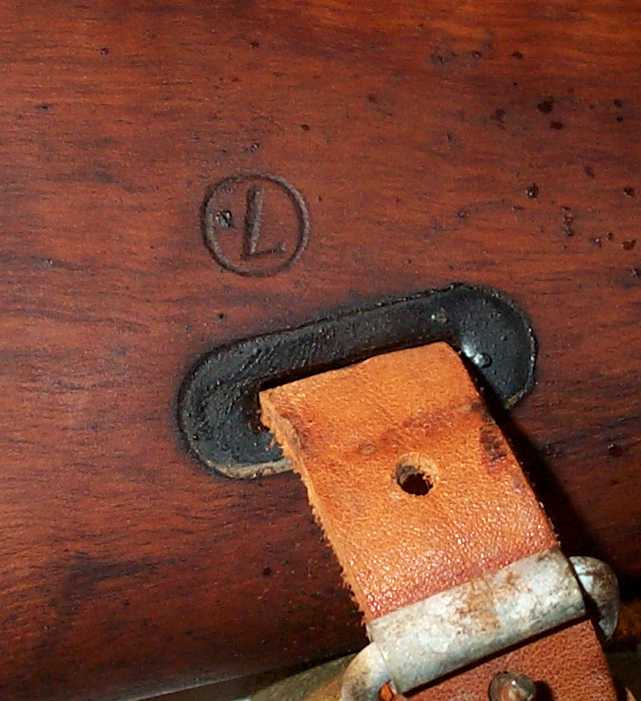

Nose Cap Sling Slots

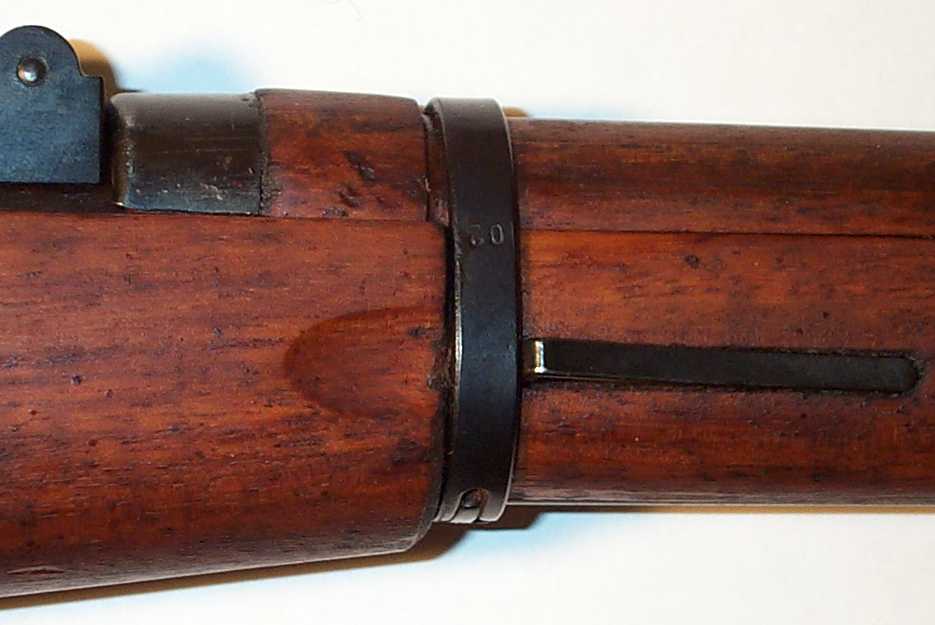

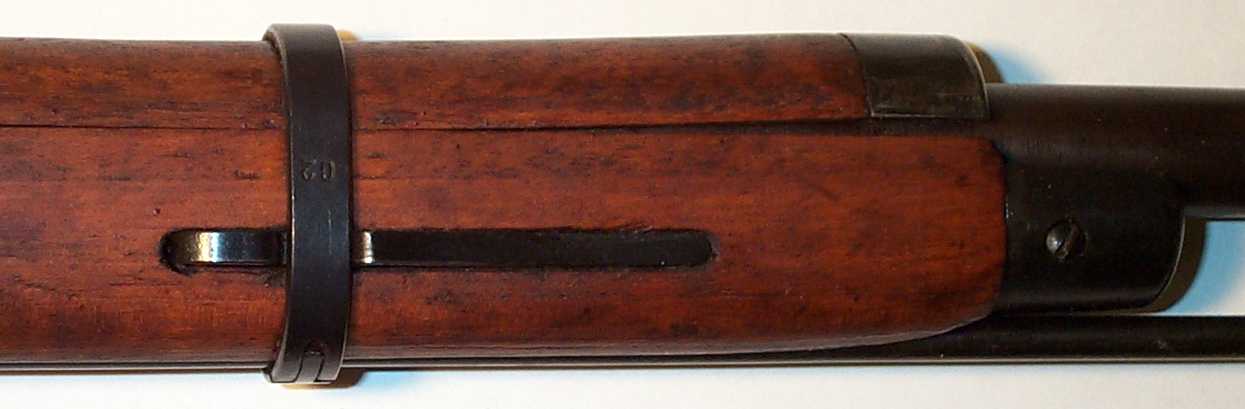

Barrel Bands



Handguard

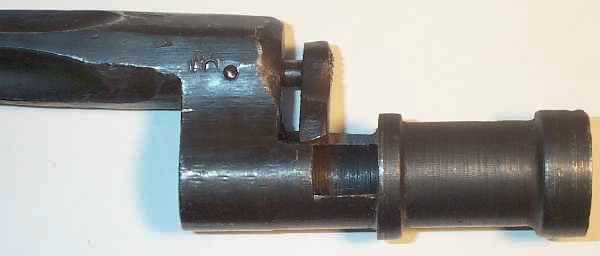

Bayonet Socket
