Late in the Continuation War Tikkakoski produced M91/30 rifles although it is a less refined model than the current M39. The project was probably undertaken simply because there were large numbers of M91/30 parts on hand from captured Soviet rifles that were not serviceable otherwise. The most noticeable difference in these and Soviet M91/30s is the blade front sight as opposed to the post and globe used by the Soviets, although some of the Finnish rifles also use a post and globe. Most Finnish M91/30s are built on the earlier hexagonal receivers, but there are some found on later round receivers, primarily with barrel dates of 1944.

Specifications
For all models see the Mosin Nagant Rifle Specifications page.
Weight Over All
Length
Barrel
Length
Stock
Length
Groove
Diameter
Sight
Radius
Cleaning Rod Length (approx.)
8 3/4 lbs.
4 kg.
48 1/2"
123.2 cm.
28 3/4"
73 cm.
45"
114.3 cm.
.3095" 24 1/2"
62.2 cm.
26 1/4"
66.7 cm.



Years of Production by Arsenal
For all models see the Mosin Nagant Rifle Years of Production page.
Tikka
1943 to 1944



Barrel Markings
Tikkakoski
1943
Tikkakoski
1944
t stands for Taisteluvälinehallinto (Ordnance Department)



Receiver Tang Markings

Finnish tang markings can be any Russian or Soviet marks.



Stock Variations
Soviet pre-war stock

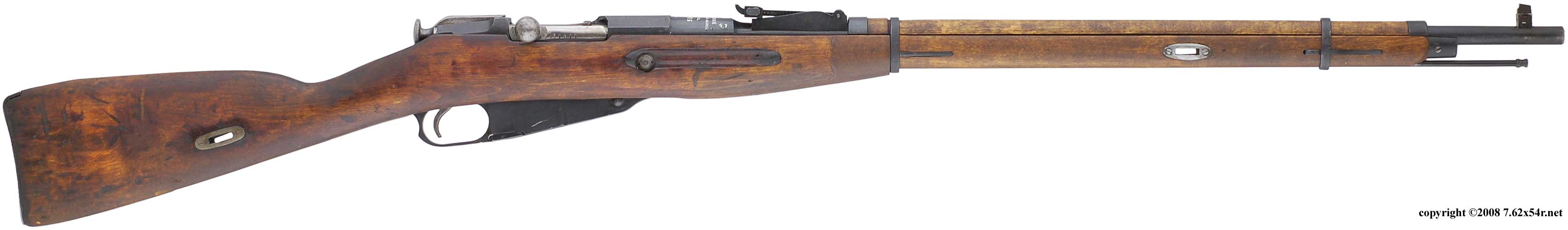

Soviet stock with new fore end spliced on 0065.jpg (73808 bytes)
Finnish two piece "pot belly" stock 0016.jpg (64481 bytes)

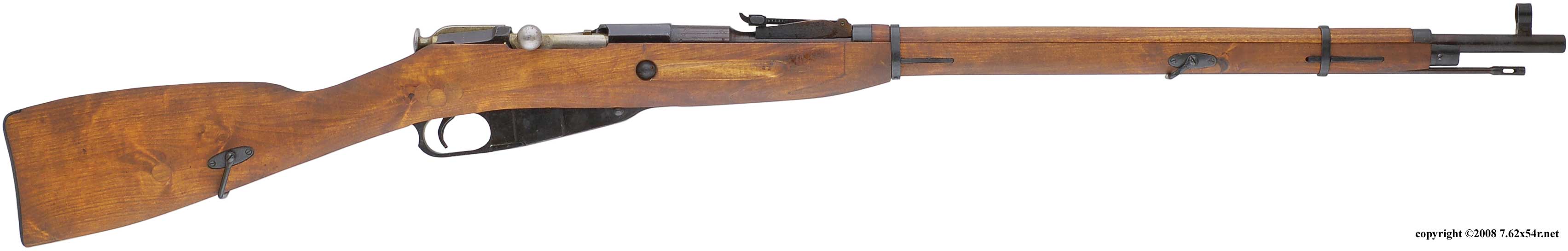

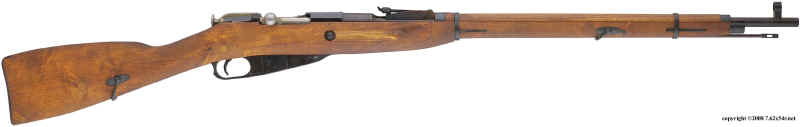

Finnish two piece post-war stock 0064.jpg (77005 bytes)



Reused Russian Hex Receiver (most common)
Reused Soviet Round Low Wall Receiver (less common)
Reused Soviet Round High Wall Receiver (uncommon)



Sight Variations
The Finnish M91/30 is a direct copy of the Soviet model utilizing primarily captured parts. The rear sight is identical to the earlier Soviet version. All graduations are on top of the leaf from 1 to 20 representing hundreds of meters. The base is attached to the barrel with a dovetail of the same size as the M91. There is a set screw at the rear of the base under the leaf and the base is also soldered in place. Early leaves have a deep notch which extends down to the flat of the leaf and early slides have a slope on the forward top edge. Later parts may also be found on Finnish M91/30s.

The front sight base is integral with the barrel and the same size as the Soviet version. The Finns preferred blade front sights over the post and globe so a spacer was utilized to raise a standard M91 type blade to the correct height for the M91/30 rear sight. This is know among US collectors as a "Finnish stacked blade". This type of sight is also found on some Soviet M91/30 rifles captured or purchased by Finland.


While it is less common, the Soviet post and globe can also be found on Finnish made M91/30s.




Sling Slots Front Rear
Russian with screwed in place escutcheons RusEF.jpg (5552 bytes) RusER.jpg (5474 bytes)
Russian w/ Finnish hangers RusFinF.jpg (5771 bytes) RusFinR.jpg (6433 bytes)
Escutcheon plate with round hole and hangers FinF.jpg (6794 bytes) FinR.jpg (5162 bytes)



Finnish "potbelly" stock



Handguard



Bayonet Socket
