| Mosin Nagant Finnish Stocks All content copyright © 7.62x54r.net Features Index |
| Crossbolts | ||
| Russian, no crossbolt | |
|
| Russian, wooden crossbolt courtesy of "Mike O" |
|
|
| Russian, wooden crossbolt Steel crossbolt retrofitted |
|
|
| Russian/Soviet crossbolt (off center) | |
|
| Finnish crossbolt (centered) | |
|
| Handguards | ||
| M91, M24, P-series |  |
|
| Dragoon, 1st type courtesy of Clay |
 |
|
| Dragoon, 2nd type |  |
|
| M1907 carbine courtesy of DT Mosbey |
 |
|
| M91/30 |  |
|
| M91/30 Spanish replacement |
 |
|
| M38, M44, M91/38 |  |
|
| M91/59 |  |
|
| M27, M28 |  |
|
| M28/30 |  |
|
| M39 |  |
|
| M91 handguard end rivets | ||
| Copper |  |
 |
| Small aluminum |  |
 |
| Large aluminum |  |
 |
| Dragoon 1st type rear The majority of these were cut
down to the 2nd type. |
 |
| Dragoon 2nd type rear |  |
| M91/30 and carbine handguard end caps | ||
| Copper w/ copper rivets early, uncommon |
 |
 |
| Brass w/ copper rivets early, uncommon |
 |
 |
| Brass w/ no rivets uncommon, sometimes covered with black paint |
 |
 |
| Steel w/ copper rivets uncommon |
 |
 |
| Steel, in the white |  |
 |
| Steel, blued |  |
 |
| Steel, black paint common on cold war refurbished rifles |
 |
 |
| Aluminum or Zinc courtesy of "mupples" |
 |
 |
| Finnish Stock Features | ||
| Stock Splices | ||

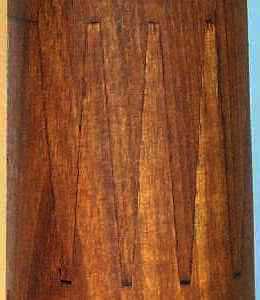

| PreWar/War Time | Transitional | Post War |
 |
 |
 |

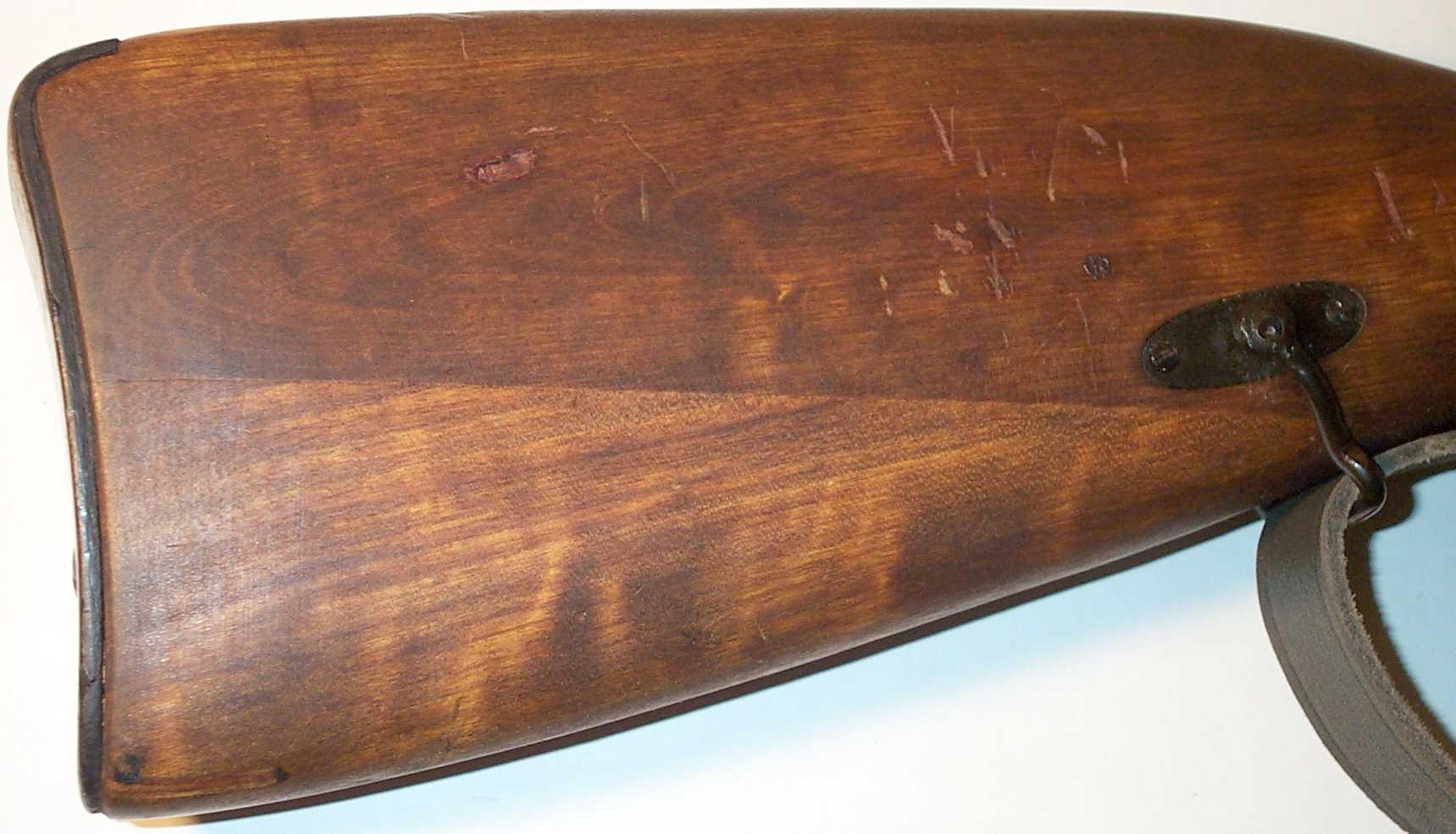

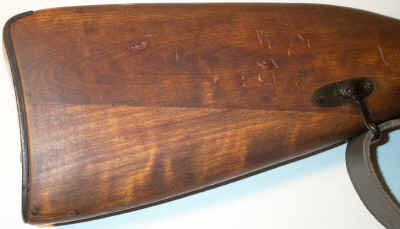

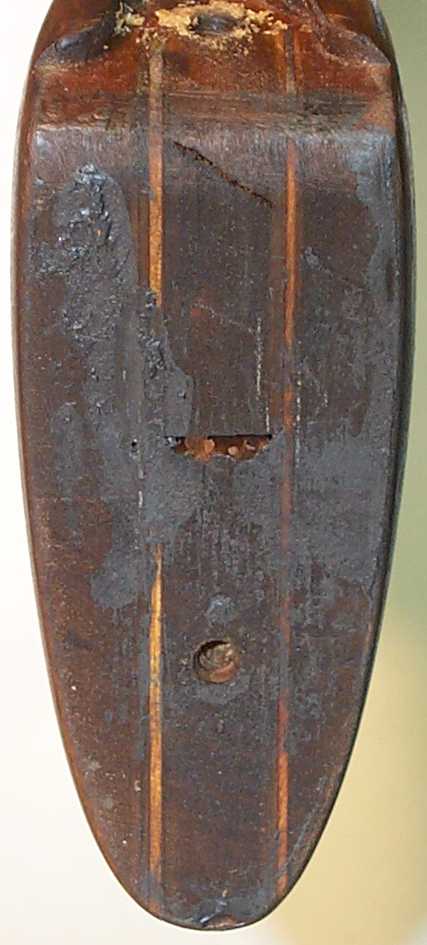

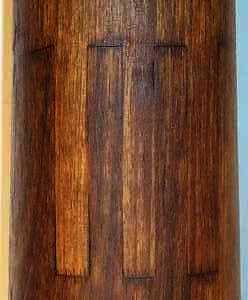

| Finnish dovetailed toe splice |  |
 |

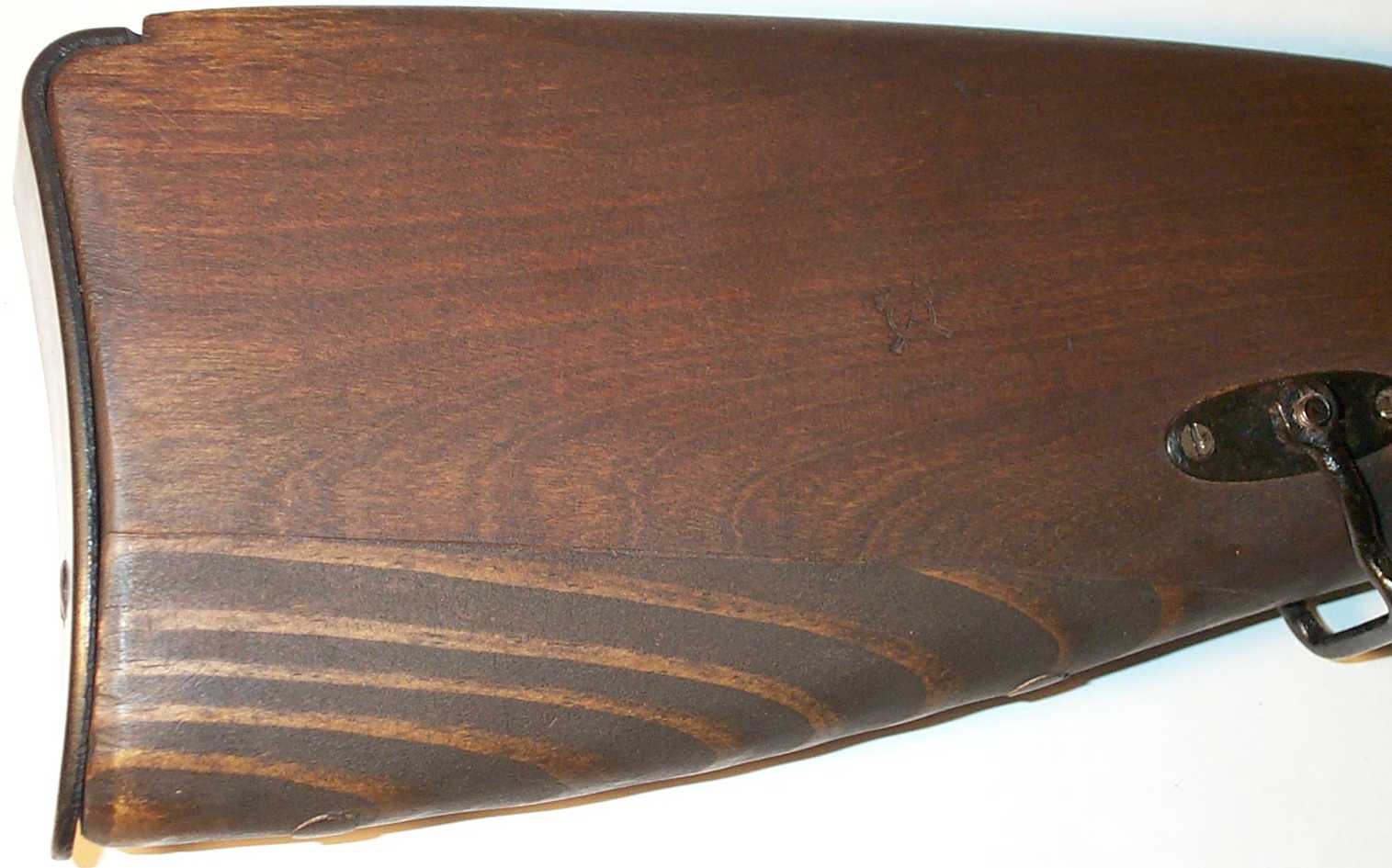

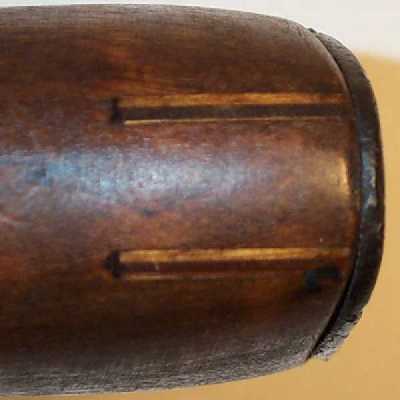

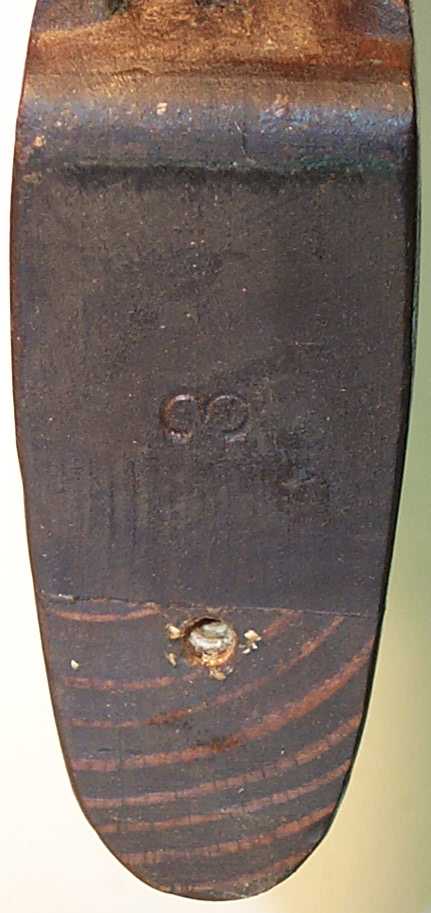

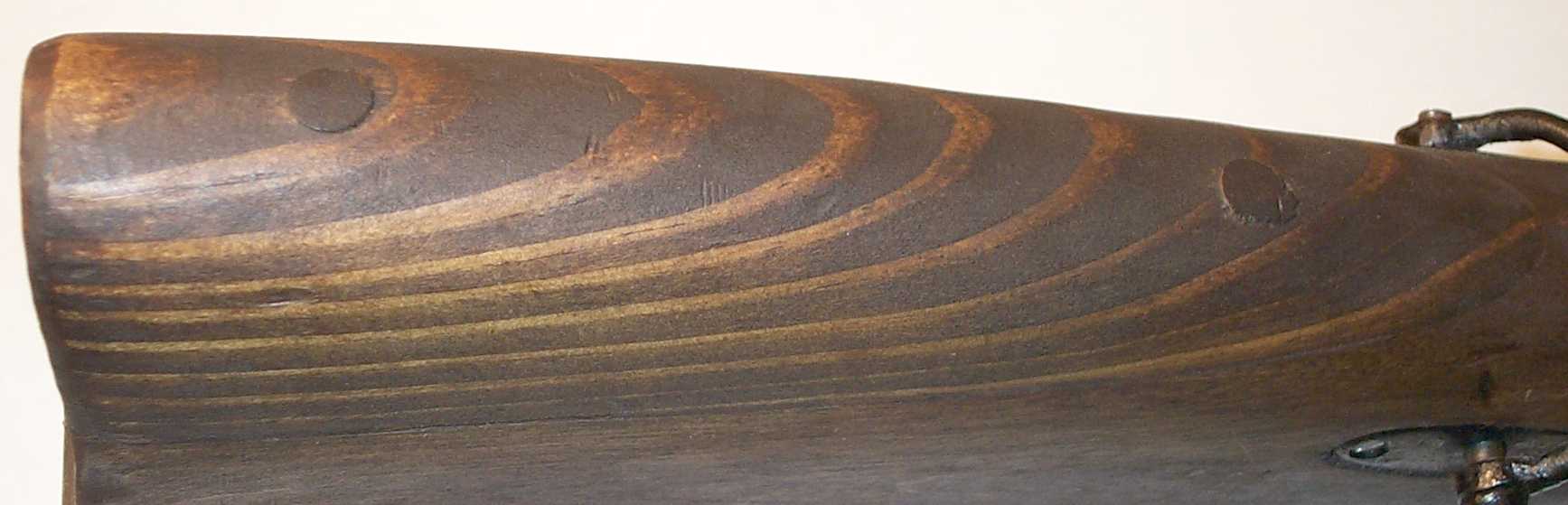

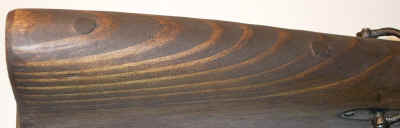

| Finnish doweled toe splice |  |
 |
 |

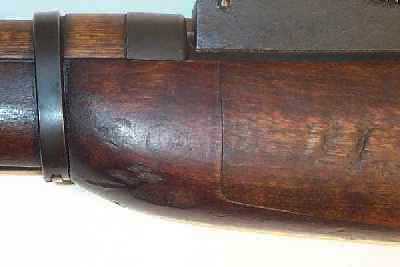

| Finnish "potbelly" | |
 |
|

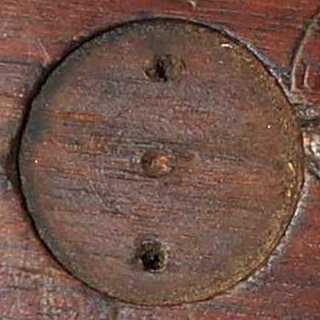

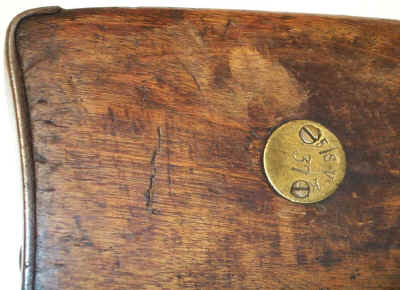

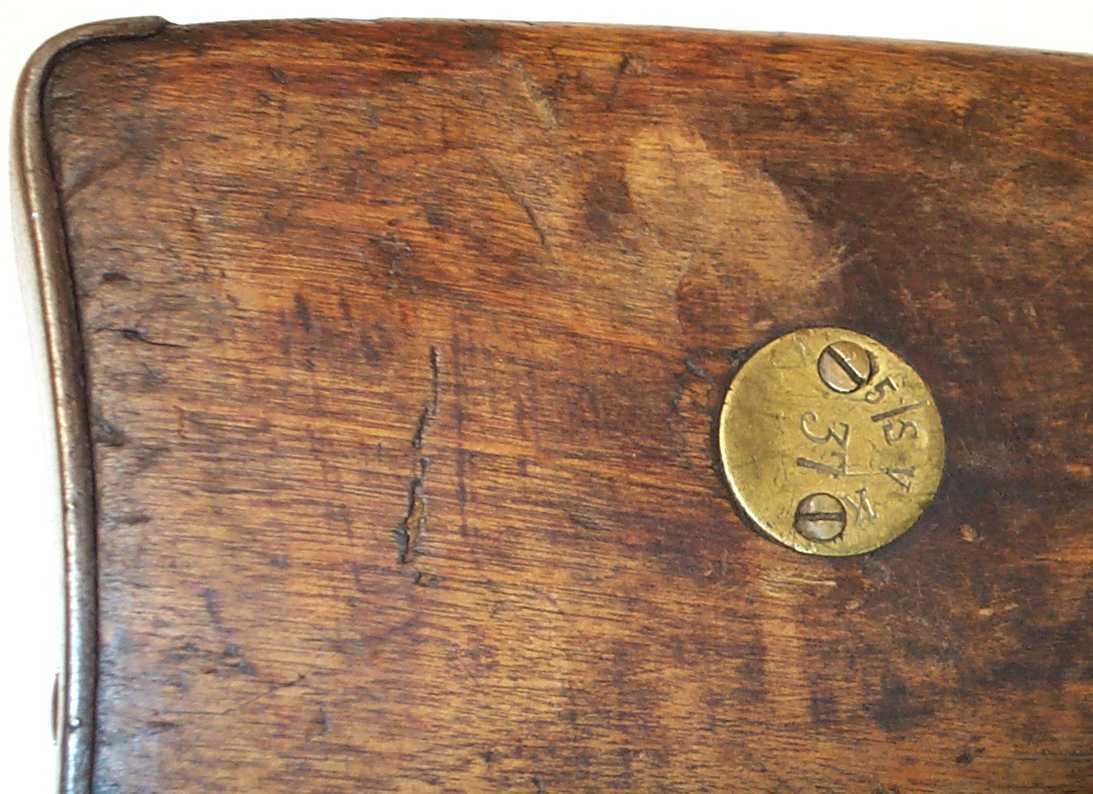

| Stock Disk, pre-war brass (post-war are aluminum or zinc) | Stock disk hole (removed for security during war) |
 |
 |

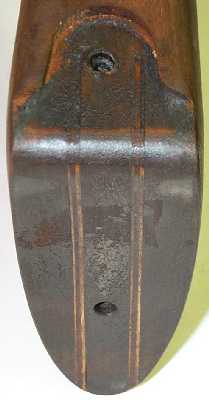

| Finnish butt reinforcement (began in 1956) | Finnish butt reinforcement (buttplate removed) |
 |
 |

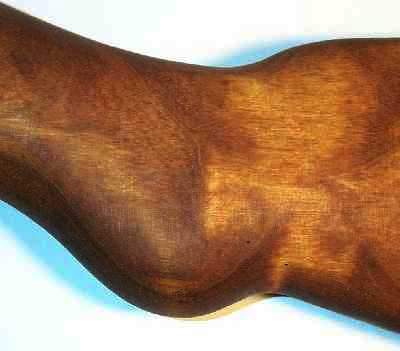

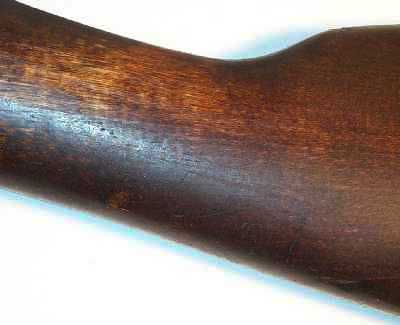

| M39 straight stock | M39 pistol grip |
 |
 |

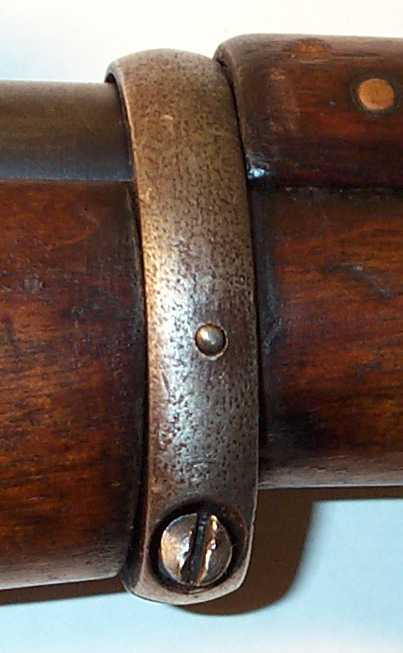

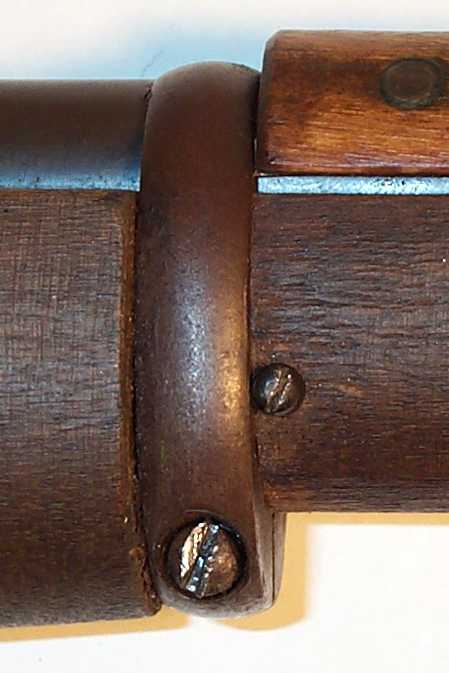

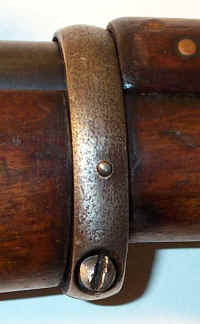

| Barrel band retaining pin (early, rare) | Barrel band retaining screw (late) |
 |
 |
| M28 stock reinforcing bushing at rear action screw, top and bottom view | |
 |
 |
| M28/30 stock fore end reinforcing, side and barrel channel view | |
 |
 |

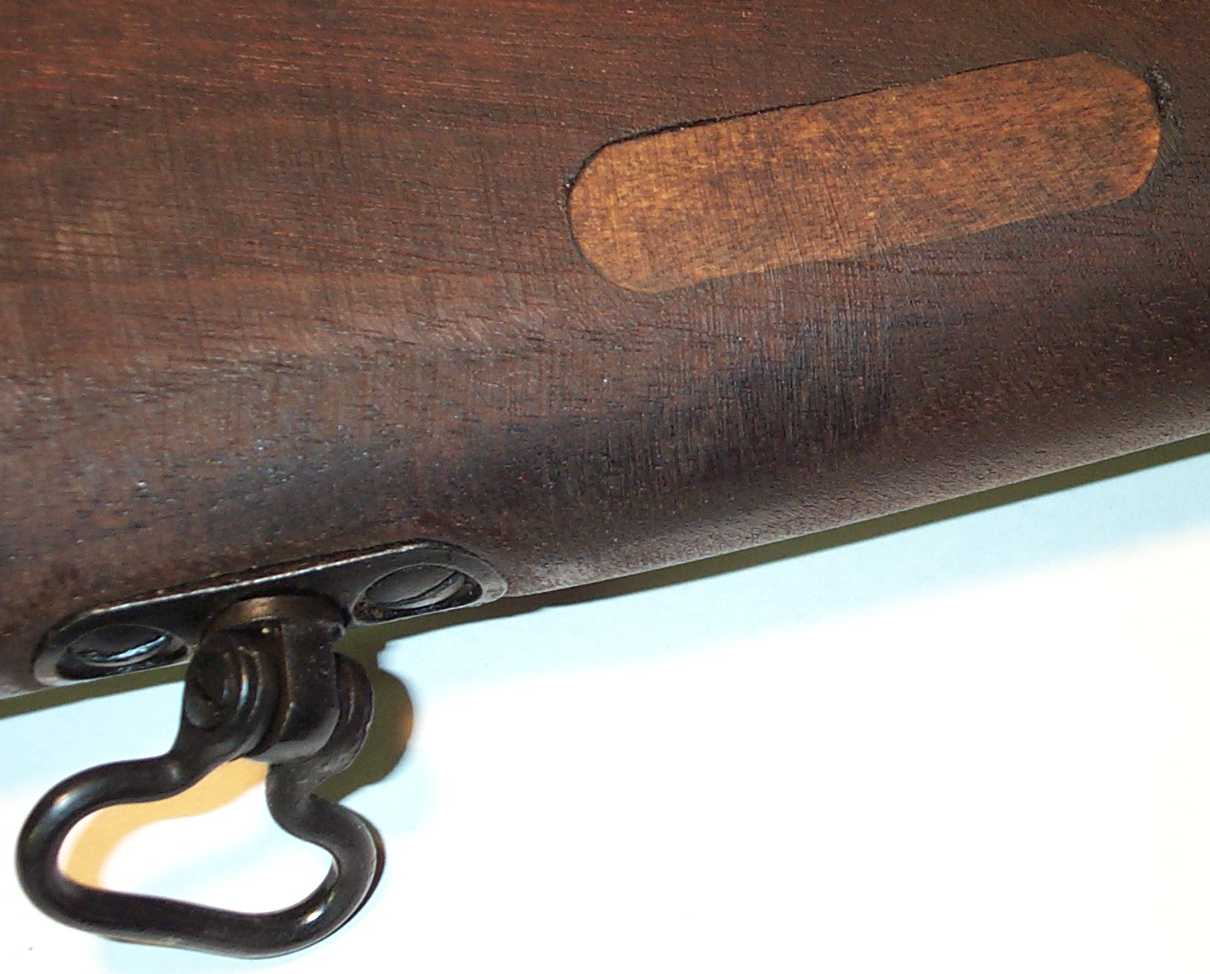

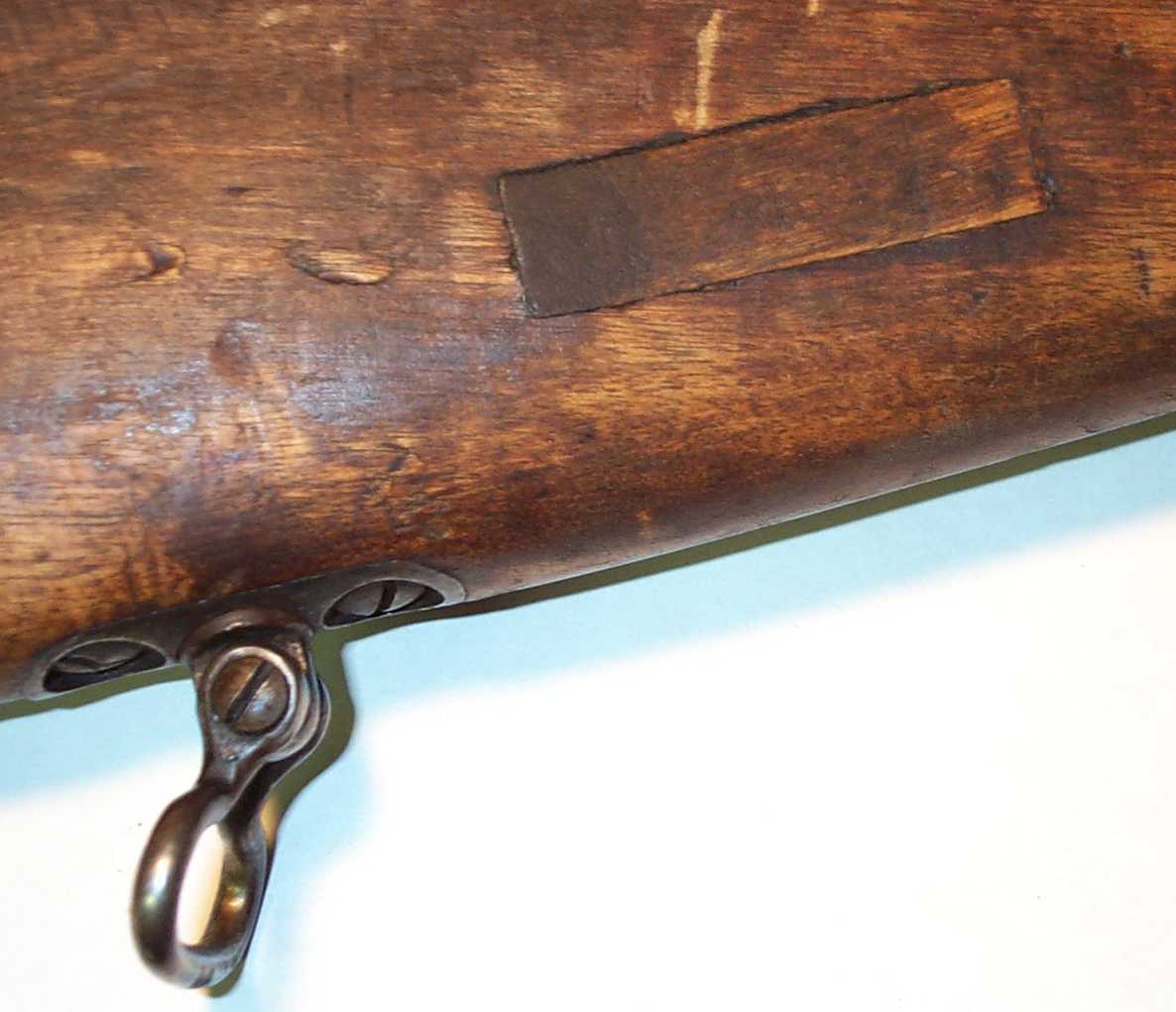

| M27 sling slot plugs | |
 |
 |
