Features Index

Crossbolts

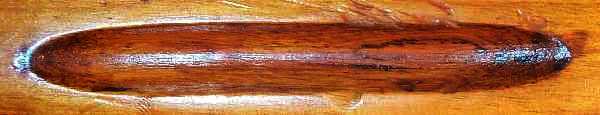

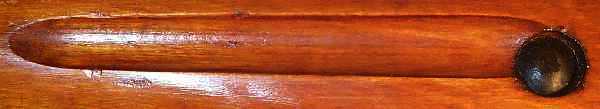

Russian, no crossbolt

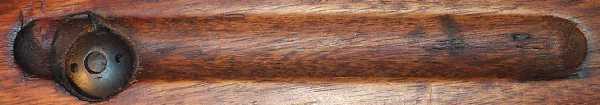

Russian, wooden crossbolt courtesy of "Mike O"
Russian, wooden crossbolt Steel crossbolt retrofitted
Russian/Soviet crossbolt (off center)

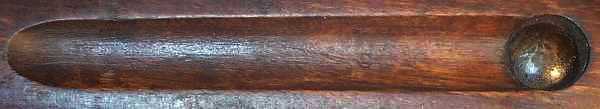

Finnish crossbolt (centered)

Handguards

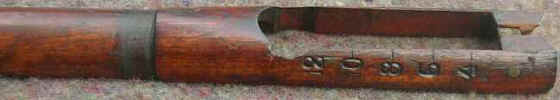

M91, M24, P-series

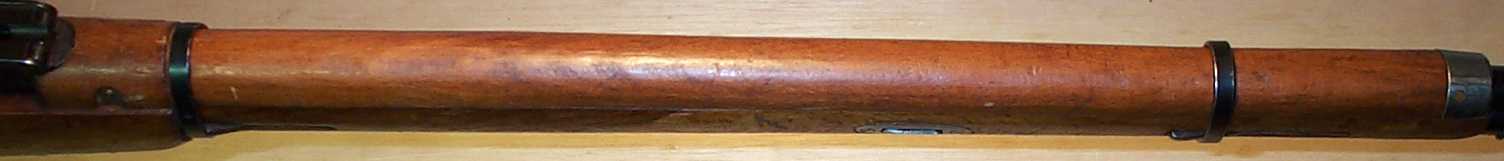

Dragoon, 1st type courtesy of Clay
Dragoon, 2nd type
M1907 carbine courtesy of DT Mosbey

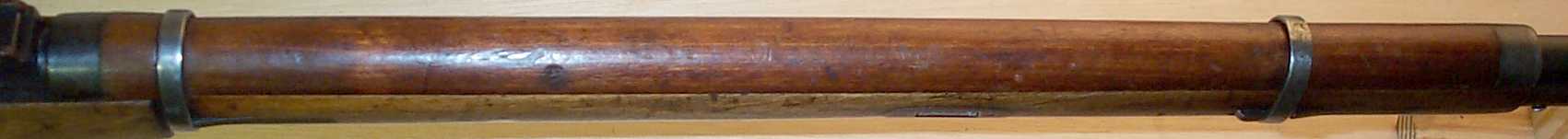

M91/30

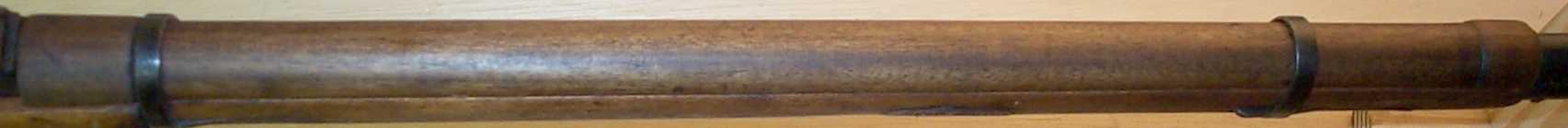

M91/30 Spanish replacement

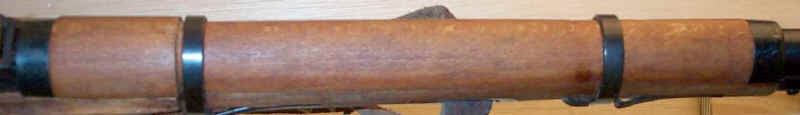

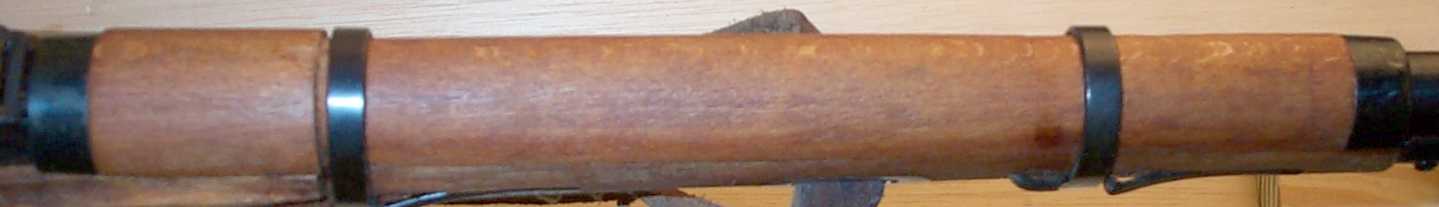

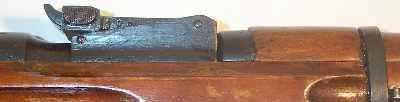

M38, M44, M91/38

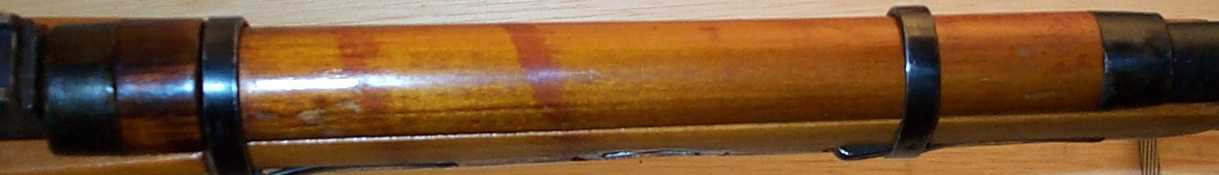

M91/59
M27, M28

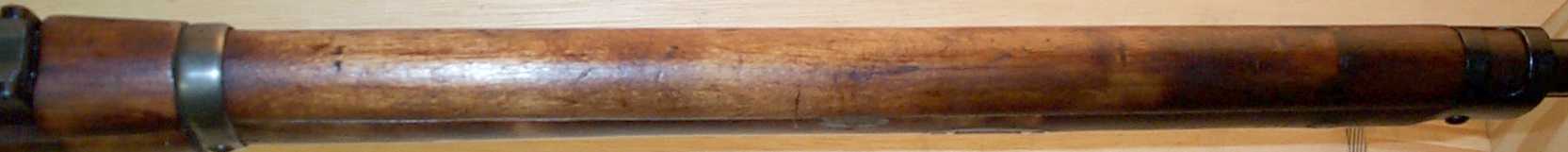

M28/30

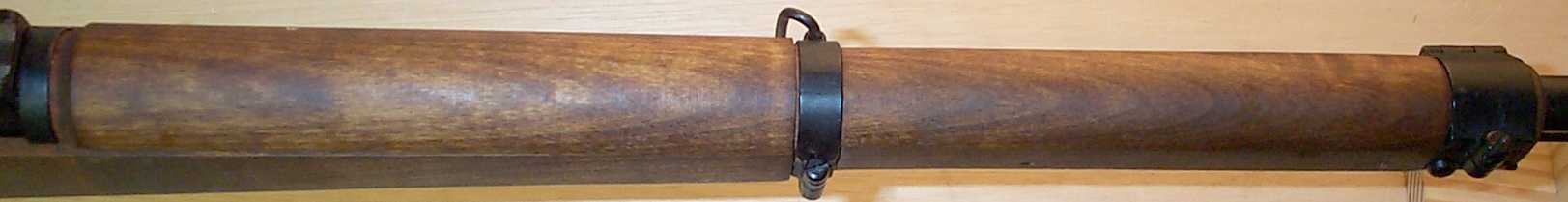

M39
M91 handguard end rivets
Copper
Small aluminum
Large aluminum

Dragoon 1st type rear The majority of these were cut down to the 2nd type. courtesy of Clay
Dragoon 2nd type rear

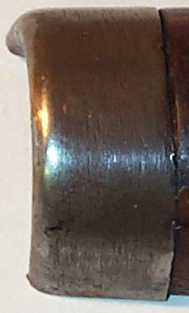

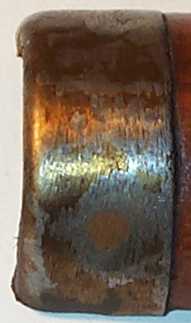

M91/30 and carbine handguard end caps

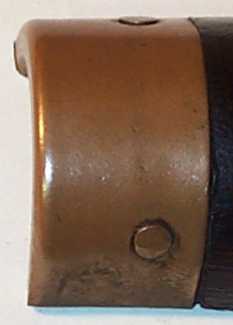

Copper w/ copper rivets early, uncommon

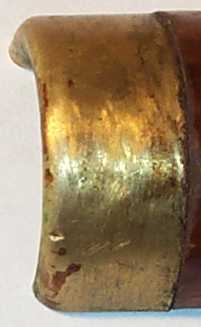

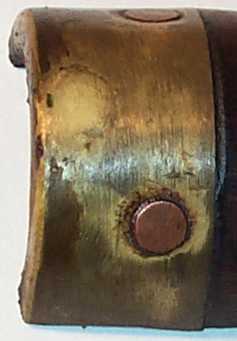

Brass w/ copper rivets early, uncommon
Brass w/ no rivets uncommon, sometimes covered with black paint
Steel w/ copper rivets uncommon

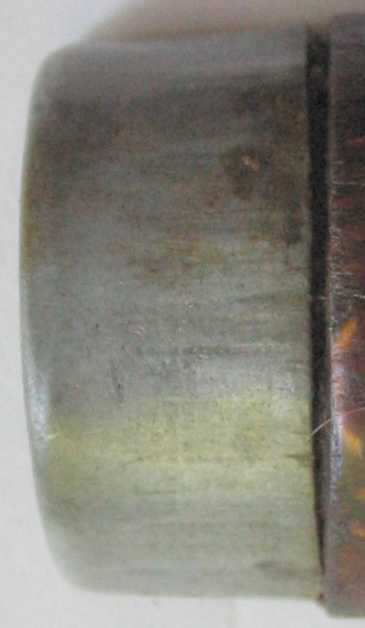

Steel, in the white
Steel, blued

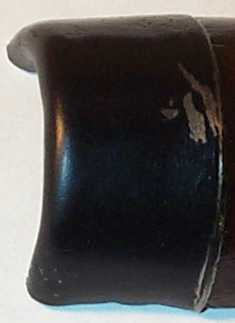

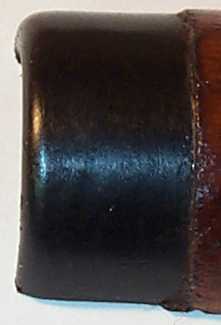

Steel, black paint common on cold war refurbished rifles

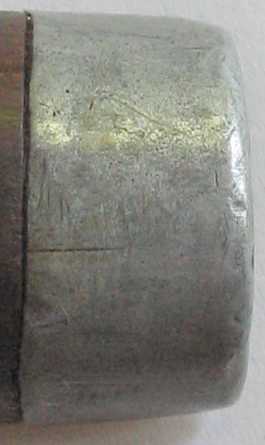

Aluminum or Zinc courtesy of "mupples"

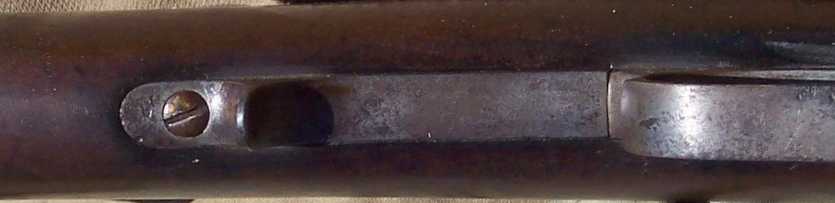

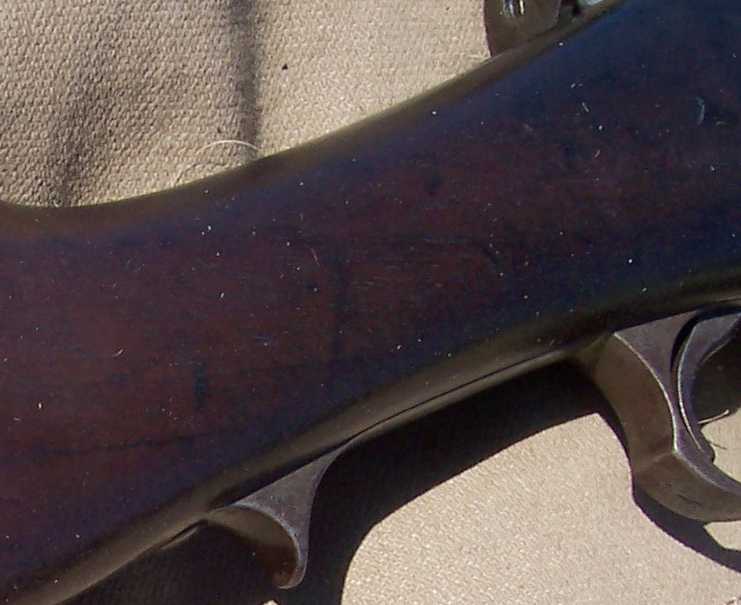

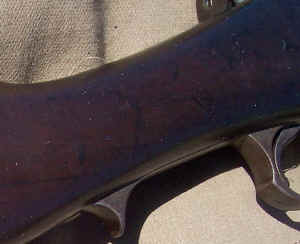

Early (1892-1893) Finger Rest courtesy of "blacst"

Early M91 barrel band	Late M91 barrel band

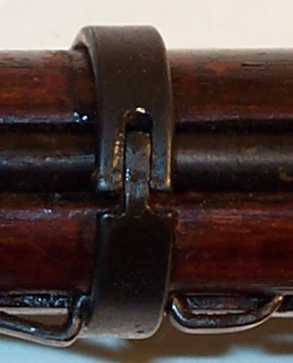

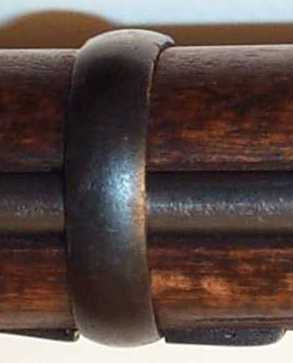

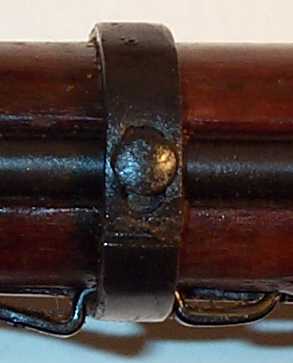

Solid band (pre-1930 dragoons)	Button band (early '30s)	Split band (late)

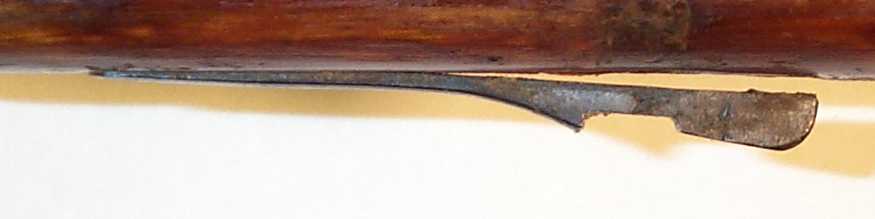

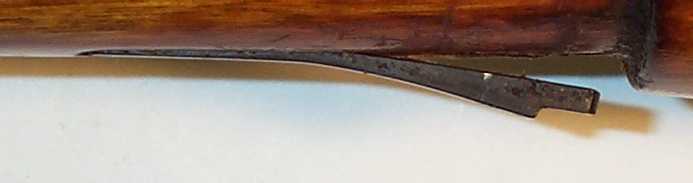

Milled front barrel band spring		Milled rear barrel band spring

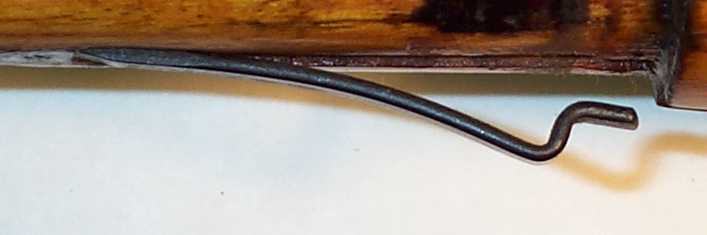

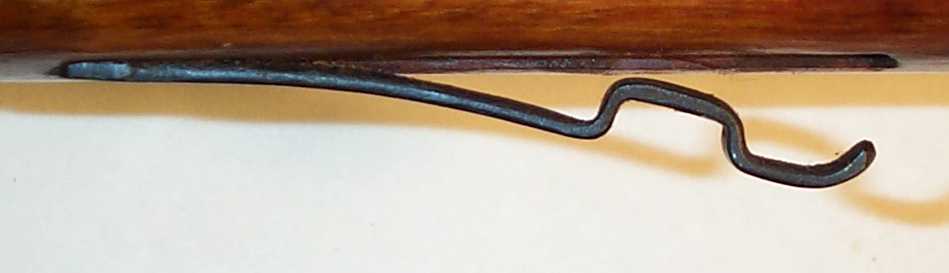

Stamped front barrel band spring		Stamped rear barrel band spring

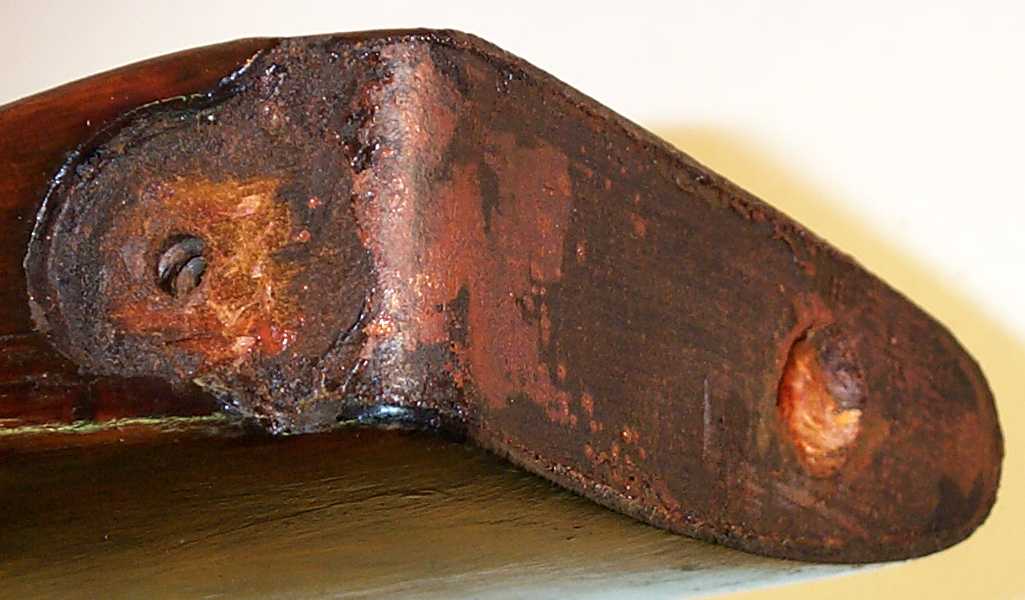

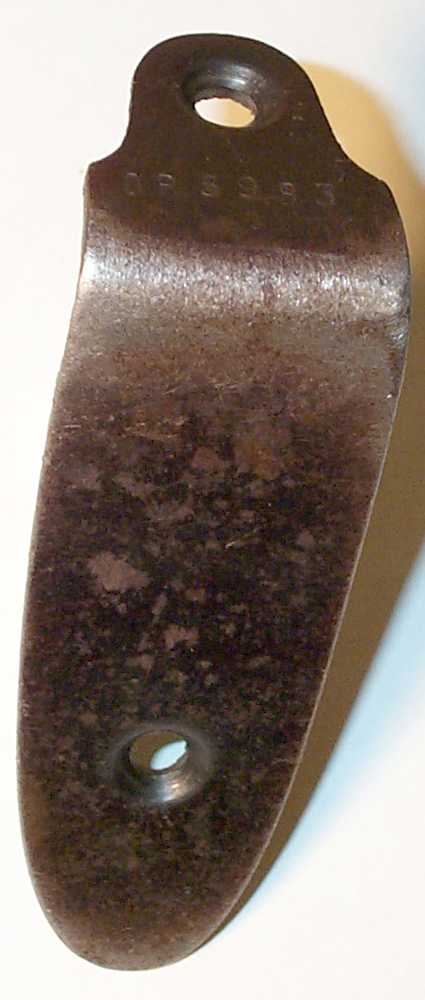

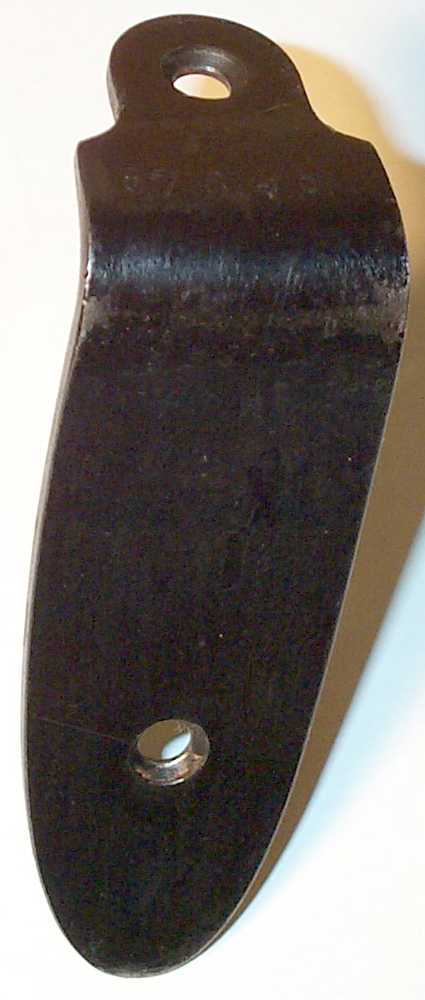

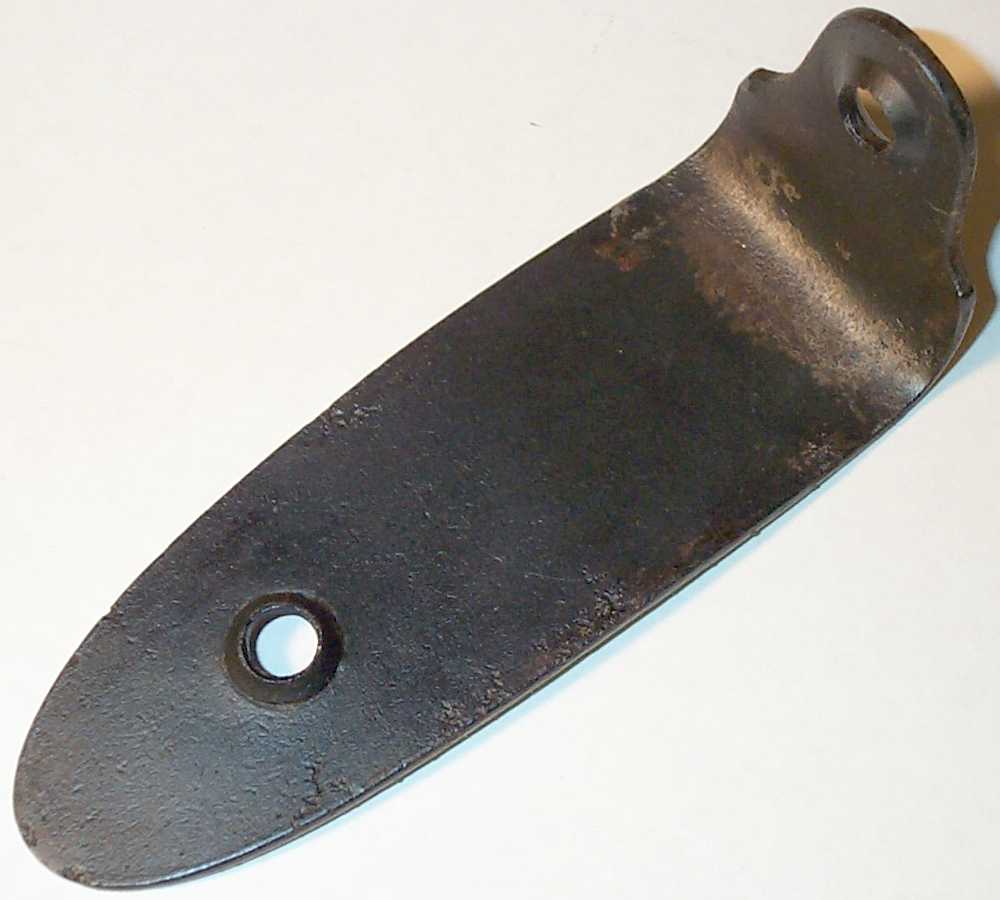

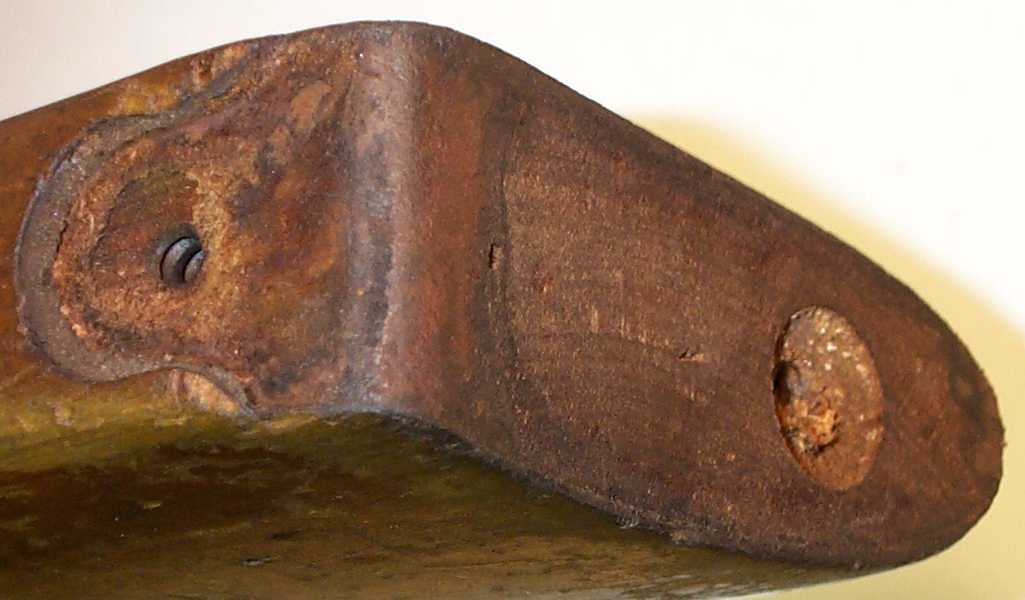

Pre and post war buttplate with machined countersink at screw holes Also used on 1954 and 1955 Polish and all other Eastern European production		War time buttplate with stamped countersink at screw holes Also used on 1951 to 1953 Polish M44 production

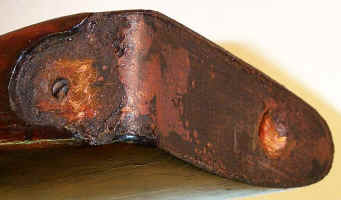

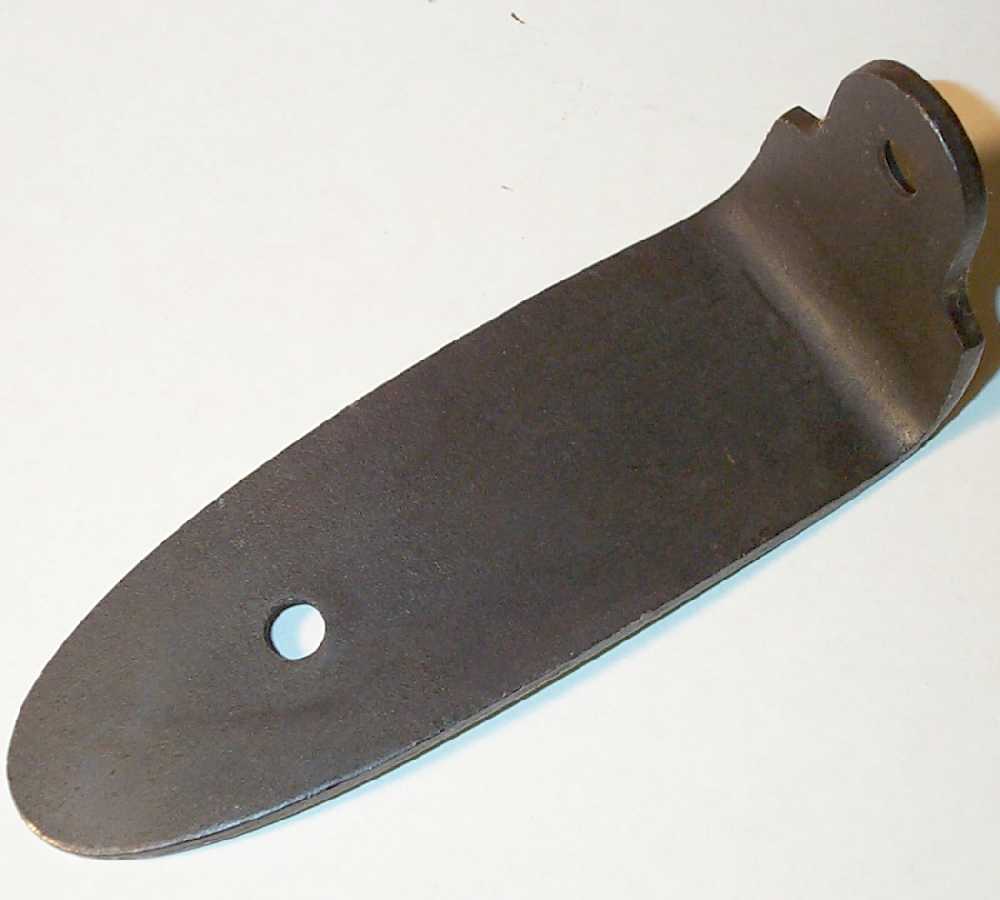

No countersink for pre/post war buttplate		Original countersink for war time buttplate

Rough countersink for retrofit of war time buttplate

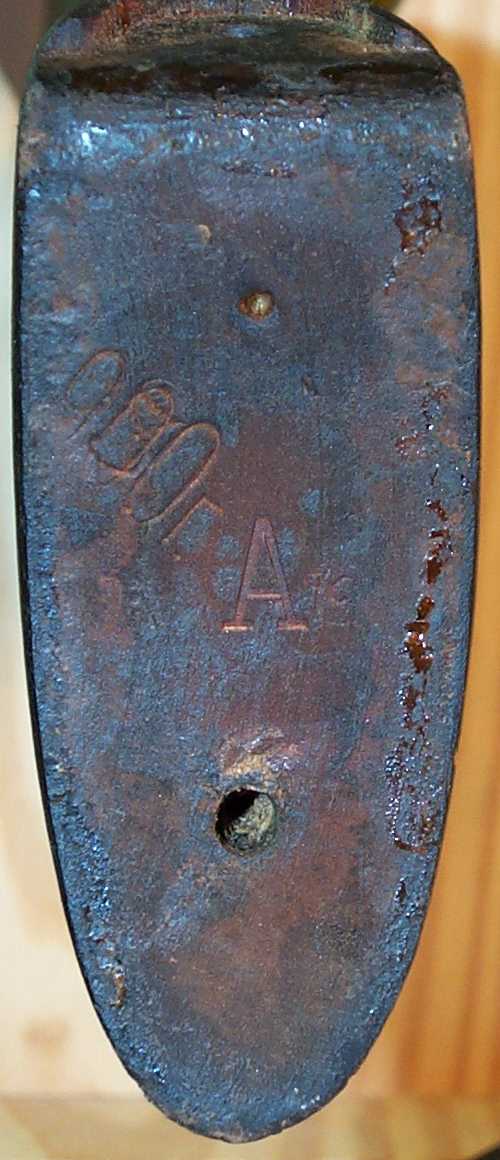

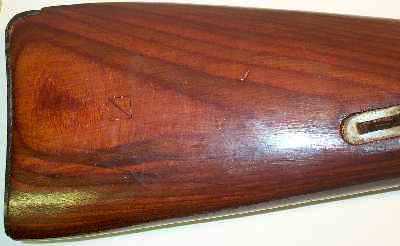

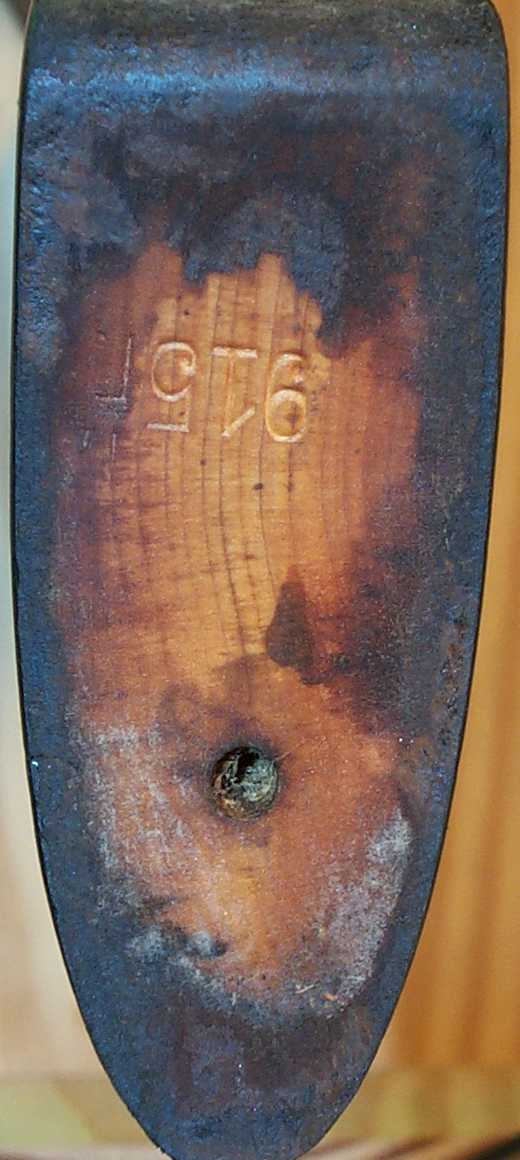

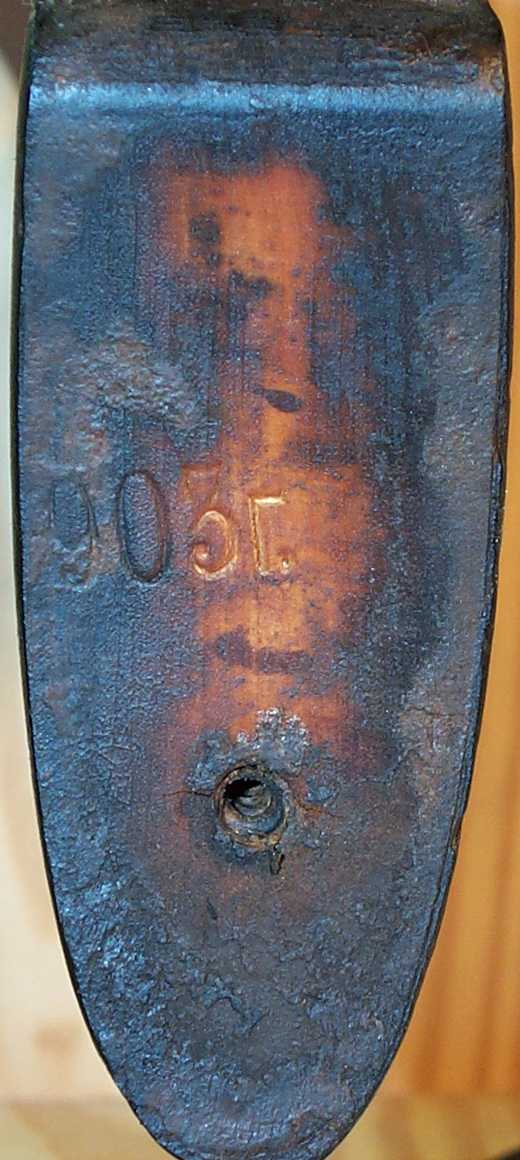

Stocks dated under buttplate Meaning of "A" in first picture is unknown
Soviet laminated stock This allows the use of otherwise unsuitable wood and is a stronger stock

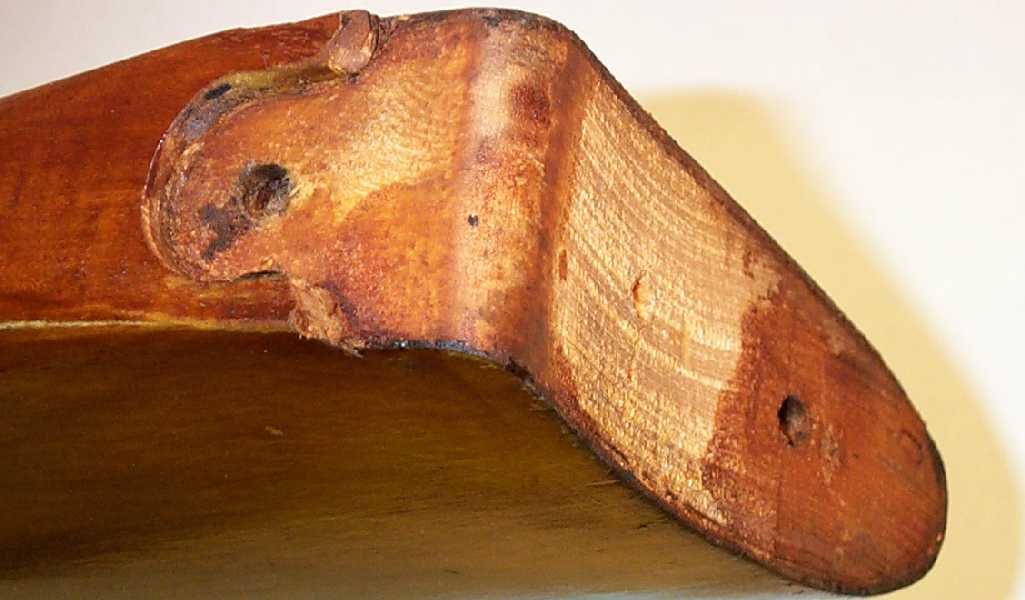

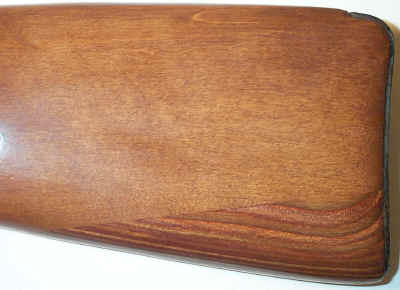

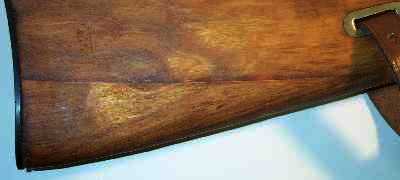

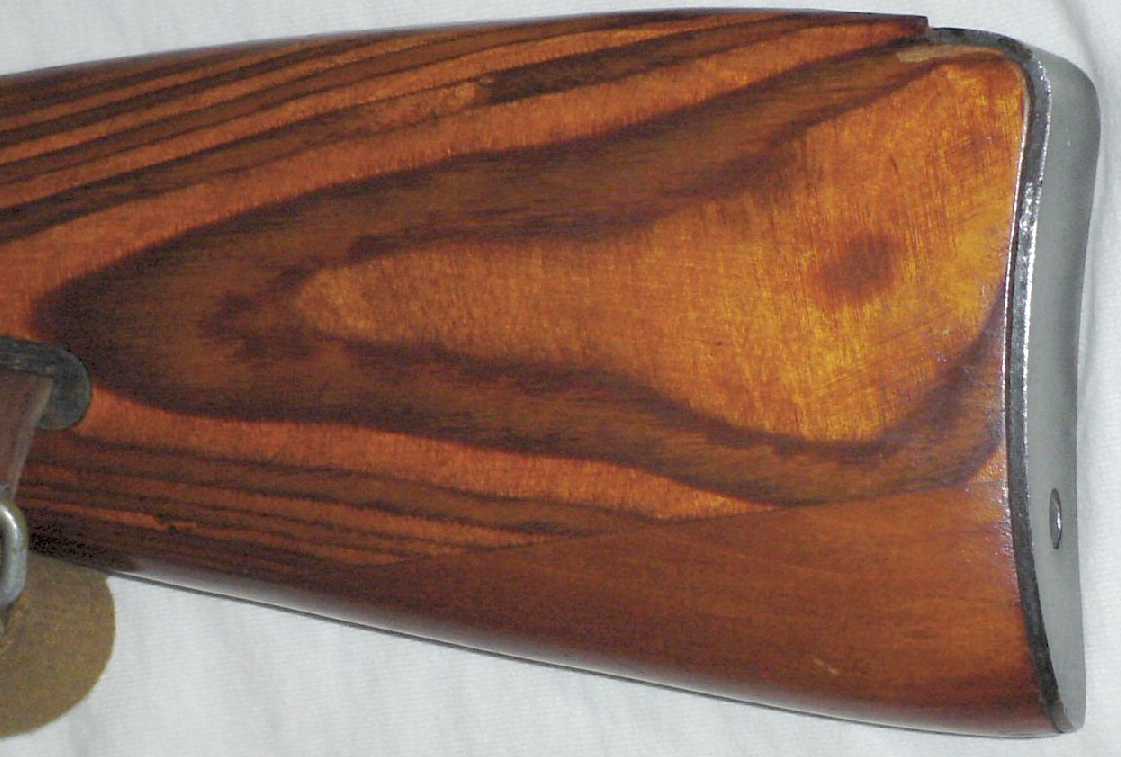

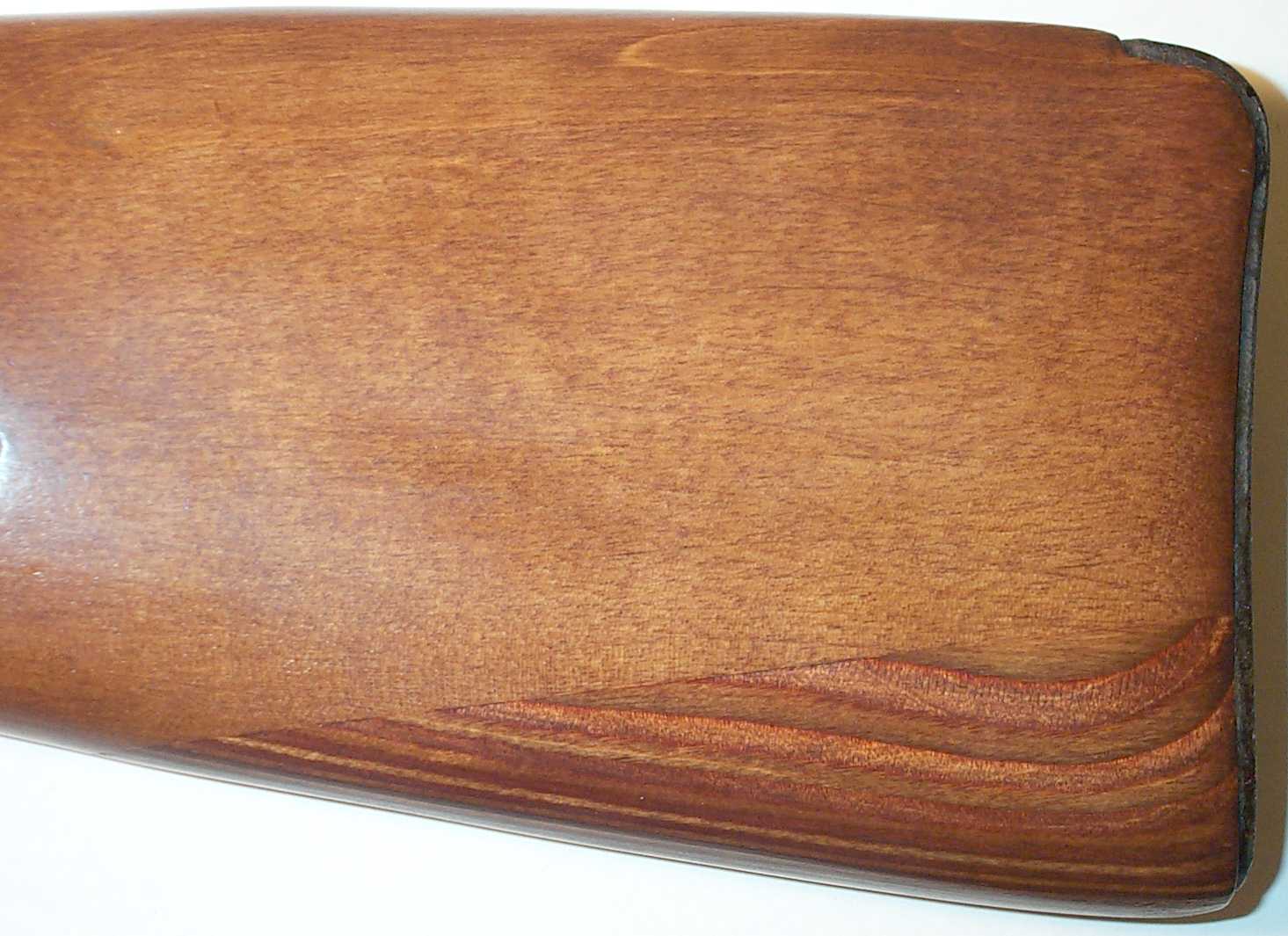

Soviet toe splice This was done to allow the use of smaller blanks for stocks

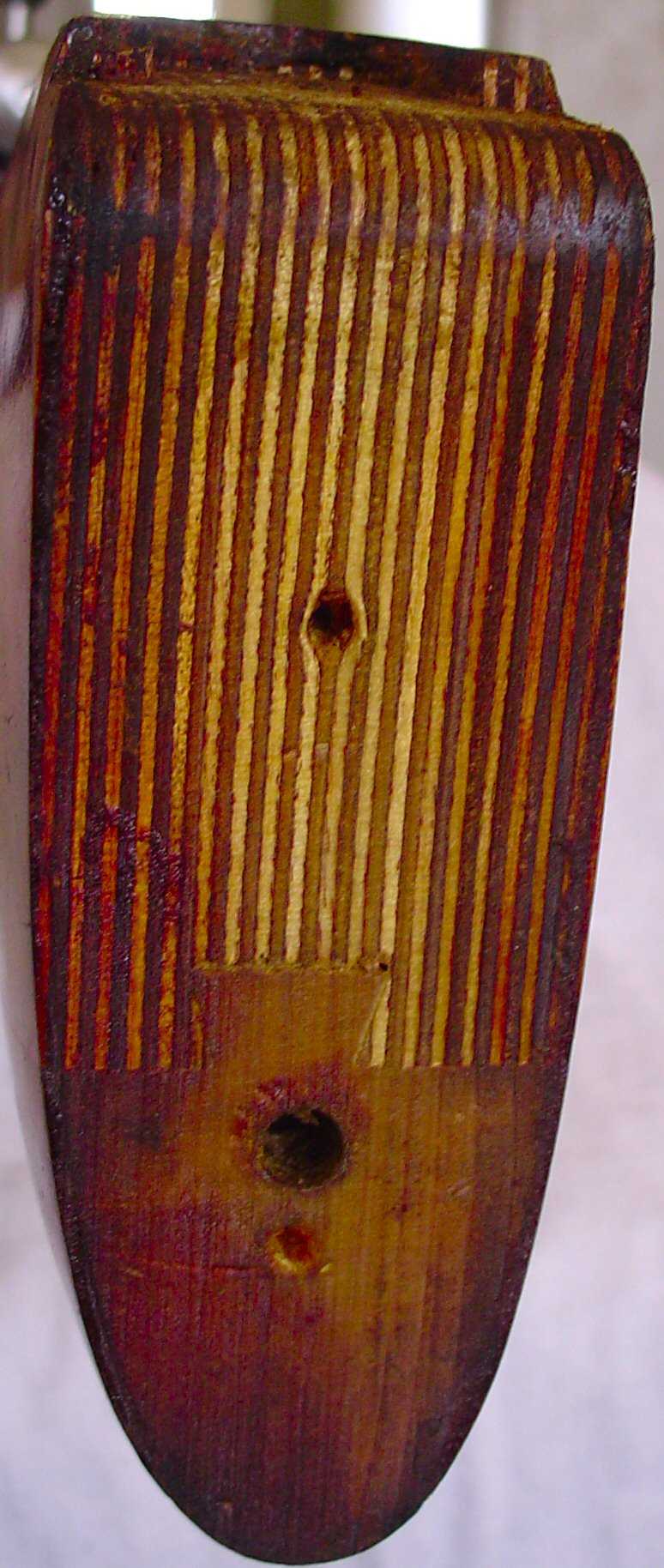

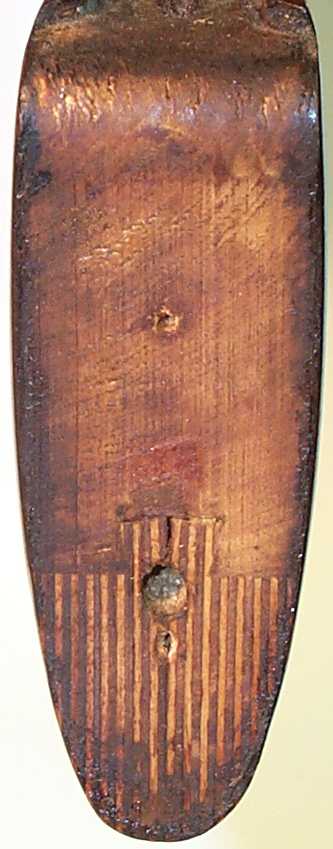

Hardwood stock with laminated toe splice Uncommon
Laminated stock with hardwood toe splice Uncommon courtesy of "rocker98"

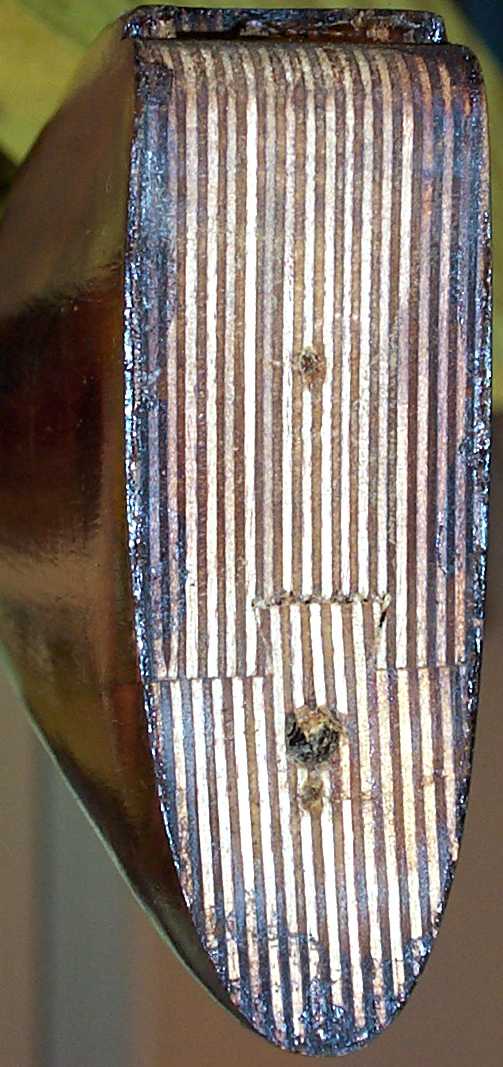

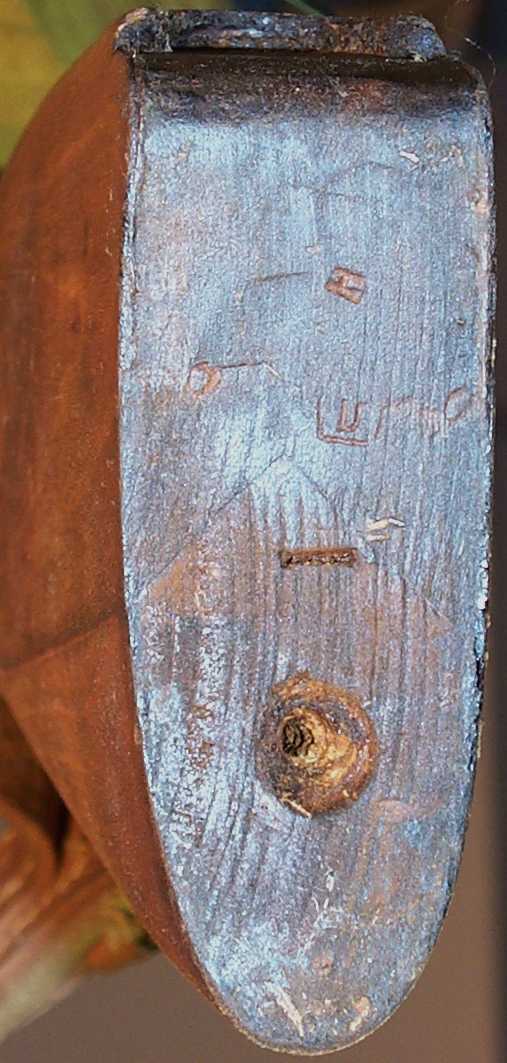

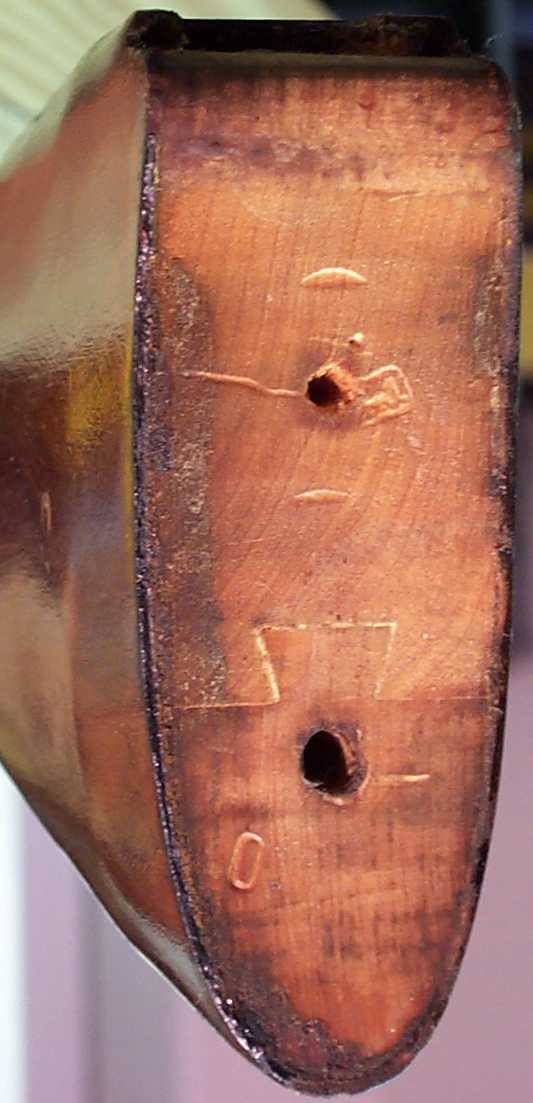

Hardwood dovetail joint	Laminated dovetail joint	Hardwood single V joint

Hardwood multiple V joint Click on the pictures for a larger version The joint is just above the butt plate screw hole		View from the bottom of the stock
		Illustration of the type of joint

Soviet Stock Shims

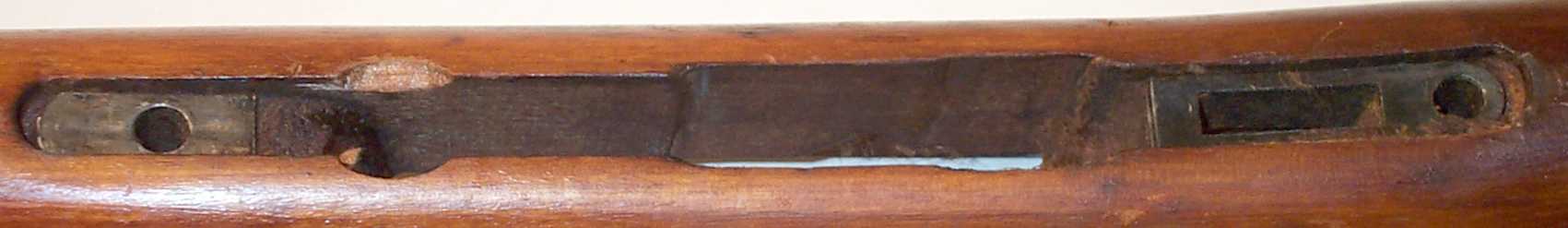

Although shims are typically associated with Finland, they were occasionally used by the Soviets

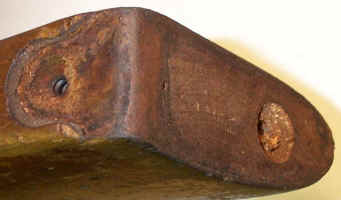

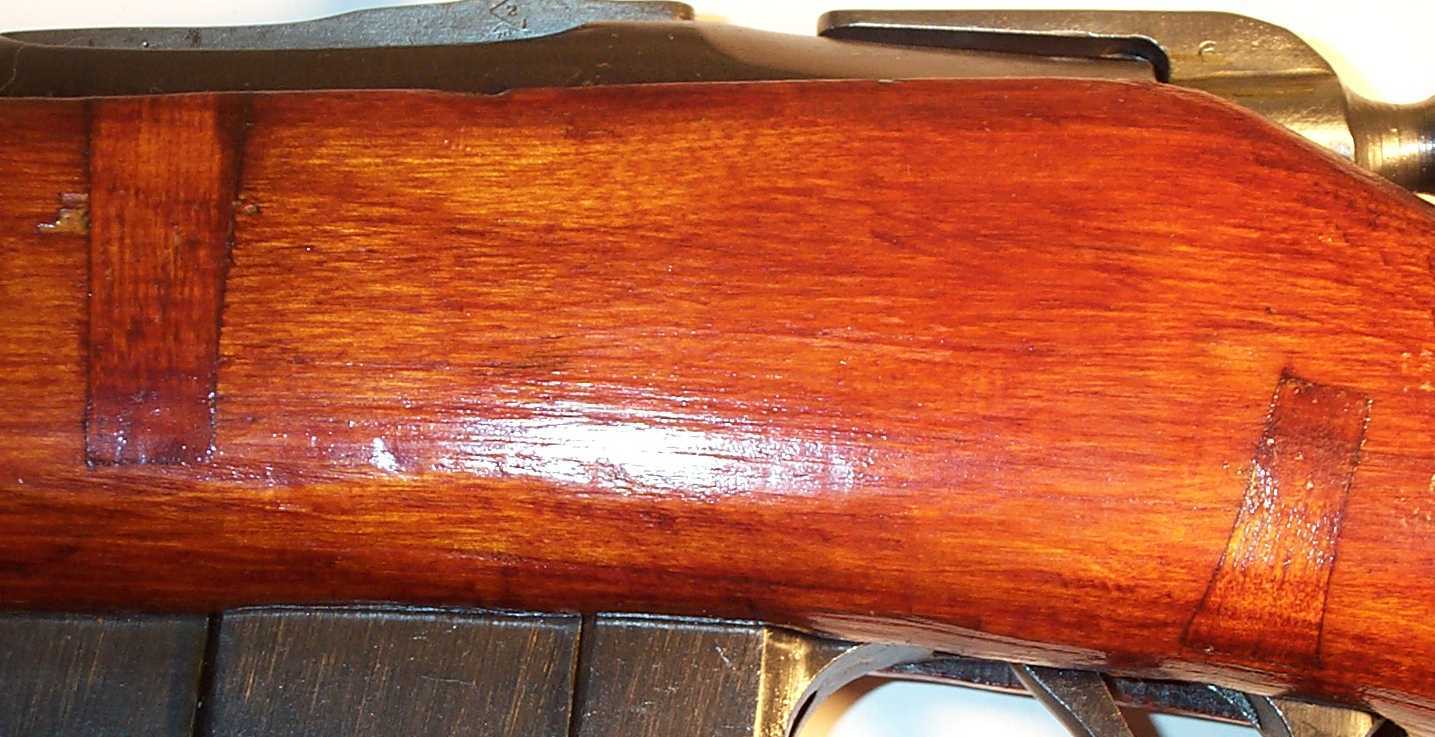

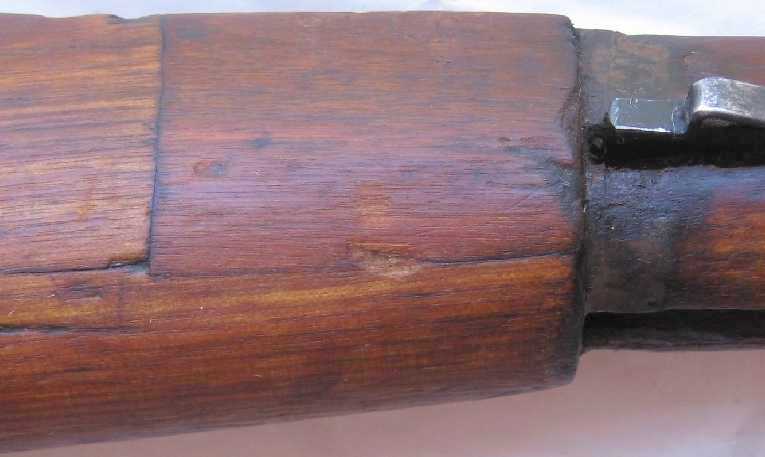

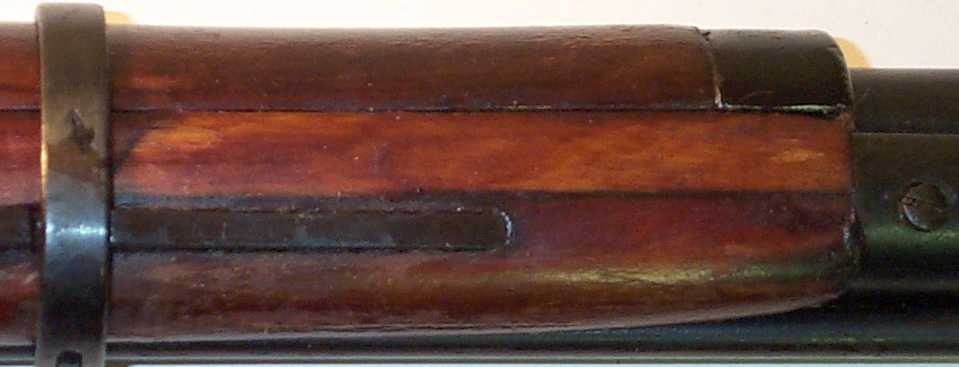

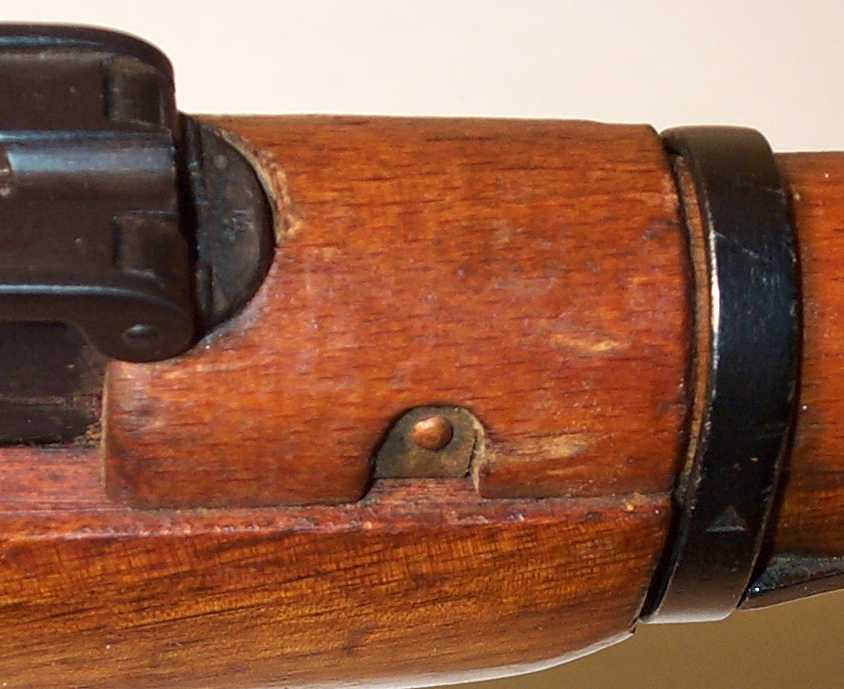

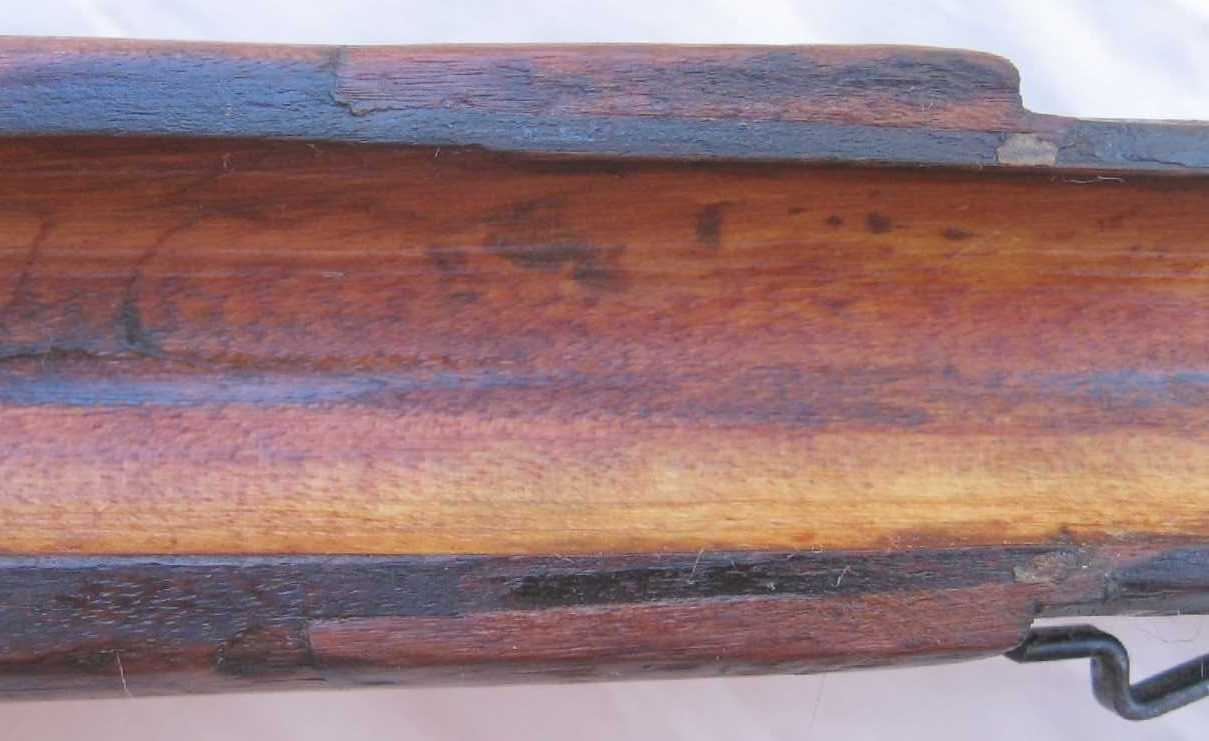

Russian/Soviet Stock Repairs Most would have been done during rearsenal, but the knothole plug was probably done when manufactured

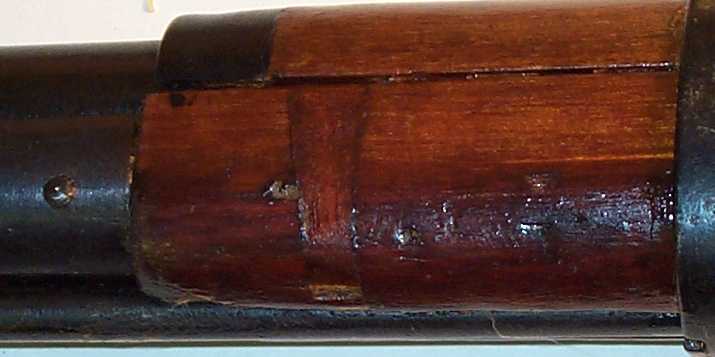

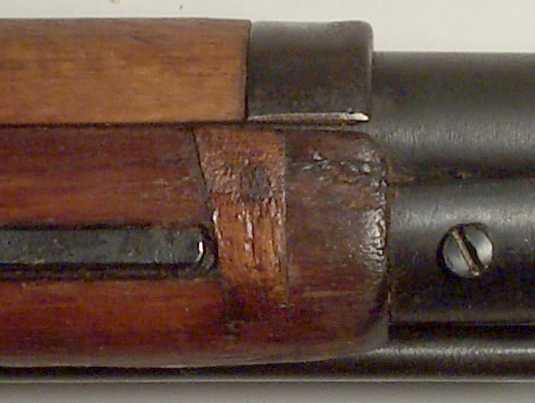

Forend	Nose cap	Nose cap	Nose cap

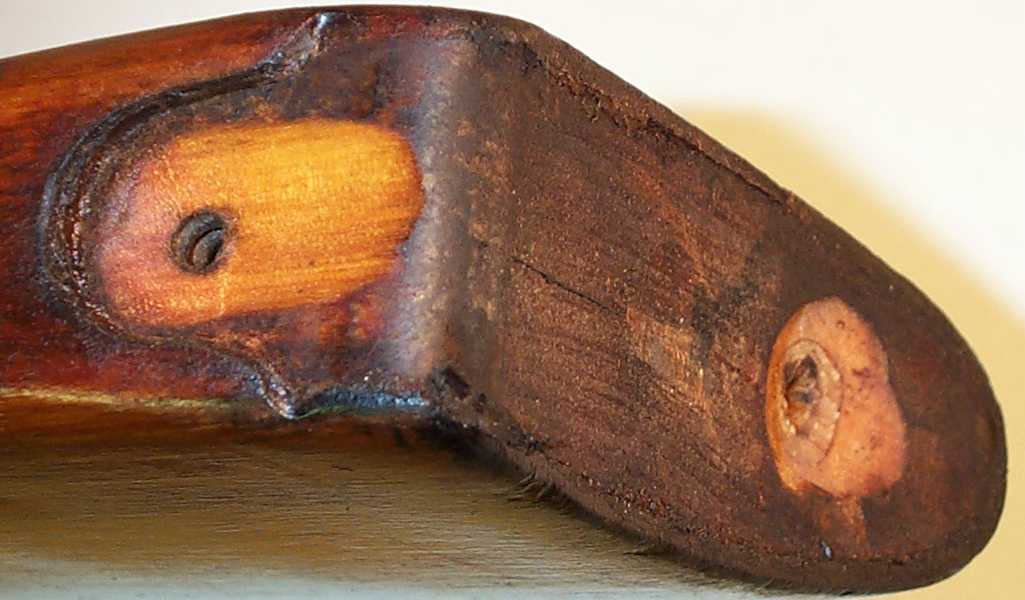

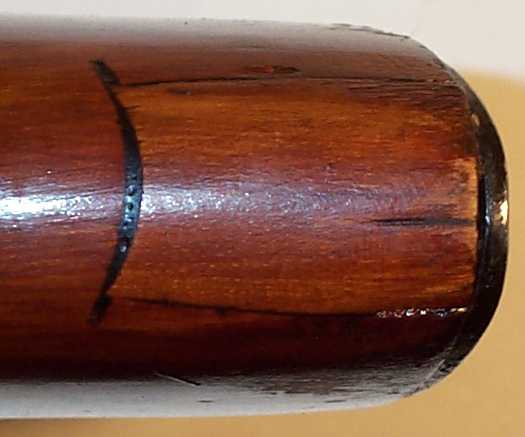

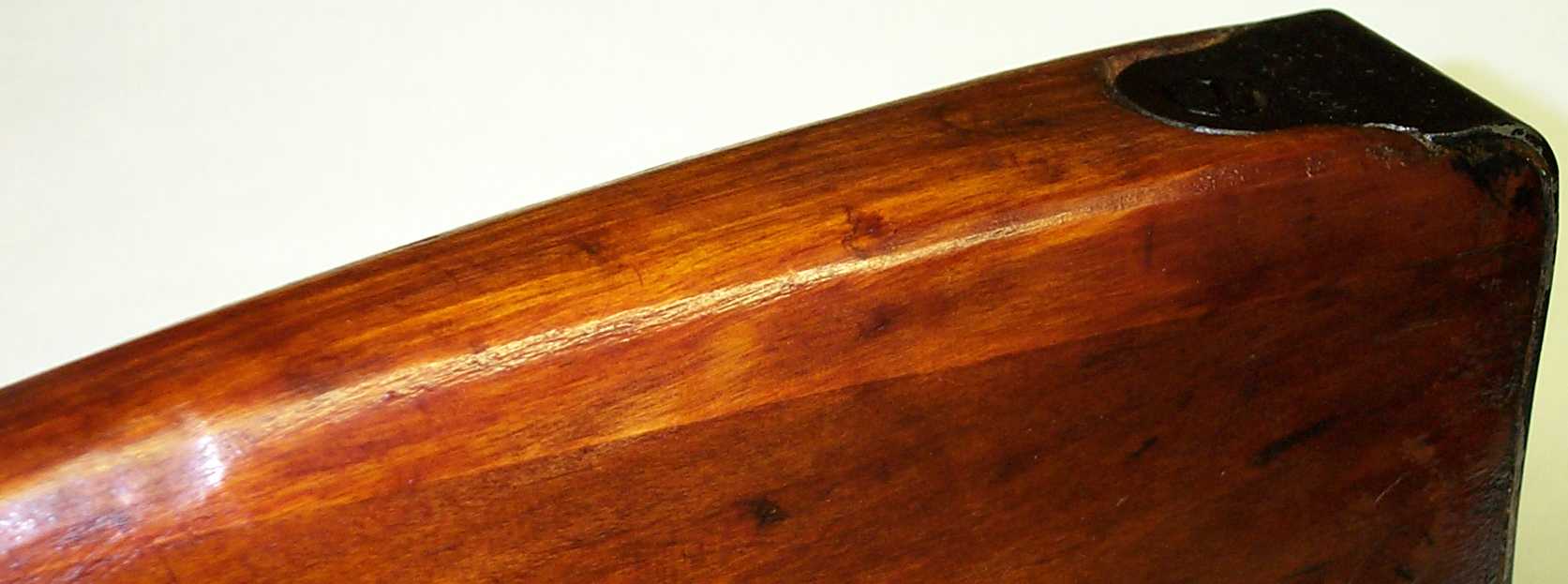

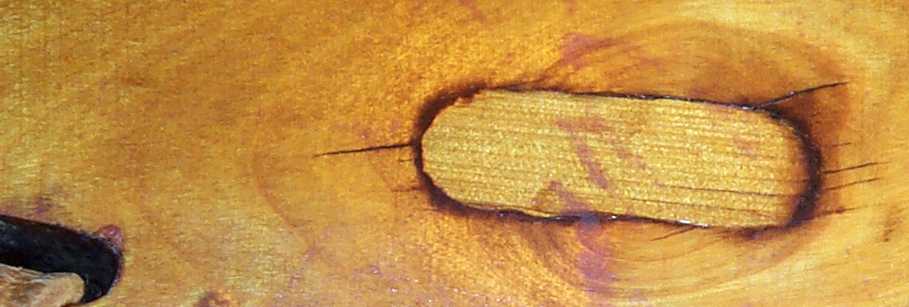

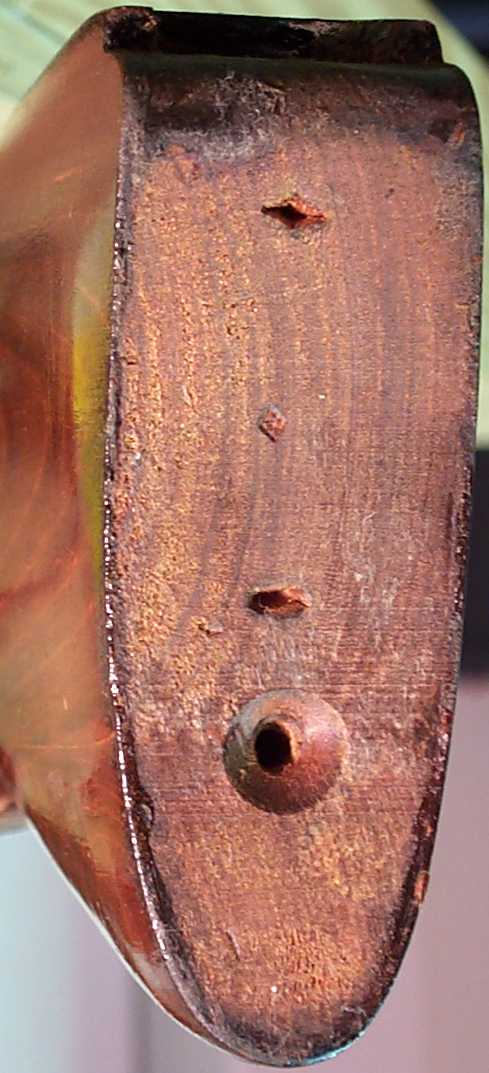

Heel	Toe	Stock	Knothole plug in butt

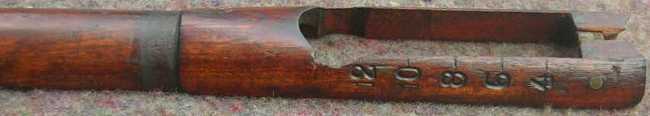

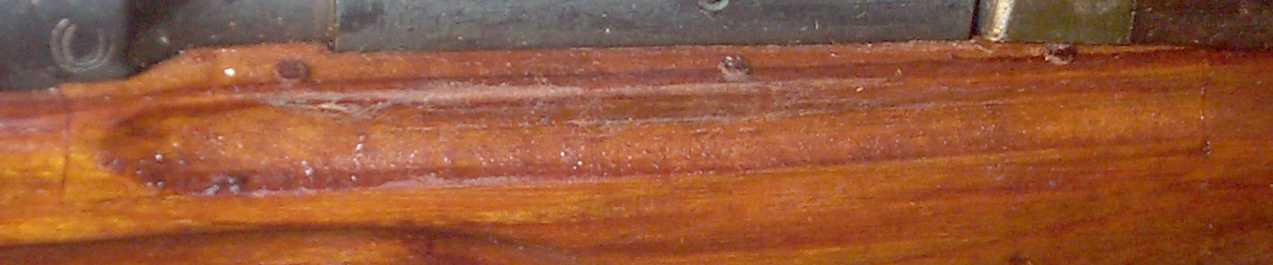

M44 bayonet groove

Rear barrel bands courtesy of JMKDEVCO

Soviet splice (uncommon) Known on M91/30s (shown) and M44s

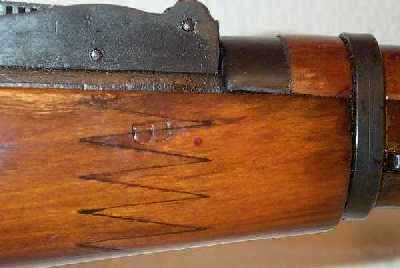

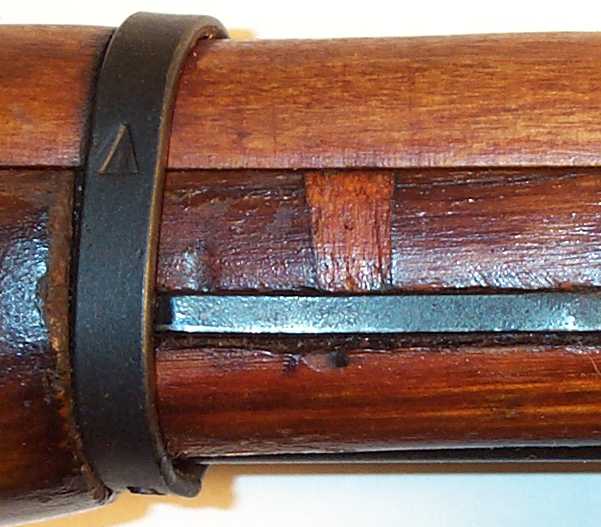

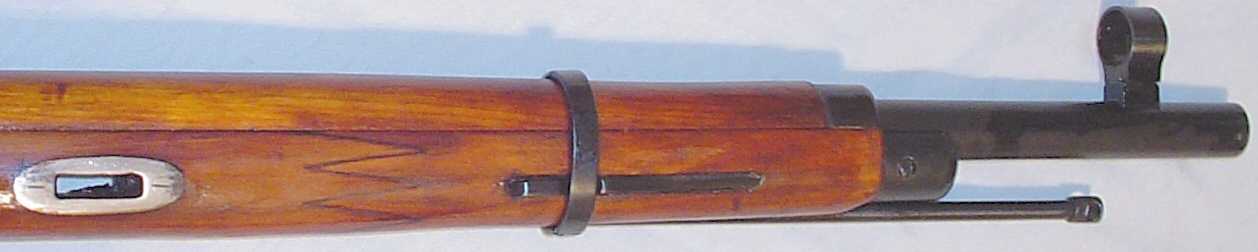

Soviet splice in fore end of M91/30 (uncommon) courtesy of rocker98

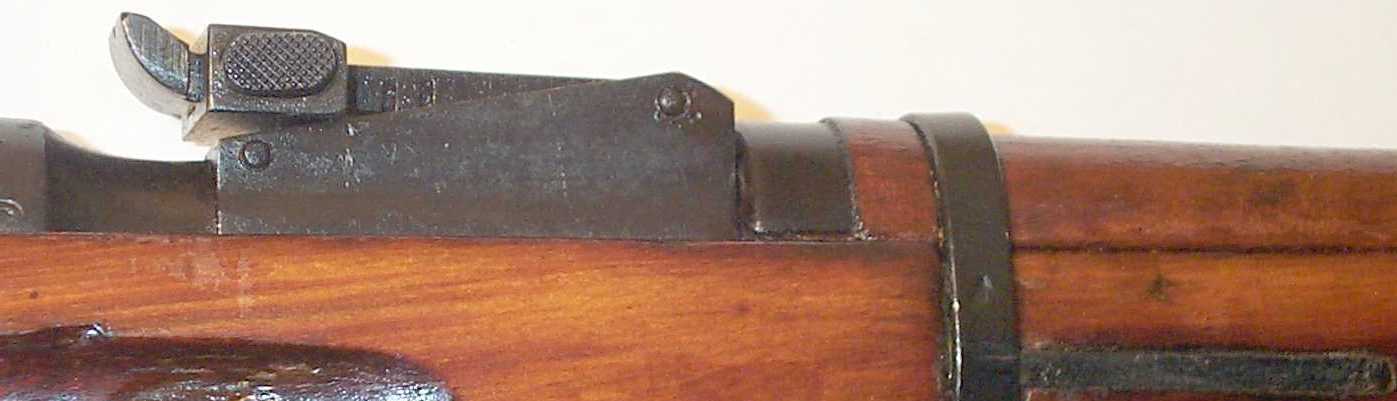

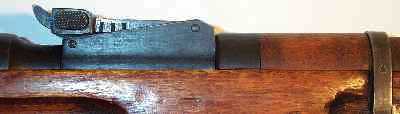

M38 (early stock) Note that the barrel band shoulder is closer to the rear sight base than the two carbines below. This stock was only in production for a short time in 1939 before it was redesigned and the barrel band shoulder was moved forward to the same position (relative to the buttplate) as M91 and M91/30 stocks.
M38 (no bayonet groove)
M44 (bayonet groove)

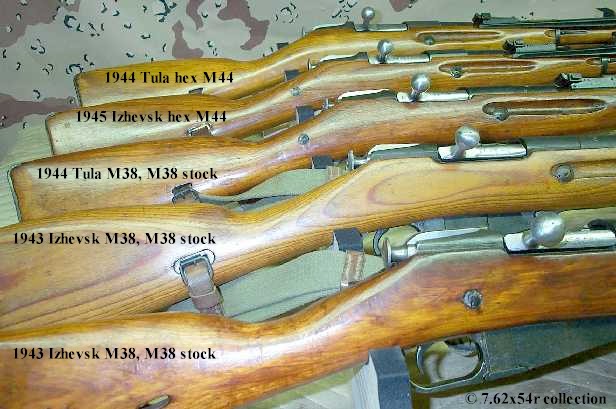

Stock reinforcing bolts

1. Hardwood stock without reinforcing bolt at wrist, typical

2. Laminated stock with reinforcing bolt at wrist, typical

3. Hardwood stock with reinforcing bolt at wrist, atypical

4. Laminated stock without reinforcing bolt at wrist, atypical

5. Hardwood stock with reinforcing bolt near trigger, atypical for laminated and hardwood stock types

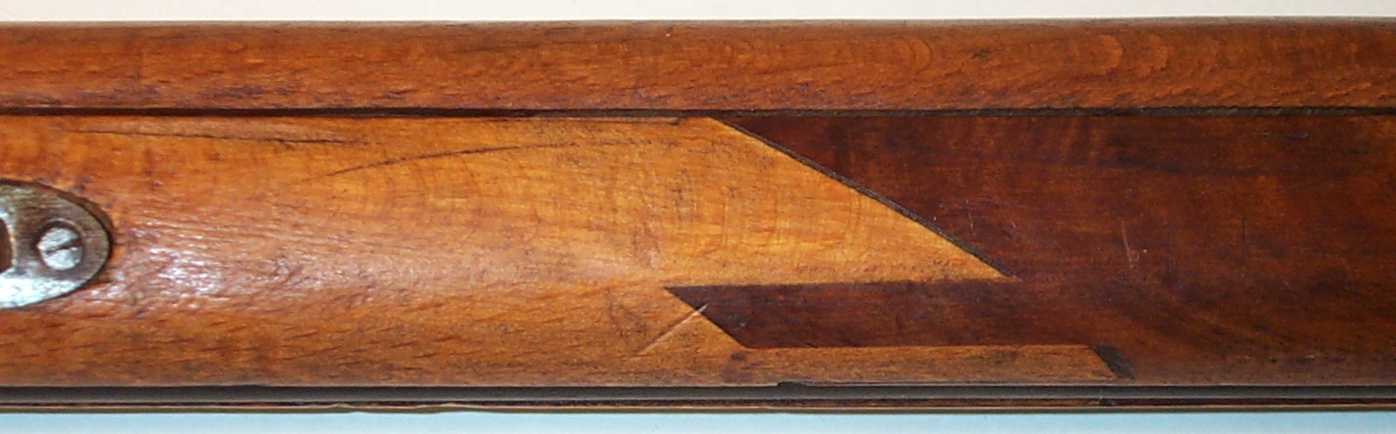

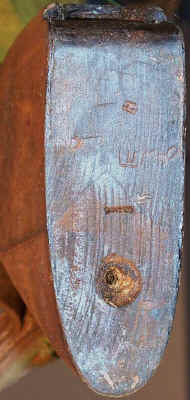

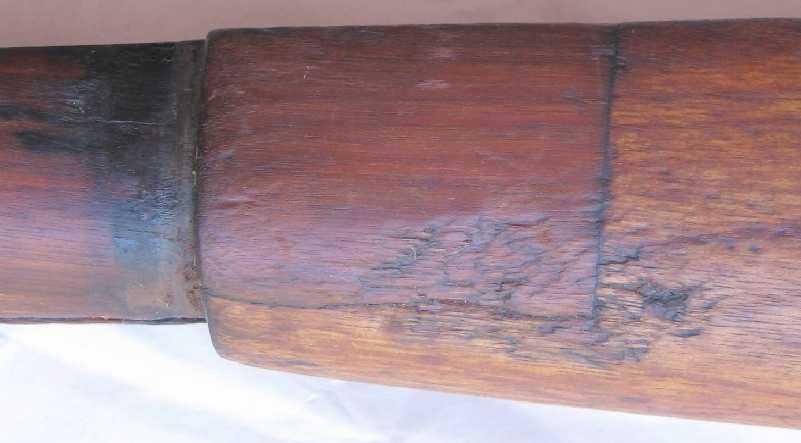

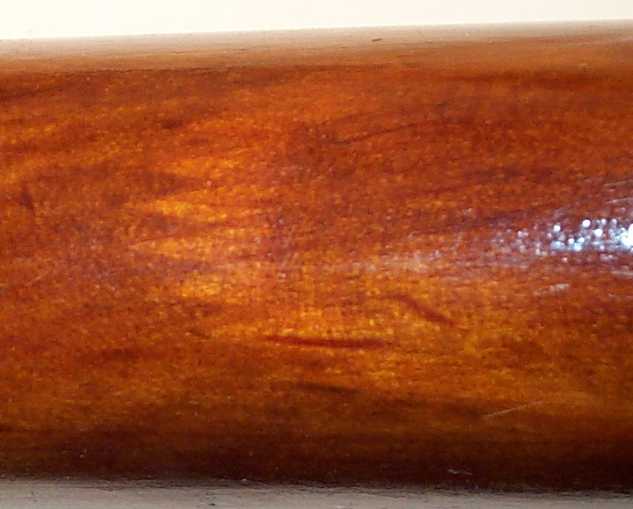

Romanian splice

(left side)
