Mosin Nagant Receivers and Miscellaneous Parts All content copyright © 7.62x54r.net Features Index |

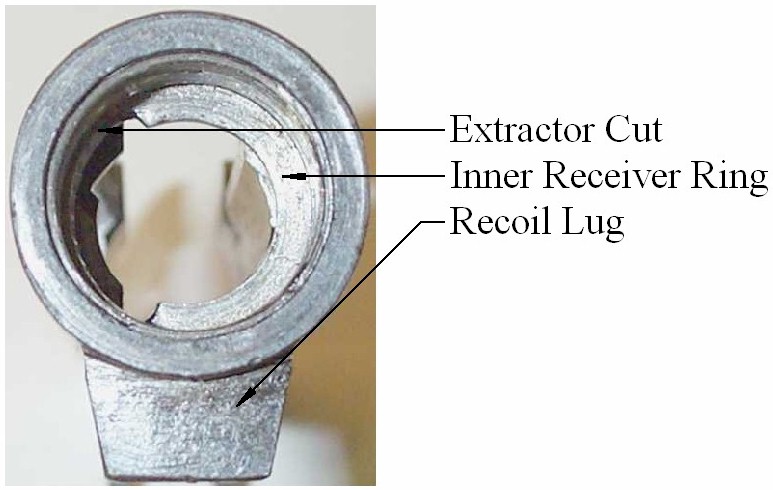

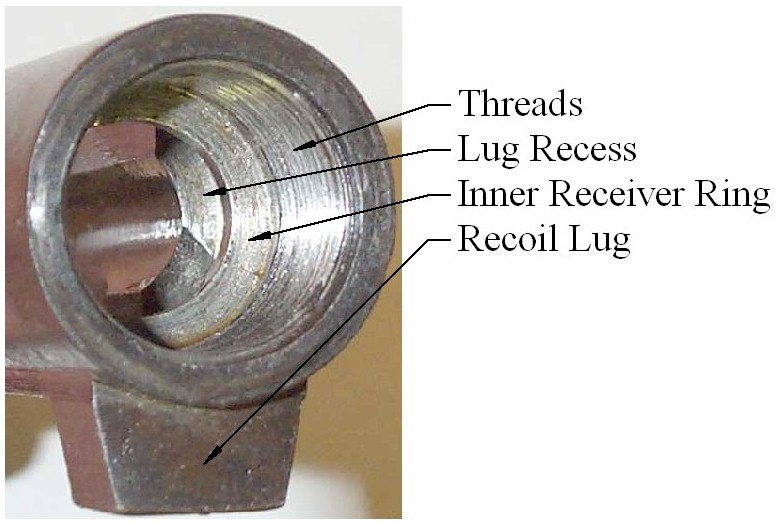

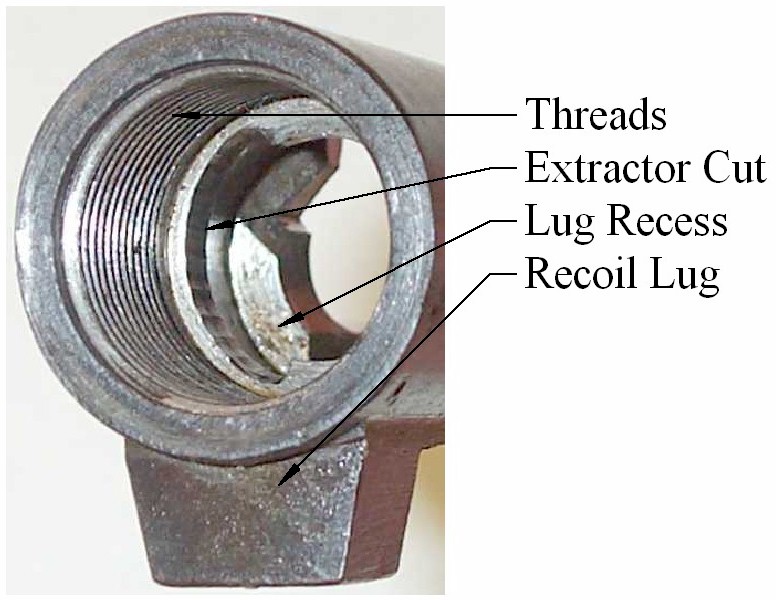

| Receivers | |
| Hex | |
| Round Low Wall |
|
| Round High Wall |
 |
 |
 |
 |
 |

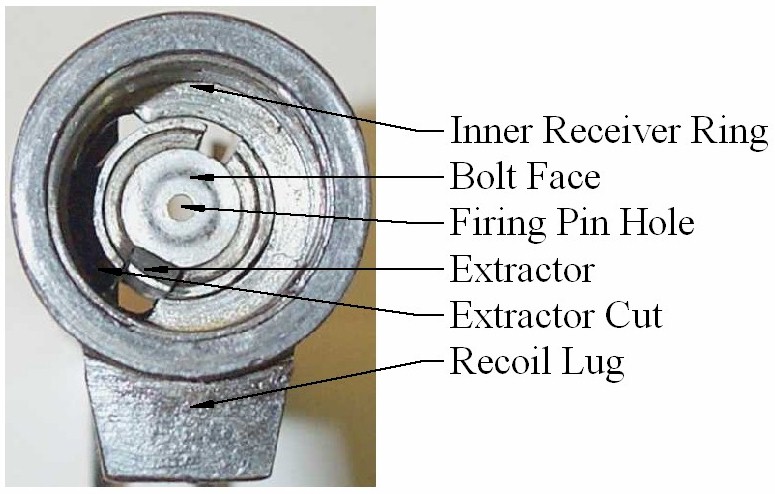

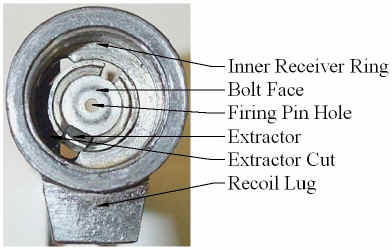

For a detailed comparison of secondary receiver features please see the Mosin Nagant Rifle Receiver Variations page. |
|
| Miscellaneous Parts | |||||

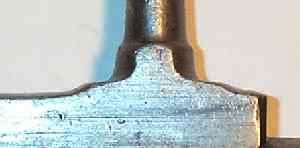

| Early Bolt Body | Late Bolt Body | ||||
 |
 |
||||

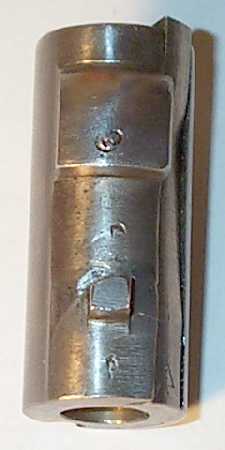

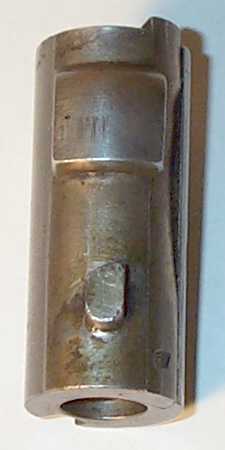

| Early Bolt Head long curved bolt body interface lug |

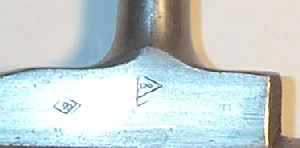

Late Bolt Head short square bolt body interface lug |
||||
 |
 |
||||
| Early Cocking Knob larger diameter with relief on bottom |
Late Cocking Knob smaller diameter with no relief on bottom |
||||
 |
 |
||||

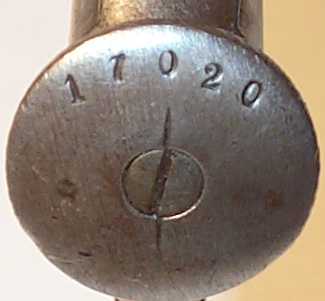

| Early cocking knob with serial number |  |
||||

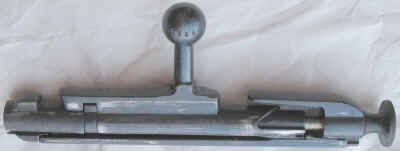

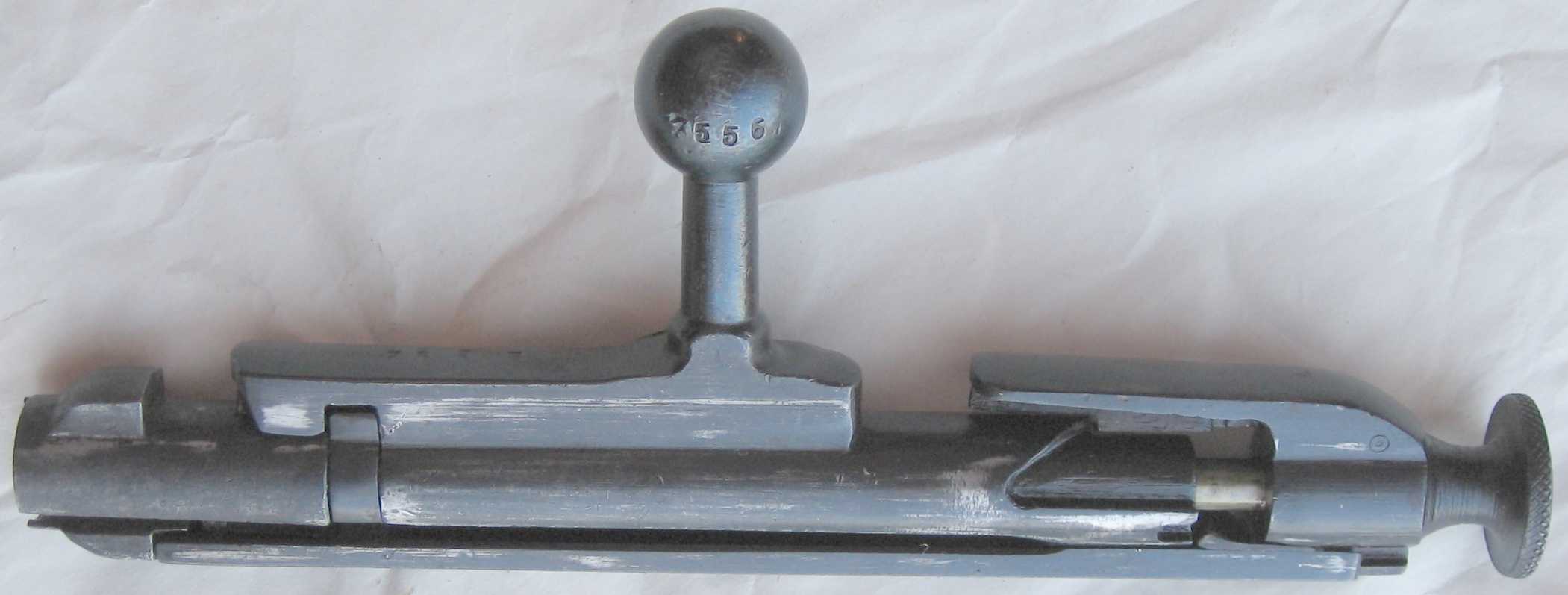

| Finnish blued bolt (picture courtesy of JMKDEVCO) |
 |
||||

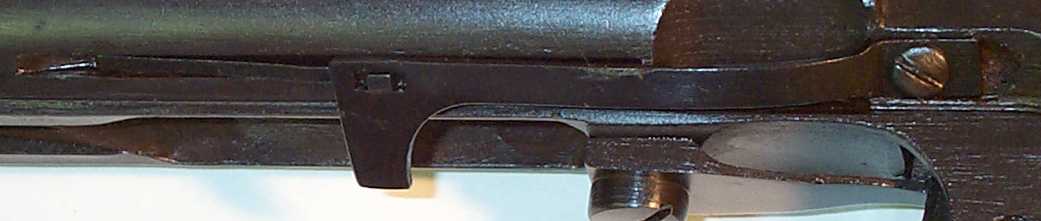

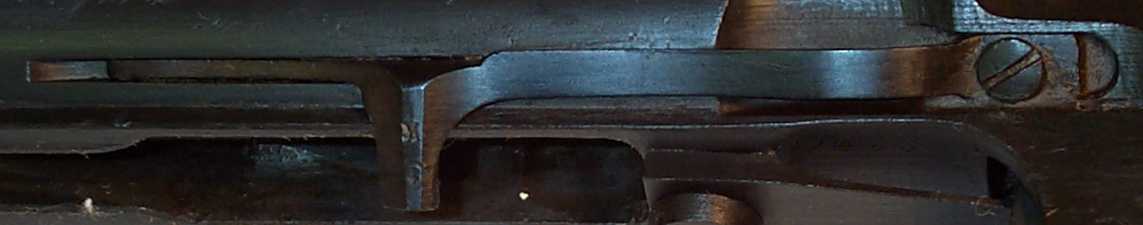

| Early one piece interrupter/ejector | Late two piece interrupter/ejector | ||||
 |
 |
||||

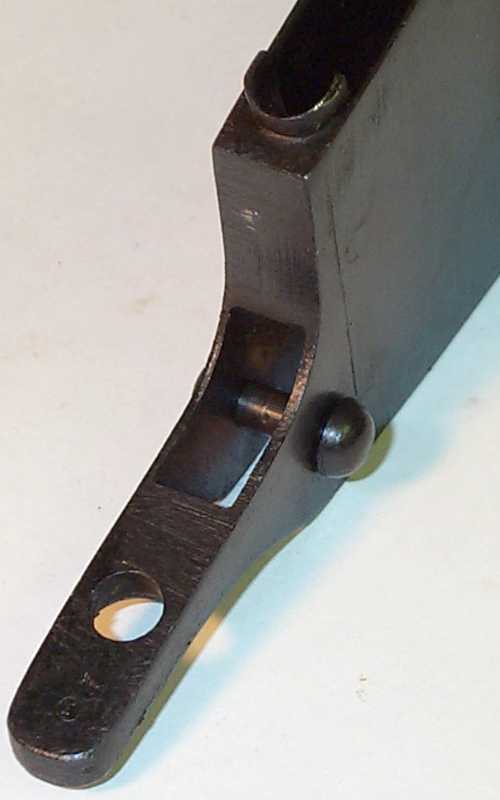

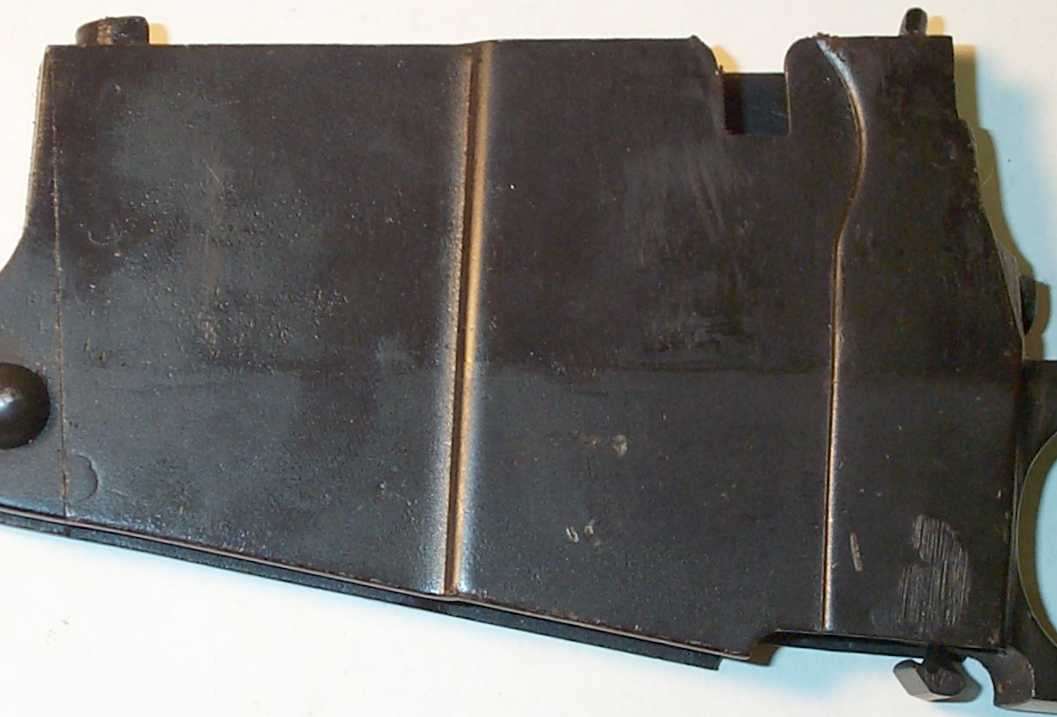

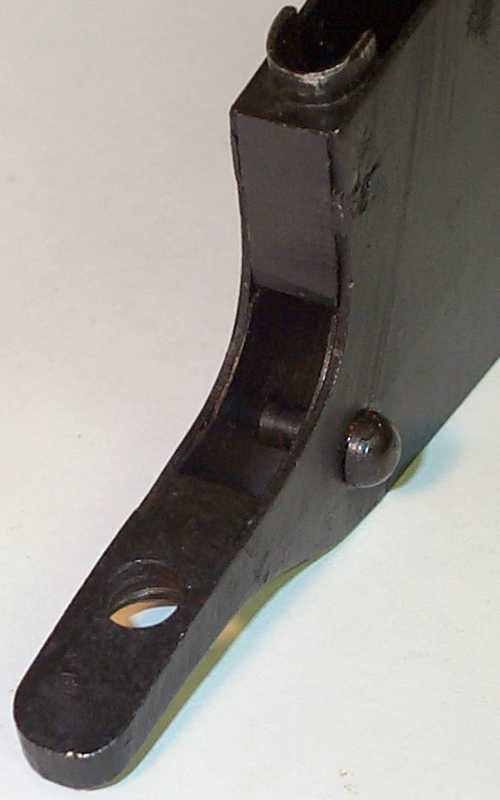

| Early (except Tula) magazine

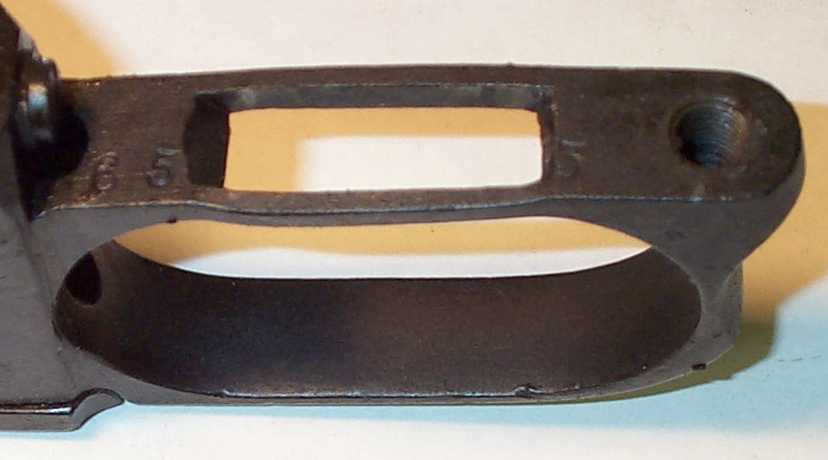

body/trigger guard one piece milled tang and feed ramp "small" trigger hole with no slope front and minimal slope rear floorplate latch screw hole does not penetrate to inside |

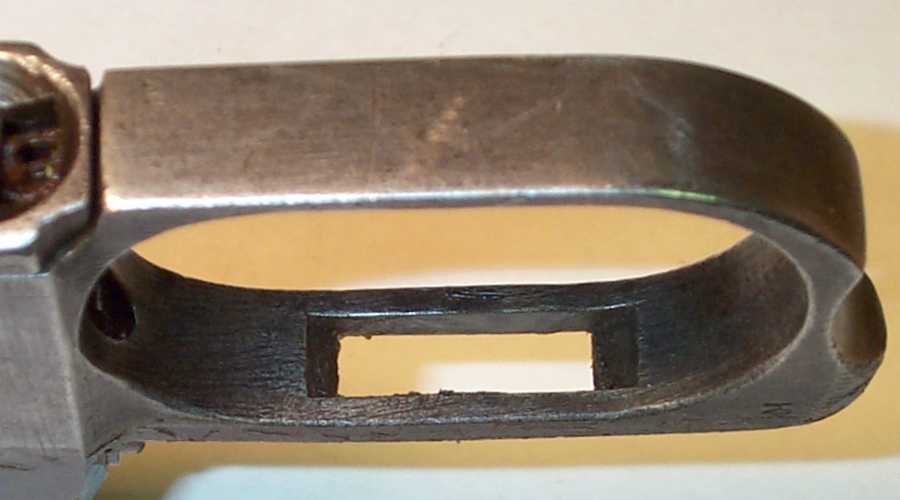

Late magazine body/trigger guard two piece welded tang and feed ramp "large" trigger hole with slope front and dramatic slope rear floorplate latch screw hole penetrates to inside |
||||
 |
 |
||||
 |
 |
||||
| Early Tula magazine body/trigger guard "medium" trigger hole with slope front and minimal slope rear |

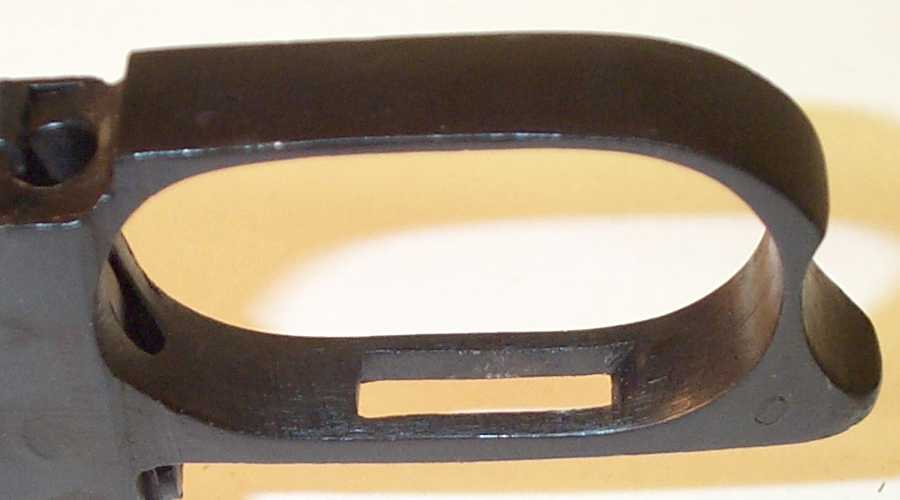

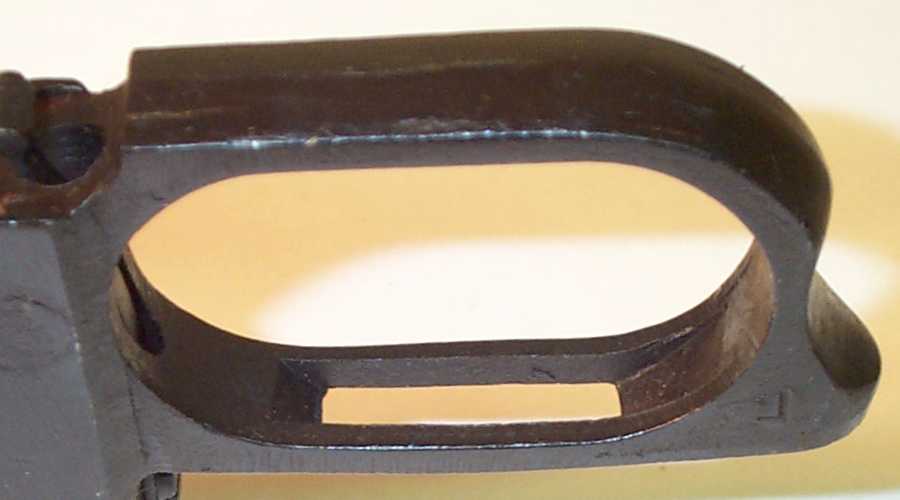

Finnish modified trigger hole for M27
type trigger widened and lengthened with reverse slope at front |
||||
 |
 |
||||

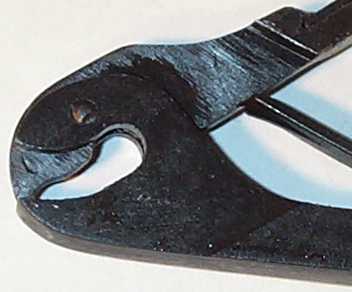

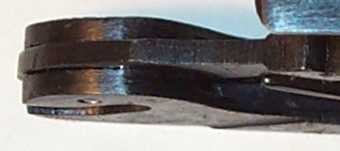

| Early floorplate/follower carrier assembly | Late floorplate/follower carrier assembly | ||||
 |
 |
||||
 |
 |
||||
| Early follower carrier spring | Late follower carrier spring | ||||
 |
 |
||||

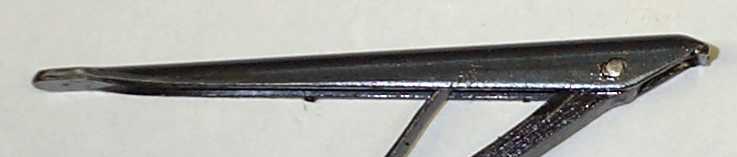

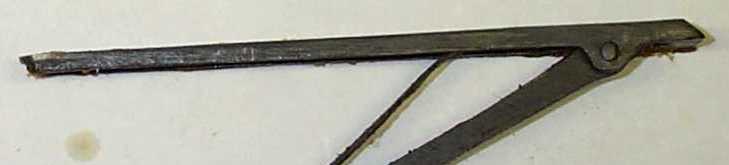

| Milled follower, typical | Stamped follower, produced briefly at Tula in early WWII | ||||
 |
 |
||||

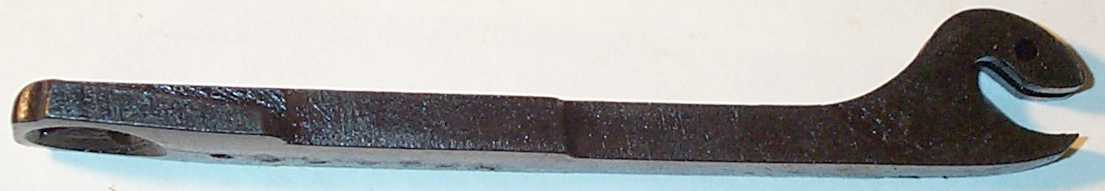

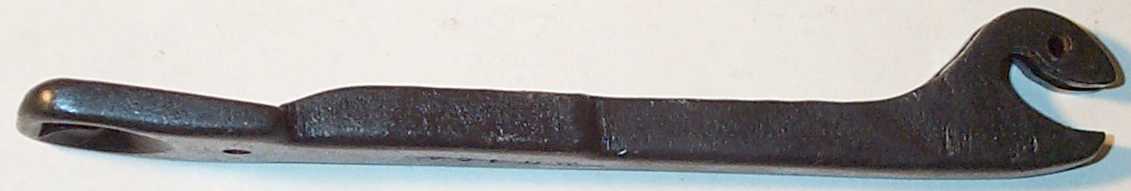

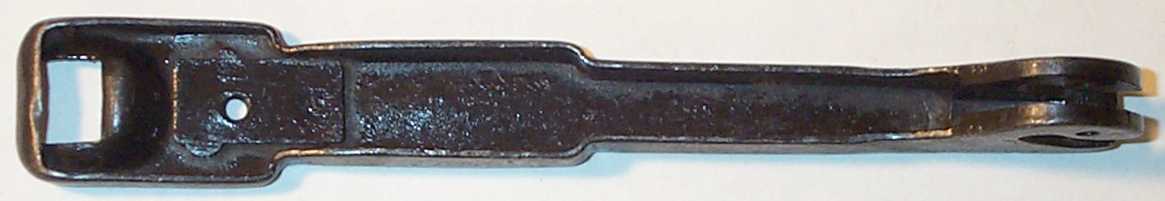

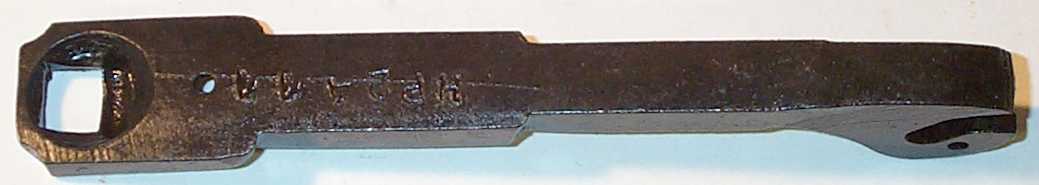

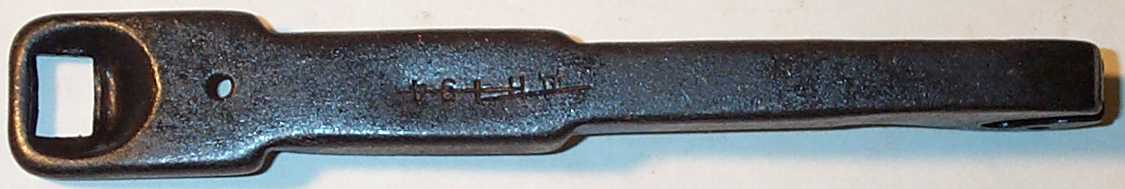

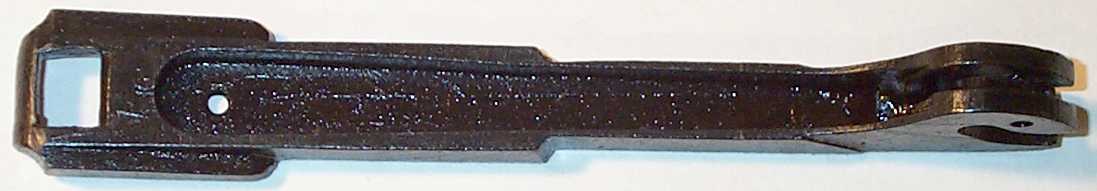

| Milled floorplate, typical | Stamped floorplate, produced briefly in WWII | ||||
 |
 |
||||
 |
 |
||||
 |
 |
||||

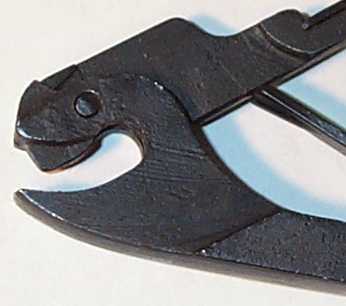

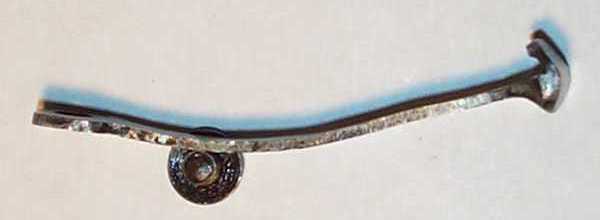

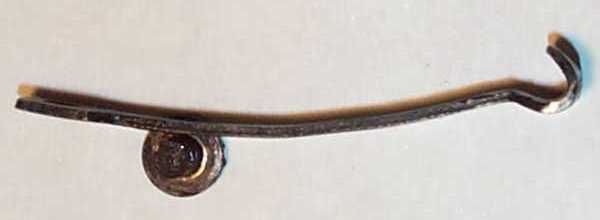

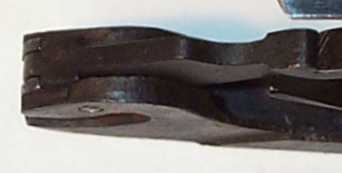

| Early floorplate latch | Late floorplate latch | ||||
 |
 |
||||

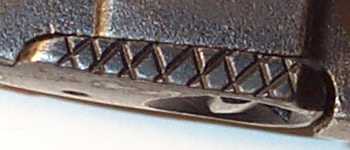

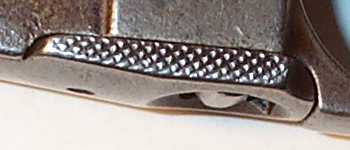

| Early (Chatellerault) checkered floorplate | Non-standard checkered floorplate | ||||
 |
 |
||||
| Typical magazine body | Finnish modified "HV" (jamb free) magazine body | ||||
 |
 |
||||
| Early Russian/Soviet Nose Cap squared off front end |
Late Soviet Nose Cap rounded front end |
||||
 |
 |
||||

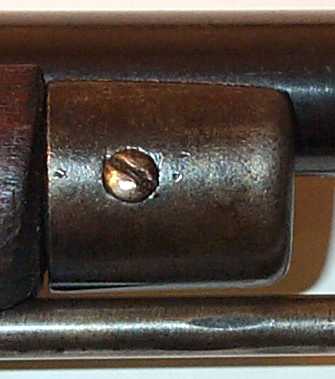

| Remington Nose Cap semi-rounded front end |
Remington Nose Cap "circle R" arsenal mark |
||||
 |
 |
||||

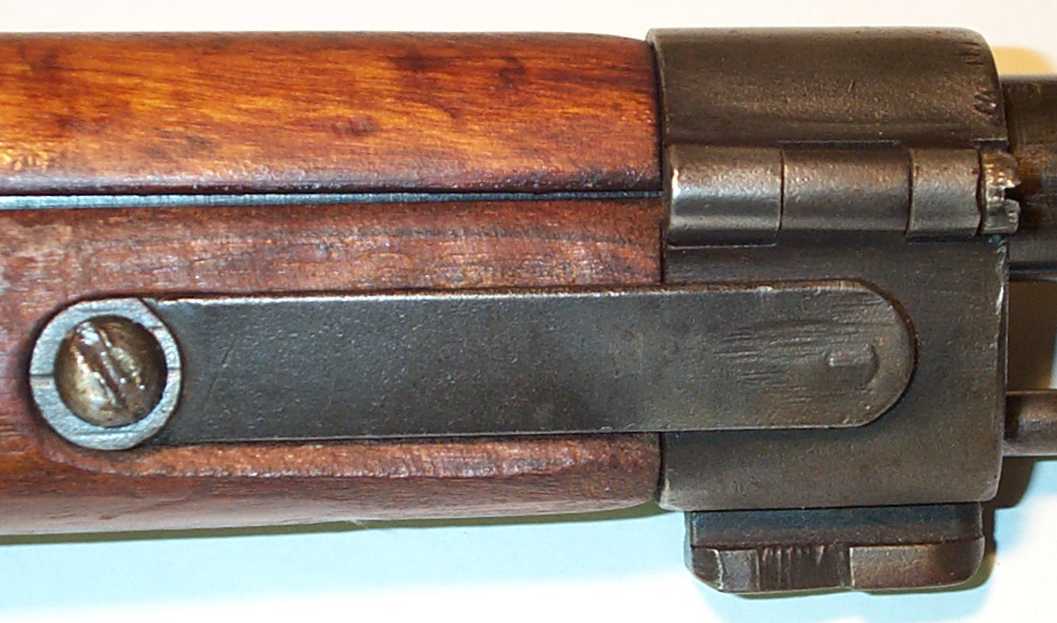

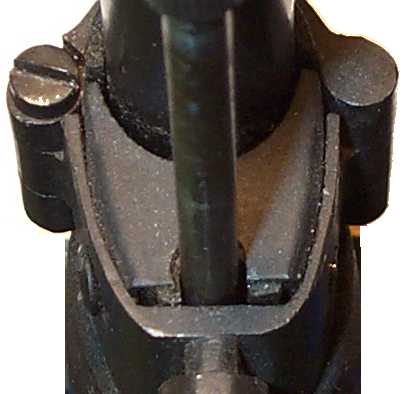

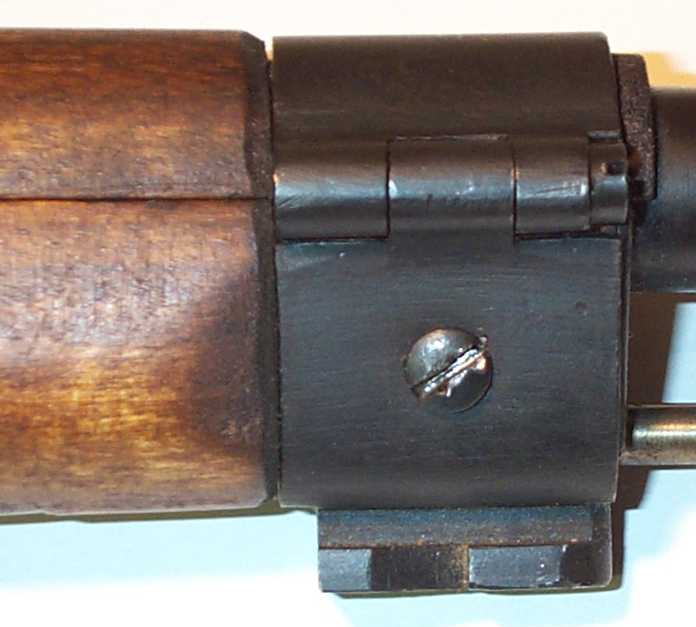

| Early M27 two piece nose cap | |||||
 |
 |
||||

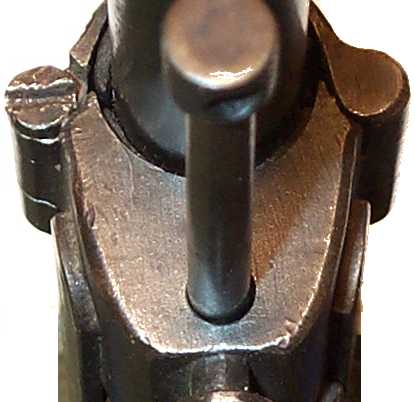

| Late M27 one piece nose cap with "popsicle sticks" reinforcement upgrade | |||||
 |
 |
||||
| Early M28 two piece nose cap | Late M28 and M28/30 one piece nose cap | ||||
 |
 |
||||
| M28/30 barrel sleeve, handgaurd removed | M28/30 cleaning rod retaining nut | ||||
 |
 |
||||
| M39 cleaning rod retaining nut, reversible front to back and top to bottom, loose fitting in stock | |||||
 |
 |
||||

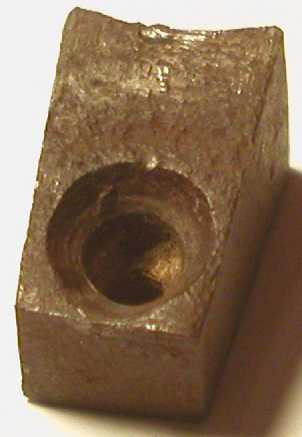

| M91, early M91/30 rod nut, tapered hole
in front only, hole in top threaded to receive nose cap screw to aid in removing nut |
Late M91/30, M38, M44 rod nut, tapered
hole in front only, hole in top threaded to receive nose cap screw to aid in removing nut |
||||
 |
 |
 |
 |
 |
 |
| M91 rod nut with no "stem" (picture courtesy "Three Js") |
 |

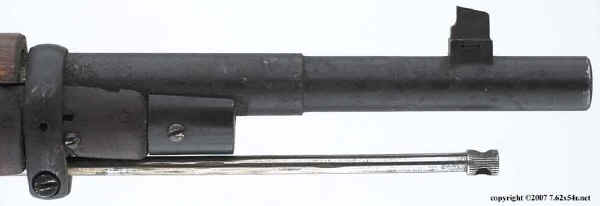

||||
| Finn Stepped Barrel, M24 or M91 | |||||
 |
|||||

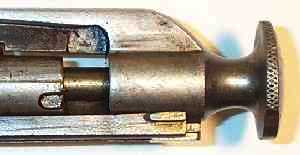

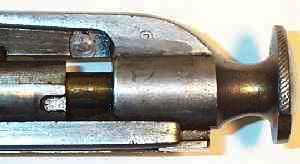

| M27 Bolt Connector Wings | M27 Bolt without Connector Wings | ||||
 |
 |
||||

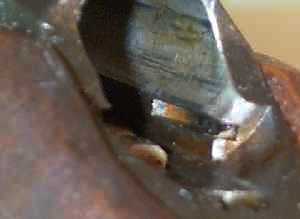

| M27 Receiver Wing Slots |  |
||||

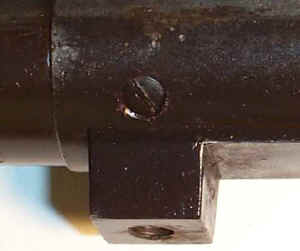

| Barrel thread plug Found on early receivers Used to add grease to the threads to facilitate barrel removal |
 |
||||
|
