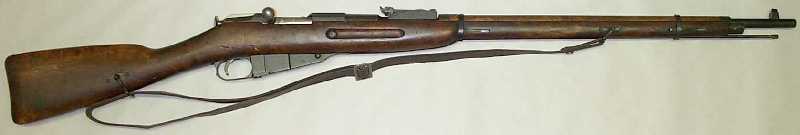

Finnish 1943 Tikkakoski M91/30

Finnish 1943 Tikkakoski M91/30
All content copyright © 7.62x54r.net
Return to 7.62x54r Ammunition Introduction


Barrel length	Pattern	Twist rate	Bore diameter	Groove diameter	Bore condition	Weight	Sight height above bore
28 3/4"	4 groove	1 in 9.5"	.300"	.311"	excellent	9.38 lbs.	.970"

Click on the data link for each type of ammo to access pictures, more physical and ballistic data, and ballistic graphs for this firearm and others.
Ref. #	Country	Ammo	Bullet			Muzzle Velocity (Feet per Second)					Muzzle Energy Foot Lbs.	Recoil
Ref. #	Country	Ammo	Weight Grains	Ballistic Coefficient	Sectional Density	Low	High	Avg.	Extreme Spread	Standard Deviation	Muzzle Energy Foot Lbs.	Velocity Feet/Second	Energy Foot Lbs.
006	Hungary DATA	1975 LC, SYT	181.7	0.442	0.269	2374	2527	2454	153	57	2433	9.4	12.8
007	Hungary DATA	1970 CW, SYT	182.6	0.556	0.272	2396	2497	2443	101	29	2426	9.3	12.7
008	Hungary DATA	1951 CW, YT	182.1	0.479	0.269	2574	2685	2638	111	33	2811	10.6	16.4
Abbreviations: CW = copper washed case, LC = lacquered case, YT = yellow tip, SYT = silver over yellow tip

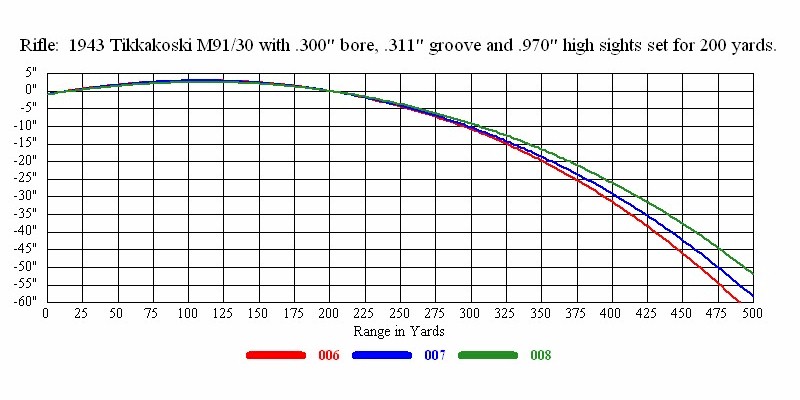

Trajectory Comparison Graph
This graph illustrates the trajectories of each type of ammo from this rifle using the reference numbers in the chart above.
